Name: LUMIPIX 12Q TOUR - LED Linear Batten 12px 25°
Brand: Prolights

532030500

12x 10W leds RGBW 5p+powerCON,

Beskrivelse Specification Brand information Downloads

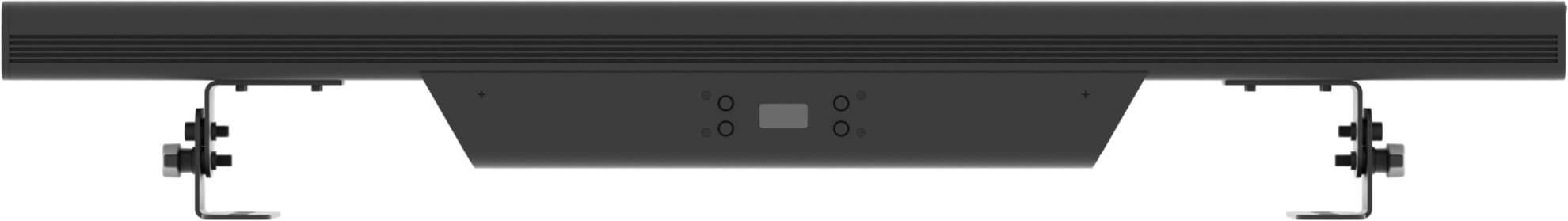

LumiPix 12QTour is a 100 cm linear LED batten designed for professional use granting unprecedented chromatic performance. The super-slim design combined with its extreme colour precision and light output make LumiPix 12QTour a highly flexible and versatile solution for any kind of application or venue such as architectural, cyclorama, wall-washer, pixel effect or blinder.

Technical Specifications

Features:
12x10W RGBW/FC high-power LED
Pixel control of every individual LED
PowerCON IN/OUT and XLR 5p IN/OUT

LIGHT SOURCE

Source:

12x10
W

RGBW LEDs
Luminous flux:

(15°) 3'657 lm - (45°) 3'630
lm

@full
Lux:

(15°) 2'901
lx

@5 m full
Lux:

(45°) 325
lx

@5 m full
Source life expectancy:

> 50.000 h

OPTICS

Beam angle:

22,6
°
Field angle:

39
°
Lens diameter:

45
mm
Additional optics:

15° (opt) - 45° (opt)
Other:

on board magnetic frost holder

COLOUR SYSTEM

Colour mixing:

RGBW / FC
CCT:

CCT control through dedicated DMX channel
White presets:

2.800 K - 10.000
K
Colour wheel:

virtual colour wheel with macros
Macros:

several pre-built pixel macros with adjustable speed

DYNAMIC EFFECTS

Pixel patterns:

pre-programmed dynamic and static patterns
Static mode:

selection of static colour
Manual mode:

manual adjustment of colour
Auto mode:

built-in programs with execution speed adjustment

BODY

Hardware on-board:

sockets for quick-Lock Omega bracket (clamp not included)
Body:

sturdy die-cast aluminium body
Body colour:

black

CONTROL

Protocols:

DMX512
DMX channels:

5 / 7 / 9 / 49
channel
Pixel control:

pixel2pixel control
Display:

Graphic User Interface
Firmware upgrade:

yes, via USB - DMX interface (UPBOX1) not included
Master/Slave:

for synchronised operation of more units linked in a chain

ELECTRONICS

Dimmer:

linear 0 ~ 100% electronic dimmer
Dimmer curves:

7

selectable dimming modes available
Strobe / shutter:

1 - 30

Hz, electronic
Operating temperature:

-10° ~ +45°
LED Control:

flicker free operation

ELECTRICAL

Mains power supply:

100-240V - 50/60Hz
Max power consumption:

100
W
Max power consumption (at 120V):

105
W
Output (at 230V):

27

units on a single power line
Output (at 120V):

14

units on a single power line
Power factor:

0,94

PHYSICAL

IP rating:

30
Cooling:

passive cooling and fan-free

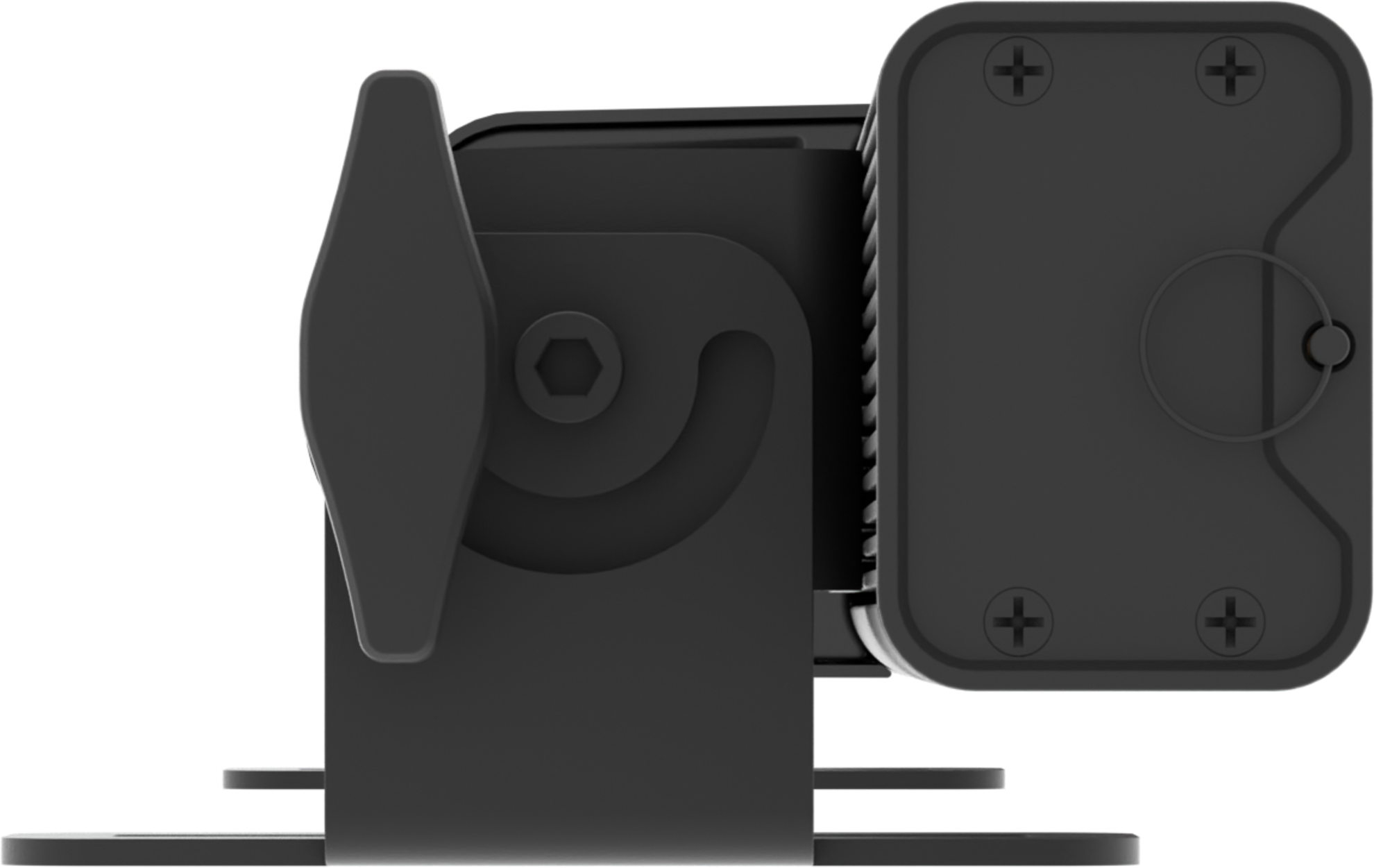

Suspension and fixing:

double hanging bracket suitable for safe hanging and for floor positioning

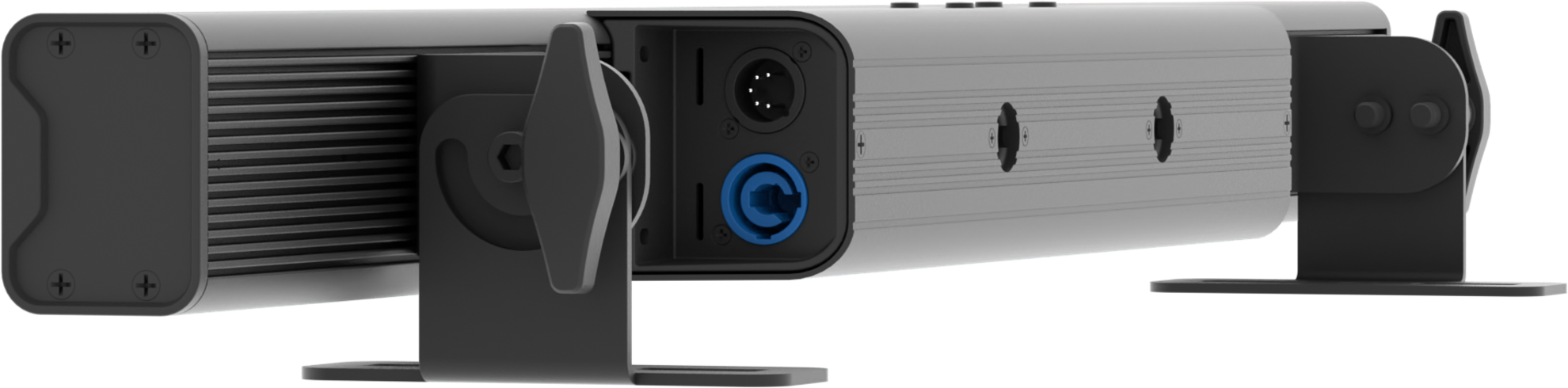

Signal connection:

Amphenol XLR 5p IN/OUT connectors
Power connection:

Seetronic powerCON IN/OUT connectors
Dimensions (WxHxD):

994x138x70
mm
Weight:

5,4
kg

CERTIFICATIONS / APPROVALS

Certifications / Approvals:

CE, UKCA, RCM

BOX CONTENT

1 x LUMIPIX12QTOUR
1 x 1,5 meters power cable (BARE END - SEETRONIC power connector)
2 x side floor brackets
User Manual

Supplier SKU

LUMIPIX12QTOUR
