ECL PANEL TWC XL PACK

EclPanel TWCXL, is an ultra-bright LED soft light, engineered for large scale Film & TV production, that provides a beautiful, wide source of soft and precise colours. In addition to this, the PROLIGHTS EclPanel TWCXL comes with a full range of white colours, from daylight to tungsten tones, reaching a superior light quality with high CRI, TLCI and TM-30. The EclPanel TWCXL allows for quick and accurate local adjustment of light through 4 rotatory knobs with three fully featured modes: CCT with +/- green shift, HSI for total control of hue, saturation and intensity, FX mode to access the on-board pixel cinema effects. The unit can also be controlled on a per-section basis, allowing to play on-board customisable effects or to record them through a lighting desk. Both methods provide eye-candy effects and cinematic special effects. The unit is designed with an on-board driver, a built-in power supply, a Wireless transceiver for remote DMX and RDM control, network connectivity (Art-Net, sACN). Thanks to its lightweight, the EclPanel TWCXL is easy to rig and to connect, making it the perfect lighting fixture for any location.
The pack contains:

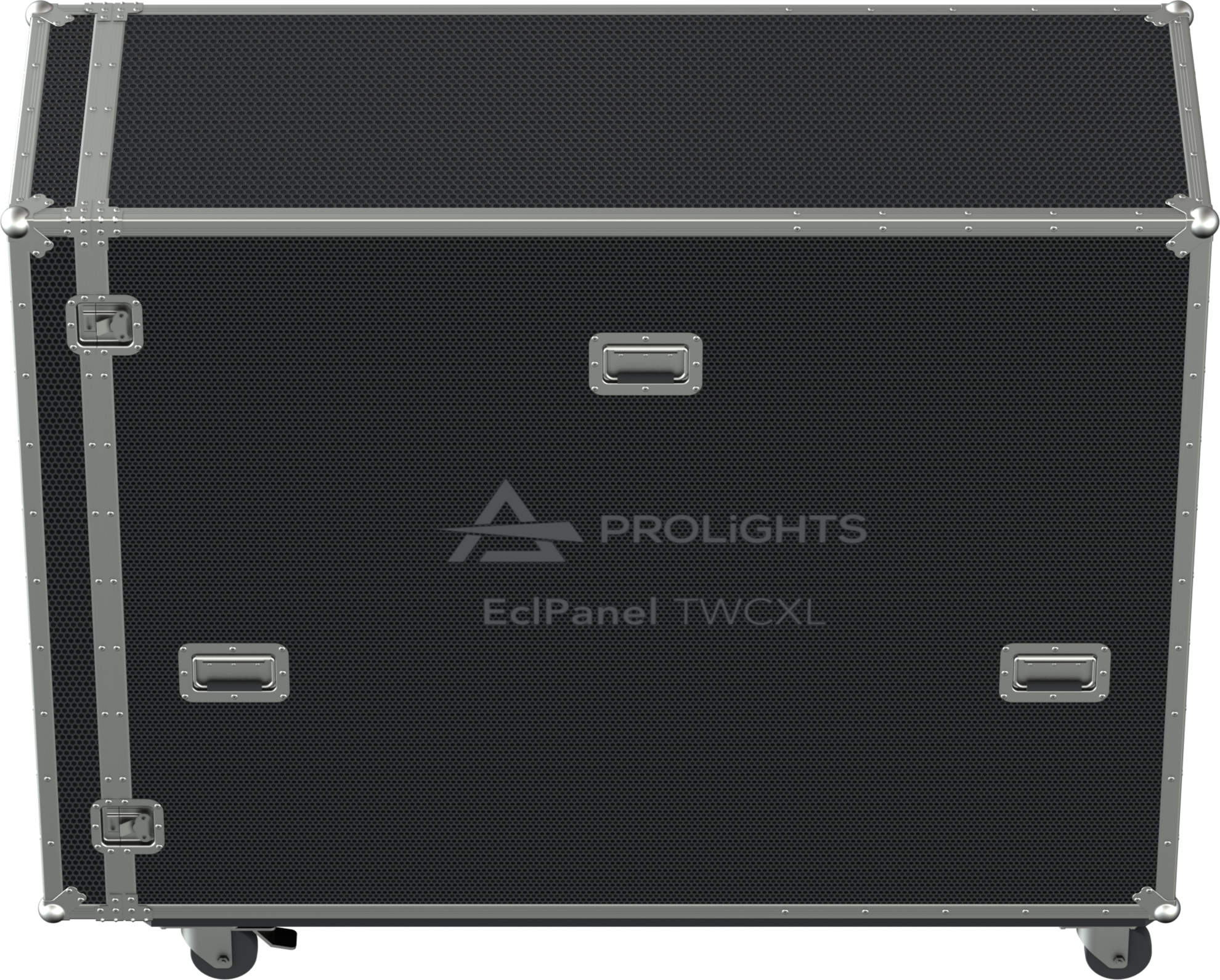

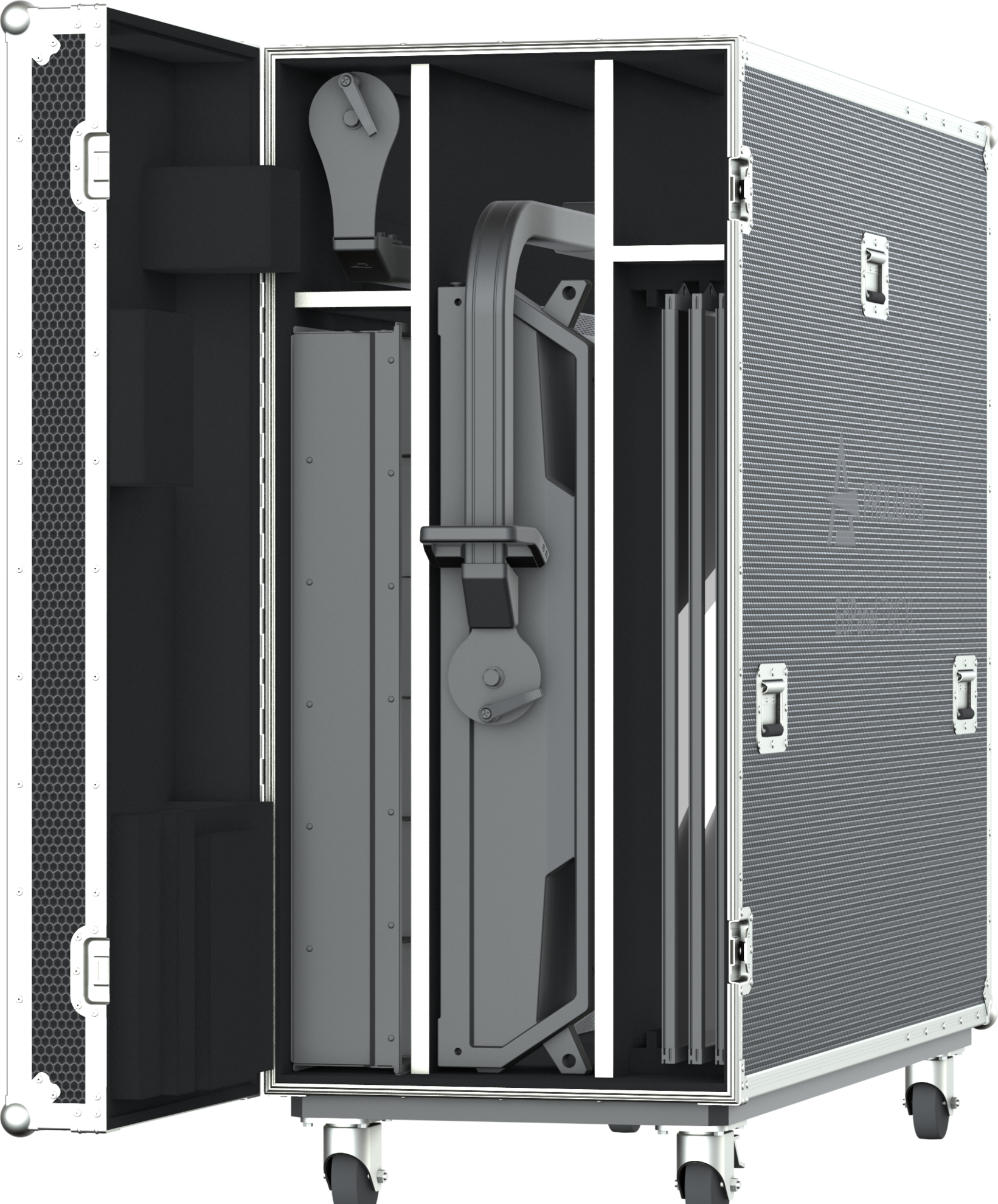

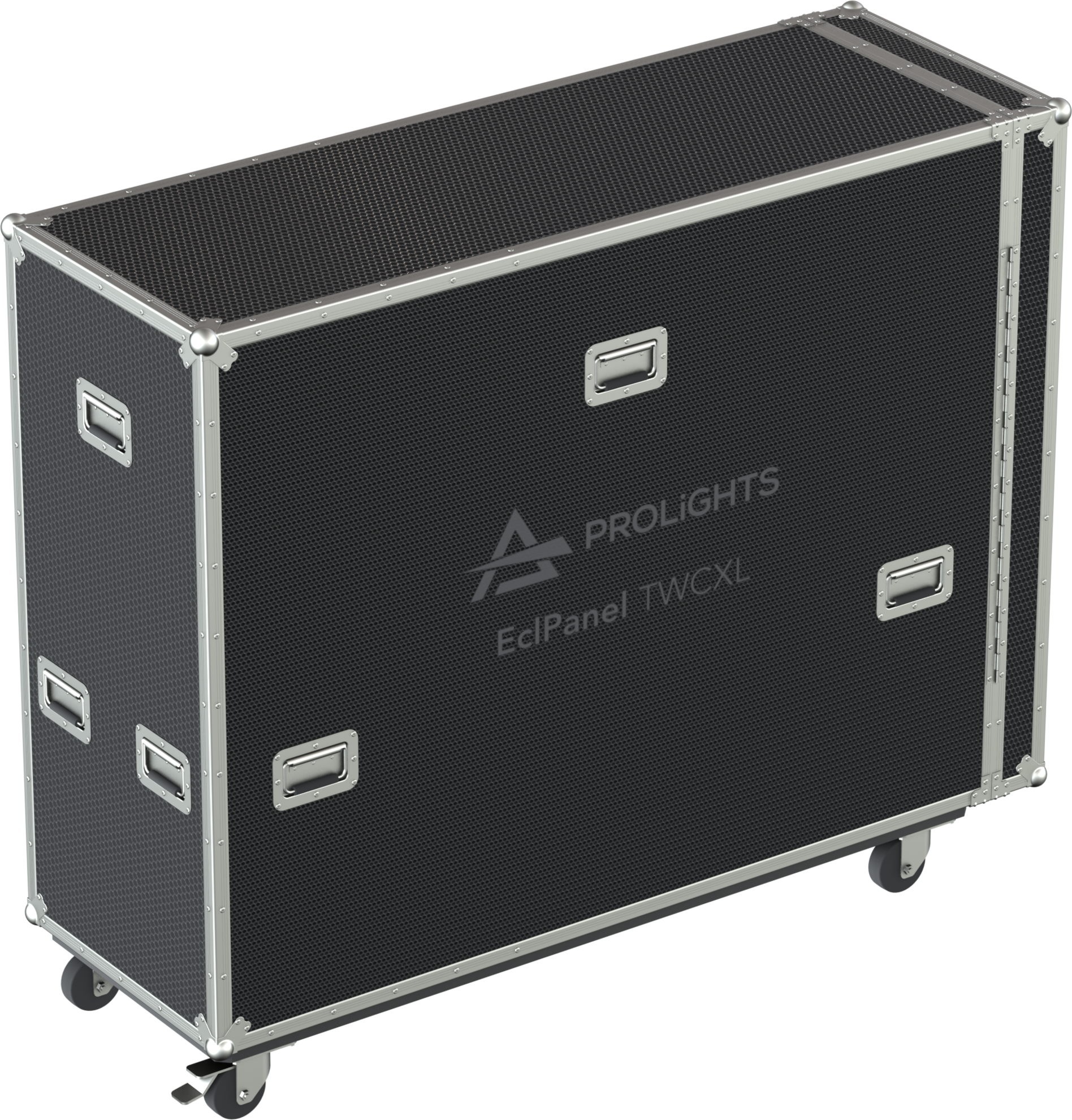

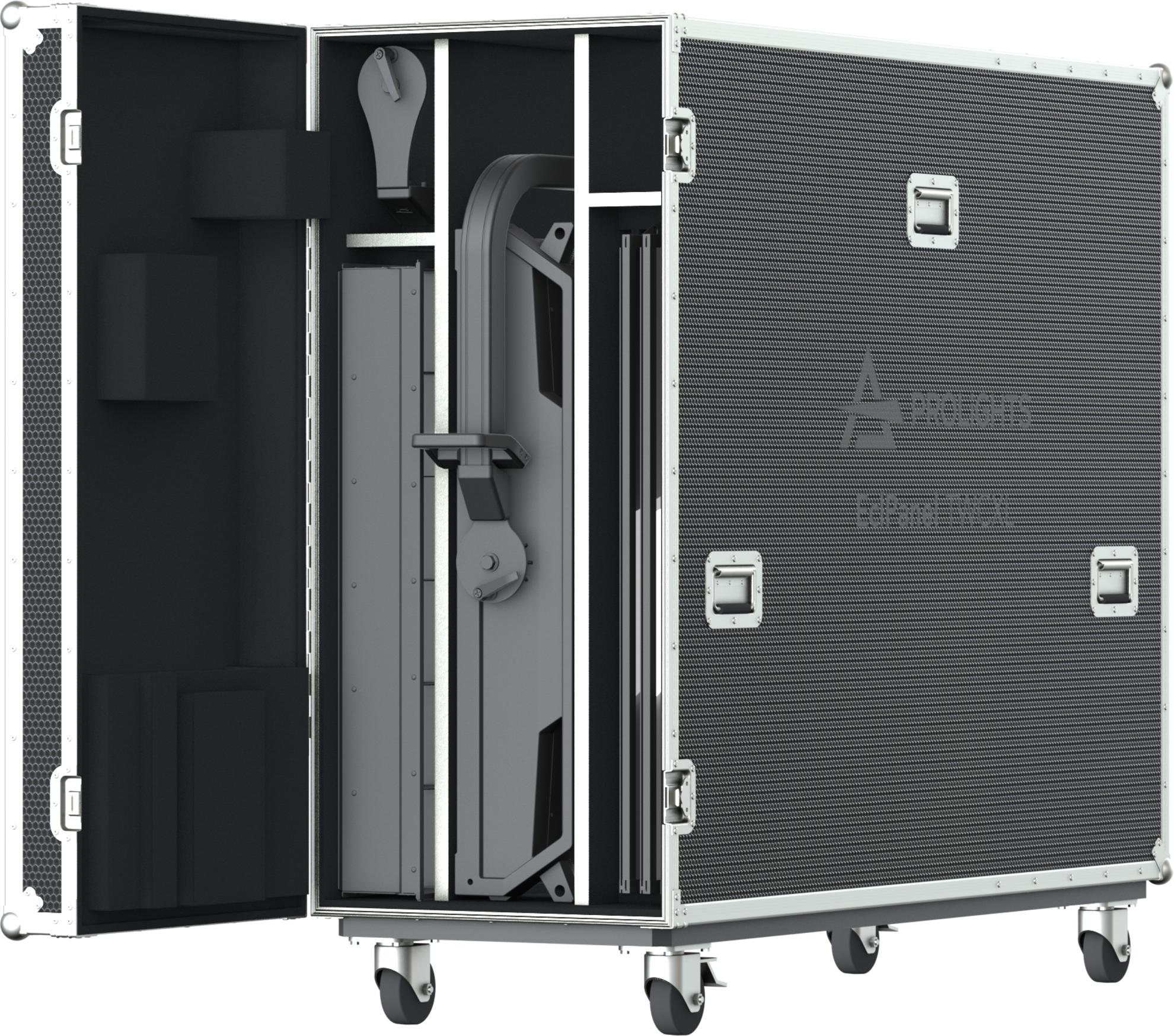

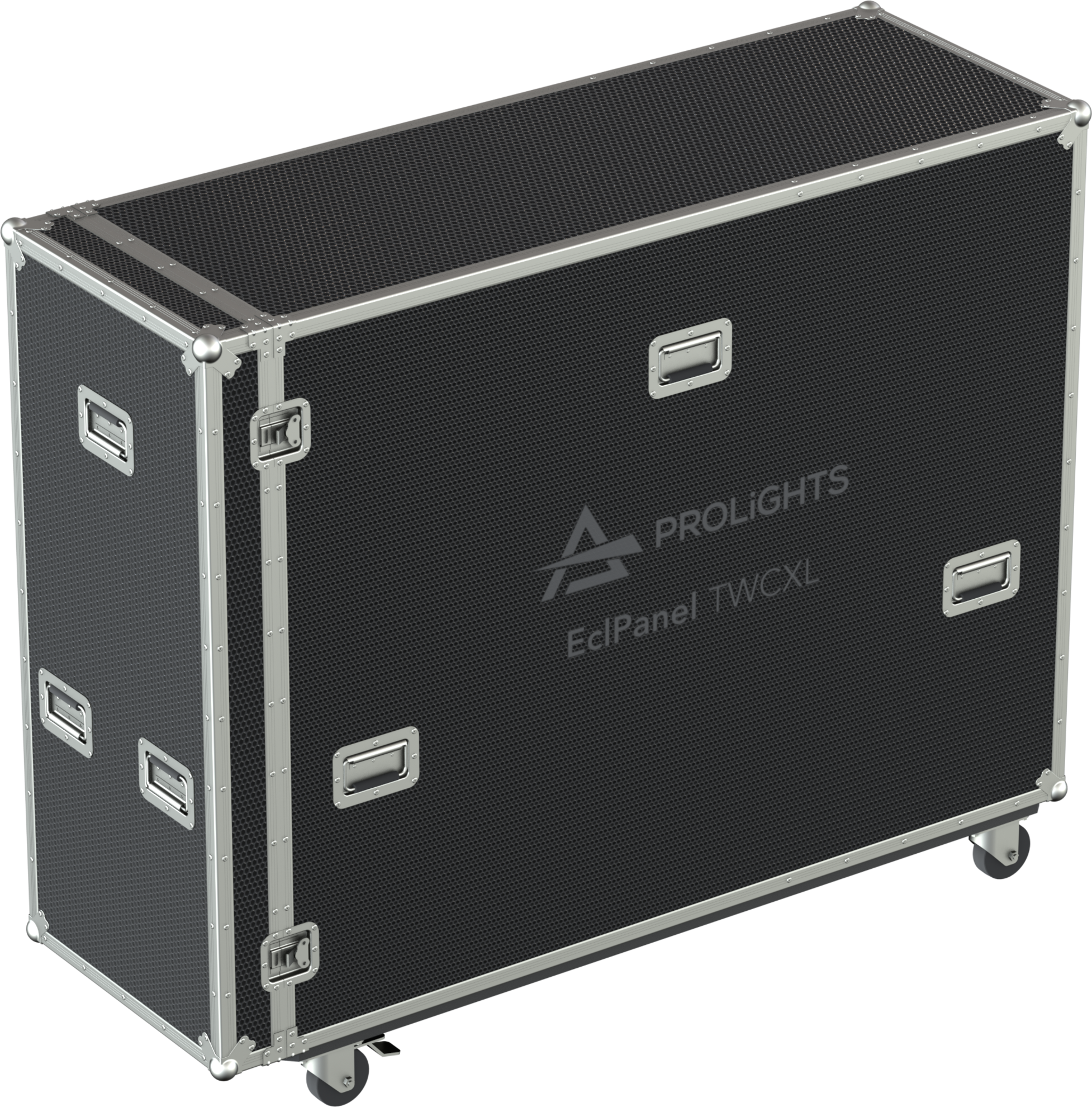

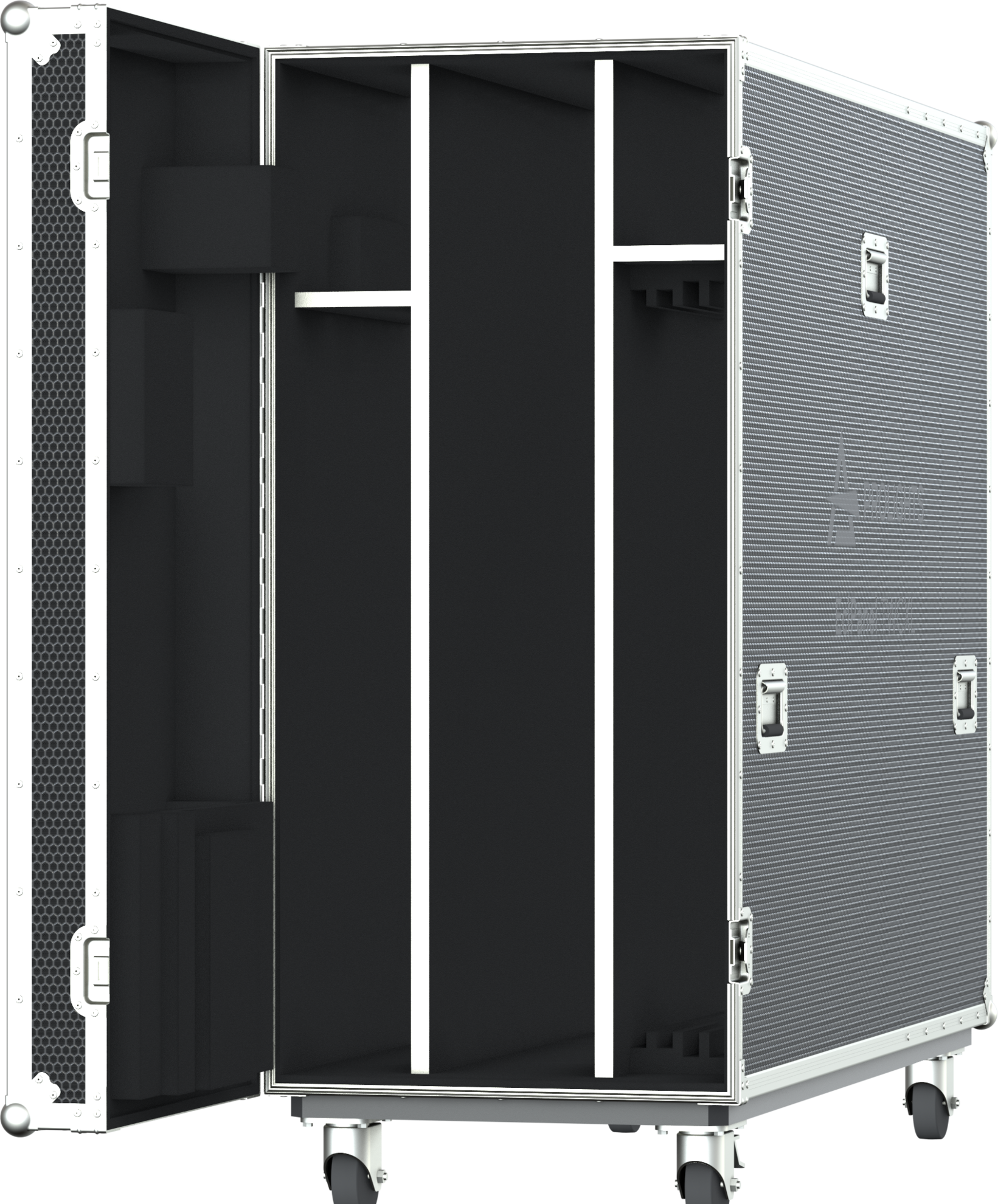

1 x flight case (FCLPANELXL1U)
1 x ECLPANELTWCXL (includes: MD filter EPTWCXLFILTERMD and spigot on-board)
1 x HD filter (EPTWCXLFILTERHD)
1 x LD filter (EPTWCXLFILTERLD)
1 x INT filter (EPTWCXLFILTERINT)
1 x 30° egg crate (EPTWCXLEC30)
1 x 60° egg crate (EPTWCXLEC60)
1 x 48 chambers egg crate (EPTWCXLEC48C)
1 x short bracket with spigot (EPTWCXLSB)
1 x 1,5 meters power cable (BARE END - 32A NEUTRIK POWERCON TRUE1 IP65)
1 x User Manual
-
Source: 1.500W RGB + Warm White LED
-
Luminous flux: 136'060 lm @3.200 K with LD filter
-
Lux: 1'892 lx @5 m full
-
CRI: 93 @3.200 K; 93.6 @5.600 K
-
R9: 95.7 @3.200 K; 88,9 @5.600 K
-
TLCI: 93 @5.600 K
-
TM30 Rf: 91 @3.200 K; 89,9 @5.600 K
-
TM30 Rg: 103 @3.200 K; 103 @5.600 K
-
Source life expectancy: > 50.000 h
-
Beam angle: 100°
-
Field angle: 155°
-
Lens type: medium density diffusion panel (interchangeable)
-
Additional optics: see available accessories
-
Colour control: XY, CCT, RGBW, Gel, HSI, Source Emulation, colour macros, CTO on colours
-
Colour mixing: RGB + Warm White
-
CCT: CCT control range from 1.800K to 20.000K, + / - green correction, tungsten emulation
-
White presets: 1.800 K - 20.000K with 28 K resolution
-
Colour wheel: virtual colour wheel with macros
-
Macros: Gels library on-board
-
Control Resolution: 16-bit dimmer, colours
-
Pixel patterns: pre-programmed pixel macros and cinema lighting effects patterns
-
Special features: linear crossfade channel from any white to any colour; virtual CTO on colours
-
Body: sturdy die-cast aluminium body
-
Body colour: black
-
Protocols: DMX512, RDM, Art-Net, sACN, W-DMX
-
Stand Alone: selectable mode through 4 rotatory knobs
-
Pixel control: 48 section control
-
Wireless Control: included, LumenRadio Timo Fx DMX/RDM compatible with both CRMX (Lumen Radio) and W-DMX (Wireless DMX)
-
RDM: RDM for remote monitoring and settings
-
Display: Graphic User Interface
-
Firmware upgrade: yes, via USB - DMX interface (UPBOX1) not included
-
Dimmer: linear 0 ~ 100% electronic dimmer
-
Dimmer curves: 4 selectable dimming modes available
-
Strobe / shutter: 1 - 30 Hz, electronic
-
Display battery: self-charging battery backup
-
Operating temperature: -10° ~ +45°
-
LED Control: flicker free frequency with adjustable PWM
-
Selectable PWM: 600 ~ 40.000 Hz
-
Mains power supply: 100-240V - 50/60Hz
-
Max power consumption: 1.600W
-
Output (at 230V): 1 units on a single power line
-
Power factor: >0,96
-
IP rating: 20
-
Cooling: active, silent operation
-
Suspension and fixing: bracket for hanging and positioning
-
Signal connection: Amphenol XLR 5p IN/OUT connectors
-
Power connection: 32A Neutrik powerCON TRUE1 IN/OUT connectors
-
Low Voltage DC connector: XLR 4p
-
Dimensions (WxHxD): 1638x862x144 mm
-
Weight: 48,7 kg
-
Certifications / Approvals: CE, UKCA, RCM, cTUVus, FCC
