ECLCYC100 - EclCyclorama Led RGB+WW , L.100cm

530060720
330W RGB+WW LED cyclorama projectors, angle 40°x80°, IP20, 9,6kg,2800K-8000K

EclCyclorama 100 is a soft-edge, linear cyclorama and floodlight, designed in a surprisingly low profile form factor to meet applications at both front and end of the stage, offering an unprecedent level of brightness in its category.

The fixture is equipped with a custom and calibrated RGB + Warm White LED source, which is capable to deliver a linear and high quality white reproduction of the entire spectrum with high CRI, TLCI and TM30 performances.

The optical system has been designed to offer a very wide asymetric beam angle, and capable of a superior lumen efficiency, making the EclCyclorama range a very flexible solution, suitable for both application where fixture are connected each other or separated by a considerable distance, without worrying of dark-edge or uniformity gaps.

The fixture is extremely user friendly and offers a multitude of control possibilities being DMX, RDM, Artnet, sACN and Wireless DMX.

Technical Specifications
LIGHT SOURCE

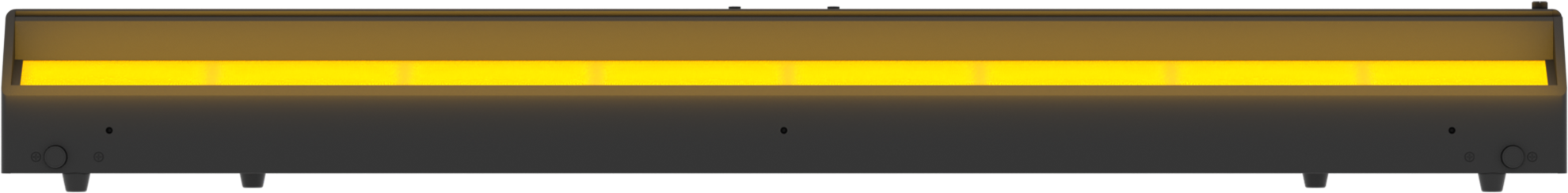

  • Source: 330W RGB + Warm White
  • Luminous flux: (with 40°x80° filter on board) 27'342lm @full
  • Lux: @1 m to wall and 1,5 m height @full (with standard filter 80°x40°) 1'240 lx - (with 40° filter) 2'610 lx - (with 10°x60° filter) 3'110 lx - (with 30°x60° filter) 2'880lx
  • CRI: 93 @3.200 K; 92,6 @5.600 K
  • R9: 88 @3.200 K; 93,7 @5.600 K
  • TLCI: 91 @5.600 K
  • TM30 Rf: 89,8 @5.600 K
  • TM30 Rg: 106 @5.600 K
  • Source life expectancy: > 50.000 h
OPTICS
  • Beam angle: (HxV) 80°x40°
  • Additional optics: see available accessories
COLOUR SYSTEM

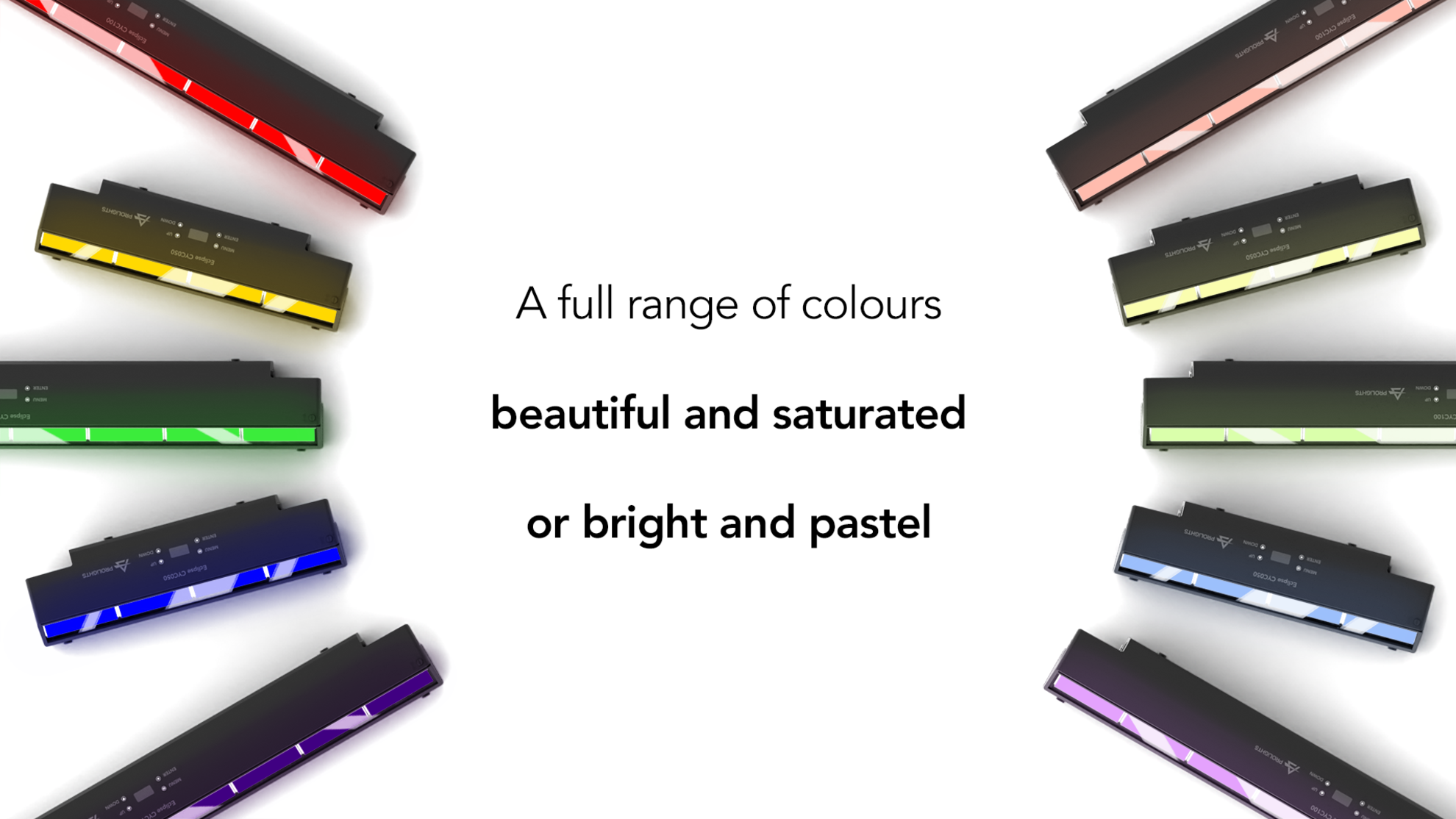

  • Colour mixing: RGB + Warm White
  • CCT: CCT control, + / - green correction, tungsten emulation
  • White presets: 2.800 K - 6.500K
  • Colour wheel: virtual colour wheel with macros
DYNAMIC EFFECTS
  • Control Resolution: 16bit dimmer, colours
  • Special features: linear crossfade channel from any white to any colour; virtual CTO on colours
BODY
  • Hardware on-board: sockets for quick-Lock Omega bracket (clamp not included)
  • Body: sturdy die-cast aluminium body
  • Body colour: black
  • Other: +/- 8° angle adjusting
CONTROL
  • Protocols: DMX512, RDM, Art-Net, sACN, W-DMX
  • W-DMX: included, wireless solution receiver
  • RDM: RDM for remote monitoring and settings

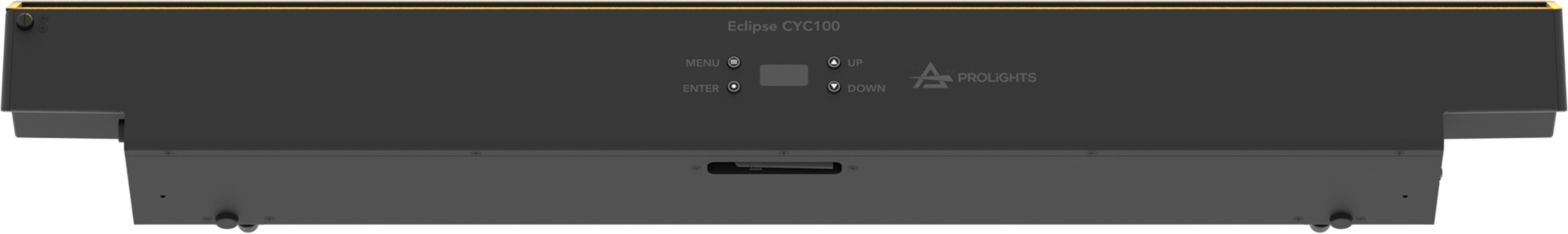

  • Display: Graphic User Interface
  • Firmware upgrade: yes, via USB - DMX interface (UPBOX1) not included
ELECTRONICS
  • Dimmer curves: selectable dimming modes available
  • Strobe / shutter: 1 - 30 Hz, electronic
  • Display battery: self-charging battery backup
  • Operating temperature: -10° ~ +45°
  • LED Control: flicker free frequency with adjustable PWM
  • Selectable PWM: 600 ~ 25.000 Hz
ELECTRICAL
  • Mains power supply: 100-240V - 50/60Hz
  • Max power consumption: 400W
  • Power factor: >0,94
PHYSICAL
  • IP rating: IP20
  • Cooling: heat sink without fan
  • Suspension and fixing: any position with quick-lock omega brackets

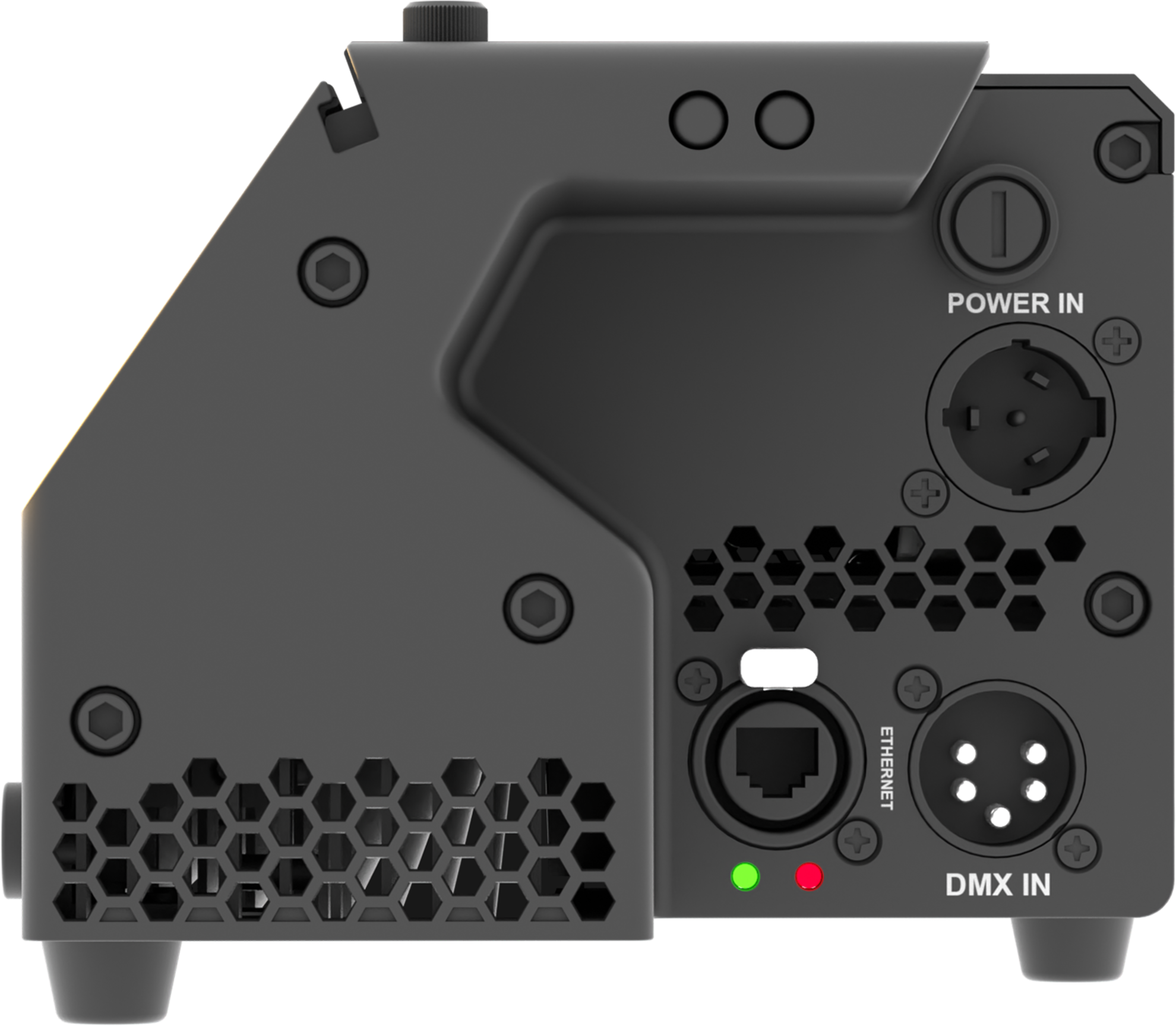

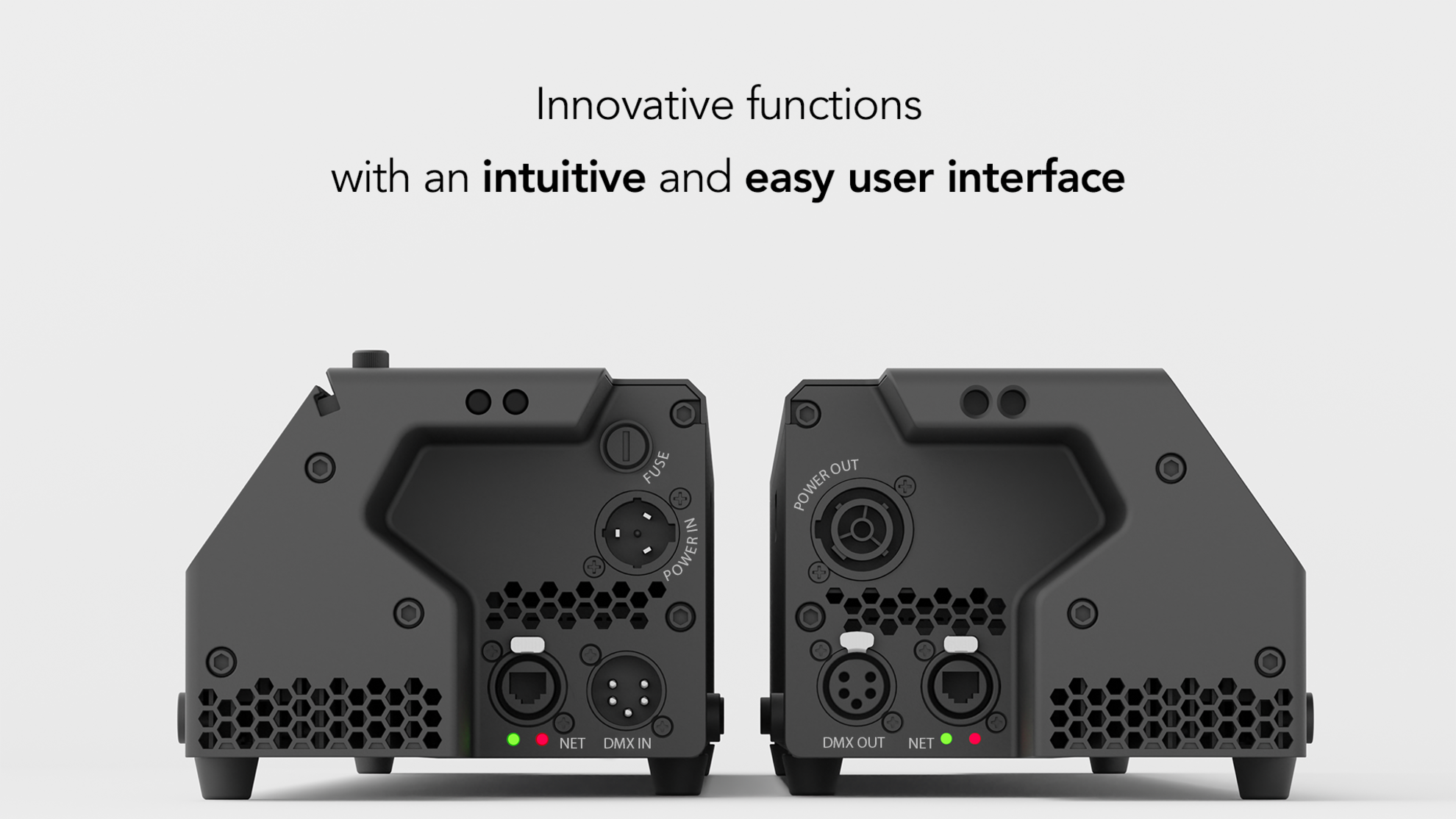

  • Signal connection: Amphenol XLR 5p IN/OUT connectors
  • Data connection: RJ45 IN/OUT

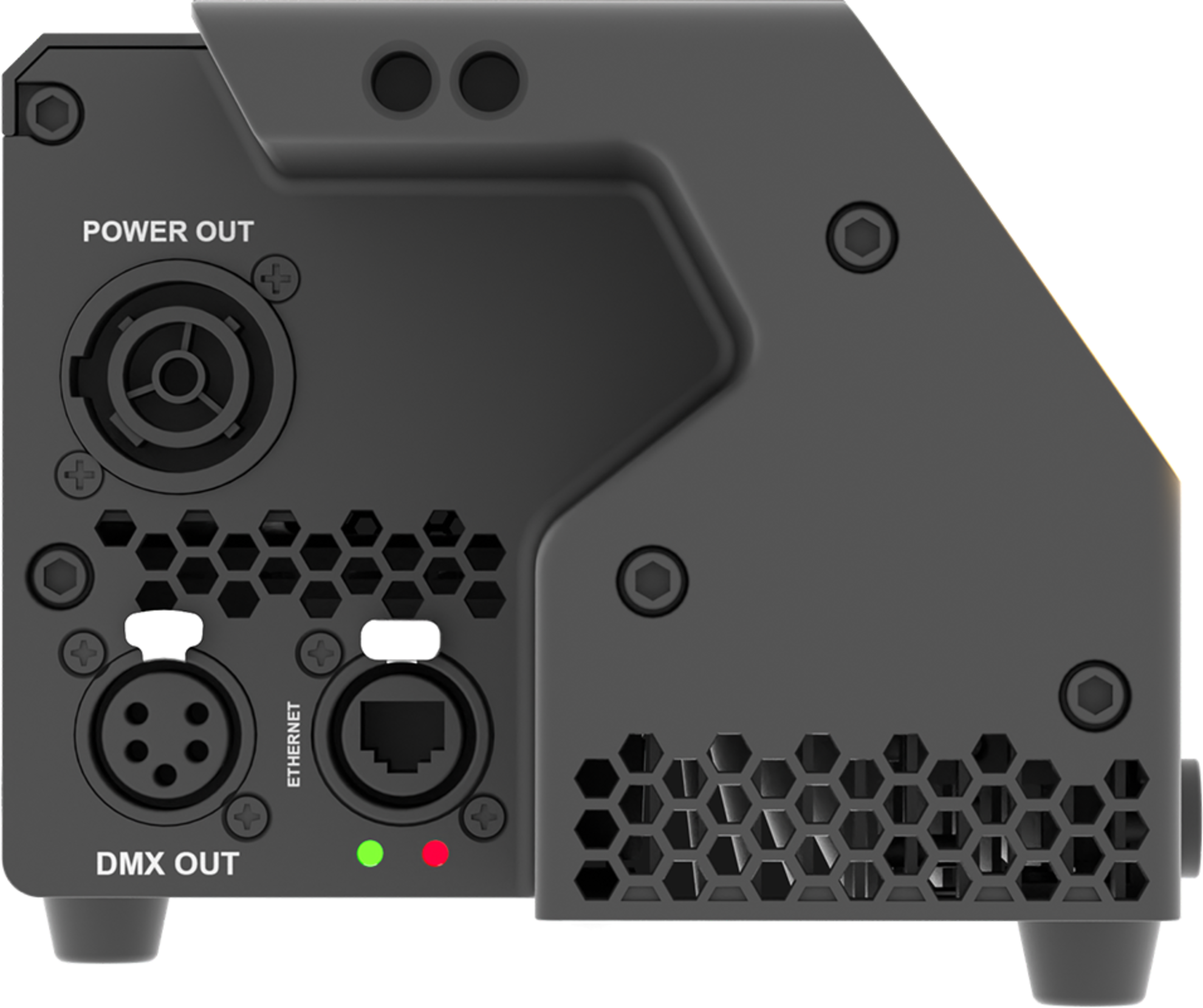

  • Power connection: Seetronic powerCON waterproof IN/OUT connectors

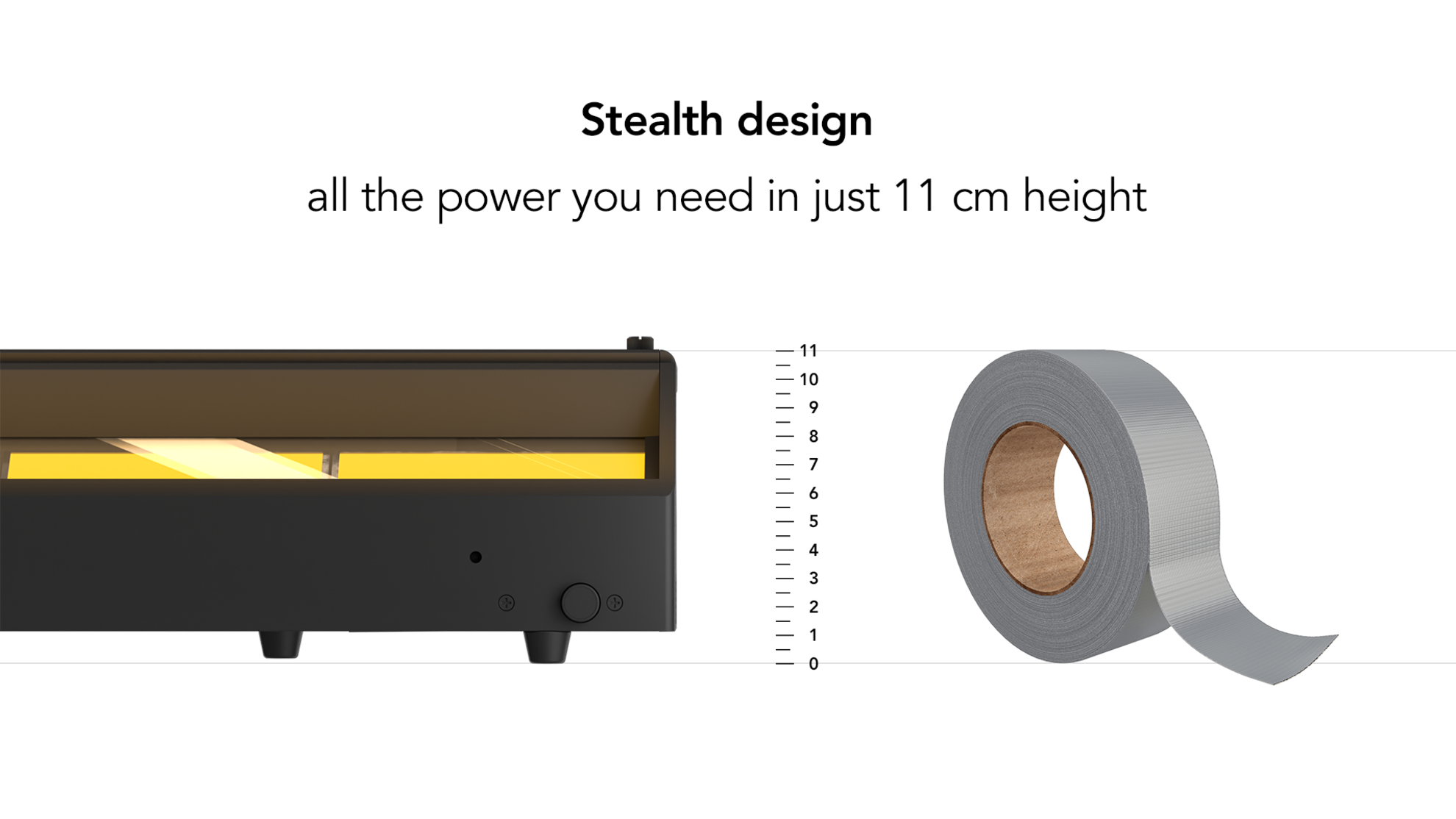

  • Dimensions (WxHxD): 1000x119x148mm
  • Weight: 9,6kg
