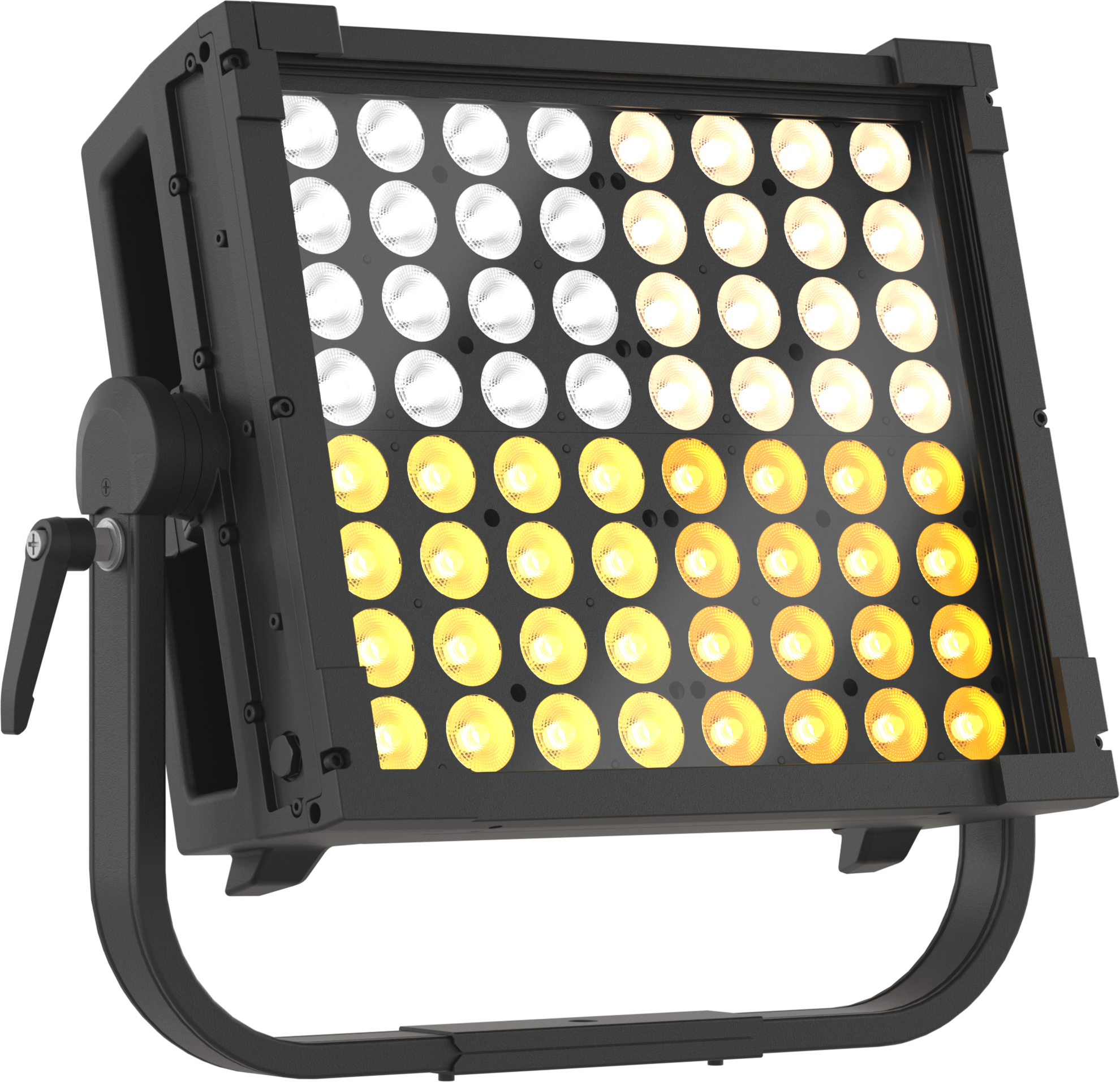

EclPanel 1x1 Hard Source LED Panel, IP65
1x1 Hard Source LED Panel, IP65 with 300W power and 6 colors source
1x1 Hard Source LED Panel, IP65 with 300W power and 6 colors source
The EclPanel IPHard1x1 is a 1x1 format IP65 Hard Light, featuring an LED source optimized for long throw film applications. This unit is designed to deliver quality lighting in all weather conditions. Its optical system, equipped with a 6-color LED array and collimator lenses controllable in 4 sections, producing a 20° native beam angle. This configuration enhances lux intensity for long throw uses and broadens the light spectrum, resulting in superior light quality. The EclPanel IPHard can be transformed into a soft light source by attaching optical modifiers to its accessory points.
Constructed with durable die-cast magnesium alloy, the IP65 rating of the housing makes the unit water and dust resistant, suitable for challenging environments and sets. The fixture incorporates an onboard power supply and processing unit, facilitating easy setup and operation. It features a 3.5'' large display, a user-friendly interface, and comprehensive connectivity options, including both wired and wireless capabilities.
Further enhancing its versatility, the unit supports per-section control for custom or desk-created effects. For added portability, the EclPanel IPHard accepts power via 24-36V batteries and a 48V DC input. Its flexibility extends to control options, compatible with DMX & RDM, Ethernet protocols, remote operation via ControlGo, and wireless CRMX.
LIGHT SOURCE
Source: 300W 6 colour LEDs source
Luminous flux: (HB) 16'798 lm - (HQ) 16'425 lm @3.200 K
Luminous flux: (HB) 17'966 lm - (HQ) 15'066 lm @5.600 K
Lux: (HB) 2'987 lx - (HQ) 2'940lx @5 m 3.200 K
Lux: (HB) 3'206 lx - (HQ) 2'729lx @5 m 5.600K
CRI: 95,6 @3.200 K; 96,4 @5.600 K R9: up to 92
TLCI: 89 @3.200 K; 95 @5.600 K
TM30 Rf: >91 @3.200 K; > 92 @5.600 K
TM30 Rg: Source life expectancy: > 50.000 h
OPTICS
Beam angle: 20° Field angle: 46° Lens type: TIR lensesAdditional optics: Dome diffuser - see available accessories
COLOUR SYSTEM
Colour control: XY, CCT, Gel, HSI, Source EmulationCCT: CCT control range from 1.850K to 20.000K, + / - green correction, tungsten emulation
White presets: 1.850 K - 20.000K Colour wheel: virtual colour wheel with macros
Macros: Gels library on-board
DYNAMIC EFFECTS
Control Resolution: 16-bit dimmer, colours
Pixel patterns: pre-programmed pixel macros and cinema lighting effects patterns
Special features: color space selection, linear crossfade channel from any white to any colour; virtual CTO on colours
BODY
Body: weatherproof IP65 construction with die-cast magnesium alloy
Body colour: black
CONTROL
Protocols: DMX512, RDM, ArtNet, sACN, CRMX

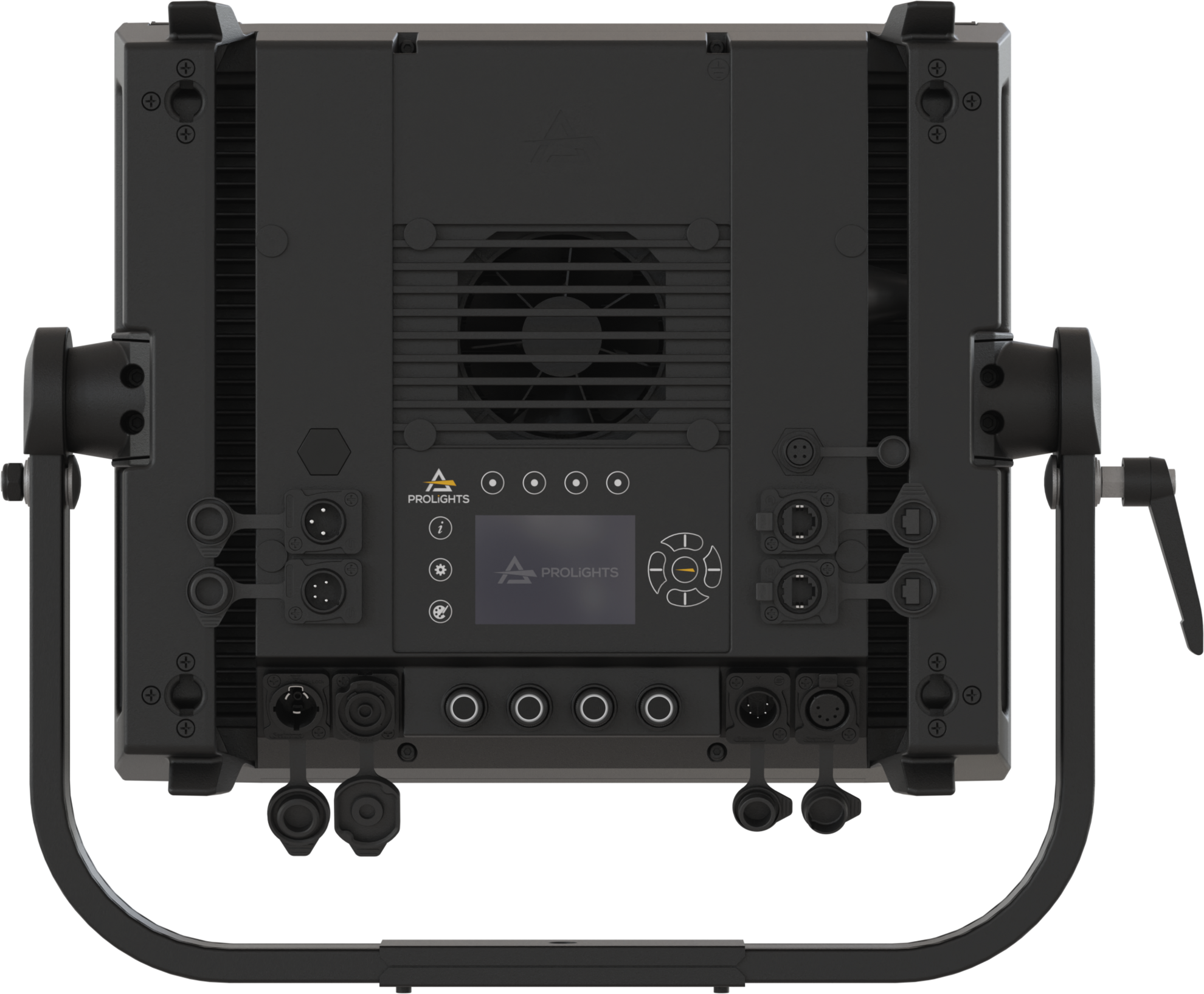

Stand Alone: selectable mode through 4 RGB backlight push-encoders
Pixel control: 4 section contro
Wireless Control: included, LumenRadio TimoTwo DMX/RDM compatible with both CRMX, CRMX2 (Lumen Radio) and W-DMX (Wireless DMX), Bluetooth capable
RDM: RDM for remote monitoring and settingsDisplay: 3.5\" with new UIFirmware upgrade: yes, via USB - DMX interface (UPBOXPRO/UPBOX1) not included
Other: Ethernet pass through in case of failure
ELECTRONICS
Dimmer: linear 0 ~ 100% electronic dimmer
Dimmer curves: 6 selectable dimming modes available
Strobe / shutter: 1 - 30 Hz, electronic
Display battery: self-charging battery backup
Operating temperature: -20° C / +45° C (-4° F / +113° F)
LED Control: flicker free frequency with adjustable PWM
Selectable PWM: 1282 ~ 40.000 Hz
ELECTRICALMains power supply: 100-240V - 50/60Hz
Max power consumption: 300W Standby power: 5,6W Output (at 230V): 9 units on a single power linePower factor: > 0,95 Inrush current: 230VAC/65A, 110VAC/23A
PHYSICAL
IP rating: 65 for temporary outdoor application, not for fixed installationsCooling: active, silent operation
Suspension and fixing: bracket for truss rigging and hardware for connection of more unitsS

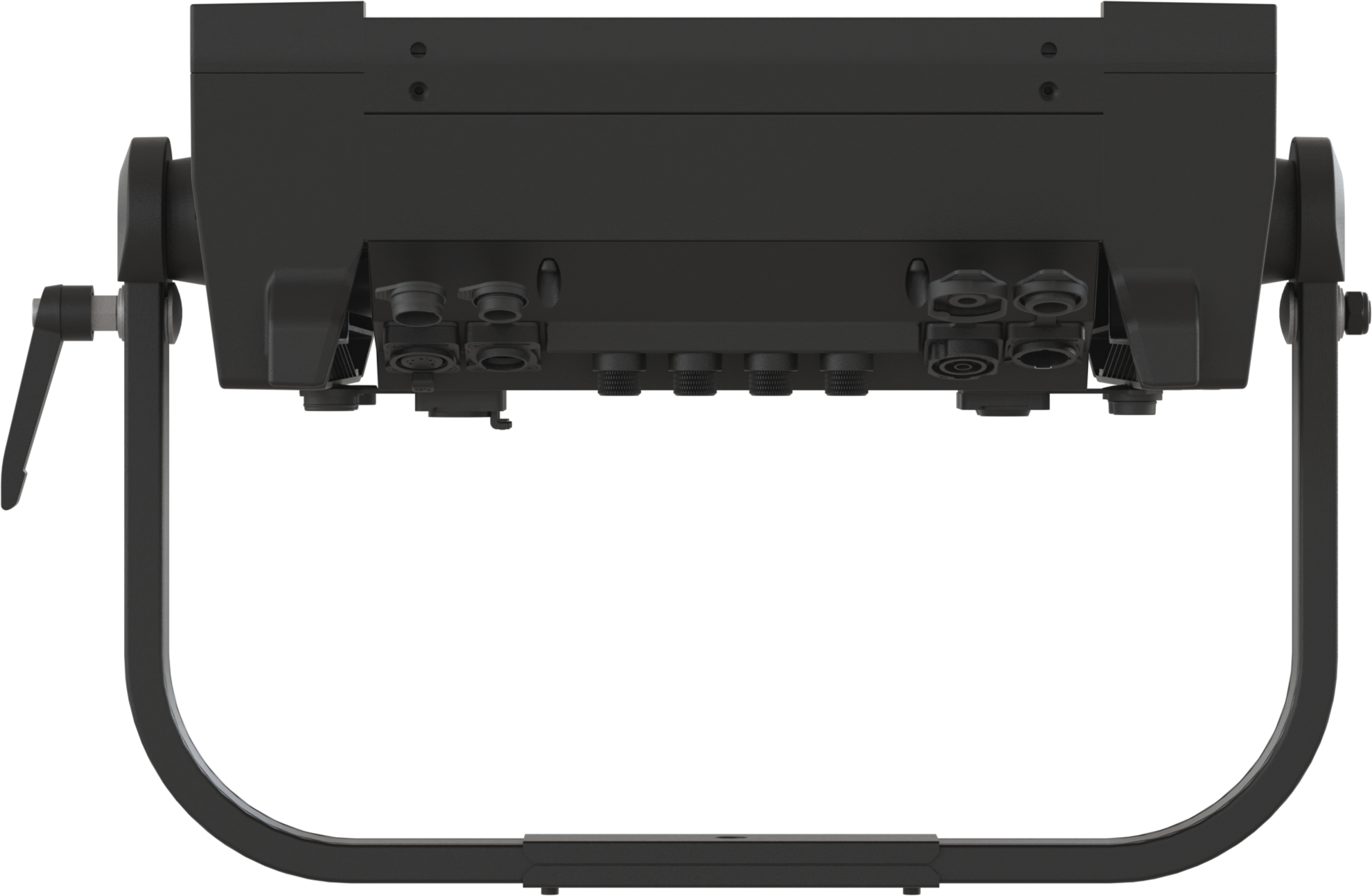

ignal connection: IP65 Seetronic XLR 5p IN/OUT connectors
Data connection: IP65 Seetronic RJ45 IN/OUT
Power connection: IP65 Seetronic powerCON TRUE IP65 IN/OUT
Low Voltage DC connector: XLR 3p for 48V and XLR 4p for 24V-36V

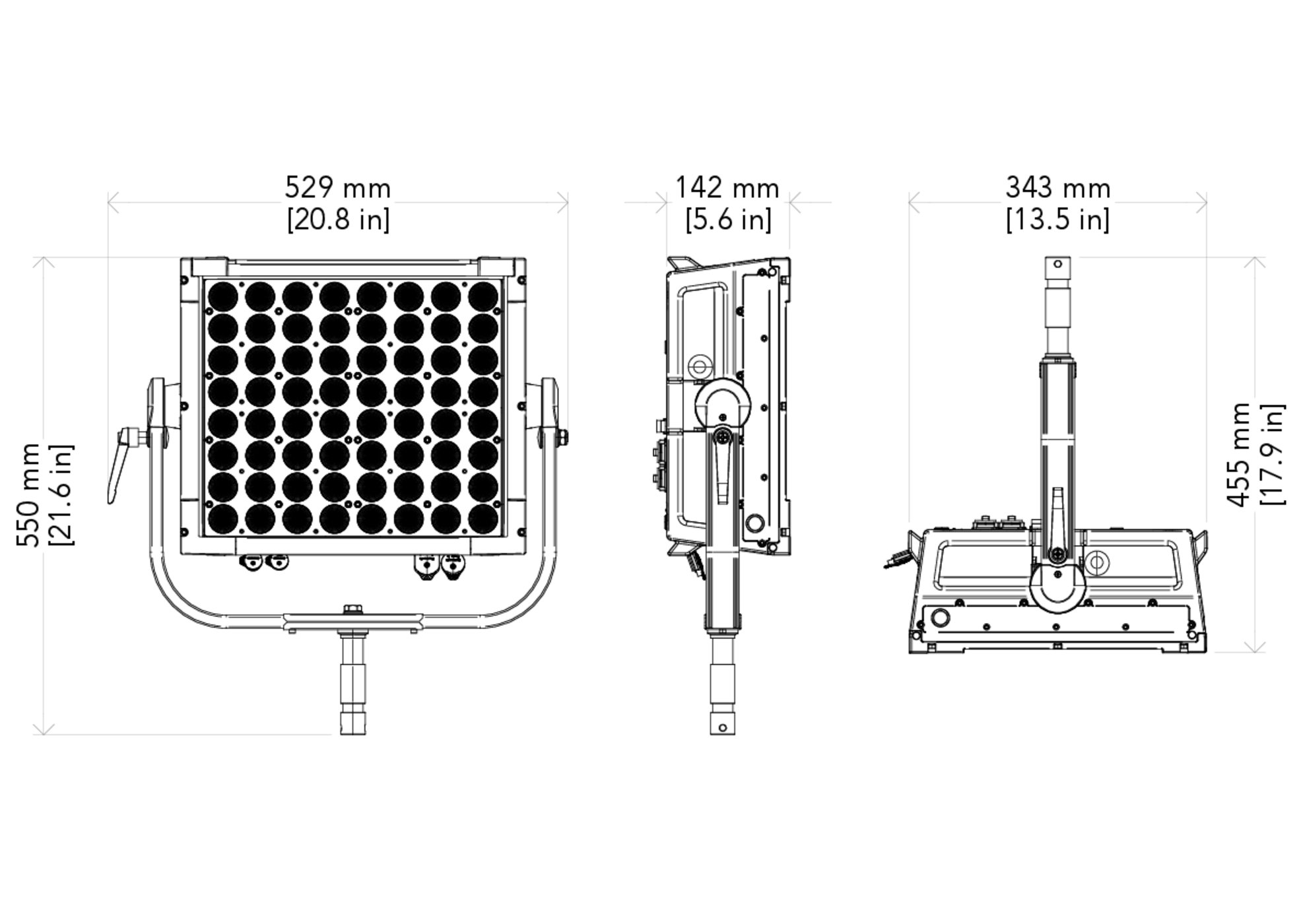

Dimensions (WxHxD): 529x433x142mm Weight: 12,8kg
CERTIFICATIONS / APPROVALS
Certifications / Approvals: CE, RCM, FCC, cTUVus
