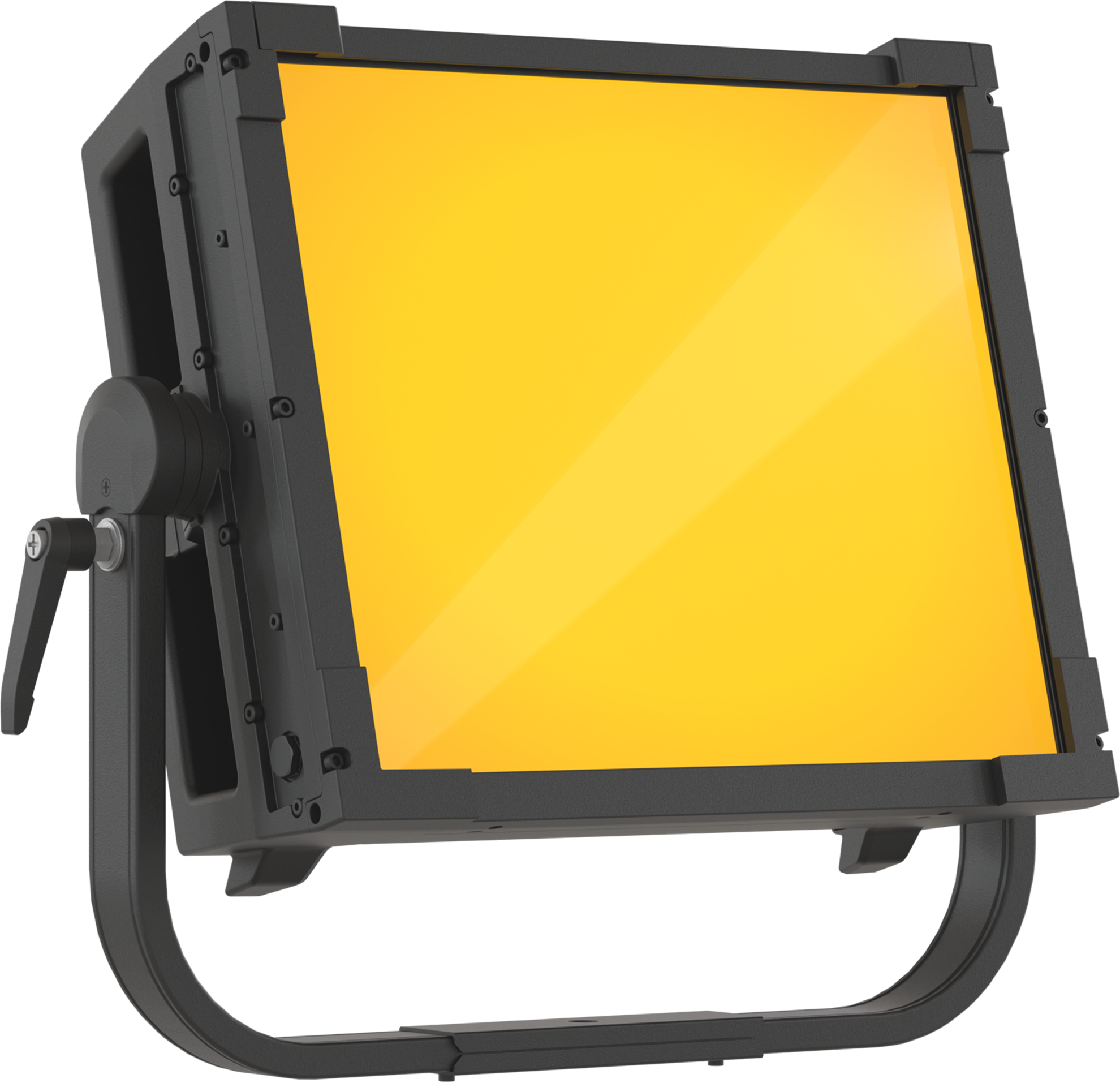

EclPanel 1x1 Soft Source LED Panel, IP65

EclPanel 1x1 Soft Source LED Panel, IP65

530079300

1x1 Soft Source LED Panel, IP65 with 300W power and 6 colors source

Beskrivelse Specification Brand information Downloads

The EclPanel IPSoft1x1 is a 1x1 format IP65 Soft Light, featuring high quality of light in all weather conditions. EclPanel IPSoft range is engineered with a 6-color LED light source controllable in 4 section, maximizing the light flux and delivering a beautiful soft projection with outstanding quality and rich color spectrum. Constructed with durable die-cast magnesium alloy, the IP65 rating of the housing makes the unit water and dust resistant, suitable for challenging environments and sets. The fixture incorporates an onboard power supply and processing unit, facilitating easy setup and operation. It features a 3.5'' large display, a user-friendly interface, and comprehensive connectivity options, including both wired and wireless capabilities.Further enhancing its versatility, the unit supports per-section control for custom or desk-created effects. For added portability, the EclPanel IPHard accepts power via 24-36V batteries and a 48V DC input. Its flexibility extends to control options, compatible with DMX & RDM, Ethernet protocols, remote operation via ControlGo, and wireless CRMX.

Technical Specifications

LIGHT SOURCE

Source: 300W 6 colour LEDs source
Luminous flux: (HB) 32'640 lm - (HQ) 28'471 lm @3.200 K
Luminous flux: (HB) 32'544 lm - (HQ) 27'321 lm @5.600 K
Lux: (HB) 514 lx - (HQ) 447lx @5 m 3.200 KLux: (HB) 512 lx - (HQ) 428lx @5 m 5.600K
CRI: 95,6 @3.200K; 96 @5.600 K R9: 93,8 @3200K; 96 @5.600 K
TLCI: 85 @3200K; 92 @5.600 K TM30 Rf: > 92 @3.200K; > 92 @5.600 K
TM30 Rg:
Source life expectancy: > 50.000 h

OPTICS

Beam angle: 102° Field angle: 157° Lens type: medium density diffusion panel (interchangeable)
Additional optics: see available accessories

COLOUR SYSTEM

Colour control: XY, CCT, Gel, HSI, Source Emulation
CCT: CCT control range from 1.850K to 20.000K, + / - green correction, tungsten emulation
White presets: 1.850 K - 20.000K Colour wheel: virtual colour wheel with macros
Macros: Gels library on-board

DYNAMIC EFFECTS

Control Resolution: 16-bit dimmer, colours
Pixel patterns: pre-programmed pixel macros and cinema lighting effects patternsSpecial features: color space selection, linear crossfade channel from any white to any colour; virtual CTO on colours
BODY
Body: weatherproof IP65 construction with die-cast magnesium alloy
Body colour: black

CONTROL

Protocols: DMX512, RDM, ArtNet, sACN, CRMX
Stand Alone: selectable mode through 4 RGB backlight push-encoders
Pixel control: 4 section controlWireless Control: included, LumenRadio TimoTwo DMX/RDM compatible with both CRMX, CRMX2 (Lumen Radio) and W-DMX (Wireless DMX), Bluetooth capable
RDM: RDM for remote monitoring and settingsDisplay: 3.5\" with new UIFirmware upgrade: yes, via USB - DMX interface (UPBOXPRO/UPBOX1) not included
Other: Ethernet pass through in case of failure

ELECTRONICS

Dimmer: linear 0 ~ 100% electronic dimmer
Dimmer curves: 6 selectable dimming modes availableStrobe / shutter: 1 - 30 Hz,
electronic
Display battery: self-charging battery backupOperating temperature: -20° C / +45° C (-4° F / +113° F)

LED

Control: flicker free frequency with adjustable PWM
Selectable PWM: 1282 ~ 40.000 Hz

ELECTRICAL

Mains power supply: 100-240V - 50/60Hz
Max power consumption: 300W Standby power: 12,7W Output (at 230V): 9 units on a single power linePower factor: > 0,95 Inrush current: 230VAC/88A, 110VAC/57A

PHYSICAL

IP rating: 65 for temporary outdoor application, not for fixed installationsCooling: active, silent operation
Suspension and fixing: bracket for truss rigging and hardware for connection of more units

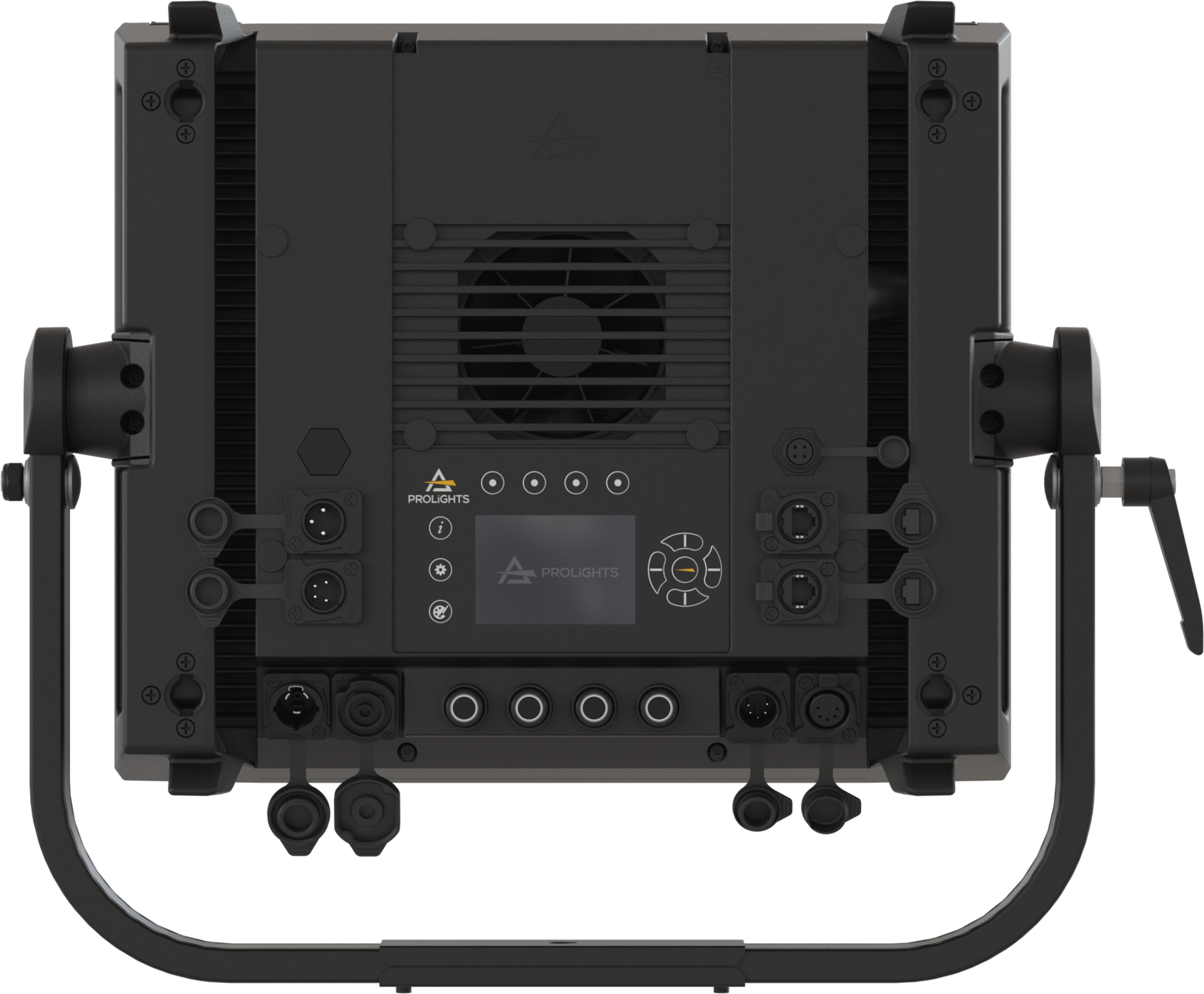

Signal connection: IP65 Seetronic XLR 5p IN/OUT connectorsData connection: IP65 Seetronic RJ45 IN/OUT
Power connection: IP65 Seetronic powerCON TRUE IP65 IN/OUTLow Voltage DC connector: XLR 3p for 48V and XLR 4p for 24V-36V

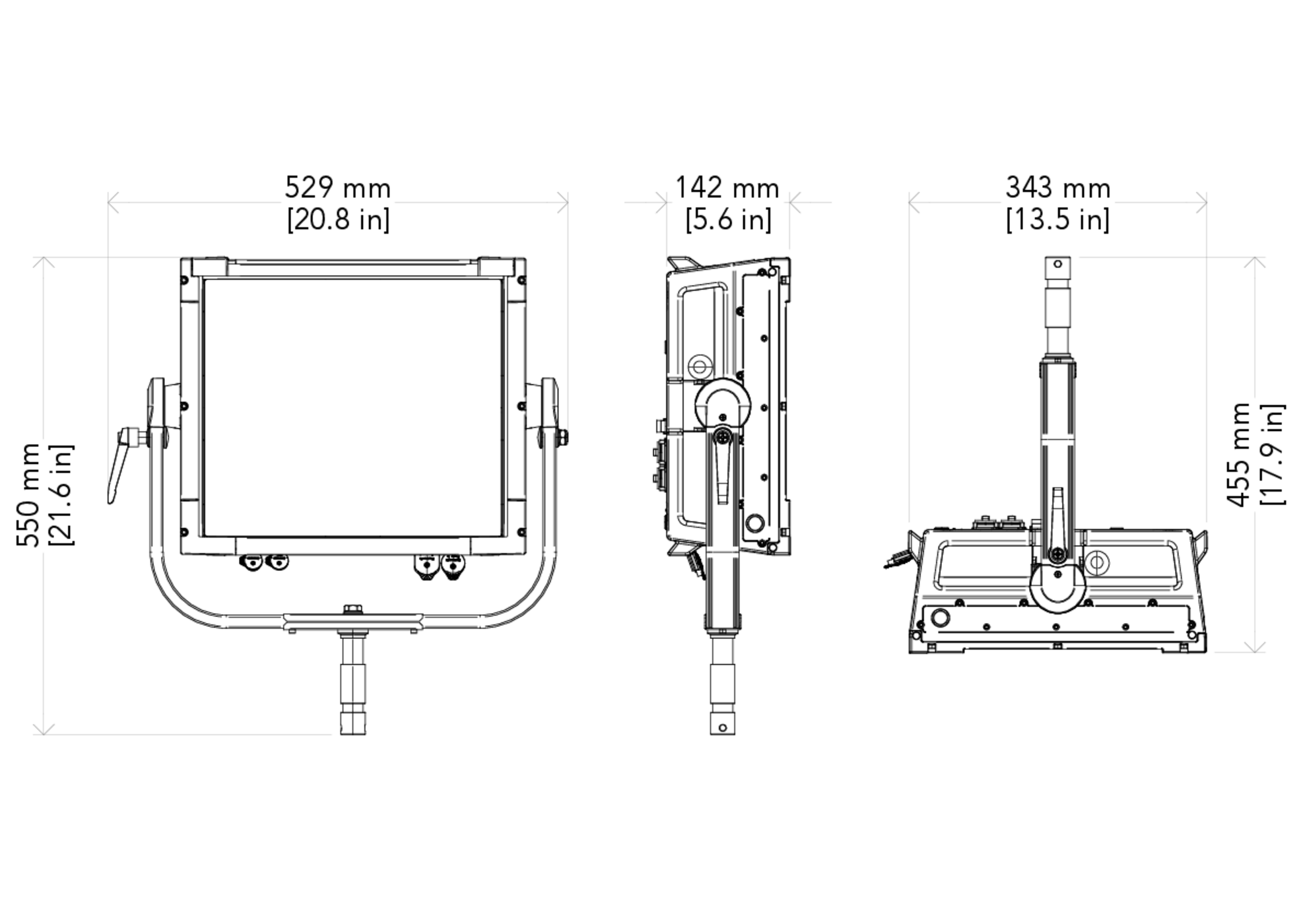

Dimensions (WxHxD): 529x433x142mm Weight: 12kg
CERTIFICATIONS / APPROVALSCertifications / Approvals: CE, RCM, FCC, cTUVus

Supplier SKU

ECLPANELIPSOFT1X1

IP Rating

IP65
