Mosaico FX100FC

Name: Mosaico FX100FC
Brand: Prolights

100W RGBW IP66 modular LED image projector with 2 effect wheel and 1 gobo, black

Housing Colors

Vælg venligst en variant!

Beskrivelse Specification Brand information Downloads

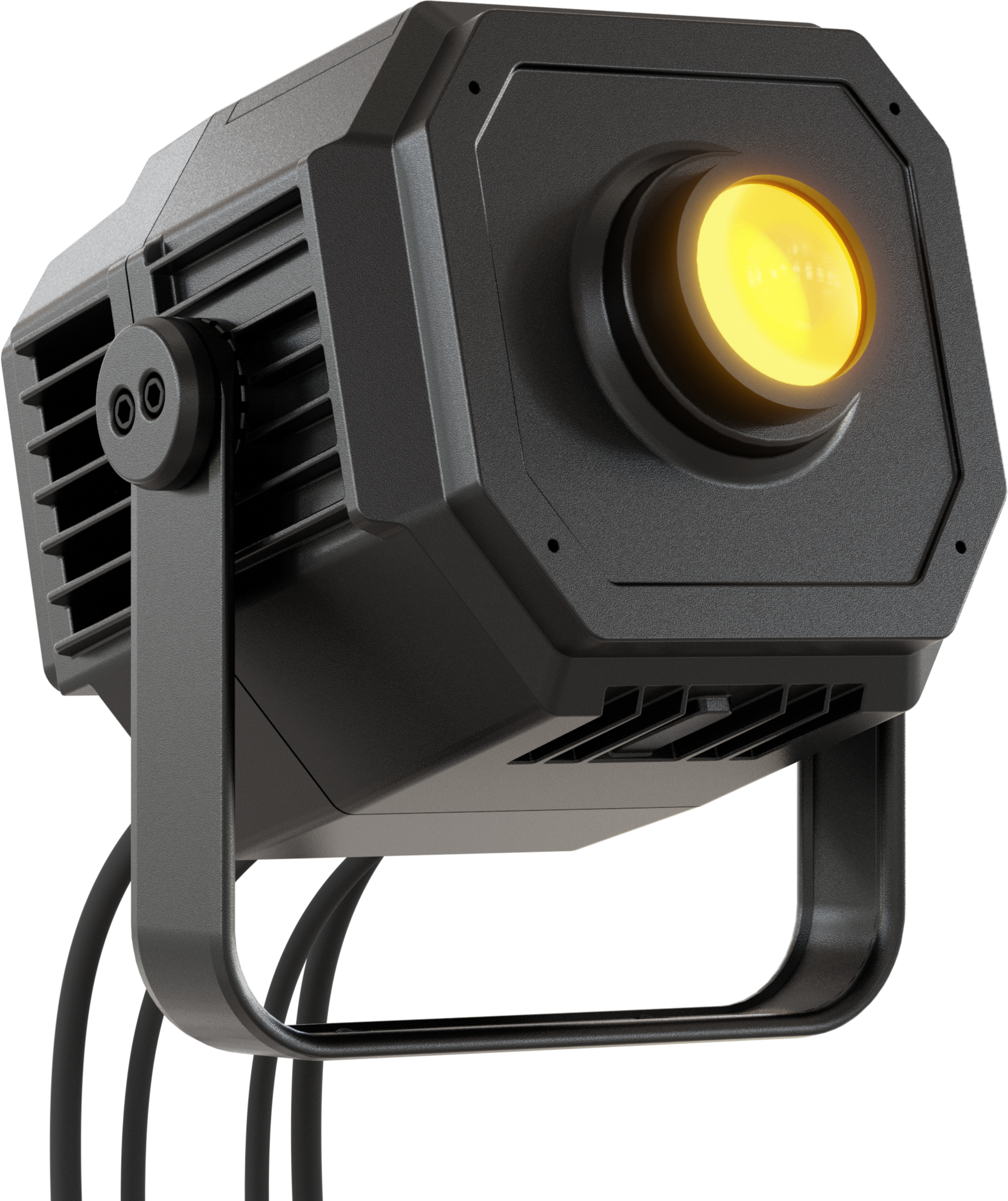

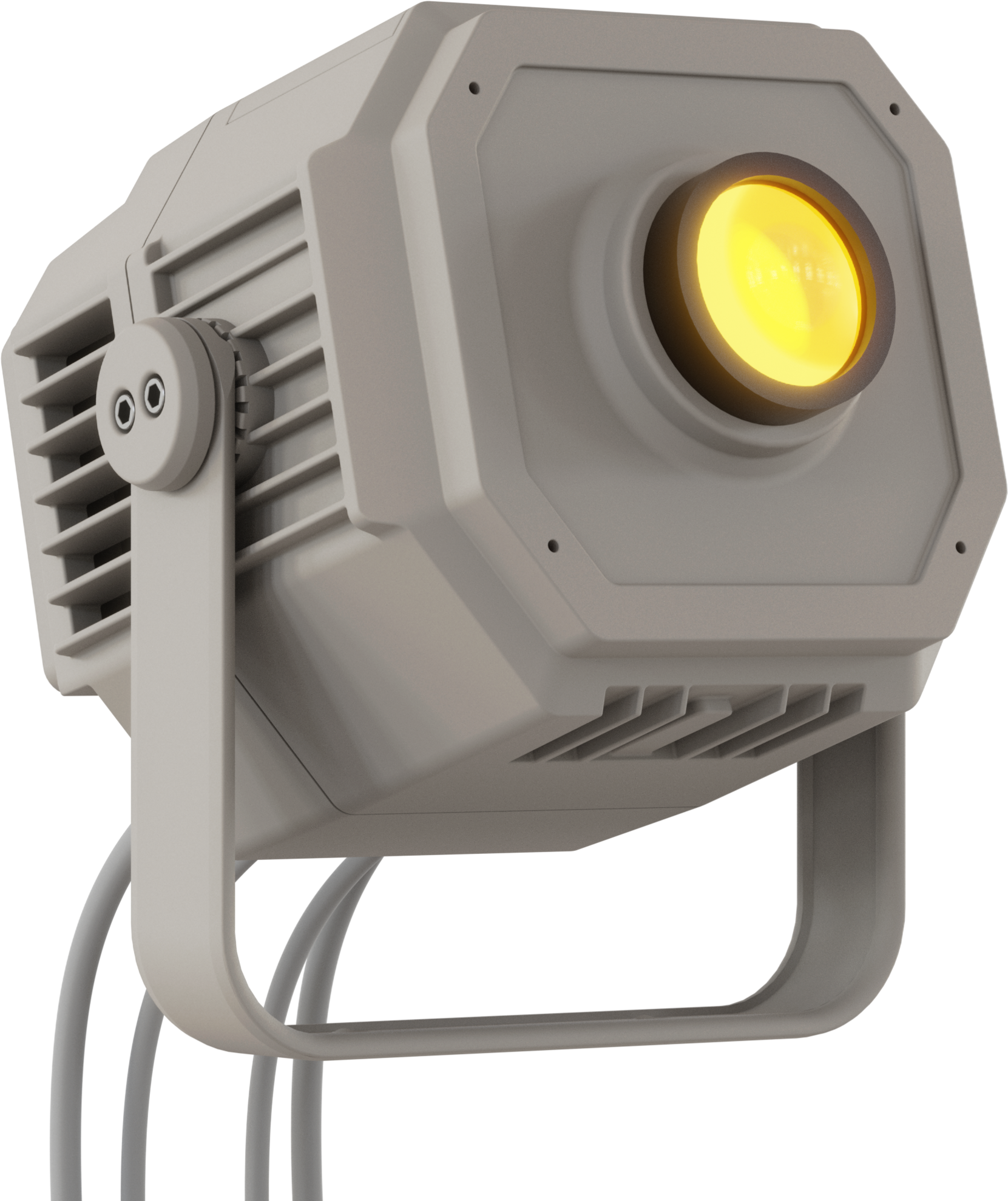

Mosaico FX100FC is an 100W RGBW Full Color LED IP66 image projector, engineered to be the modular platform to add building blocks to design your creative architectural lighting landscape.

Mosaico FX100FC is supplied with two controllable effect wheels on board made in structured glass material to animate your projection, with linear motion control for creating reflected water, blowing fire or northern lights effects. The kit contains also one indeaxable gobo holder and a colour holder both with magnetic attachment.

Mosaico FX100FC is compatible with a wide range of high definition optics, each optimized for the required application (animation or image projection): 15°, 30°, 50° and 70°.

This unit can be controlled via DMX, both wired and wireless and also easily operated locally through the simplified stand alone operations.

Please note that Mosaico FX100FC do not ship with a lens or other images or colors. Choose from the available lenses when ordering to meet your design requirements.

Technical Specifications

LIGHT SOURCE

Source:100W RGBW / FC LED
Luminous flux:(15°) 1'212 lm; (30° - WT) 1'214 lm; (30° - GB) 1'132 lm; (50° - WT) 1'340 lm; (50° GB) 896 lm; (70°) 960lm@full
Lux:(15°) 633 lx; (30° - WT) 392 lx; (30° - GB)0 165 lx; (50° - WT) 179 lx; (50° GB) 74 lx; (70°) 92lx@5 m full
Source life expectancy: > 30.000 hrs (L70B10 @Ta 25° C / 77° F)

OPTICS

Optics:interchangeable -see available accessories
Focus:manual

COLOUR SYSTEM

Colour wheel:included 1 color holder accessory for 1 color (color not included)
Colour wheel:optional color wheel with 5 colors included on board (see available accessories) - included colors Light Orange, Light Green, Yellow, Aquamarine, Pink

DYNAMIC EFFECTS

Control Resolution:16-bit dimmer, colours
Animation wheel:included 2 interchangeable wheels with indexing and CW and CCW rotation with variable speed (see available accessories)
Rotating gobos:included 1 gobo holder with manual adjustable index position system for 1 gobo (gobo not included - see available accessories)
Gobo size (BW):outer: 26,9 mm - image: 22 mm
Gobo size (Color):outer: 26,9 mm - image: 20,5 mm
Fixed gobos:optional gobo wheel for 5 gobos + open (gobos not included - see available accessories)
Static mode:selection of static dimmer, colors and effects rotation mode

BODY

Body:weatherproof IP66 construction
Body colour:RAL 9006 or RAL 9004

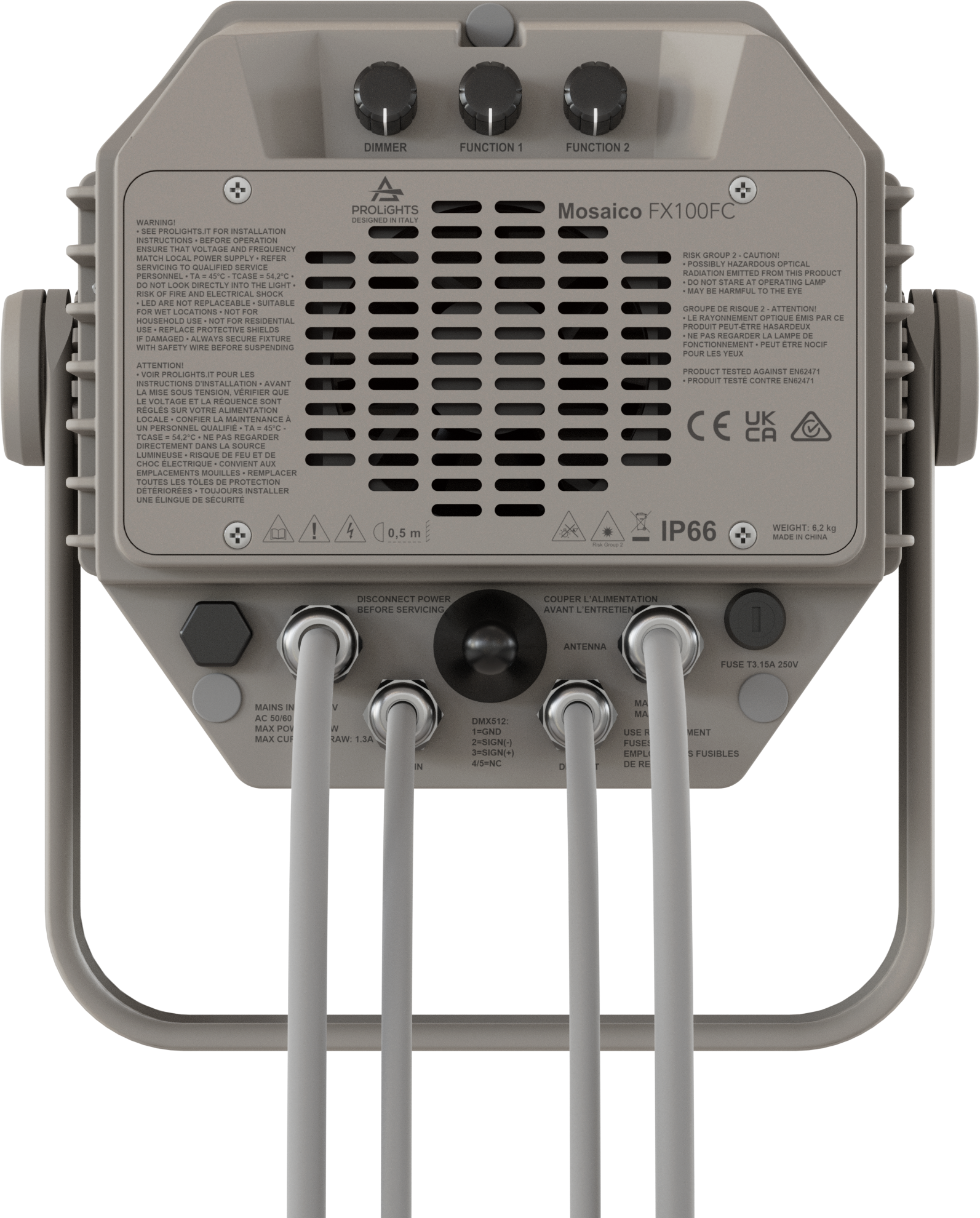

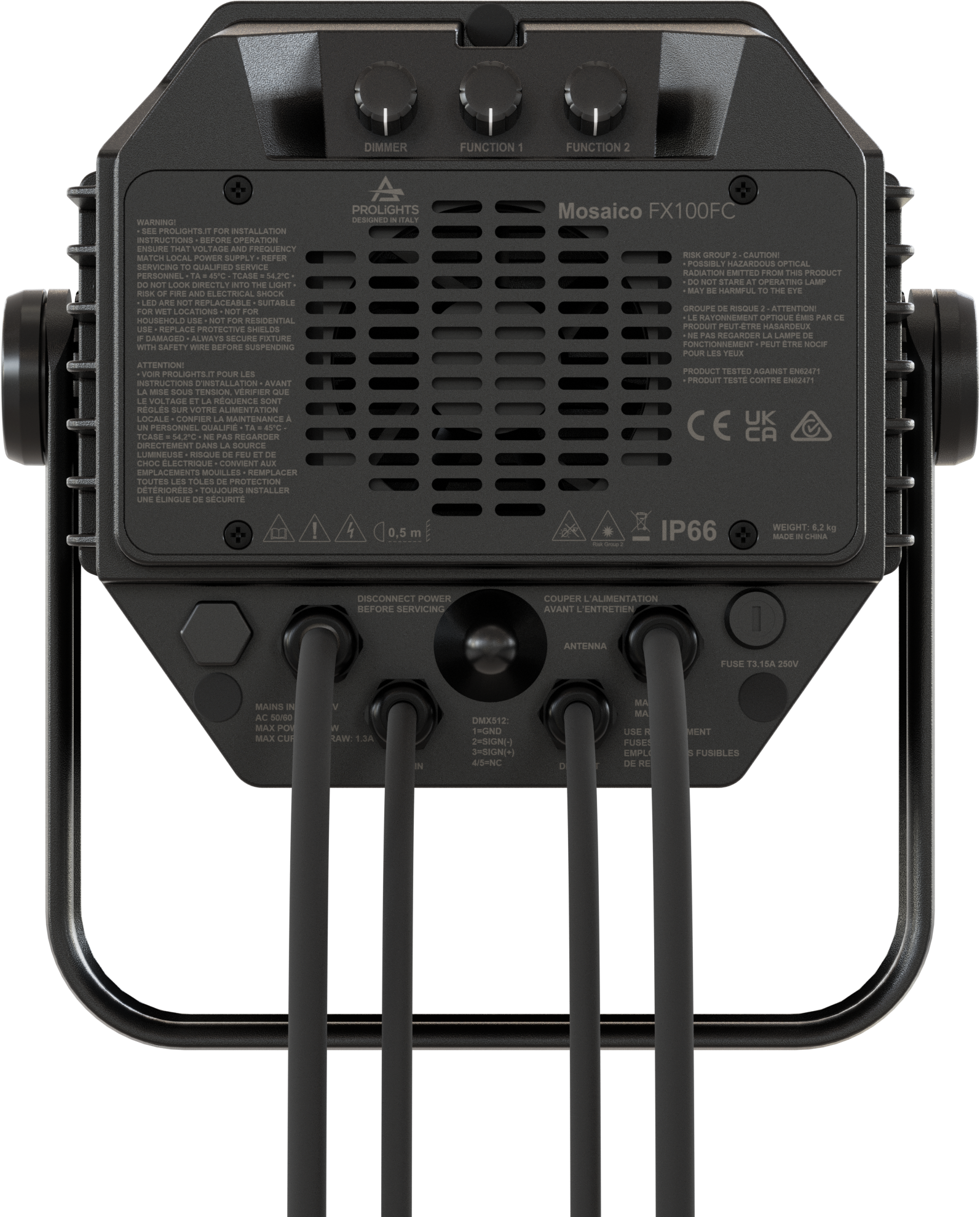

Other:Inspectable cover window for effects and gobo replacement and maintenance

CONTROL

Protocols:DMX512, RDM, CRMX + WDMX, 3 push encoder
Stand Alone:3push encoder
DMX channels:13channel
Wireless Control:included, LumenRadio Timo Fx DMX/RDM compatible with both CRMX (Lumen Radio) and W-DMX (Wireless DMX)
RDM:RDM for remote monitoring and settings
Display:user interface through DATAMASTER external coder (not included)
Firmware upgrade:yes, via USB - DMX interface (UPBOX2) not included
Master/Slave:for synchronised operation of more units linked in a chain

ELECTRONICS

Dimmer:linear 0 ~ 100%, electronic and manual knob dimmer
Dimmer curves:selectable dimming modes available
Strobe / shutter:1-30Hz, electronic
Operating temperature:-20° C / +45° C (-4° F / +113° F)
LED Control:flicker free frequency with adjustable PWM
Selectable PWM:600 ~ 25.000 Hz

ELECTRICAL

Mains power supply:100-240V - 50/60Hz
Max power consumption:120W
Output (at 230V):25
Power factor:>0.95

PHYSICAL

IP rating:66for outdoor installations

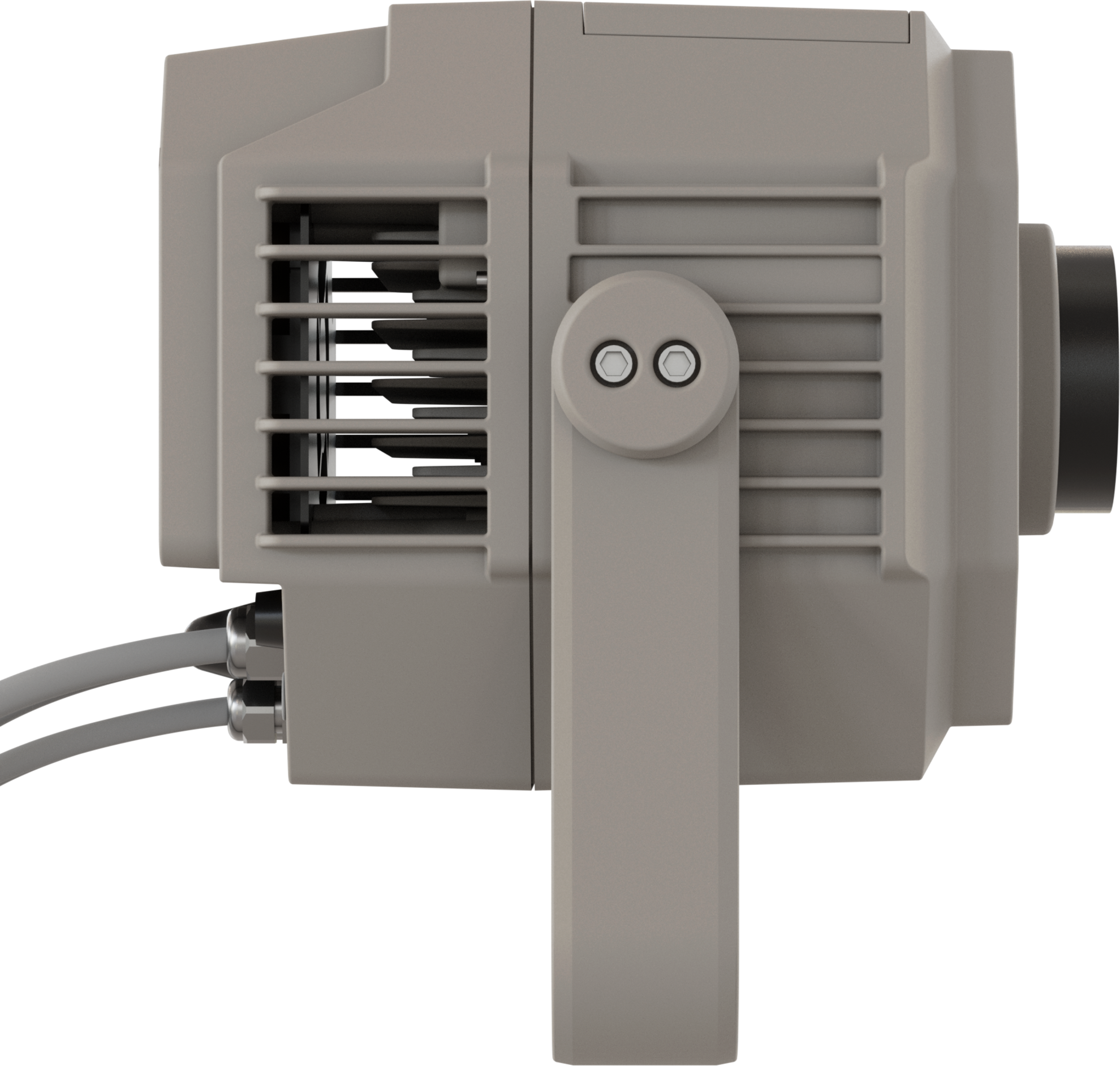

Cooling:active, silent operation
Suspension and fixing:bracket for hanging and positioning
Adaptors:XLR and BARE END 16A adaptors included
Signal connection:35 cmmoulded IP signal IN/OUT connectors
Power connection:35 cmmoulded IP power IN/OUT connectors

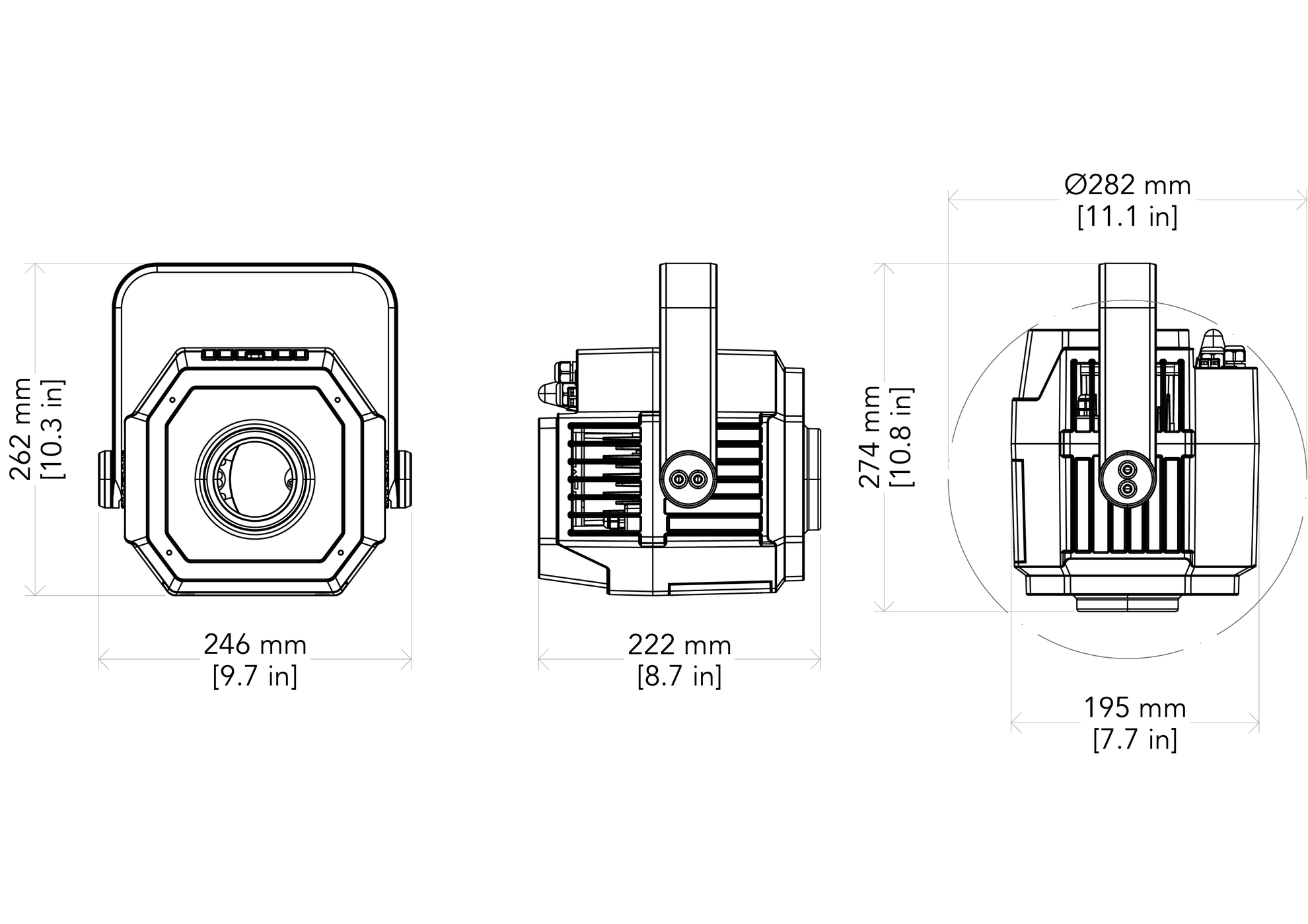

Dimensions (WxHxD):224x261x221mm
Weight:5,8kg

CERTIFICATIONS / APPROVALS

Certifications / Approvals:CE, UKCA, RCM
