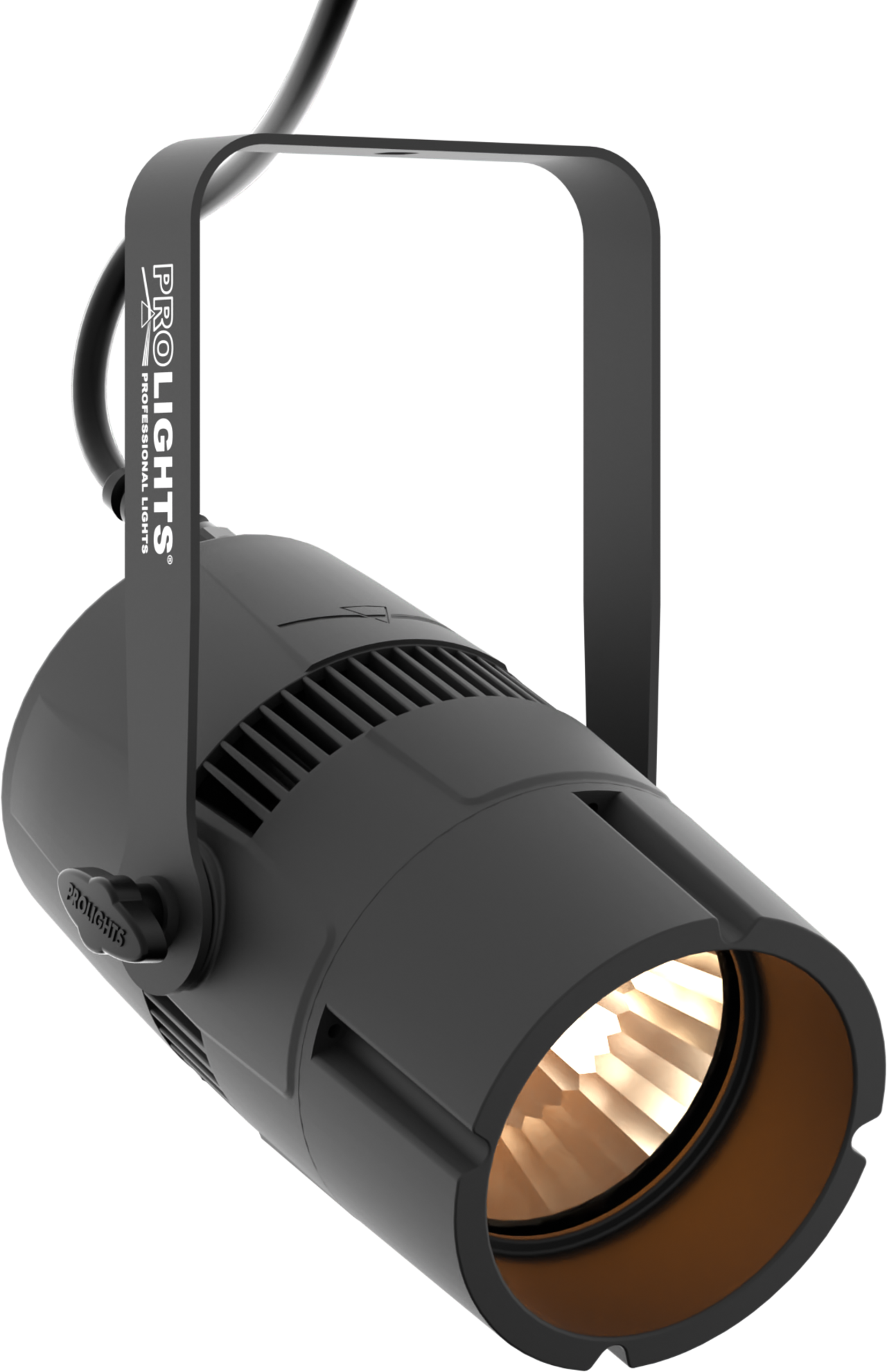

PIN SPOT DY - Led Pinspot, Black

Name: PIN SPOT DY - Led Pinspot, Black
Brand: Prolights

1x13W 5600K LED projector, dimmer knob, beam 6°, 20W, 1.8Kg

Color temperature (K)

Vælg venligst en variant!

Beskrivelse Specification Brand information Downloads

Pin Spot LED is a true LED replacement for a traditional Pin Spot. Featuring both the beam and output characteristics of the original, the Pin Spot is able to be used in all the same applications.

Technical Specifications

LIGHT SOURCE

Source: 13W high-power white LED
CCT: (TU) 2.900 K - (DY) 6.100K
Luminous flux: (TU) 755 lm - (DY) 978lm
Lux: (TU) 5'030 lx - (DY) 6'320lx @3 m
CRI: (TU) 90 - (DY) 80
Source life expectancy: > 30.000 h

OPTICS

Beam angle: 6°
Field angle: 12°

DYNAMIC EFFECTS

Manual mode: manual adjustment of dimmer

BODY

Body: sturdy die-cast aluminium body
Body colour: black

ELECTRONICS

Dimmer: linear 0 ~ 100%, manual knob dimmer
Operating temperature: -10° ~ +45°

ELECTRICAL

Mains power supply: 100-240V - 50/60Hz
Max power consumption: 18,9W
Max power consumption (at 120V): 19,6W

PHYSICAL

IP rating: 30
Cooling: active, silent operation
Suspension and fixing: bracket for hanging and positioning
Power connection: moulded IP power IN connector
Dimensions (WxHxD): 209x167x238mm
Weight: 1,8kg
