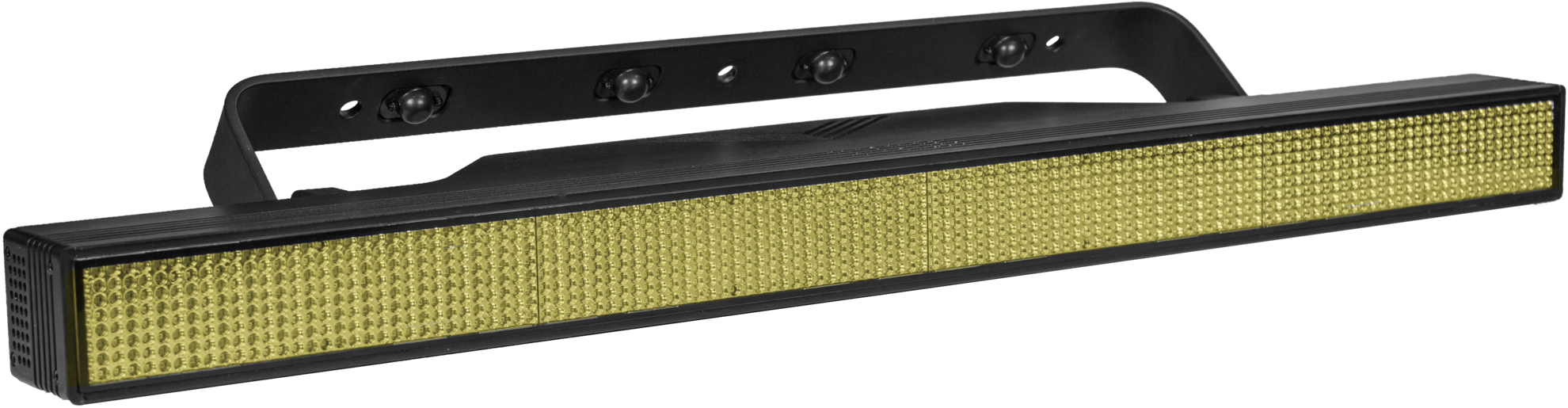

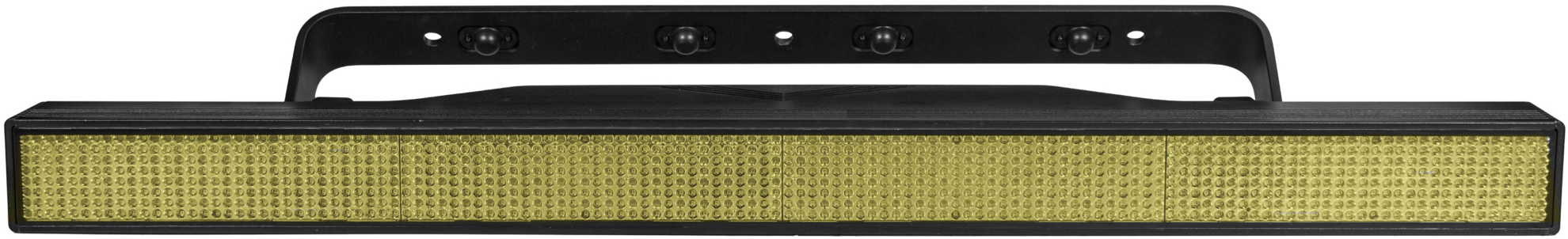

SUNBAR 2500 MAX - High power LED bar strobe

530200300
High power LED bar strobe, 1024x1.3W White LED, 120°beam, 160k lm, 1166W,

SunBar 2500Max is an exceptionally powerful LED graphic strobe batten also featuring as a static blinder and flood. SunBar 2500Max offers flexible control of the beam coverage through an interchangeable lens system, passing from 120° wide to 40° beam increasing the light intensity up to x4.

Available in white or full colour versions and designed to deliver simply staggering light levels, this versatile fixture can provide an unbelievable punch over a huge area.

Technical Specifications
LIGHT SOURCE
  • Source: 1.024x1,3W high-power white LED
  • CCT: CW: 7.000K
  • Luminous flux: strobe without lens (peak) 160'000 lm - static ON without lens 45'000 - strobe with lens (peak) 112'000 - static ON with lens 40'000lm
  • Lux: (120°) 2'093 lx - (40°) 5'640lx @3 m
  • CRI: 87
  • Source life expectancy: > 30.000 h
OPTICS
  • Beam angle: without lens 120°, with lens 40°
  • Field angle: without lens 150°, with lens 80°

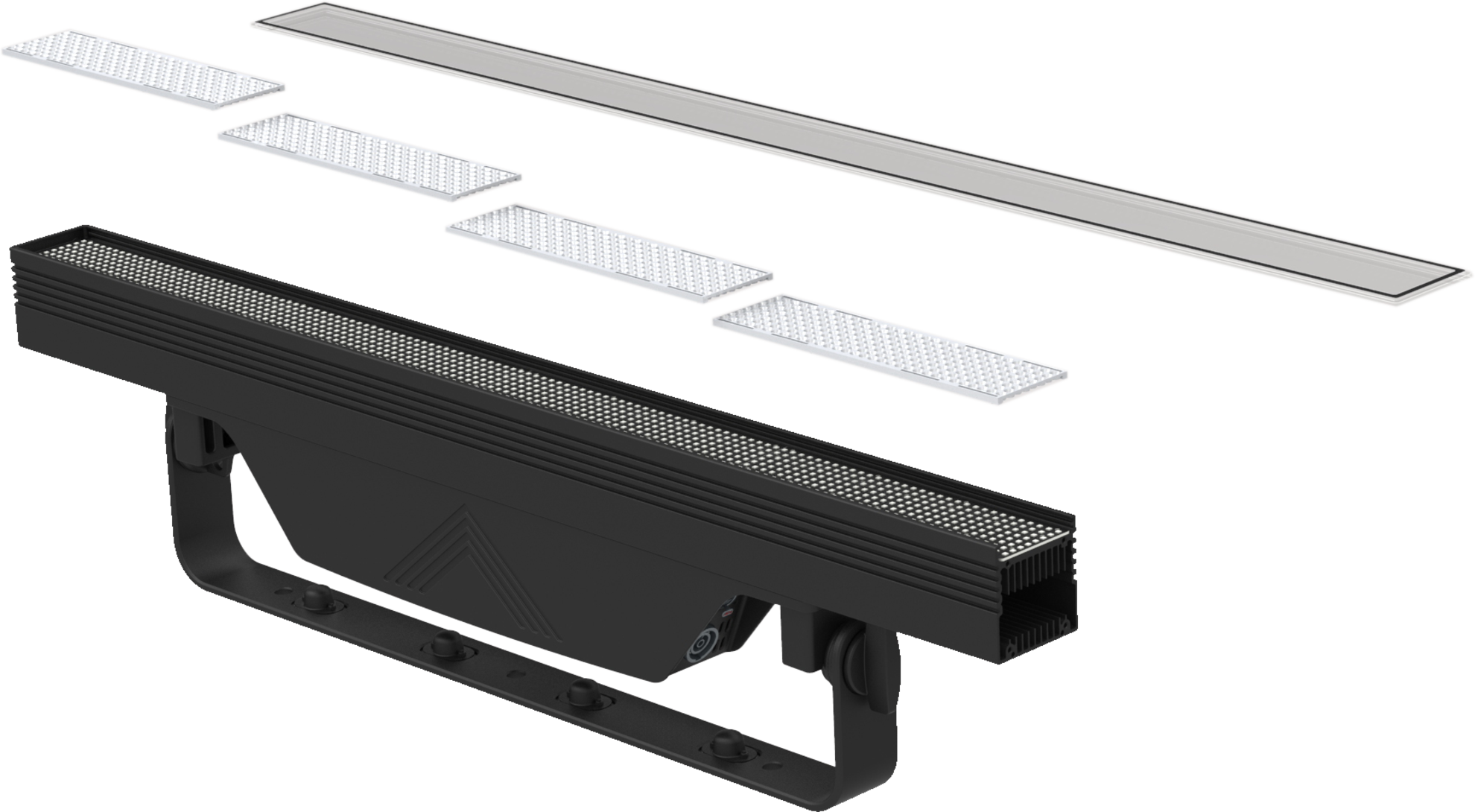

  • Additional optics: mountable 40° lens reflector plate (included)
DYNAMIC EFFECTS
  • Rotating gobos: dynamic patterns with speed and rotation control
  • Pixel patterns: pre-programmed dynamic and static patterns
  • FX generator: adjustable foreground/background index, speed, direction
  • Static mode: selection of static colour
  • Manual mode: manual adjustment of colour
  • Auto mode: built-in programs with execution speed adjustment
  • Special features: multi-layer pixel FX control
BODY
  • Hardware on-board: sockets for quick-Lock Omega bracket (clamp not included)
  • Body: sturdy die-cast aluminium body
  • Body colour: black
CONTROL
  • Protocols: DMX512, RDM, Art-Net, Kling-Net
  • DMX channels: from 1 to 71channel
  • Pixel control: 1 / 2 / 4 / 8 / 16 / 64 individually select and control sections
  • RDM: RDM for remote monitoring and settings

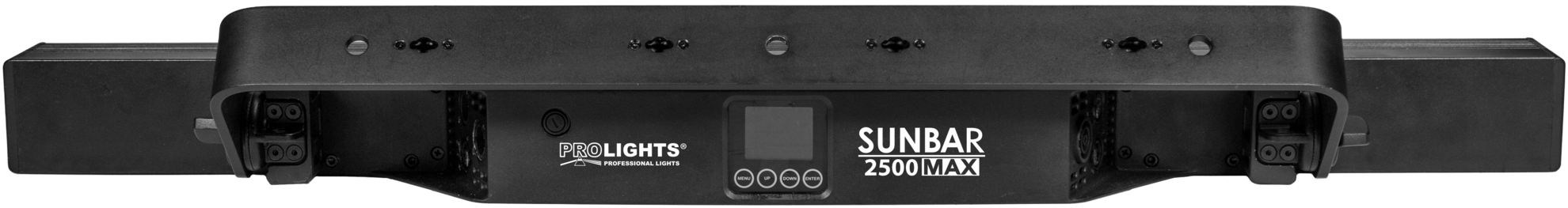

  • Display: black TFT touch display
  • Firmware upgrade: yes, via USB - DMX interface (UPBOX1) not included
ELECTRONICS
  • Dimmer: linear 0 ~ 100% electronic dimmer
  • Dimmer curves: 4 selectable dimming modes available
  • Strobe / shutter: 1 - 30 Hz, electronic
  • Operating temperature: -10° ~ +45°
  • Selectable PWM: 600 ~ 25.000 Hz
ELECTRICAL
  • Mains power supply: 100-240V - 50/60Hz
  • Max power consumption: full static: 596 W - strobing: 1'060W
  • Max power consumption (at 120V): full static: 621 W - strobing: 1'166W
  • Output (at 230V): 3 units on a single power line
PHYSICAL
  • IP rating: 20
  • Cooling: active, silent operation
  • Suspension and fixing: hanging bracket for floor positioning with "Quick-Lock" system
  • Signal connection: Amphenol XLR 5p IN/OUT connectors
  • Data connection: Art-Net RJ45 IN/OUT
  • Power connection: Seetronic powerCON waterproof IN/OUT connectors
  • Dimensions (WxHxD): 1.000x75x231mm
  • Weight: 9,5kg
