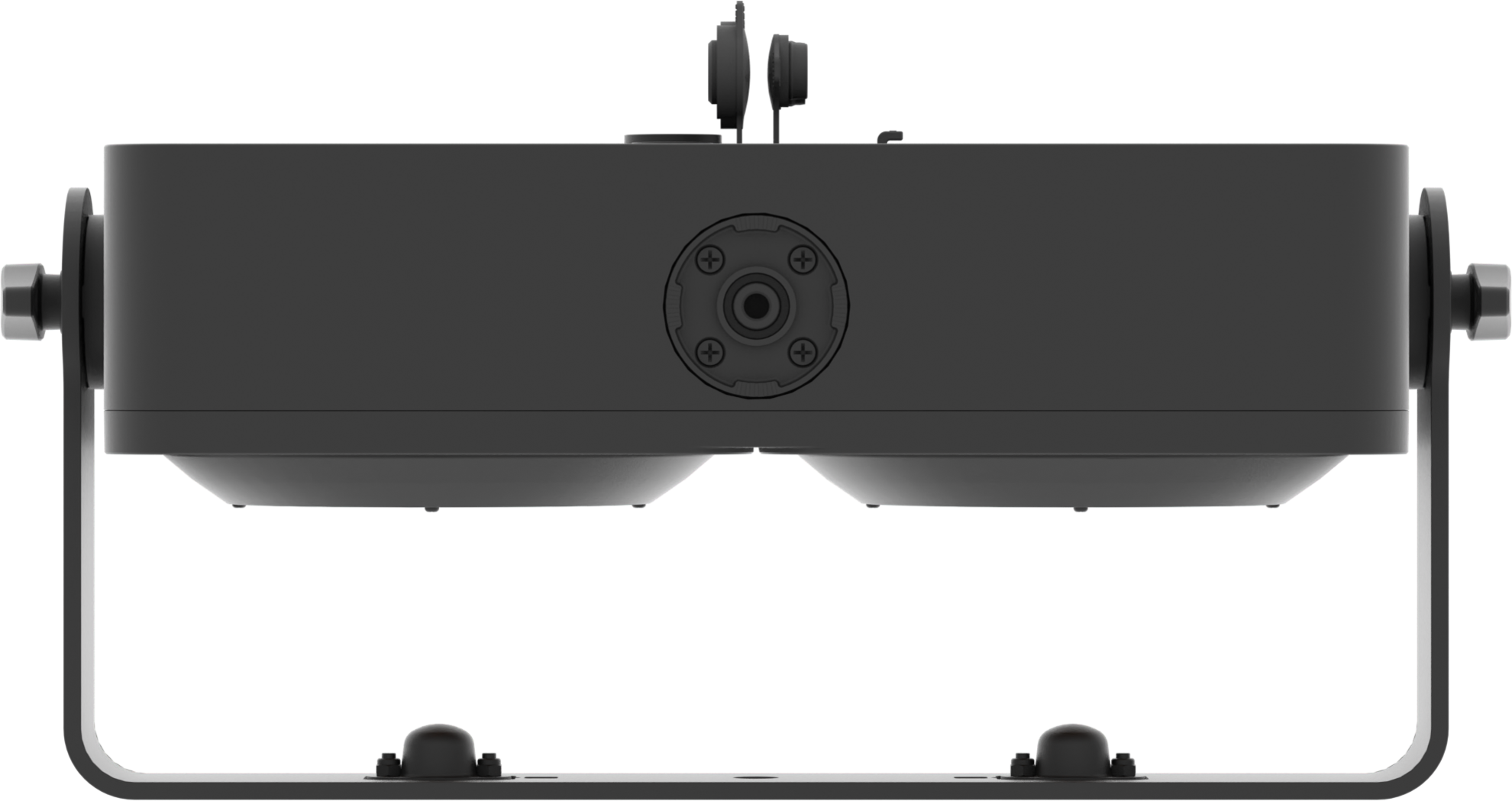

Name: Sunrise 2IP - IP65 modular LED 2 Light Blinder
Brand: Prolights

530022500

IP rated modular LED blinder with 2x75W LED WW and Tungsten emulation

Beskrivelse Specification Brand information Downloads

Sunrise 2IP is an IP rated and convection cooled modular 2x1 LED Blinder, designed to be a perfect touring solution to replace classic halogen fixtures of any sizes.

The fixture is designed with on-board, fast-locking mechanism in order to combine multiple units together and using them as brick, turning the Sunrise 2IP into a 4x1 or a 2x2 blinder easily. The Sunrise 2IP is equipped with 2x75 W COB Warm White LEDs pixel controlled and its optical system is capable to output the same performance and beam angle of the fluorescent bulbs, including dimmer ramp with red-shift.

Technical Specifications

LIGHT SOURCE

Source: 2 x 8 W Amber + 2 x 75W Warm White LEDs
CCT: 2.700K
Luminous flux: 10'088lm @full
Lux: 1'076lx @3 m full
Lux: 387lx @5 m full
CRI: > 93
TLCI: > 91
TM30 Rf: > 91
TM30 Rg: > 97
Source life expectancy: > 70.000 h

OPTICS

Beam angle: 60°
Field angle: 100°
Lens type: parabolic reflector

DYNAMIC EFFECTS

Static mode: selection of static dimmer
Manual mode: manual adjustment of dimmer and strobe
Auto mode: built-in programs with execution speed adjustment
Special features: tungsten emulation activation

BODY

Body: sturdy die-cast aluminium body
Body colour: RAL 9004
Other: on board mechanics for modular assembly of multiple fixtures

CONTROL

Protocols: DMX512, RDM
DMX channels: 1 / 2 / 6 / 12channel
Pixel control: pixel2pixel control
RDM: RDM for remote monitoring and settings
Display: Graphic User Interface
Firmware upgrade: yes, via USB - DMX interface (UPBOX1) not included
Master/Slave: for synchronised operation of more units linked in a chain
Other: 16bit control of dimmer

ELECTRONICS

Dimmer: linear 0 ~ 100% electronic dimmer
Dimmer curves: 4 selectable dimming modes available
Strobe / shutter: 1 ~ 30 Hz, electronic
Operating temperature: -10° ~ +45°
LED Control: flicker free frequency with adjustable PWM
Selectable PWM: 600 ~ 25.000 Hz

ELECTRICAL

Mains power supply: 100-240V - 50/60Hz
Max power consumption: 160W
Output (at 230V): 16 units on a single power line
Power factor: > 0,94

PHYSICAL

IP rating: 65 for temporary outdoor application, not for fixed installation
IK rating: 08
Cooling: passive cooling and fan-free
Suspension and fixing: bracket for truss rigging and hardware for connection of more units
Signal connection: Seetronic XLR 5p IN/OUT connectors
Power connection: Seetronic powerCON TRUE IP65 IN/OUT
Dimensions (WxHxD): 432x230x102mm
Weight: 7,6kg

Supplier SKU

SUNRISE2IP
