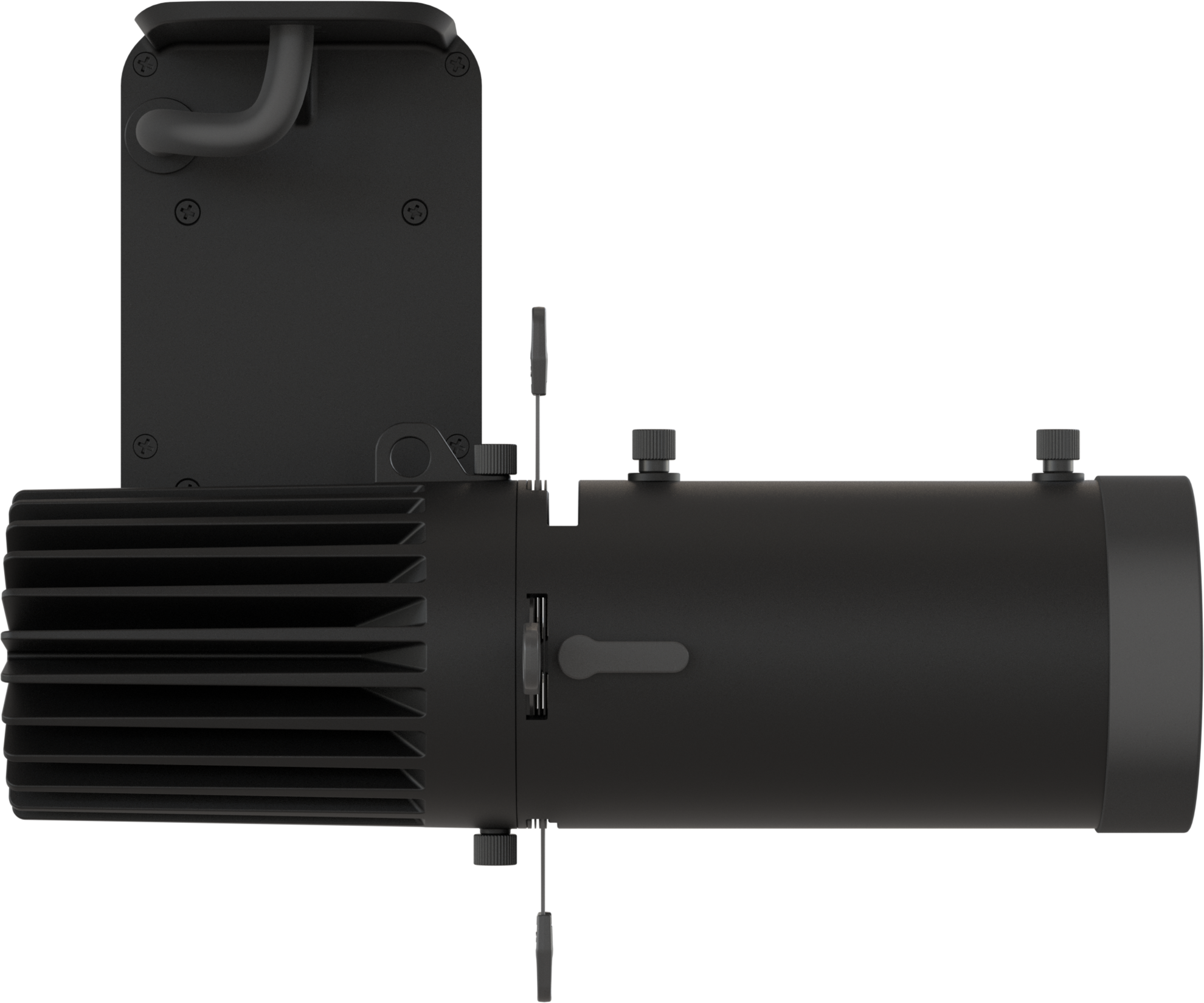

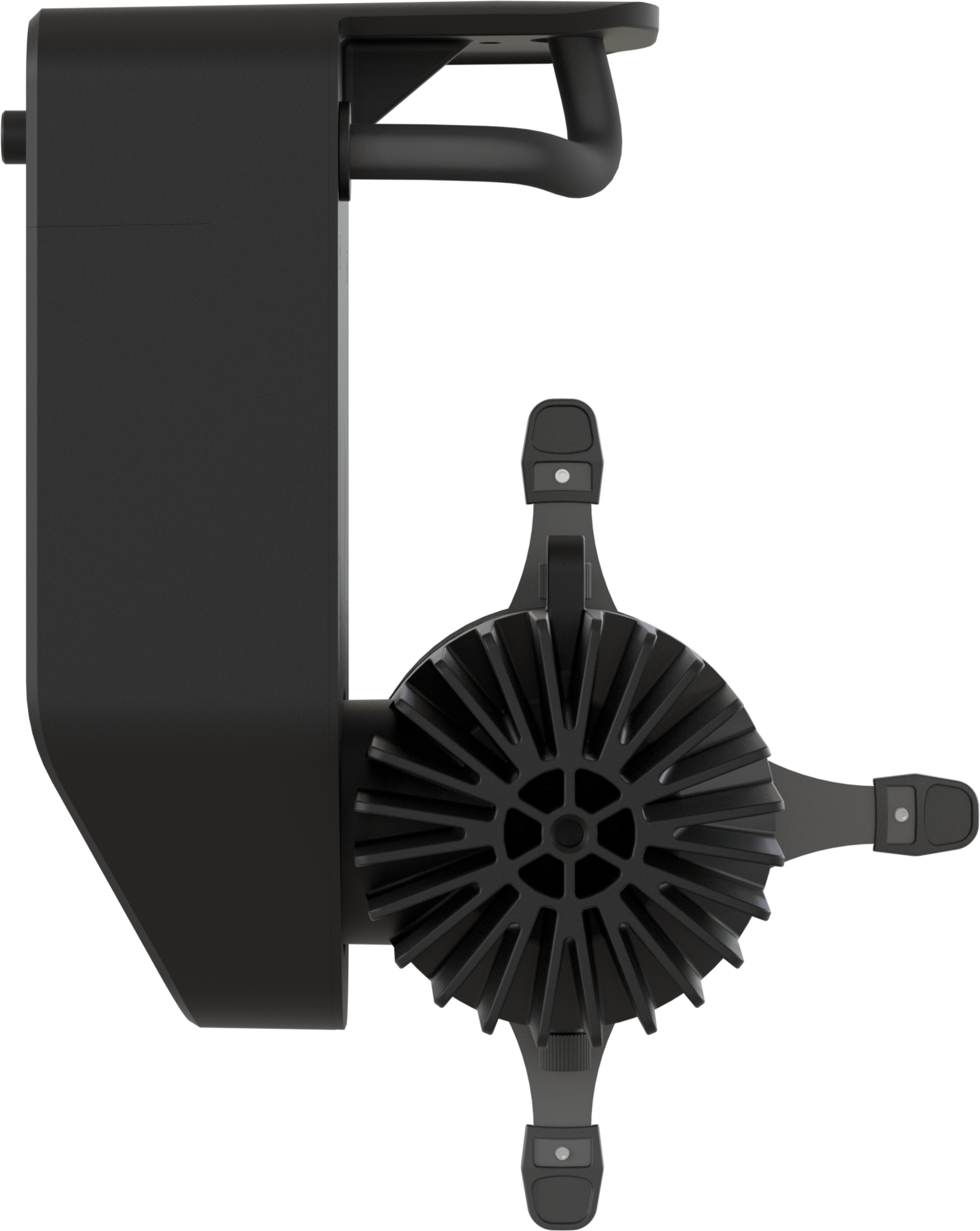

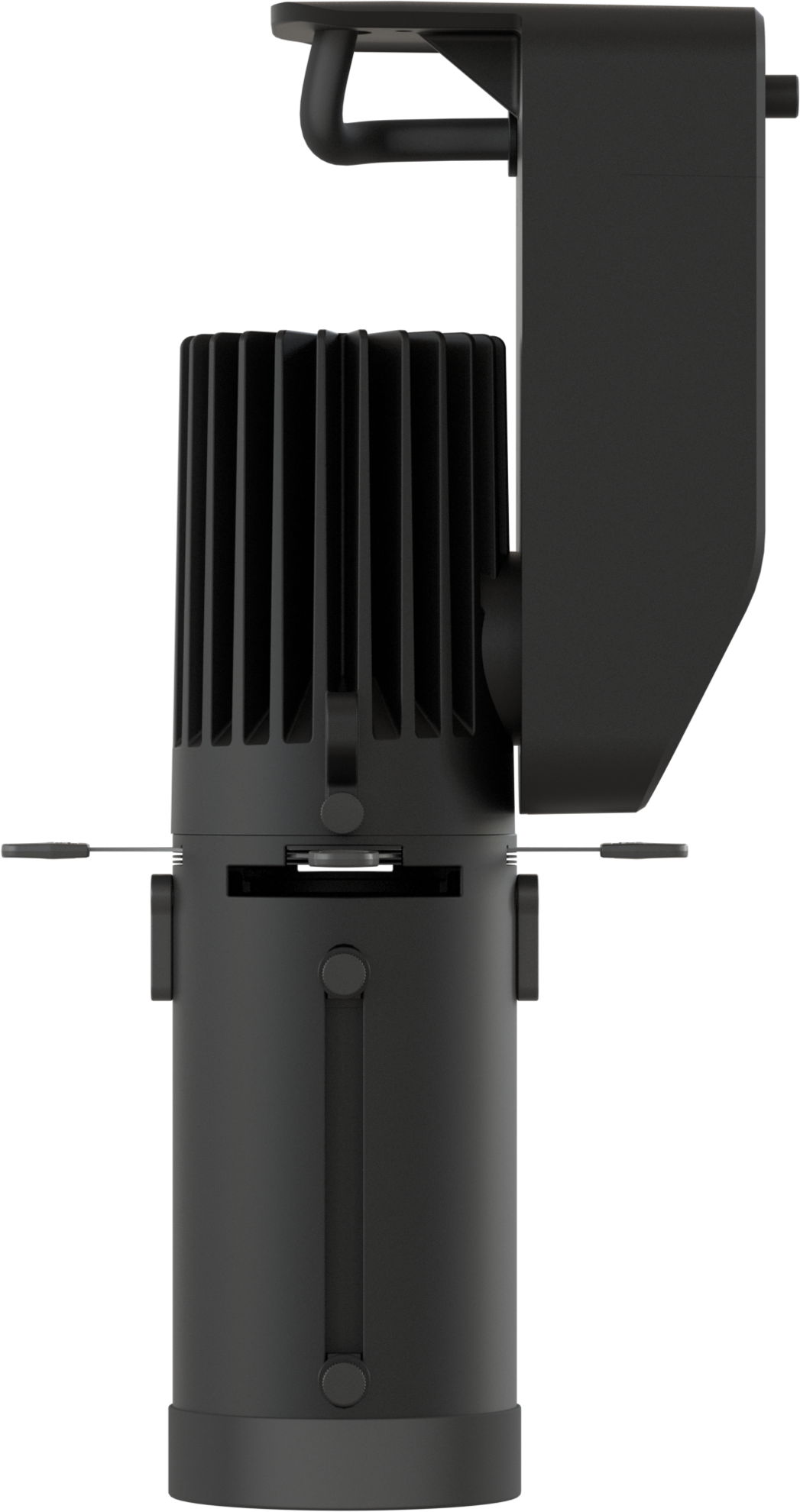

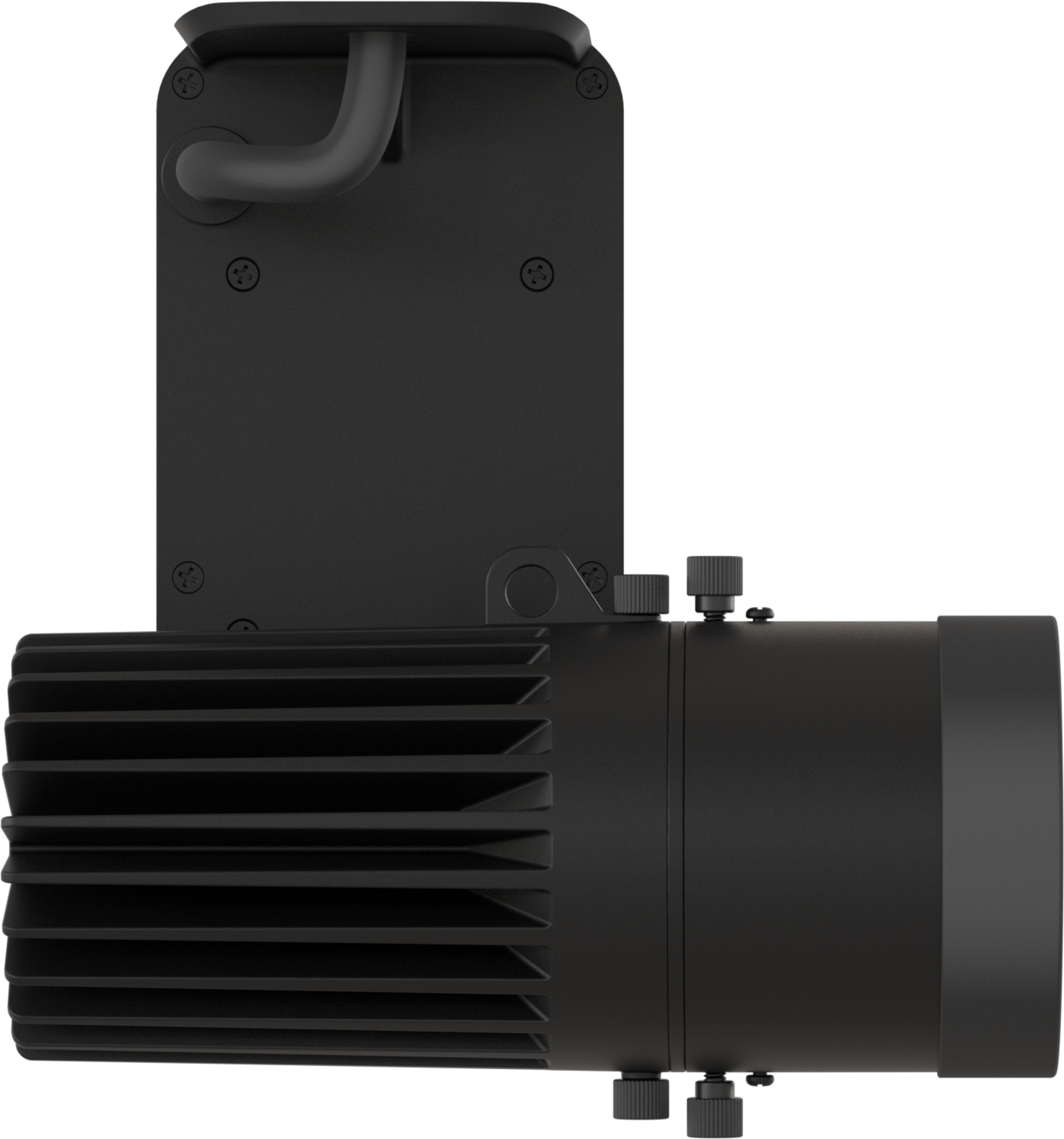

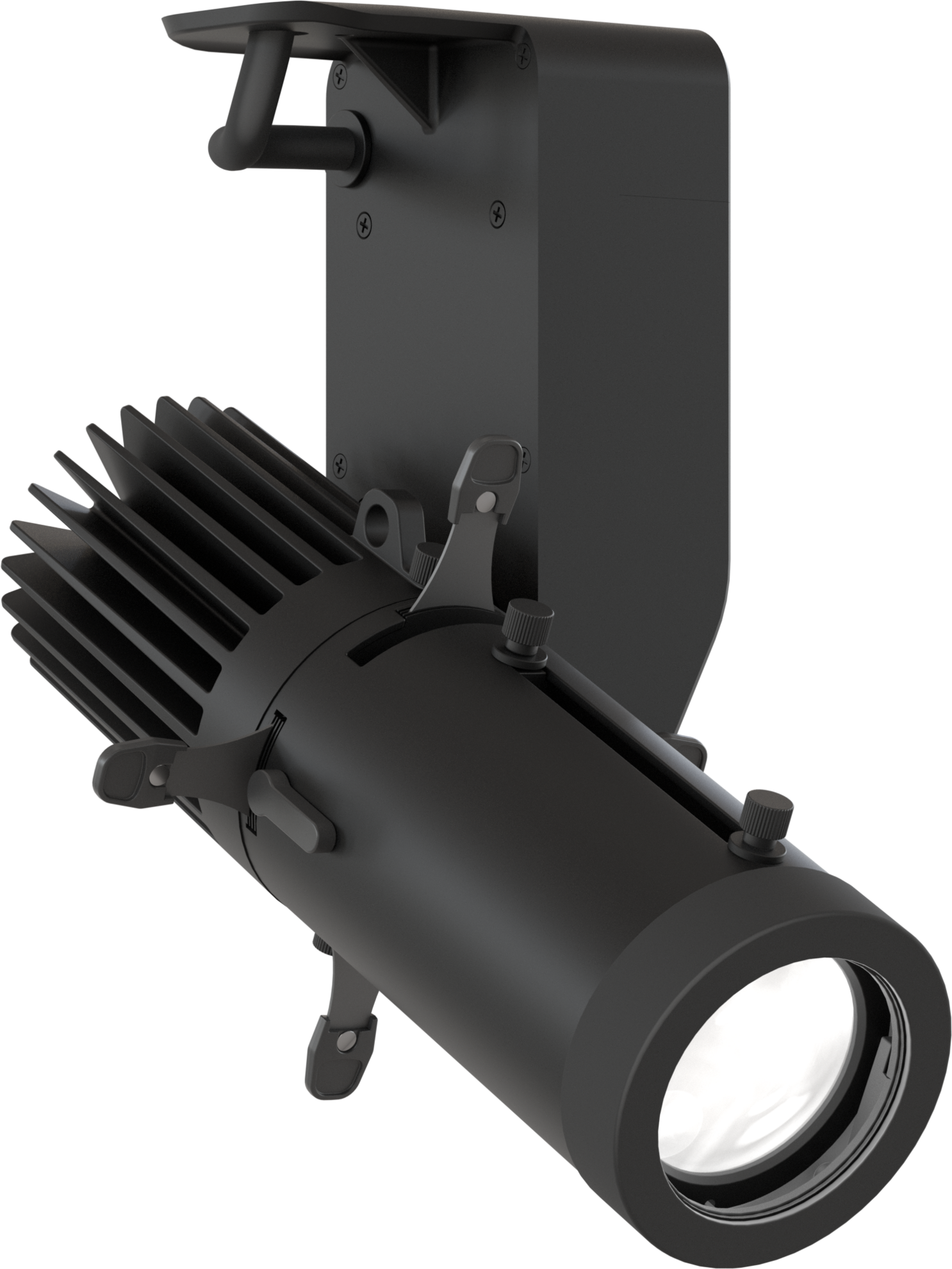

ECL DISPLAY CRMX fixed color with Wireless CRMX and wired control, w/o lens
25W gallery light The EclDisplay CRMX series presents an innovative and versatile range of LED spotlights, designed for use in galleries, commercial spaces, and other public venues. These advanced fixtures are distinguished by their refined design and multiple control options, including both wired and wireless protocols. They are adaptable to a variety of applications, thanks to the availability of different sources and optics.
Each EclDisplay CRMX unit can be programmed and controlled via RDM, encompassing a comprehensive array of built-in input control protocols such as Wireless CRMX, DMX and local knob dimming.
At the heart of the EclDisplay CRMX is a highly efficient White, high CRI LED source. This source is offered in multiple color temperature options: 35 W Variable White and 25 W 2.700K, 3,000 K, 4,000 K, and 5,600 K. The fixture's versatility is further enhanced by an extensive range of optional accessories, including profile (zoom and static) or wash lenses and additional optical elements like louvres and snoots. This makes the EclDisplay CRMX not just a lighting fixture, but a comprehensive lighting solution adaptable to a multitude of environments and needs.
[5 YEARS WARRANTY]
Main features:
Data control through wireless CRMX, RDM, DMX and local knob dimming
High CRI White LED available in 35W Variable White and 25W 2.700K, 3.000 K, 4.000 K, 5.600 K
Multiple lens options: Profile (zoom and static) or wash optics
LIGHT SOURCE
Source: 25W White COB LED
Luminous flux: 2.700K: (profile - 20°) 1'270 lm - (profile - 40°) 1'301 lm; (wash 2550 - min) 999 lm - (wash 2550 - max) 1'454 lm; (wash 1530 - min) 1'069 lm - (wash 1530 - max) 1'317 lm @full
Luminous flux: 3.000K: (profile - 20°) 1'352 lm - (profile - 40°) 1'377 lm; (wash 2550 - min) 1'116 lm - (wash 2550 - max) 1'663 lm; (wash 1530 - min) 1'196 lm - (wash 1530 - max) 1'468 lm
Luminous flux: 4.000K: (profile - 20°) 1'581 lm - (profile - 40°) 1'568 lm; (wash 2550 - min) 1'242 lm - (wash 2550 - max) 1'788 lm; (wash 1530 - min) 1'329 lm - (wash 1530 - max) 1'639 lm
Luminous flux: 5.600K: (profile - 20°) 1'687 lm - (profile - 40°) 1'700 lm; (wash 2550 - min) 1'367 lm - (wash 2550 - max) 1'997 lm; (wash 1530 - min) 1'493 lm - (wash 1530 - max) 1'843 lm
Lux: 2.700K: (profile - 20°) 676 lx - (profile - 40°) 194 lx; (wash 2550 - min) 229 lx - (wash 2550 - max) 81 lx; (wash 1530 - min) 556 lx - (wash 1530 - max) 190 lxlx @5 m full
Lux: 3.200K: (profile - 20°) 610 lx - (profile - 40°) 185 lx; (wash 2550 - min) 234 lx - (wash 2550 - max) 83 lx; (wash 1530 - min) 571 lx - (wash 1530 - max) 208 lxlx @5 m full
Lux: 4.000K: (profile - 20°) 782 lx - (profile - 40°) 235 lx; (wash 2550 - min) 272 lx - (wash 2550 - max) 98 lx; (wash 1530 - min) 683 lx - (wash 1530 - max) 232 lxlx
Lux: 5.600K: (profile - 20°) 853 lx - (profile - 40°) 250 lx; (wash 2550 - min) 292 lx - (wash 2550 - max) 107 lx; (wash 1530 - min) 720 lx - (wash 1530 - max) 261 lxlx
CRI: > 97 @2.700K; > 98 @3.000K; > 98 @4.000K; >95 @5.600K
R9: > 89 @2.700K; > 90 @3.000K; > 90 @4.000K; >82 @5.600K
TLCI: > 92 @2.700K; > 98 @3.000K; > 98 @4.000K; >98 @5.600K
TM30 Rf: > 95 @2.700K; > 95 @3.000K; > 94 @4.000K; >93 @5.600K
TM30 Rg: < 99 @2.700K; < 99 @3.000K; < 100 @4.000K; <101 @5.600K
Source life expectancy: > 50.000 hrs (L70B10 @Ta 25° C / 77° F)
OPTICS
Zoom: (wash lens - optional) 15° ~ 30° or 25° ~ 50° - (profile lens - optional) 10° ~ 20° or 20° ~ 40° or 8°
Other: 360° lens rotation - optional 360° rotating barndoors and gel frame holder
Other: (profile lens) shutter blades lockable
Other: (profile lens - optional) manual rotating gobo holder size E, outer: 37 mm - image: 23 mm - thickness: max 3 mm
DYNAMIC EFFECTS
Control Resolution: 16-bit dimmer
Static mode: selection of static dimmer
Manual mode: manual adjustment of dimmer and strobe
Auto mode: built-in programs with execution speed adjustment
BODY
Hardware on-board: lockable tilt with screw
Body: aluminium die-casting
Body colour: RAL 9004 or RAL 9010
Other: cable not included - Cable diameter range: 6 - 10 mm
CONTROL
Protocols: Local Knob, DMX, RDM, CRMX
Stand Alone: 1 push encoder
DMX channels: 1 / 2 / 3 / 4channel
Wireless Control: included, LumenRadio TiMo receiver
RDM: RDM for remote monitoring and settings
Display: user interface through DATAMASTER external coder (not included)
Firmware upgrade: yes, via USB - DMX interface (UPBOXPRO/UPBOX1) not included
ELECTRONICS
Dimmer: linear 0 ~ 100% electronic dimmer
Dimmer curves: 4 selectable dimming modes available
Strobe / shutter: 1 - 30 Hz, electronic
LED Control: flicker free operation
Selectable PWM: 600 ~ 25.000 Hz
ELECTRICAL
Mains power supply: 100-240V - 50/60Hz
Max power consumption: 33W
Output (at 230V): 40 units on a single power line
Power factor: > 0,94
Inrush current: 110VAC/5.5A, 230VAC/13.75A
PHYSICAL
Operating Temperature: -10° ~ +45°
IP rating: 20
Cooling: passive cooling and fan-free
Suspension and fixing: track / hanging / ceiling installation
Data connection: screw terminal blocks
Power connection: screw terminal blocks
Dimensions (WxHxD): 141X200x115.5mm / 5.55''x4.55''
Weight: 1,4kg / 3.09lbs
CERTIFICATIONS / APPROVALS
Certifications / Approvals: CE, RCM
