EclDisplay - DAT Turnable wihte, Full colour

EclDisplay - DAT Turnable wihte, Full colour

Dmx/Dali/knob control, 40W RGB+WW LED, WH, w/o: lens, track and cable

NOTE: ENGINE ONLY, remember to select your optics

Housing Colors

Vælg venligst en variant!

Beskrivelse Specification Brand information Downloads

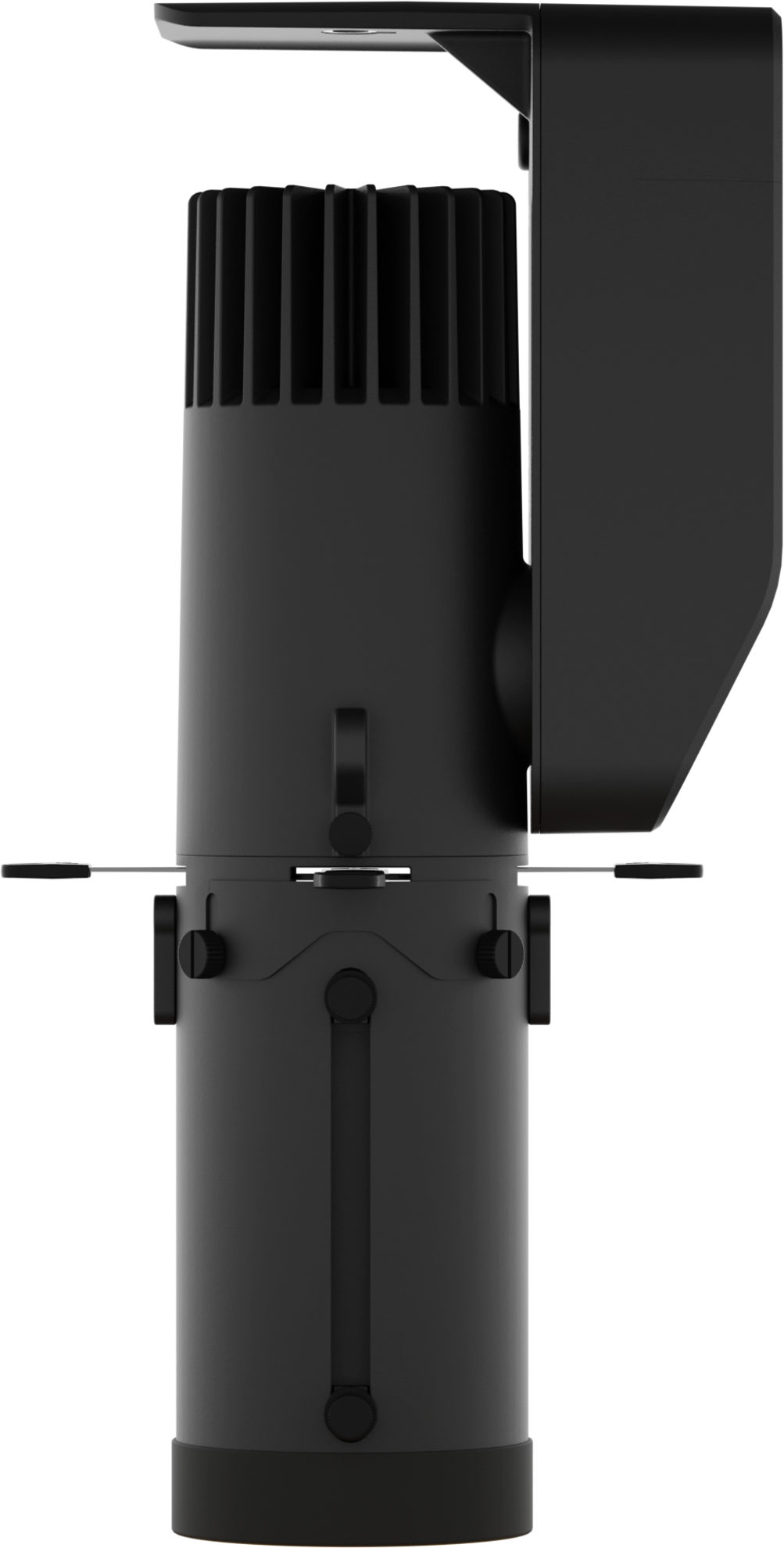

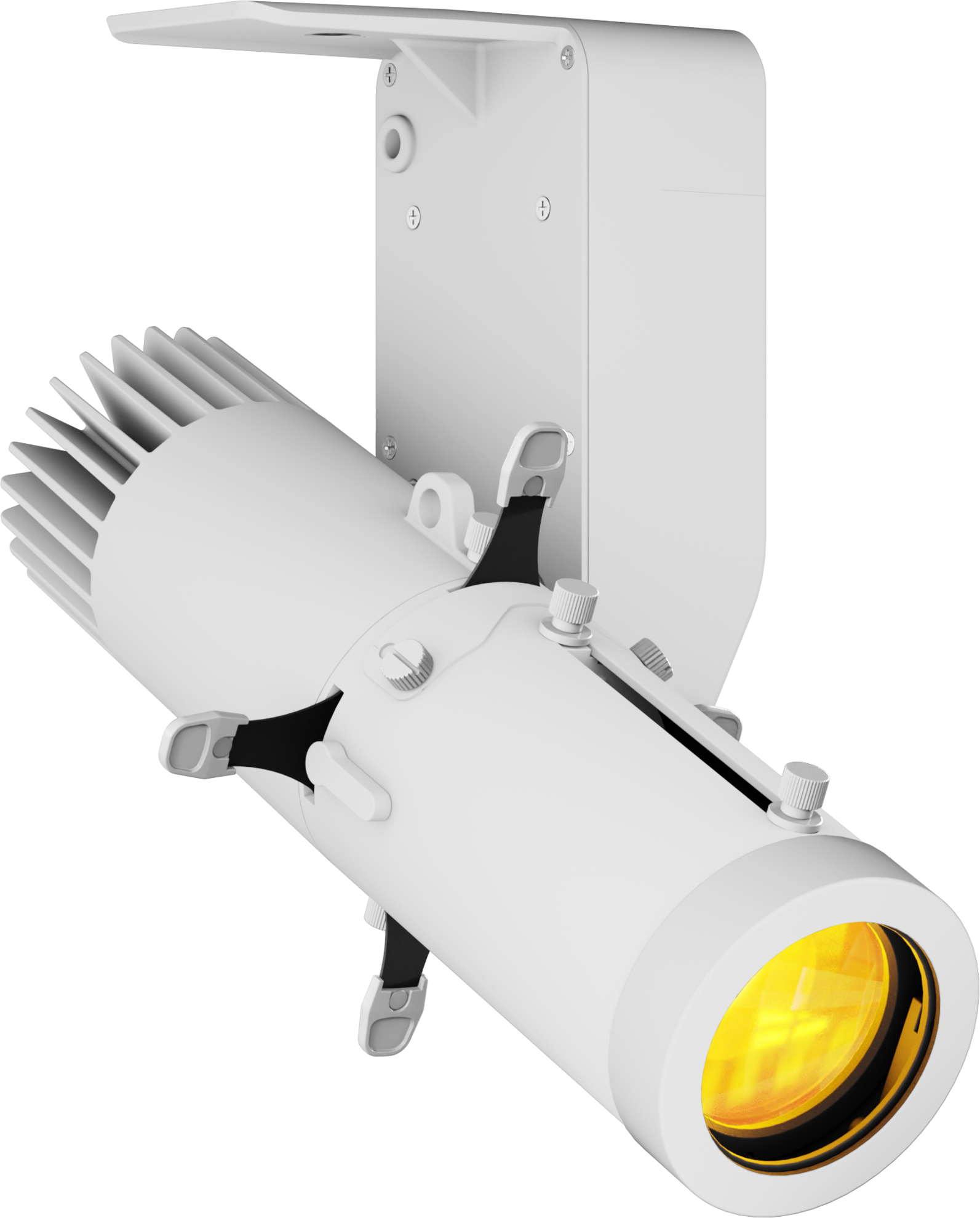

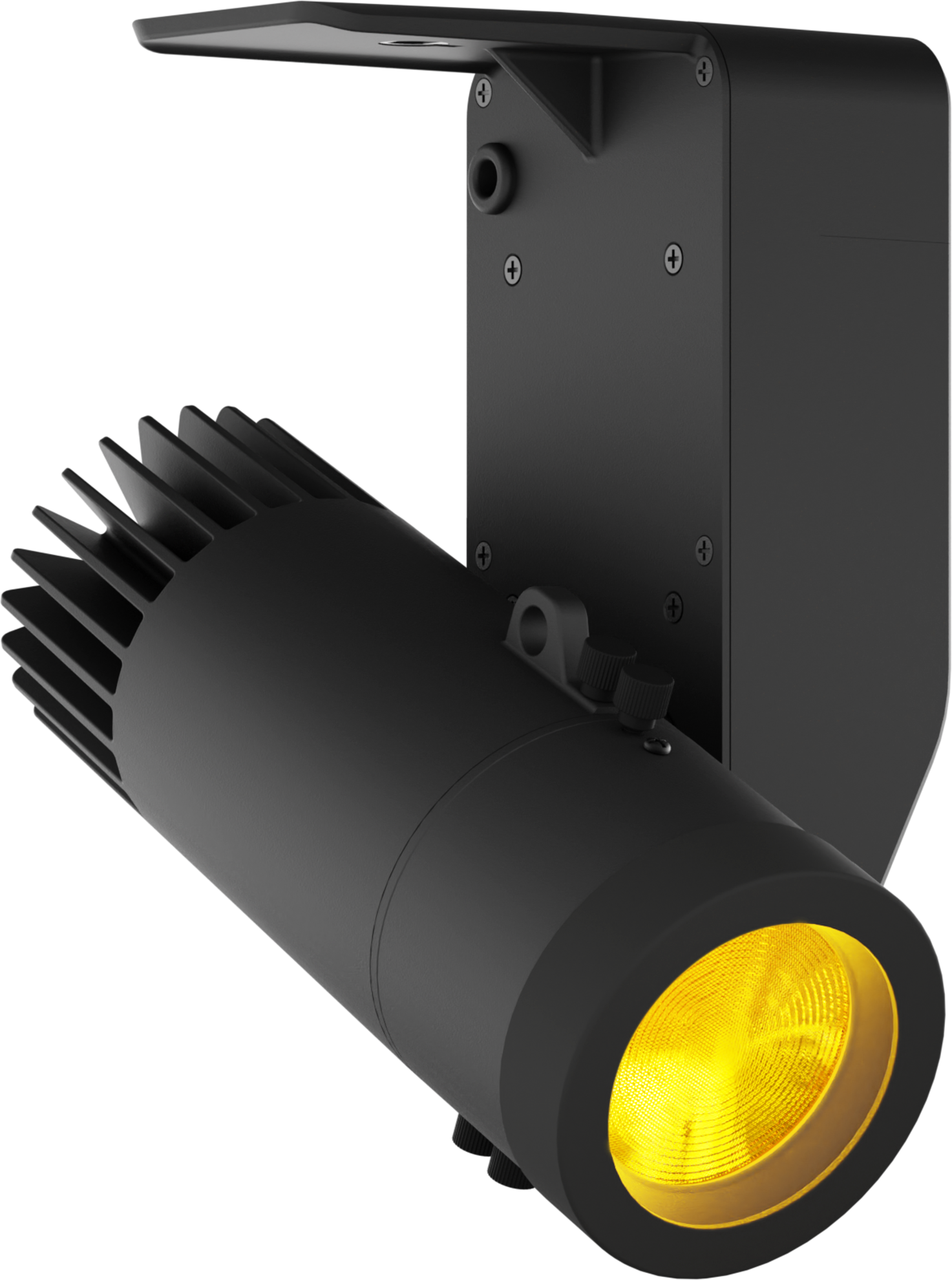

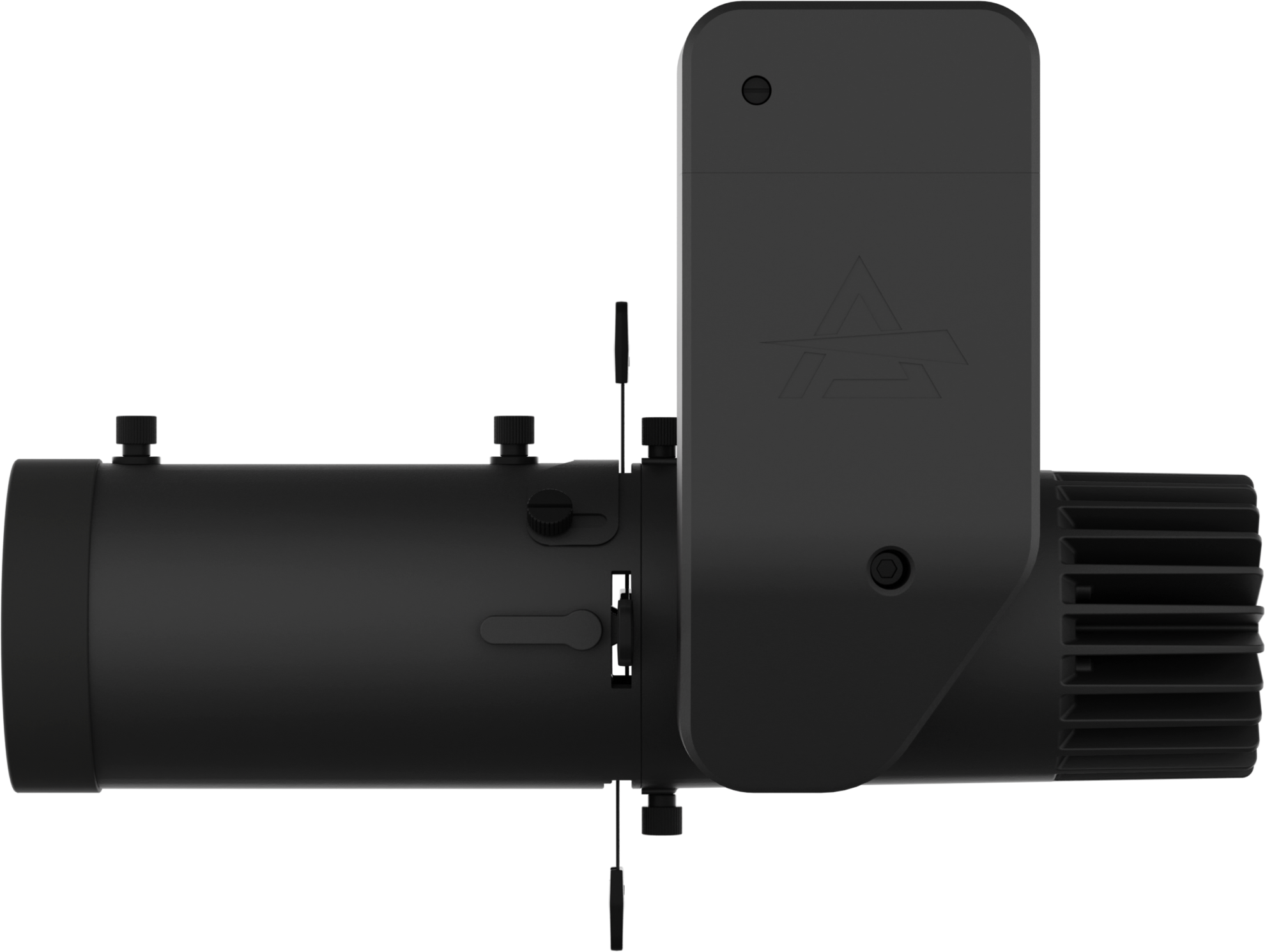

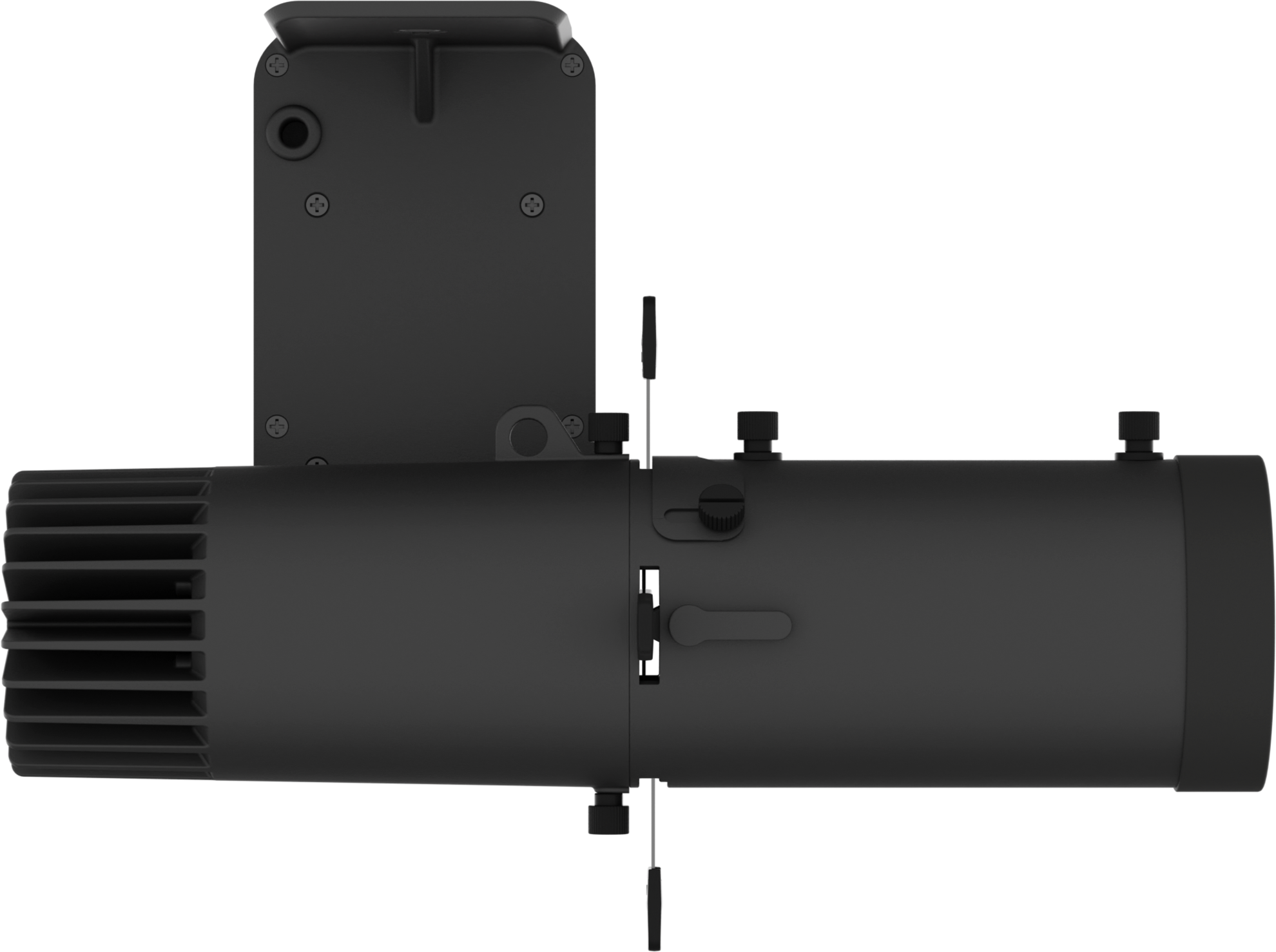

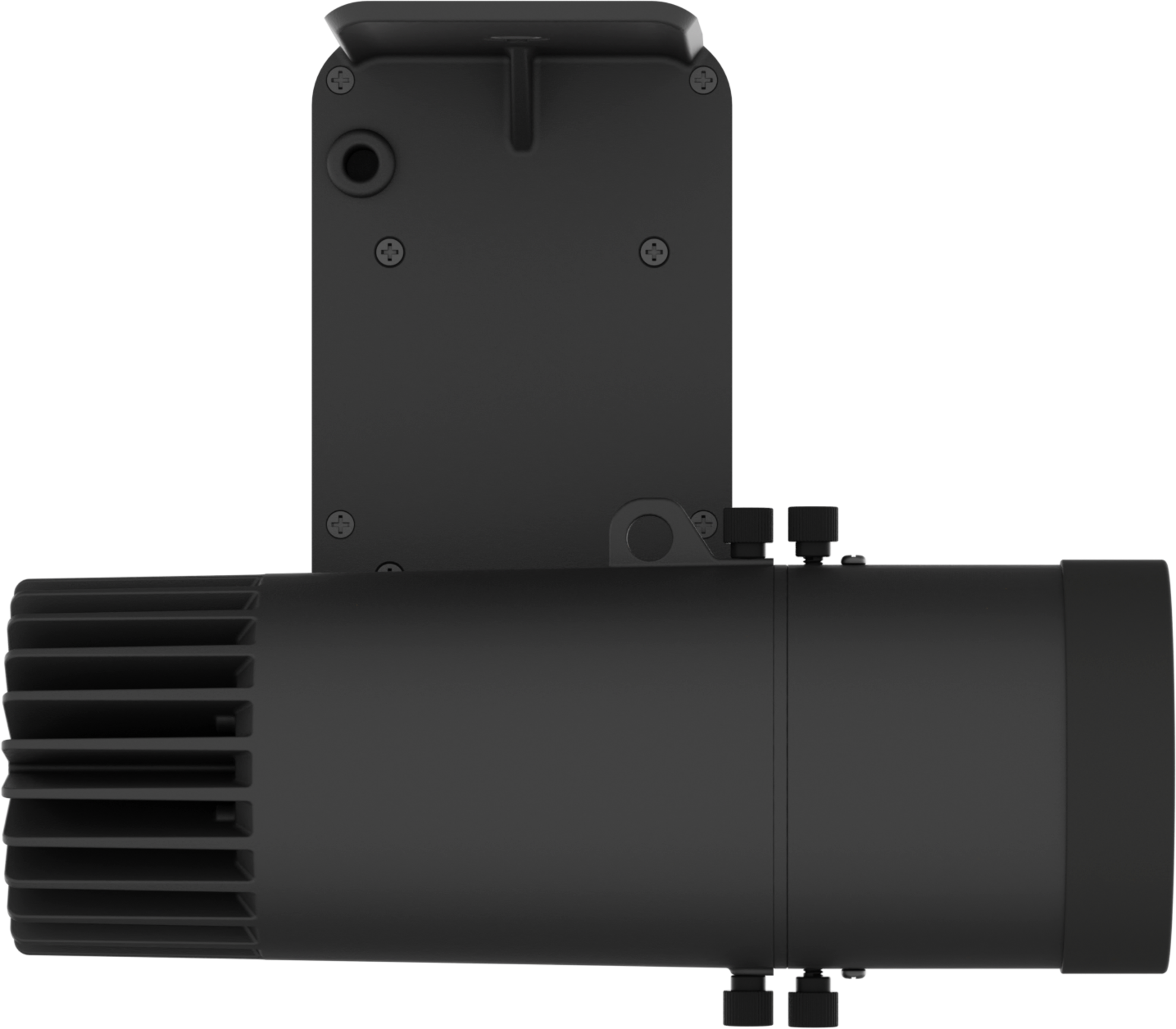

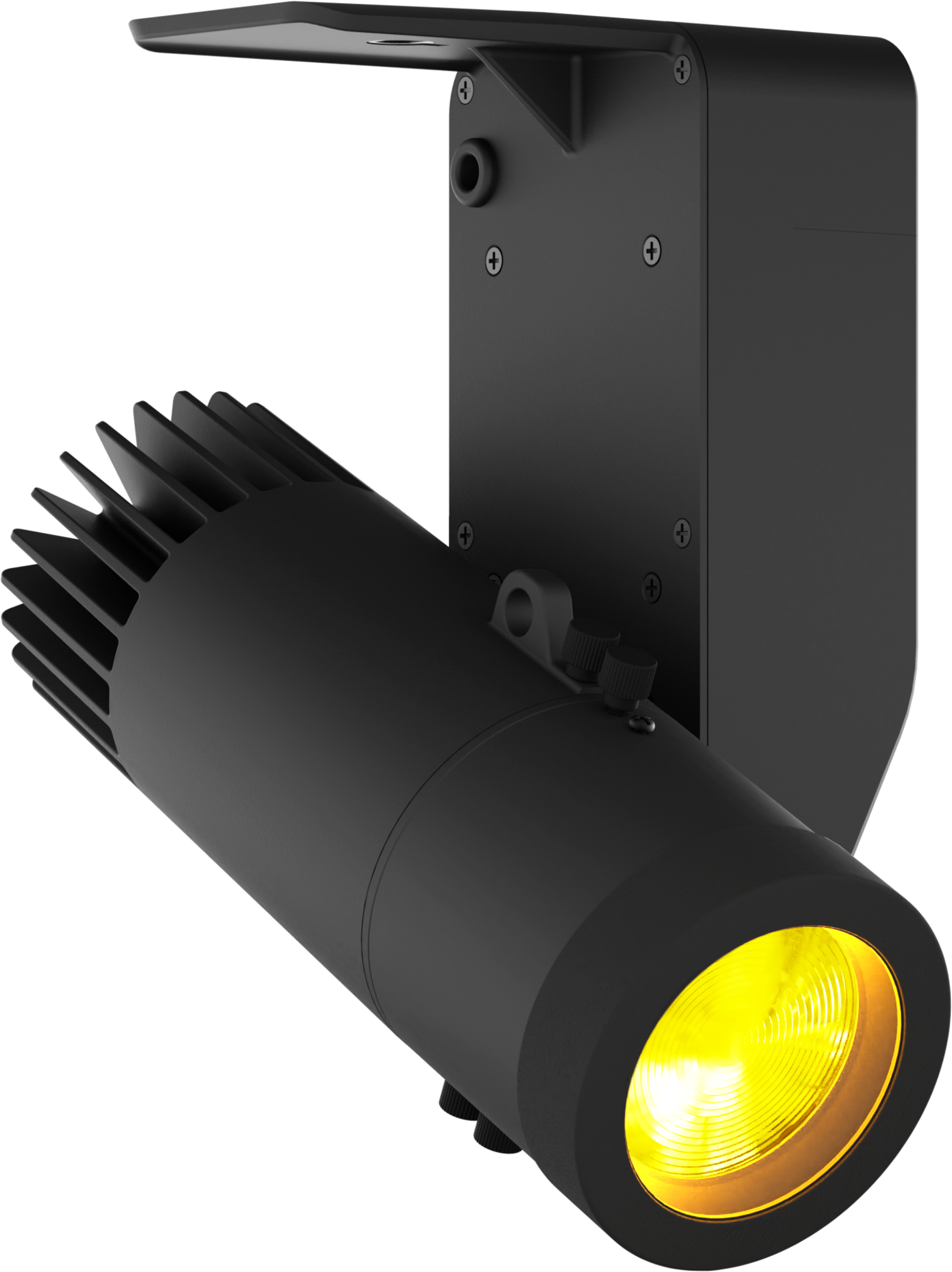

EclDisplay is a range of revolutionary and flexible LED spotlights designed for galleries, retail and any public venue where an advanced but classical looking fixture is needed, with several control options, sources and optic versions available to precisely meet any application.

The EclDisplay DATFC can be set and addressed through RDM, featuring a broad set of on-board input control options: DMX, DALI Type 8, local knob dimming control. The EclDisplay DATFC includes a high-efficiency 40W RGB + Warm White LED capable of delivering both a Full Colour spectrum and also tuneable White, and it is completed with a wide selection of optional zoomable profile or wash lenses, and other optical accessories like louvres and snoots, making it a truly a multi-purpose fixture.

Technical Specifications

LIGHT SOURCE

Source: 40W RGB + Warm White LED
Luminous flux: (profile - 20°) 366 lm - (profile - 40°) 325 lm; (wash 2550 - min) 308 lm - (wash 2550 - max) 407 lm; (wash 1530 - min) 309 lm - (wash 1530 - max) 343lm @full
Lux: (profile - 20°) 194 lx - (profile - 40°) 42 lx; (wash 2550 - min) 49 lx - (wash 2550 - max) 20 lx; (wash 1530 - min) 119 lx - (wash 1530 - max) 58lx @5 m full
Source life expectancy: > 50.000 hrs (L70B10 @Ta 25° C / 77° F)

OPTICS

Zoom: (wash lens - optional) 15° ~ 30° or 25° ~ 50° - (profile lens - optional) 20° ~ 40°
Other: 360° lens rotation - shutter blades lockable - optional 360° rotating barndoors and gel frame holder
Other: (profile lens) shutter blades lockable
Other: (profile lens - optional) manual rotating gobo holder size E, outer: 37 mm - image: 23 mm - thickness: max 3 mm

COLOUR SYSTEM

Colour mixing: RGB + Warm White
CCT: CCT control through dedicated DMX channel
Colour wheel: virtual colour wheel with macros

DYNAMIC EFFECTS

Control Resolution: 16bit dimmer, colours
Static mode: selection of static colour
Manual mode: manual adjustment of colour
Auto mode: built-in programs with execution speed adjustment

BODY

Hardware on-board: lockable tilt with screw
Body: aluminium die-casting
Body colour: RAL 9004 or RAL 9010
Other: cable not included - Cable diameter range: 6 - 10 mm

CONTROL

Protocols: Local Knob, DMX, DALI Type8, RDM
DMX channels: 5 / 6 / 15channel
RDM: RDM for remote monitoring and settings
Firmware upgrade: yes, via USB - DMX interface (UPBOX1) not included

ELECTRONICS

Dimmer: linear 0 ~ 100% electronic dimmer
Dimmer curves: 4 selectable dimming modes available
Strobe / shutter: 1 - 30 Hz, electronic
LED Control: flicker free operation
Selectable PWM: 600 ~ 25.000 Hz

ELECTRICAL

Mains power supply: 100-240V - 50/60Hz
Max power consumption: 48W
Power factor: > 0,95

PHYSICAL

Operating Temperature: -10° ~ +45°
IP rating: 20

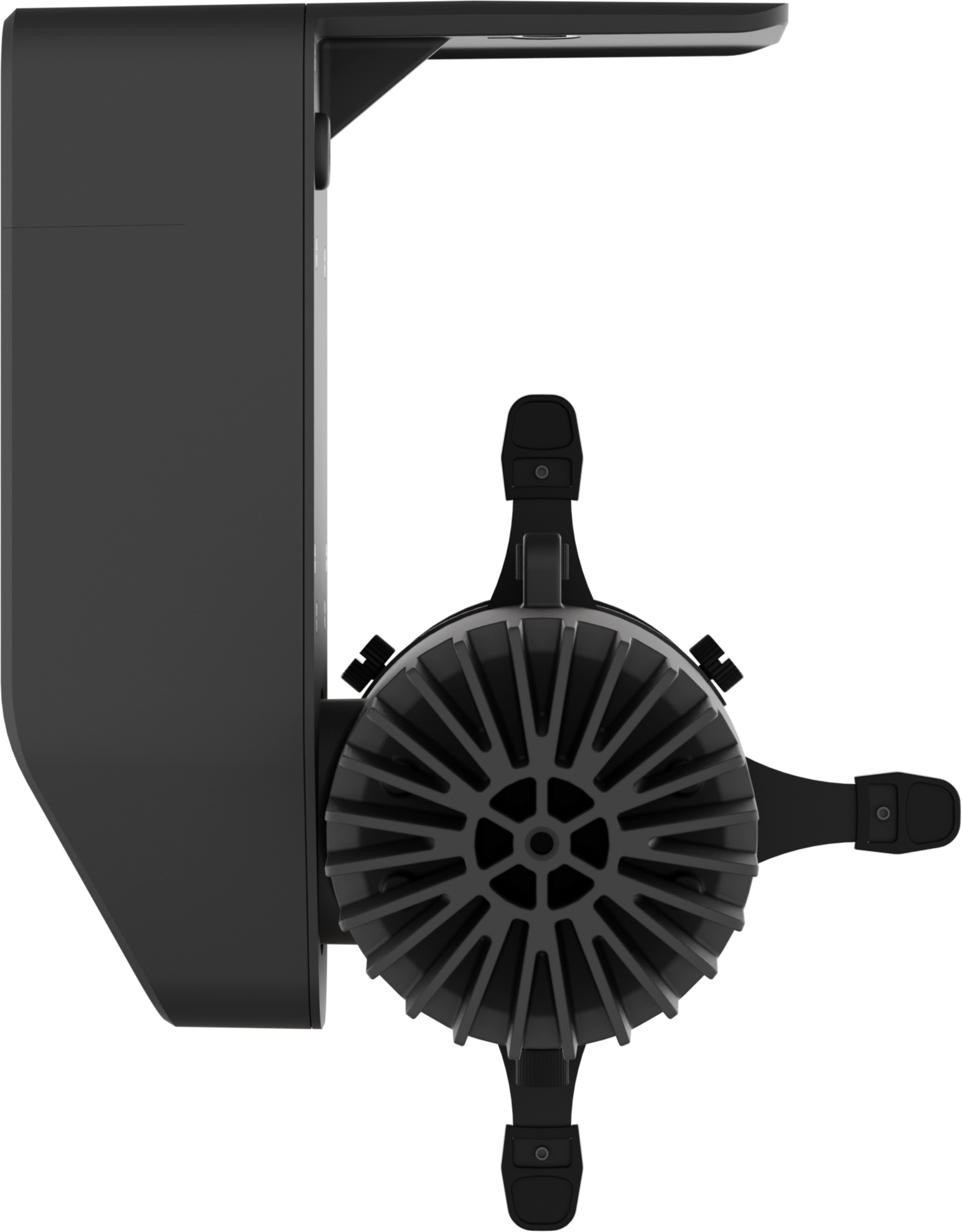

Cooling: passive cooling and fan-free
Suspension and fixing: track / hanging / ceiling installation
Data connection: screw terminal blocks
Power connection: screw terminal blocks
Dimensions (WxHxD): 141X200x150mm
Weight: 1,4kg
