EclFresnel CT+XLIP
1500W (driven @1200 W) 6 color LED Fresnel
300mm/12'' glass lens with 10-90° manual zoom, Optional Open Face reflectors
IP65 for indoor and outdoor use
New UI with 2.8'' display and 4 backlit pushable encoder

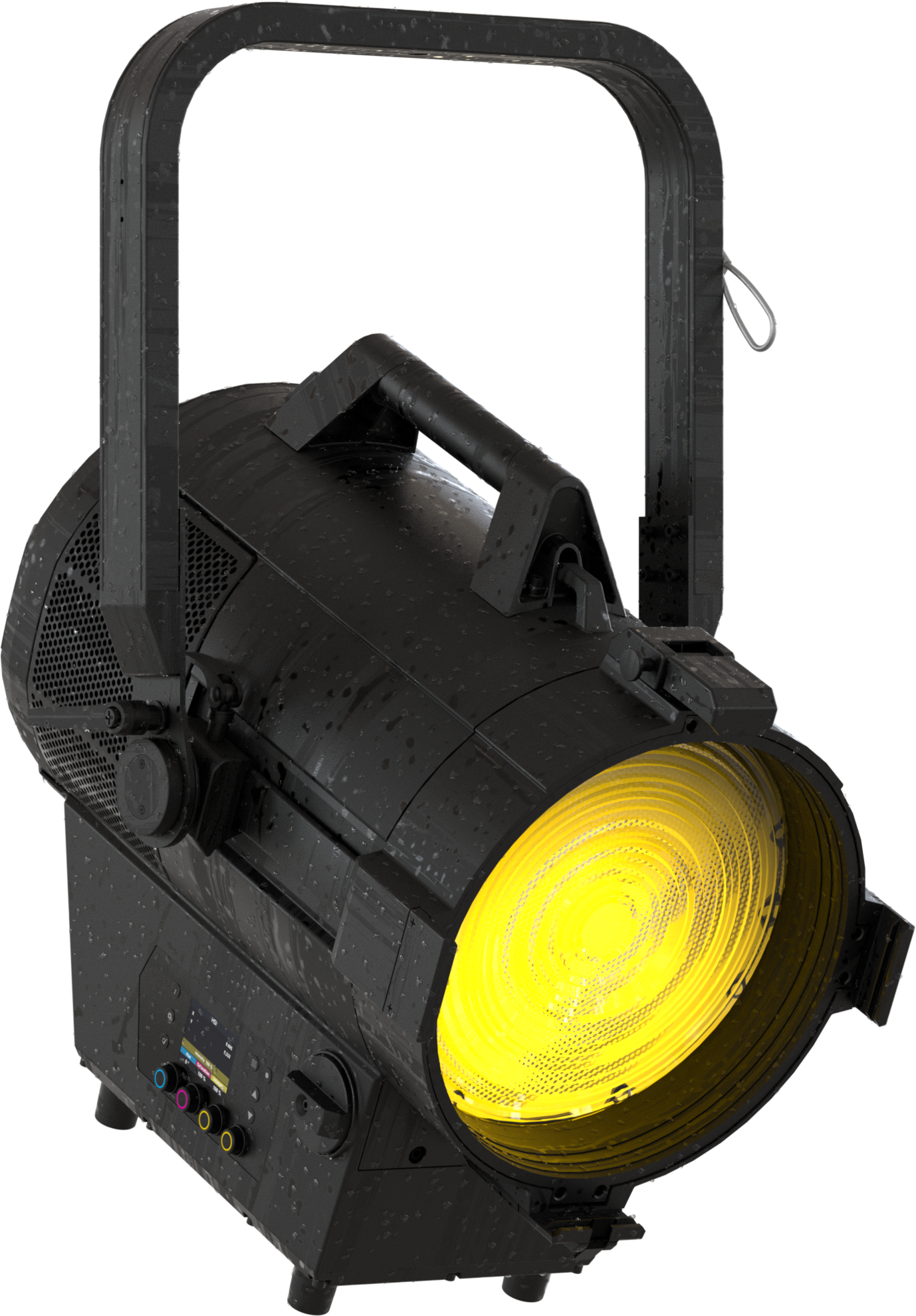

EclFresnel CT+XL IP
IP65 1200W Fresnel with 6 color LED source, 300mm-12''glass lens, zoom 10-90°
The EclFresnel CT+ XLIP stands out as a bright IP65-rated Fresnel hard source, crafted to replace traditional 5K Tungsten and 2.5K HMI lighting in film sets and large-scale indoor and outdoor setups. At the heart of this fixture is a robust 1500W (driven @1200 W) LED source, featuring 6 color emitters.
Its design with integrated power supply simplifies installation and wiring for both on-location use and permanent installations.
EclFresnel CT+ XLIP boasts a 300mm (12 inches) glass Fresnel lens, offering an impressive zoom range from 10° to 90° and 44.000 fixture lumens. This design maintains high efficiency even at narrow beam angles, ensuring a bright output at long throw projection.
For jobs that demand maximum punch, the fixture also accepts optional 30° and 60° open‑face reflector lenses, boosting luminous flux while preserving homogeneous colour mixing
Powered by Spektra Os, this luminaire guarantees light consistency, delivering a higher luminous flux across colors and whites. This results in a broader color space and a richer light spectrum, achieving exceptional values in CRI, TLCI, SSI, and TM30 indices, meeting the highest professional lighting requirements.
Enhanced with a more powerful processing unit, the EclFresnel CT+ range offers an unparalleled user experience. It provides refined control over light and color, complemented by more intuitive standalone operations. This is achieved through a larger display, backlit encoders, and advanced connectivity options, both wired and wireless.
EclFresnel CT+ also operates silently, making it an essential, durable workhorse for large film sets, theaters, and studio applications.
LIGHT SOURCE
- Light source: Proprietary source manufactured in Europe by PROLIGHTS
- Source: 1'500W 6 colour LEDs source (driven @1'200W)
- Luminous flux: (10°) 22'322 lm - (90°) 43'642 lm @4.000 K
- Lux: (10°) 18'113 lx - (90°) 1'485lx @5m 4.000 K
- CRI: 95 @3.200K; 98 @5.600K
- R9: 98 @3.200K; 97 @5.600K
- TLCI: 95 @3.200K; 98 @5.600K
- TM30 Rf: >93 @3.200K; >93 @5.600K
- TM30 Rg: <103 @3.200K; <103 @5.600K
- Source life expectancy: > 50.000 hrs (L70B10 @Ta 25° C / 77° F)
OPTICS
- Zoom range: 10° - 90° manual
- Lens diameter: 12'' / 300mm / 0.47''
- Lens type: Fresnel glass lens with AR coating
- Lens effect: Glass Fresnel lens providing a classic light fall-off
- Other: spigot, barndoor and gel frame included
COLOUR SYSTEM
- Colour control: XY, CCT, Gel with Source Emulation, Tungsten emulation, HSI, User preset
- Colour mixing: 6 colour LEDs source
- CCT: Linear CCT adjustment from 1.850 K-20.000K
BODY
- Bracket system: Sliding bracket for adjustable weight balance and handle on the top of the body for easy transportation
- Hardware on-board: filter frame, 8 doors barndoor, spigot
- Body: weatherproof IP65 construction with die-cast magnesium alloy
- Body colour: RAL 9004
- Other: Handle on the top, double safety system on the front for the accessories, strengthened zoom movement system for enhanced durability and stability
CONTROL
- Protocols: DMX512, RDM, CRMX
- Stand Alone: 4 pushable RGB backlit encoder
- Wireless Control: included, LumenRadio TimoTwo DMX/RDM compatible with both CRMX, CRMX2 (Lumen Radio) and W-DMX (Wireless DMX), Bluetooth capable
- RDM: RDM for remote monitoring and settings
- Display: 2.8'' Color display
- Firmware upgrade: via DMX with UPBOXPRO (USB-DMX interface not included)
- Master/Slave: for synchronised operation of more units linked in a chain
ELECTRONICS
- Dimmer: linear 0 ~ 100% electronic dimmer
- Dimmer curves: 6 selectable dimming modes available
- Strobe / shutter: 1 - 30 Hz, electronic
- Operating temperature: -20° C / +45° C (-4° F / +113° F) Ta
- LED Control: flicker free frequency with adjustable PWM
- Selectable PWM: 1282 ~ 40.000 Hz
ELECTRICAL
- Mains power supply: 100-240V - 50/60Hz
- Low Voltage DC mains: 48V (WEIPU SY25 4P connector)
- Max power consumption: 1260W
- Standby power: 7,5 W
- Power factor: > 0,97
PHYSICAL
- IP rating: 65 for temporary outdoor use (*)
- Cooling: combination of heat pipe cooling system and low noise fan
- Signal connection: IP65 Seetronic XLR 5p IN/OUT connectors
- Data connection: IP65 WEIPU SF12 4P-F
- Power connection: Seetronic powerCON TRUE IP65 IN
- Low Voltage DC connector: 48V WEIPU SY25 4P connector

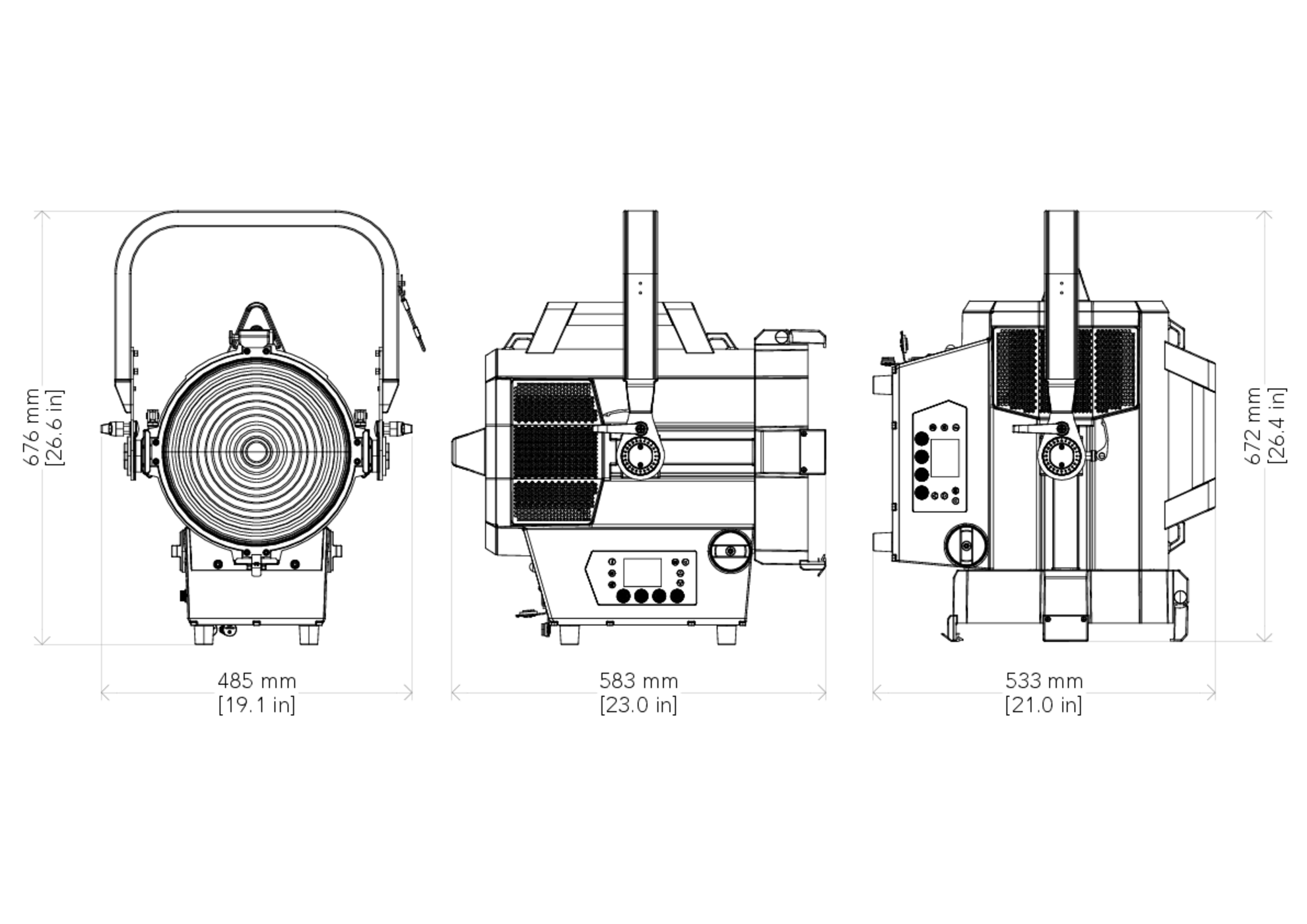

- Dimensions (WxHxD): 485x676x583mm / 19.09''x26.61''x22.95''
- Weight: 27,7kg / 61.07lbs
(*) NOTE: Suitable for permanent outdoor use, provided installation and maintenance cycles by qualified technicians are carried.
CERTIFICATIONS / APPROVALS
- Certifications / Approvals: CE, RCM
BOX CONTENT
1 x ECLFRCTPXLIPBK
1 x ECLFRSPG
1 x ECLFRCTPXLFF
1 x ECLFRCTPXLBD
1 x 1,5 meters 3G1,5mmq power cable (BARE END - SEETRONIC POWERCON TRUE1 IP65 power connector)
1 x User Manual
Prolights
PROLIGHTS is the professional lighting division of Music & Lights S.r.l., an Italian company specialized in the manufacture of technologies for the show industry.
The PROLIGHTS brand was established in 2001 with a focus on the design and manufacture of professional lighting & video products for the entertainment, event, broadcast and installation markets. PROLIGHTS is headquartered in Minturno, Italy, where the companies commerical, operational and R&D centres are all located. PROLIGHTS continues to experience a sustained growth across all sectors, with its products found on stages and in studios all over the world. Founder Franco Sorabella, and his son Fabio, are both actively involved in the day-to-day running of the business and in the development of the product range. |
