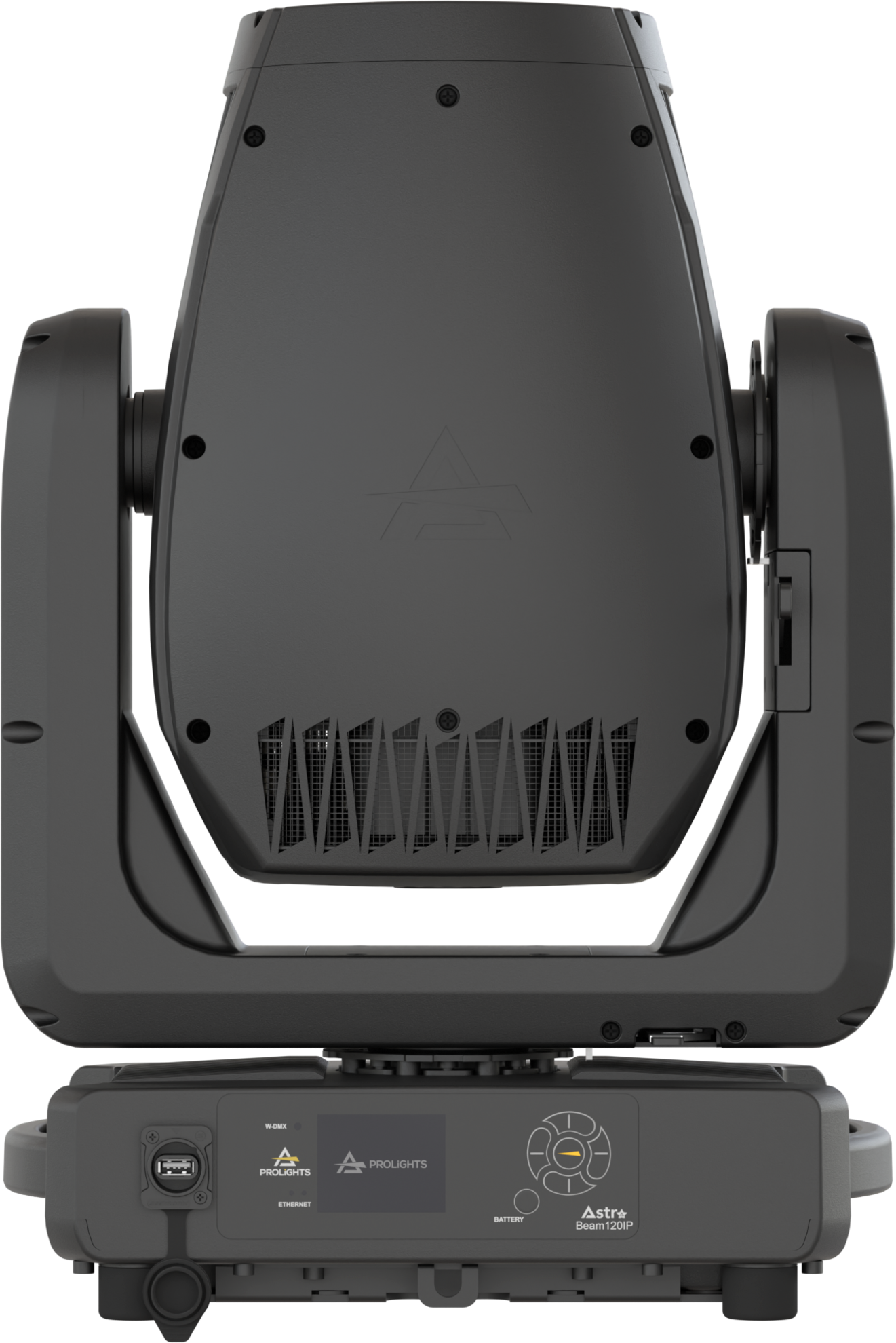

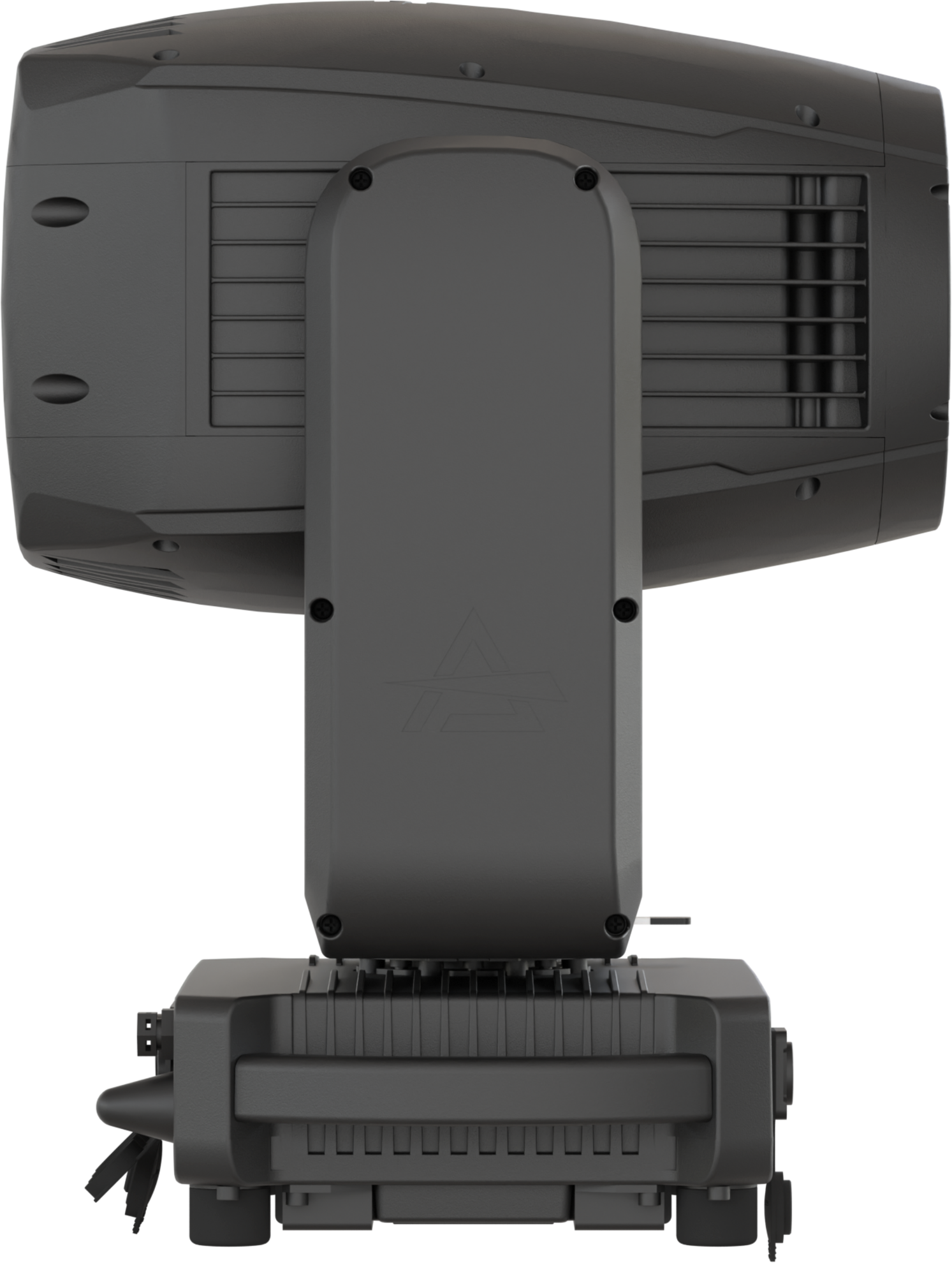

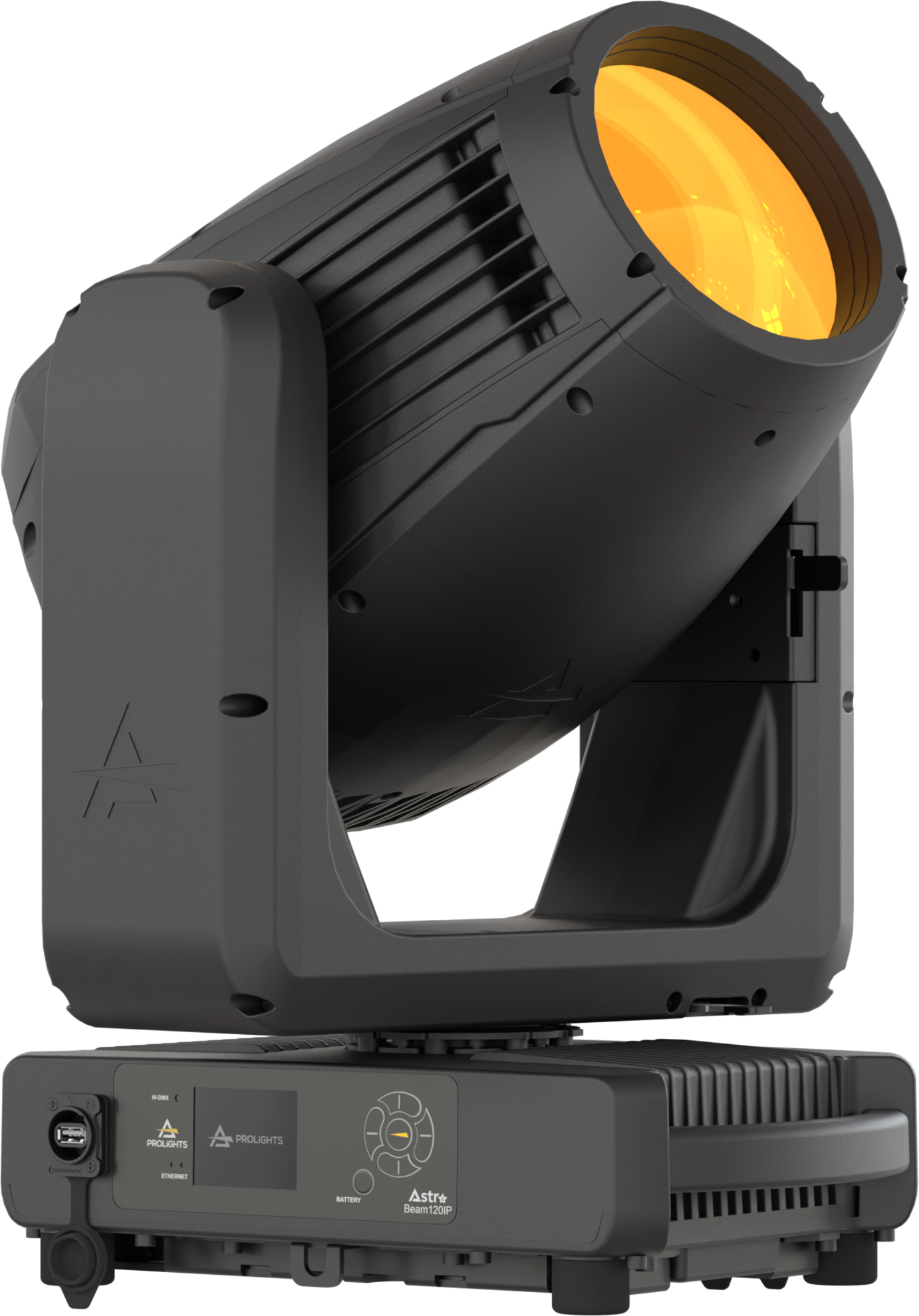

ASTRA BEAM 120IP

LIGHT SOURCE

• Source: 120W Phosphor Laser source
• CCT: 7'000K
• Lux: 204'167lx @15 m full
• Source life expectancy: > 12.000 h

OPTICS

• Beam angle: 0,6°
• Lens diameter: 143mm / 5.63''
• Lens type: HD anti-reflection lenses with achromatic coating
• Focus: motorised

COLOUR SYSTEM

• Colour mixing: linear CMY
• CCT: several CTB/CTO on wheel
• Colour wheel: open + 24 colour filters

DYNAMIC EFFECTS

• Control Resolution: 16-bit dimmer
• Animation wheel: animation wheel with CW and CCW rotation
• Rotating gobos: 13 rotating gobos + open, interchangeable, indexing
• Gobo size: outer: 8,4 mm - image: 4 mm - thickness: 0,3 mm
• Fixed gobos: 29 fixed gobos + open
• FX generator: prisms overlap for spectacular aerial effects
• Circular prism: (prism wheel 1) 16f and 6f (prism wheel 2) 8f with bi-directional rotation, indexing, interchangeable
• Linear prism: (prism wheel 1) 6f (prism wheel 2) 4f and 6f with bi-directional rotation, indexing, interchangeable
• Rotating prism wheel: 2 indipendent wheels with 3 prisms each
• Frost: dual frost filter, soft-edge and heavy

BODY

• Pan range: 540° with 360° continuous rotation
• Tilt range: 270° with 360° continuous rotation
• Pan/Tilt resolution: bit 8 / 16-bit
• Feedback: automatic repositioning after accidental movement
• Body: weatherproof IP65 construction with die-cast magnesium alloy
• Body colour: black

CONTROL

• Protocols: DMX512, RDM, ArtNet, sACN, CRMX
• DMX channels: 32channel
• Wireless Control: included, LumenRadio Timo Fx DMX/RDM compatible with both CRMX (Lumen Radio) and W-DMX (Wireless DMX)
• RDM: RDM for remote monitoring and settings
• Display: LCD high resolution colour display with autoflip
• Firmware upgrade: via DMX with UPBOXPRO (USB-DMX interface not included) or via USB pen drive
• EtherFlow: Ethernet pass-through switch that preserves network connectivity even when the fixture is unpowered.

ELECTRONICS

• Dimmer: linear 0 ~ 100% electronic dimmer
• Dimmer curves: 4 selectable dimming modes available
• Strobe / shutter: 1-30 Hz, electronic
• Display battery: self-charging battery backup
• Operating temperature: -20° C / +45° C (-4° F / +113° F) Ta
• LED Control: flicker free frequency with adjustable PWM
• Selectable PWM: 600 ~ 50.000 Hz

ELECTRICAL

• Mains power supply: 100-240V - 50/60Hz
• Max power consumption: 150W
• Standby power: 66,4 W
• Output (at 230V): 14 units on a single power line
• Power factor: > 0,96

PHYSICAL

• IP rating: 65 for temporary outdoor use (*)
• Cooling: combination of heat pipe cooling system and low noise fan
• Suspension and fixing: any position with quick-lock omega brackets
• Pan / tilt lock: for transportation and maintenance

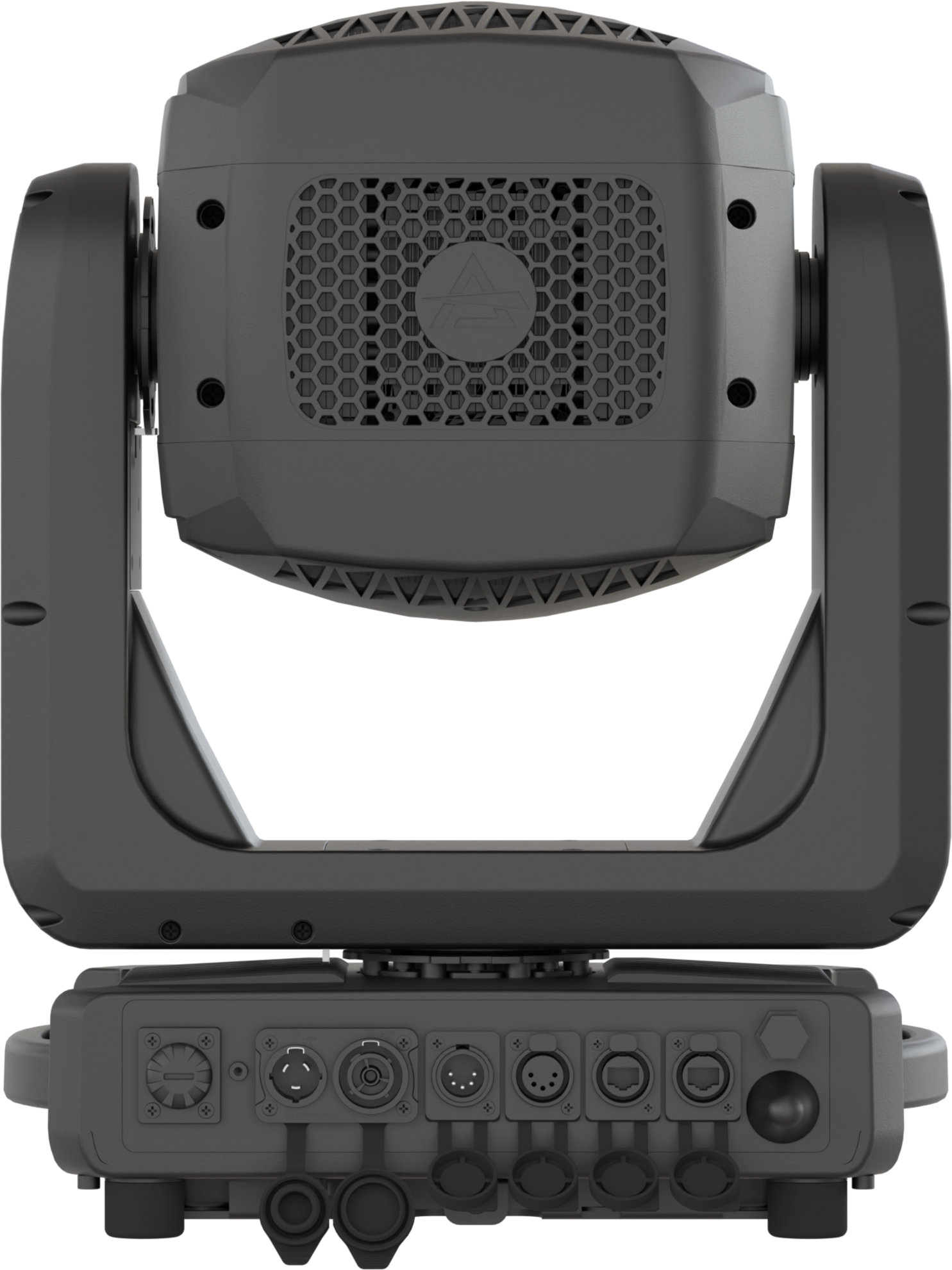

• Signal connection: IP65 Seetronic XLR 5p IN/OUT connectors
• Data connection: IP65 Seetronic Art-Net RJ45 IN/OUT
• Power connection: Seetronic powerCON TRUE IP65 IN
• Dimensions (WxHxD): 366x528x258mm / 14.41''x20.79''x10.16''
• Weight: 20kg / 44.09lbs

(*)

• NOTE: Suitable for permanent outdoor use, provided installation and maintenance cycles by qualified technicians are carried.

CERTIFICATIONS / APPROVALS

• Certifications / Approvals: CE, RCM

BOX CONTENT

• 1 x ASTRABEAM120IP
• 2 x OSIPPLUS
• 1 x Antenna
• 1 x 1,5 meters 3G1,5mmq power cable (BARE END - SEETRONIC POWERCON TRUE1 IP65 power connector)
• User Manual
