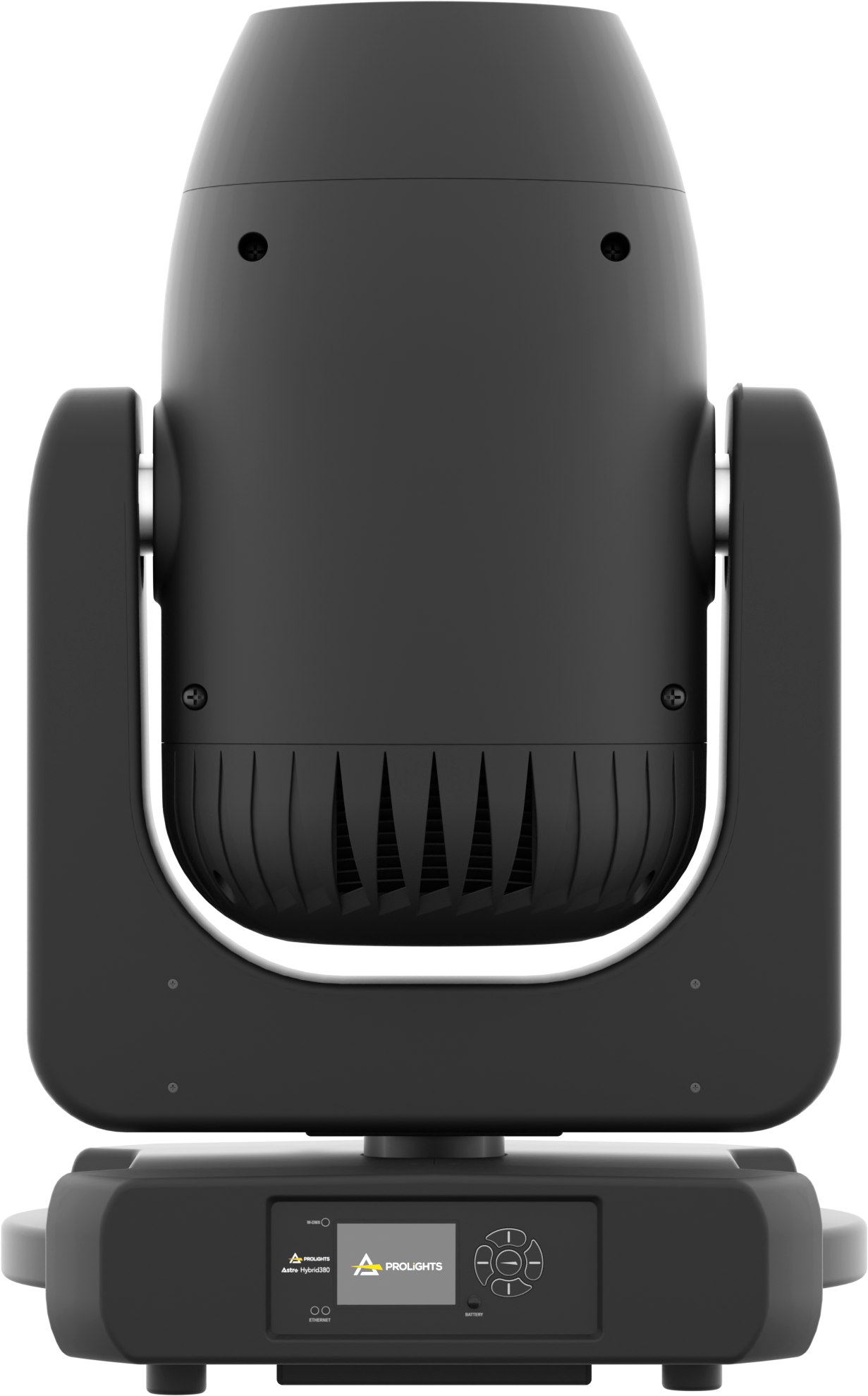

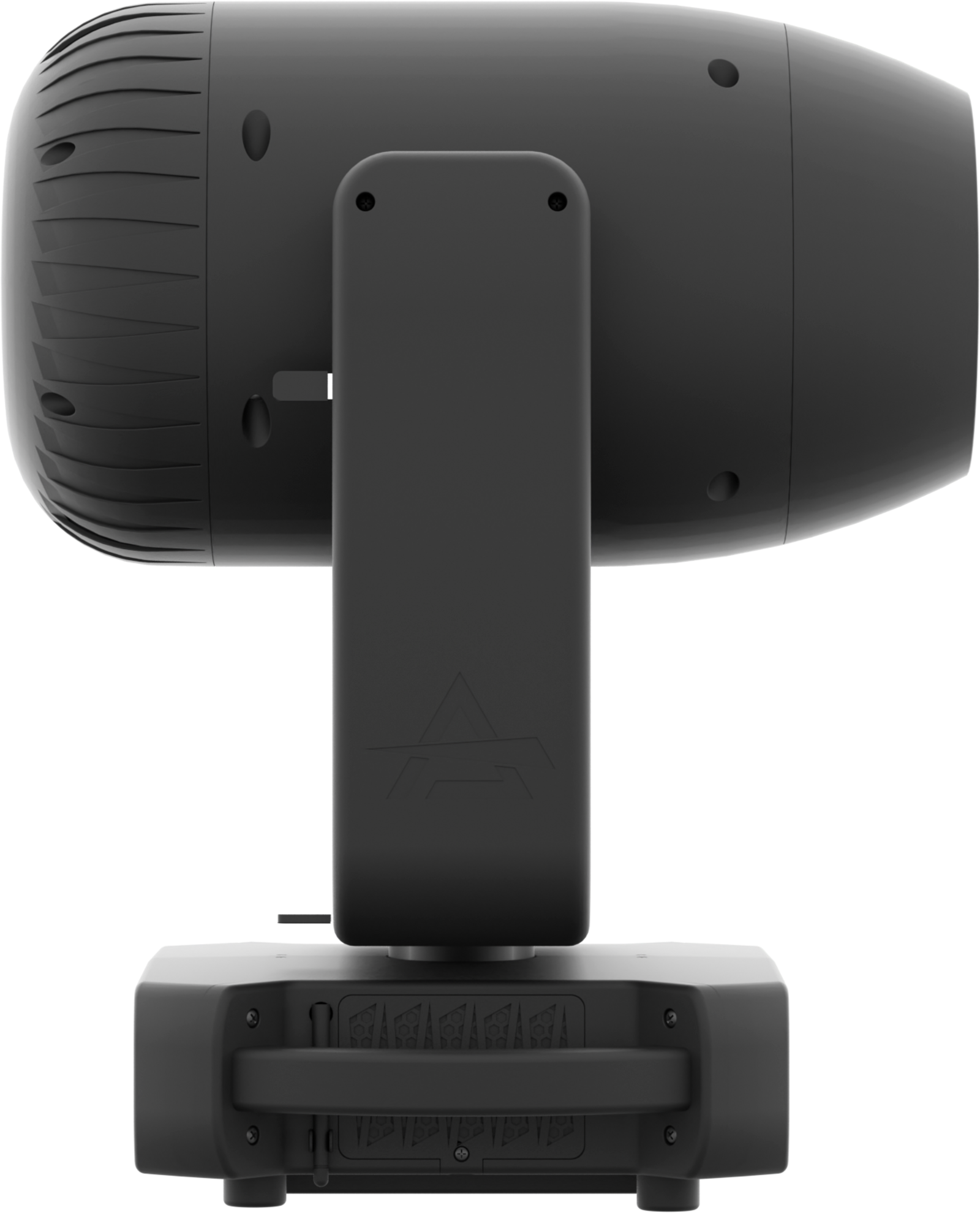

ASTRA HYB 420
The Astra Hybrid420 is a hybrid moving head that excels as a bright beam fixture and perfect spotlight, offering a tremendous lumen output and superior evenness compared with other lights in the same category.
The Astra Hybrid420 optical system moves linearly from 2.7° to 40°, and it's equipped with a brand new 420W USHIO NSL421 lamp, featuring an equivalent output of higher power consumption units, but in a smaller, lighter, and faster body.
The extensive feature set of the Astra Hybrid420 includes functions like aerial effects with a fat and parallel beam and crisp projection textures and pattern effects, with linear CMY, three colour-wheels, an animation wheel, two overlapping prisms, frost and two gobo wheels.
- Source:420W USHIO NSL421
- CCT:7.000K
- Luminous flux: 35.815lm
- Lux: (2.7°) 99.284 lx - (40°) 281l x @15 m
- Source life expectancy: 6.000 h
- Zoom: 2.7° - 40° motorised linear zoom
- Lens diameter: 153mm
- Lens type: HD anti-reflection lenses with achromatic coating
- Focus: motorised
- Colour mixing: CMY colour system on 3 gradually fading colour wheels
- CCT: on wheel 2.500 K and 3.200 K + CTB
- Colour wheel: 15 dichroic filters on 3 independent colour wheels
- Animation wheel: animation wheel with CW and CCW rotation
- Rotating gobos: 9 rotating gobos + open, interchangeable, indexing
- Gobo size: outer: 15,9 mm - image: 12 mm - thickness: 1,1 mm
- Fixed gobos: 18 fixed gobos + open
- FX generator: 2 prisms overlap for spectacular aerial effects
- Circular prism: 8 f and 4f with bi-directional rotation, indexing
- Frost: linear 0 - 100% frost filter
- Hardware on-board: sockets for quick-Lock Omega bracket (clamp not included)
- Pan angle: 540 °
- Tilt angle: 270°
- Pan/Tilt resolution: bit 8 / 16-bit
- Feedback: automatic repositioning after accidental movement
- Body: aluminium structure with high-resistance polycarbonate cover
- Body colour: RAL 9004
- Protocols: DMX512, RDM, Art-Net, sACN, W-DMX
- DMX channels: 30 channel
- Wireless Control: included, Lumen Radio Timo Fx DMX/RDM compatible with both CRMX (Lumen Radio) and W-DMX (Wireless DMX)
- RDM: RDM for remote monitoring and settings
- Display: LCD high resolution colour display with autoflip
- Firmware upgrade: via menu with internal memory or via USB - DMX interface (UPBOX2) not included
- Other: 16bit control of dimmer
- Dimmer: linear 0 ~ 100% mechanical dimmer
- Strobe / shutter: 1 - 28 flash(s), mechanical
- Display battery: self-charging battery backup
- Operating temperature: -10° ~ +45°
- Mains power supply: 100-240V - 50/60Hz
- Max power consumption:590W
- Output (at 230V): 4 units on a single power line
-
Power factor: > 0,96
- IP rating: 20
- Cooling: forced air with fan
- Suspension and fixing: any position with quick-lock omega brackets
- Pan / tilt lock: for transportation and maintenance

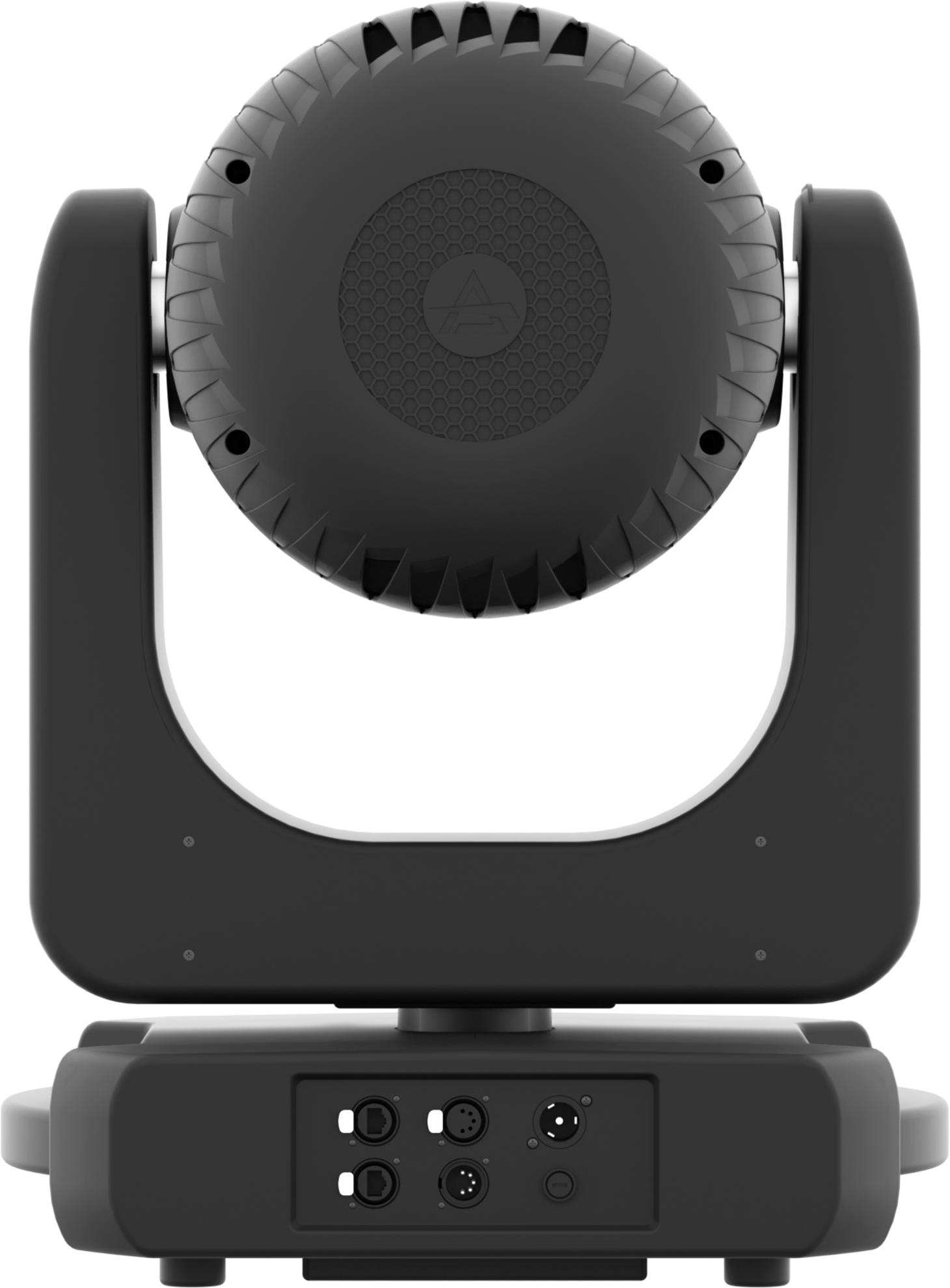

- Signal connection: Amphenol XLR 5p IN/OUT connectors
- Data connection: Neutrik Art-Net RJ45 IN/OUT
- Power connection: Neutrik powerCON TRUE1 IN connector
- Dimensions (WxHxD): 445x668x310 mm
-
Weight: 26,2 kg
- Certifications / Approvals: CE, UKCA, RCM, cTUVus, FCC
