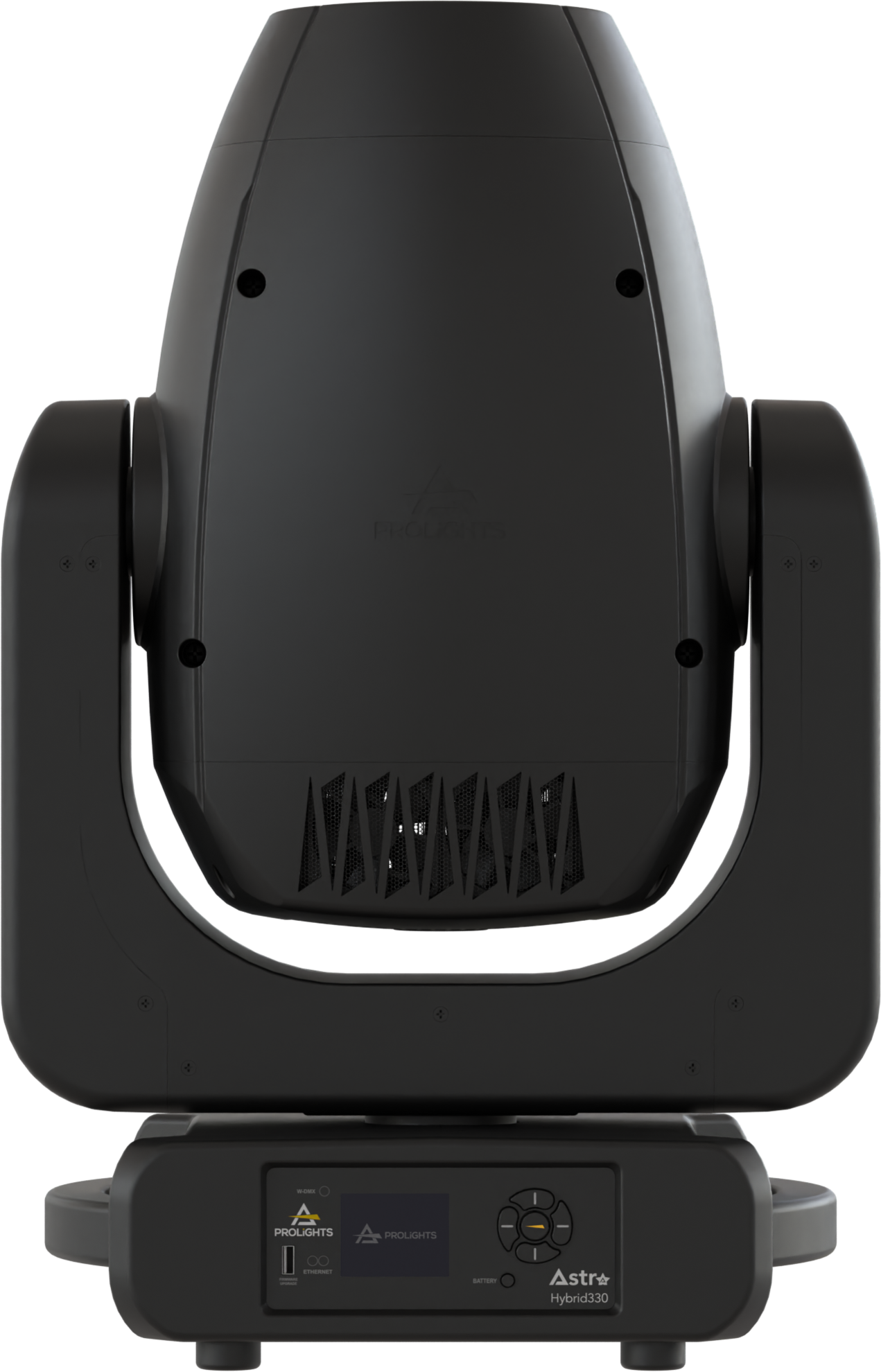

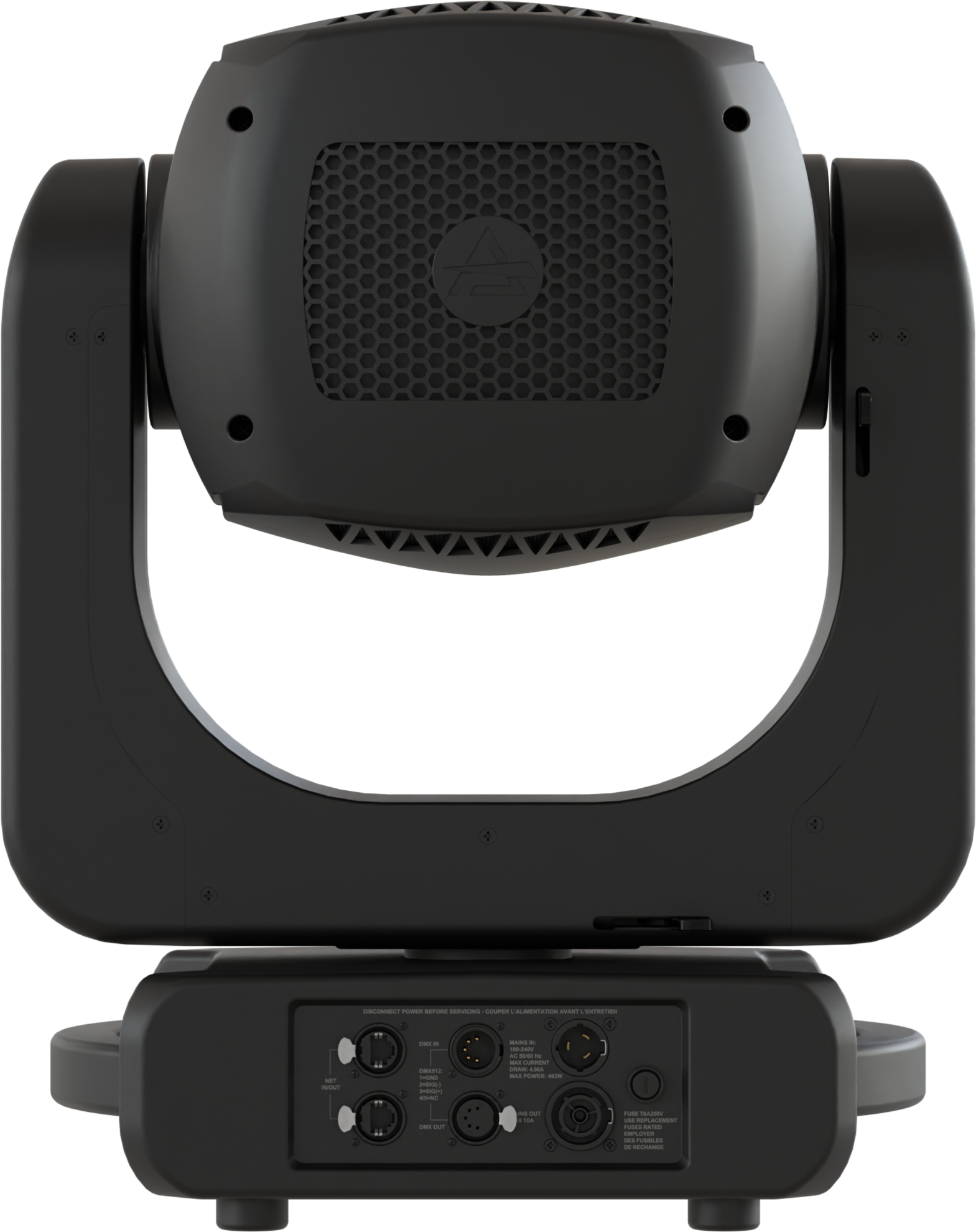

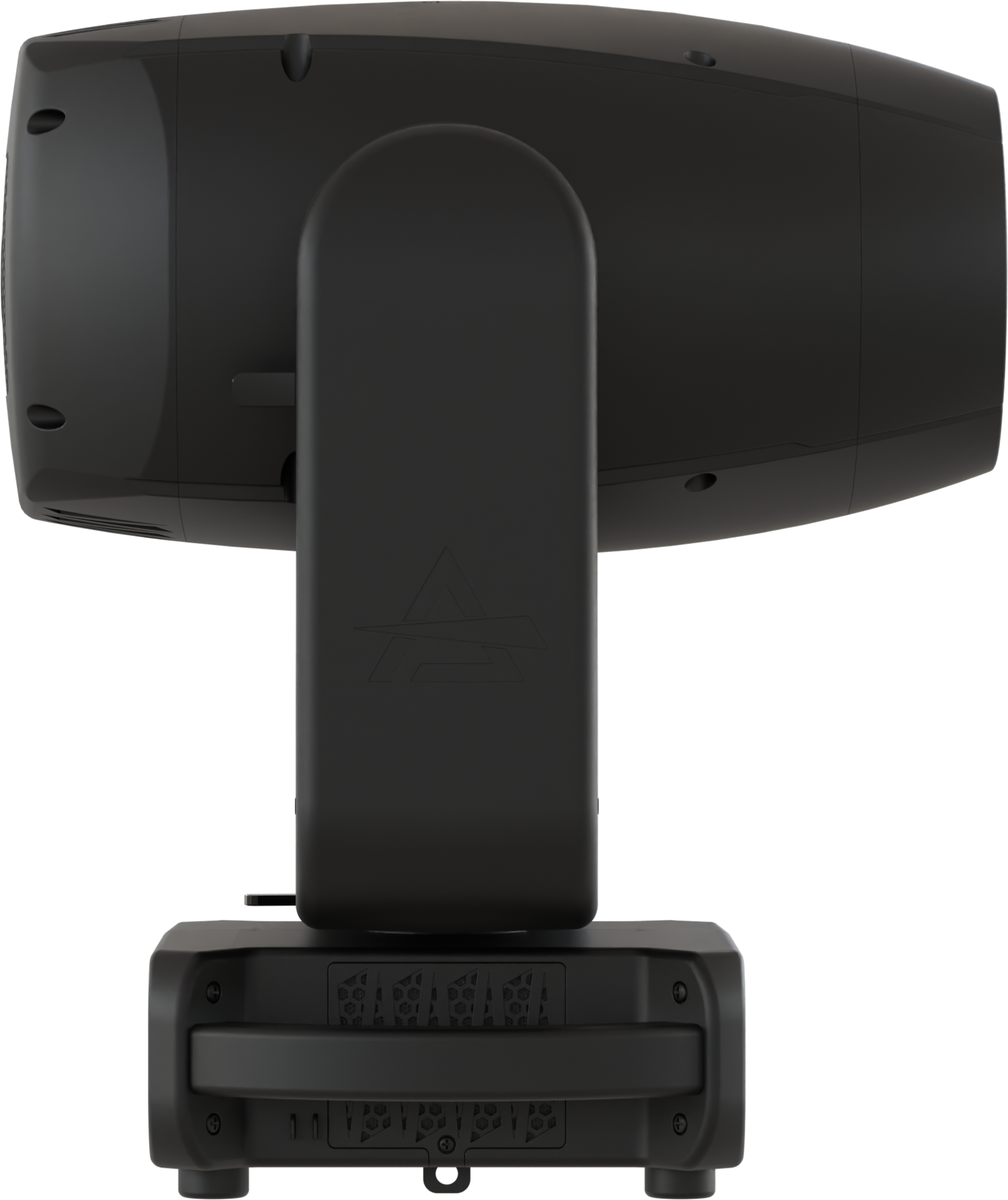

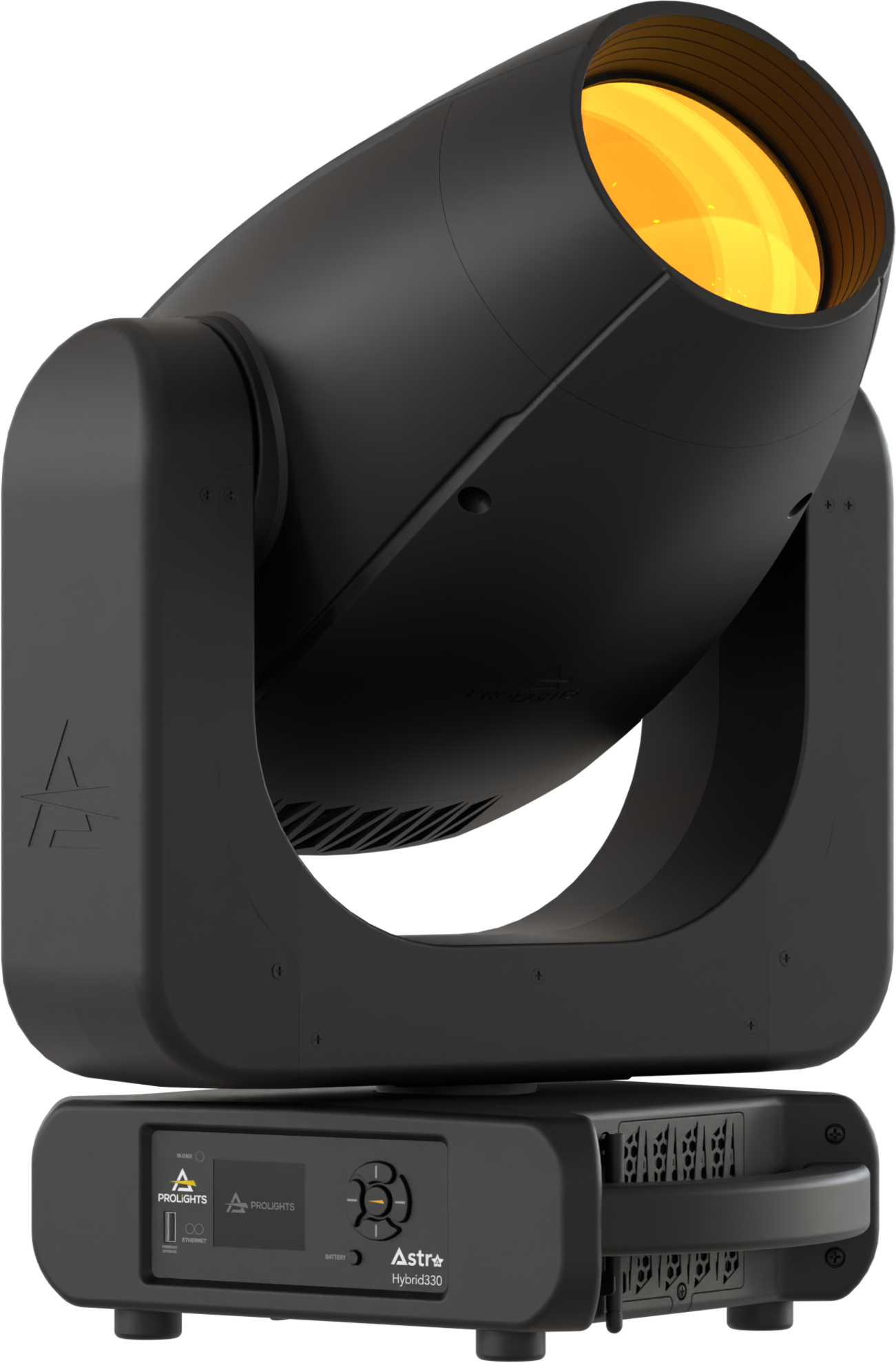

ASTRA HYBRID 330

530005500

330W hybrid beam-spot light with 3.5-52° zoom and linear CMY

Beskrivelse Specification Brand information Downloads

The Astra Hybrid330 is a bright LED hybrid moving head that boasts exceptional power relative to its compact size, producing an array of breathtaking visual effects.
Its optical system offers a linear range from 3.5° to 52°, furnished with a sizable 140mm front lens. This unique combination enables an intense beam and homogenous spotlight, providing an exceptional lumen output and surpassing the evenness offered by arc-discharge fixture in its category.
The comprehensive features of the Astra Hybrid330 encompass a variety of functions. These include aerial effects with a dense, parallel beam and sharp projection textures, pattern effects, linear CMY, three colour wheels, an animation wheel, dual overlapping prisms, frost, and two gobo wheels.

Technical Specifications

LIGHT SOURCE

Source: 330W high-power white LED
CCT: 7.000
Luminous flux: (3°) 8'493 lm - (50°) 15'272lm
Lux: (3°) 114'701 lx - (50°) 1'882x @5 m full
Source life expectancy: > 30.000 h

OPTICS

Zoom: 3,5° - 52° motorised linear zoom
Lens diameter: 140mm / 5.51''
Lens type: HD anti-reflection lenses with achromatic coating
Focus: motorised

COLOUR SYSTEM

Colour mixing: CMY colour system on 3 gradually fading colour wheels
CCT: on wheel 2.400 K and 3.200 K
Colour wheel: 9 dichroic filters on 3 independent colour wheels
Colour wheel: High CRI colour filters

DYNAMIC EFFECTS

Control Resolution: 16-bit dimmer
Animation wheel: animation wheel with CW and CCW rotation
Rotating gobos: 8 rotating gobos + open, interchangeable, indexing
Gobo size: outer: 20 mm - image: 16 mm - thickness: up to 3 mm
Fixed gobos: 11 fixed gobos + open
FX generator: 2 prisms overlap for spectacular aerial effects
Circular prism: 8f with bi-directional rotation, indexing
Linear prism: 6f with bi-directional rotation, indexing
Frost: linear 0 - 100% frost filter

BODY

Hardware on-board: sockets for quick-Lock Omega bracket (clamp not included)
Pan angle: 540°
Tilt angle: 270°
Pan/Tilt resolution: bit 8 / 16-bit
Feedback: automatic repositioning after accidental movement
Body: aluminium structure with high-resistance polycarbonate cover
Body colour: RAL 9004

CONTROL

Protocols: DMX512, RDM, Art-Net, sACN, W-DMX
DMX channels: 29channel
Wireless Control: included, LumenRadio Timo Fx DMX/RDM compatible with both CRMX (Lumen Radio) and W-DMX (Wireless DMX)
RDM: RDM for remote monitoring and settings
Display: LCD high resolution colour display with autoflip
Firmware upgrade: yes, via USB - DMX interface (UPBOX2) not included or via USB pen drive
Other: Ethernet pass through in case of PSU or Master PCB failure

ELECTRONICS

Dimmer: linear 0 ~ 100% mechanical dimmer
Dimmer curves: 4 selectable dimming modes available
Strobe / shutter: 1 - 30 Hz, electronic
Display battery: self-charging battery backup
Operating temperature: -10° ~ +45°
LED Control: flicker free frequency with adjustable PWM
Selectable PWM: 600 ~ 50.000 Hz

ELECTRICAL

Mains power supply: 100-240V - 50/60Hz
Max power consumption: 517W
Output (at 230V): 4 units on a single power line
Power factor: > 0,98

PHYSICAL

IP rating: 20
Cooling: combination of heat pipe cooling system and low noise fan
Suspension and fixing: any position with quick-lock omega brackets
Pan / tilt lock: for transportation and maintenance
Signal connection: Amphenol XLR 5p IN/OUT connectors
Data connection: Neutrik Art-Net RJ45 IN/OUT
Power connection: Neutrik powerCON TRUE1 IN/OUT connectors
Dimensions (WxHxD): 411x638x244mm / 16.18''x25.12''x9.61''
Weight: 21,6kg / 47.62lbs

CERTIFICATIONS / APPROVALS

Certifications / Approvals: CE, UKCA, RCM, cTUVus, FCC

BOX CONTENT

1 x ASTRAHYB330
2 x OS24
User manual
1 x 1,5 meters power cable (BARE END - NEUTRIK POWERCON TRUE1 IP65)
