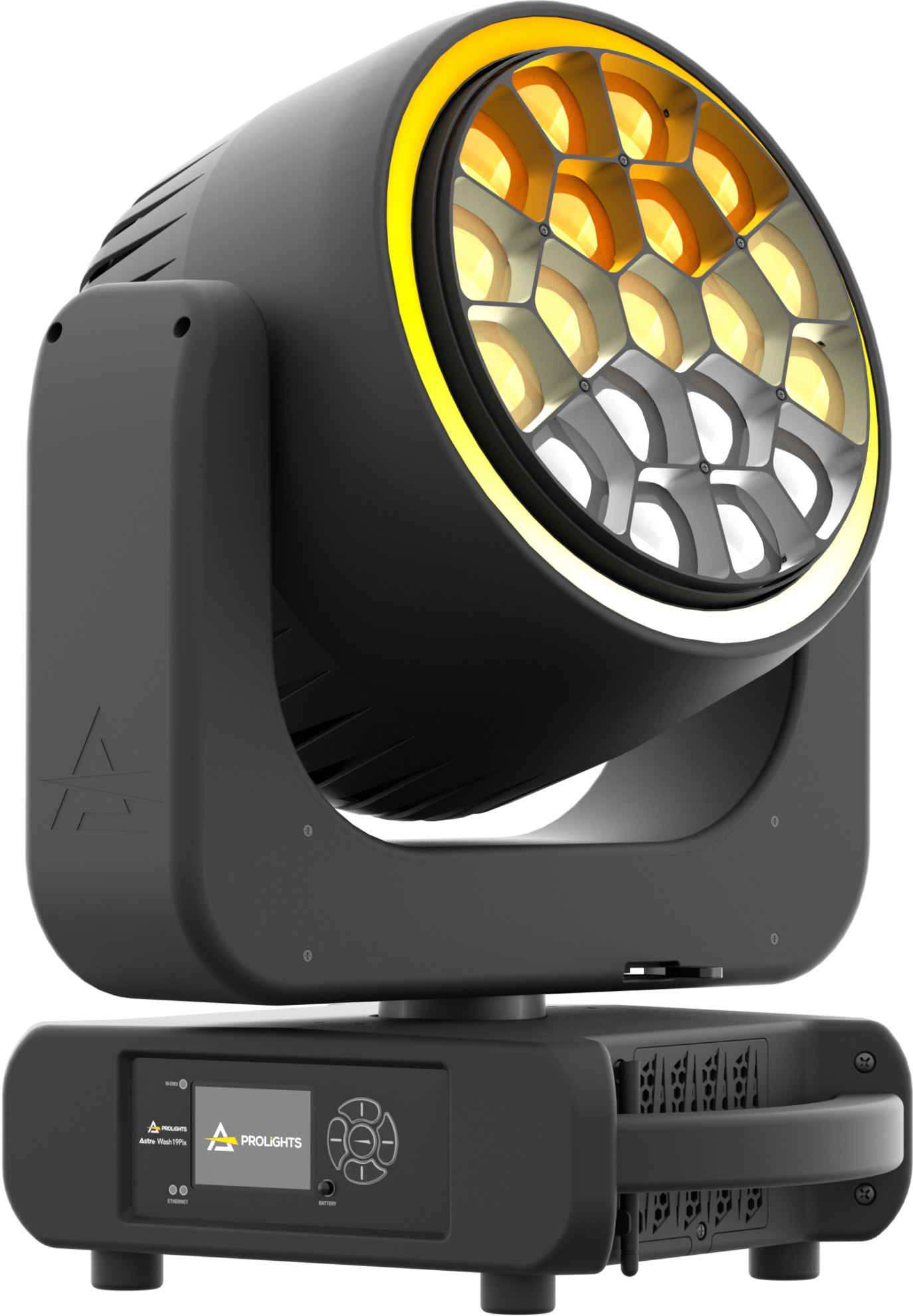

Astra Wash19Pix 19x40W RGBW

Name: Astra Wash19Pix 19x40W RGBW
Brand: Prolights

530005010

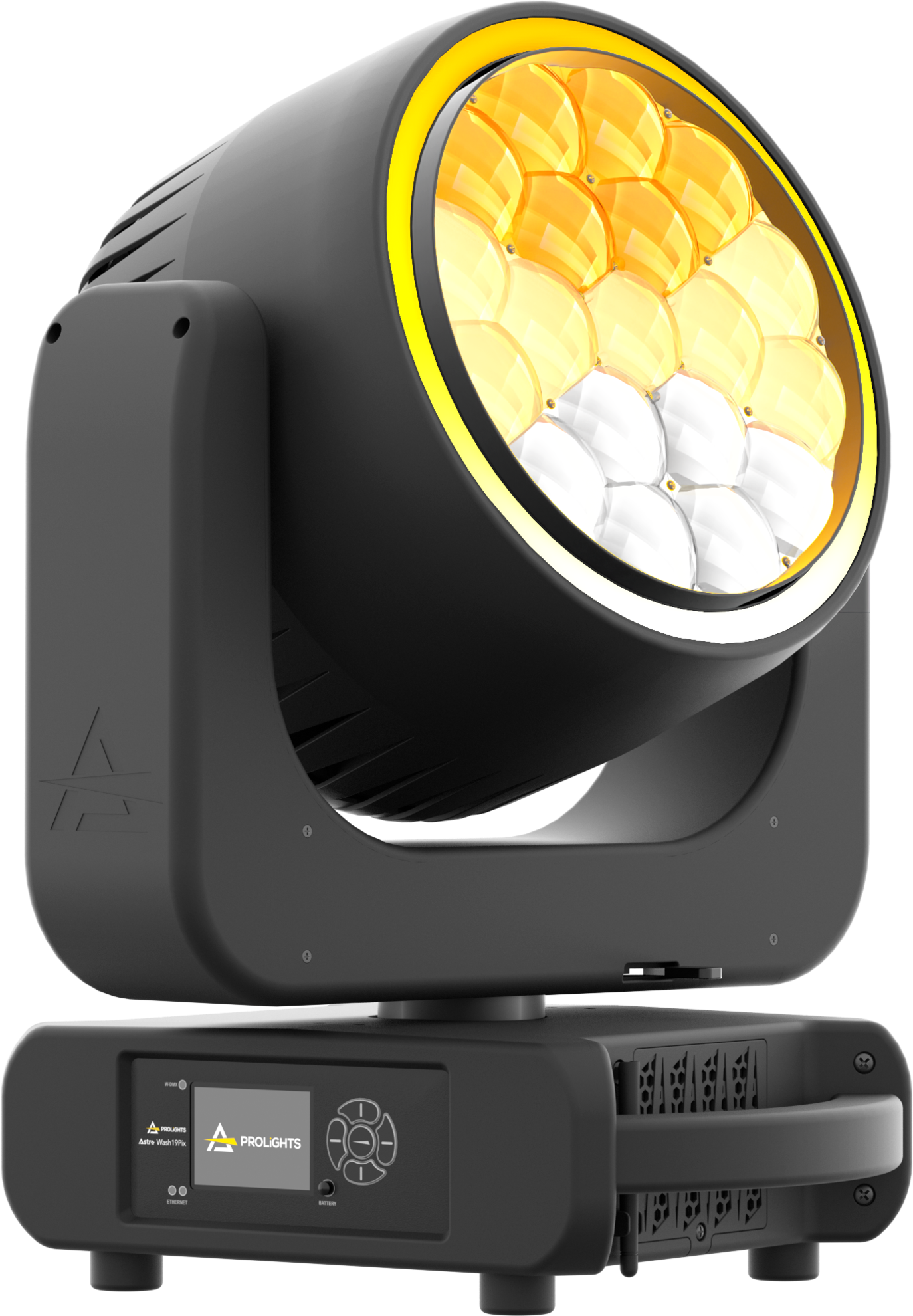

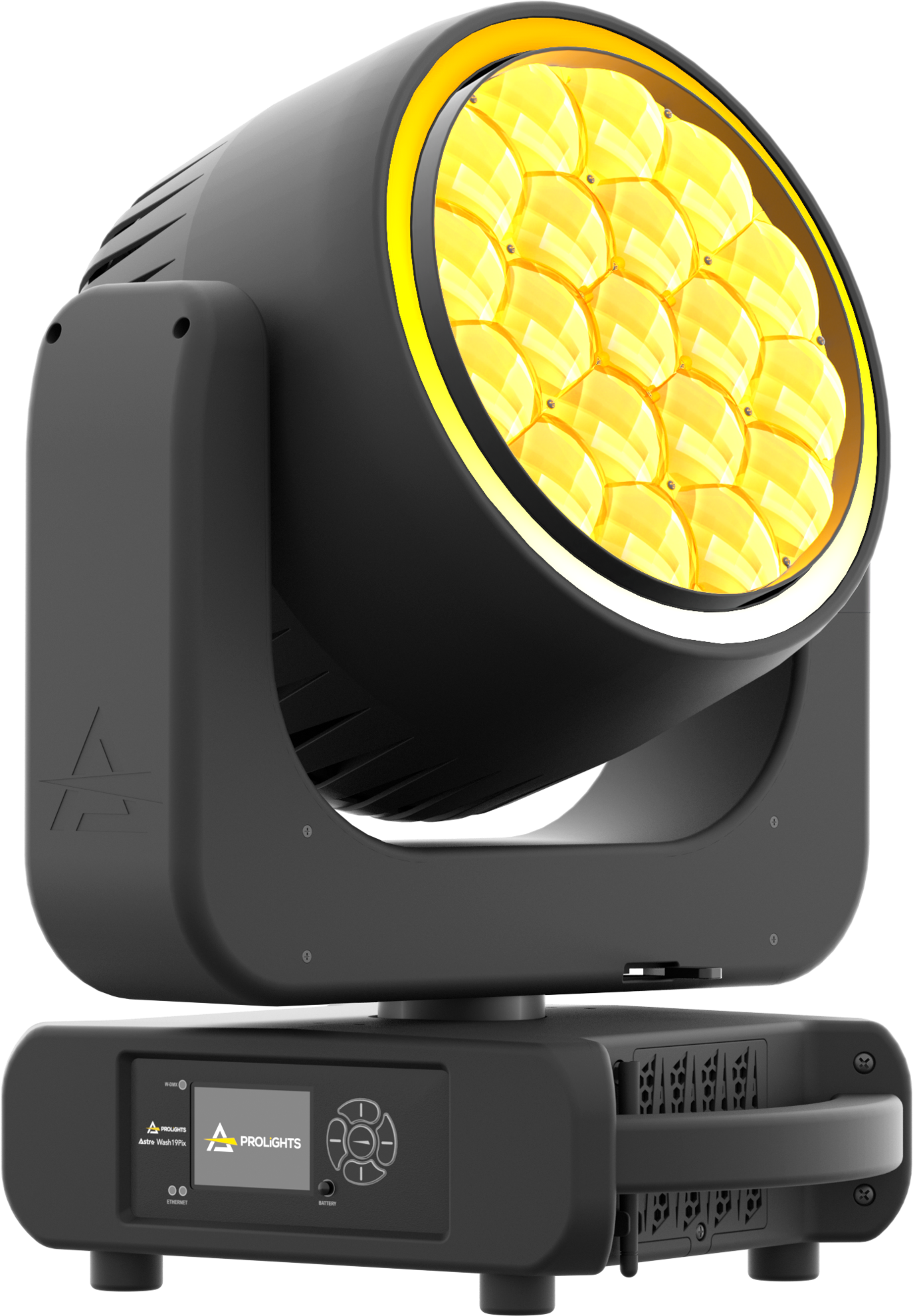

19x40 W RGBW moving wash light with 4°-54° zoom, pixel control and pixel ring

Beskrivelse Specification Brand information Downloads

Astra Wash19Pix is an LED moving wash light, designed to be a workhorse for any touring, corporate and event applications, offering a superior level of brightness and advanced creative effect possibilities.

Based on a 40W Osram RGBW LED light source, plus the exterior pixel ring, this unit features an extremely high-efficiency optical system capable of zooming from 4° to 54°, making this luminaire extremely versatile for any application.

Astra Wash19Pix is single pixel controllable, with multiple on-board FX, and allows access to a precise and advanced white and colour control, all through DMX, W-DMX, Art-Net, sACN, Kling-Net and RDM.

Technical Specifications

LIGHT SOURCE

Source:19x40W RGBW Osram Ostar LEDs
Luminous flux: (4°) 5'505 lm - (54°) 10'143 lm@full
Lux:(4°) 45'146 lx - (54°) 1174lx@5 m full
Other:outer RGB pixel ring with frost film
Source life expectancy:> 50.000 h

OPTICS

Zoom:4° - 54°motorised linear zoom
Lens type :honeycomb gapless plano-convex optics
Additional optics:diffuser on outer pixel ring

COLOUR SYSTEM

Colour mixing:RGBW / FC
CCT:CCT control, + / - green correction, tungsten emulation
White presets:2.800 K ~ 10.000K
Colour wheel:virtual colour wheel with macros
Macros:several pre-built pixel macros with adjustable speed

DYNAMIC EFFECTS

Control Resolution:16-bit dimmer, colours
Pixel patterns:pre-programmed dynamic and static patterns
FX generator:adjustable foreground/background colour, index, speed, direction
Special features:outer RGB, pixel ring with several built in FX macros and

linear crossfade channel from any white to any colour; virtual CTO on colours

BODY

Hardware on-board:sockets for quick-Lock Omega bracket (clamp not included)
Pan angle:540°
Tilt angle:233°
Feedback:automatic repositioning after accidental movement
Body:aluminium structure with high-resistance polycarbonate cover

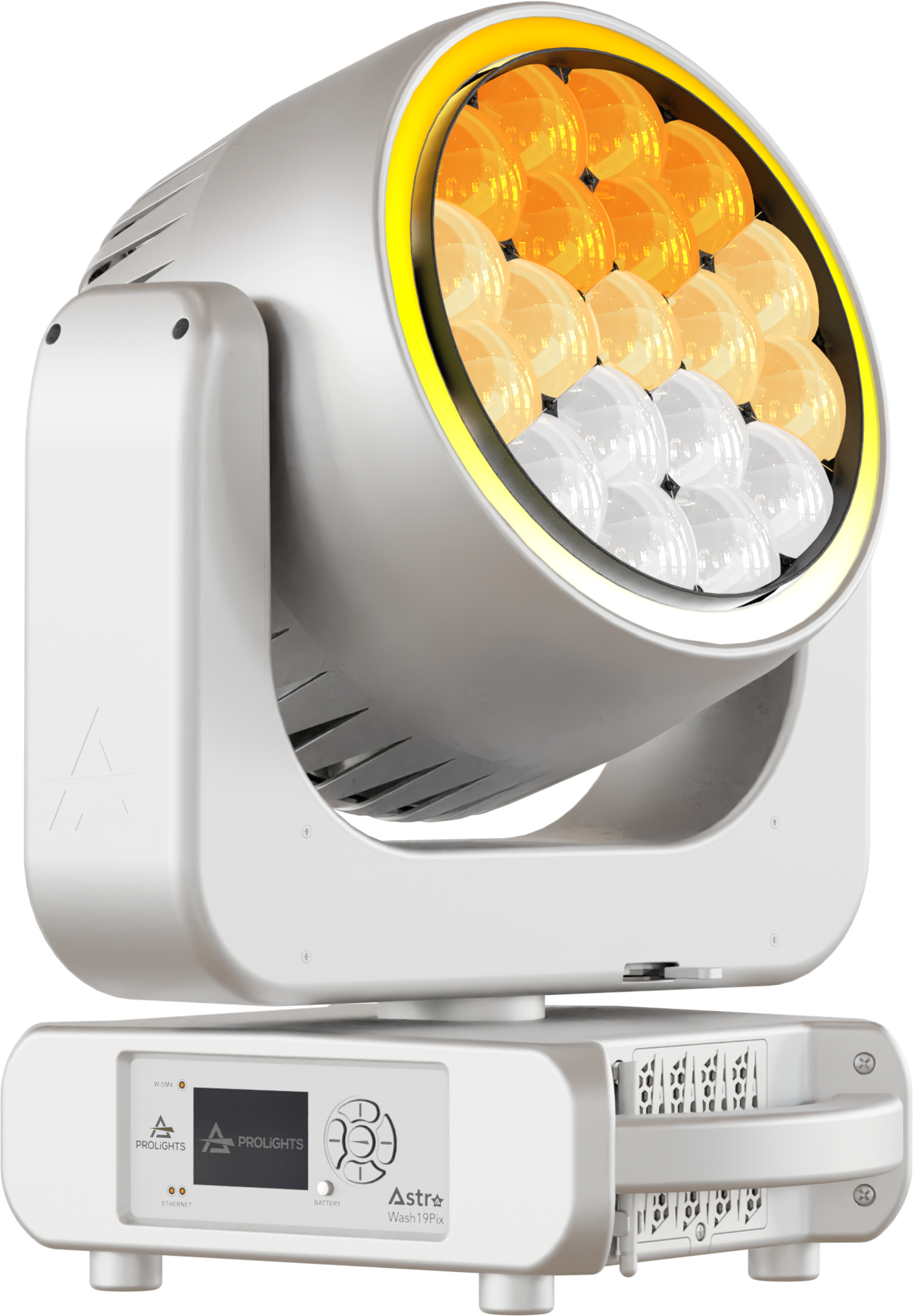

Body colour:see variants

CONTROL

Protocols:DMX512, RDM, Art-Net, Klingnet, sACN, W-DMX
DMX channels:main personality 29 / 32 / 53channel
Pixel control:OFF, ring and pixel2pixel
Wireless Control:included, LumenRadio Timo Fx DMX/RDM compatible with both CRMX (Lumen Radio) and W-DMX (Wireless DMX)
RDM:RDM for remote monitoring and settings

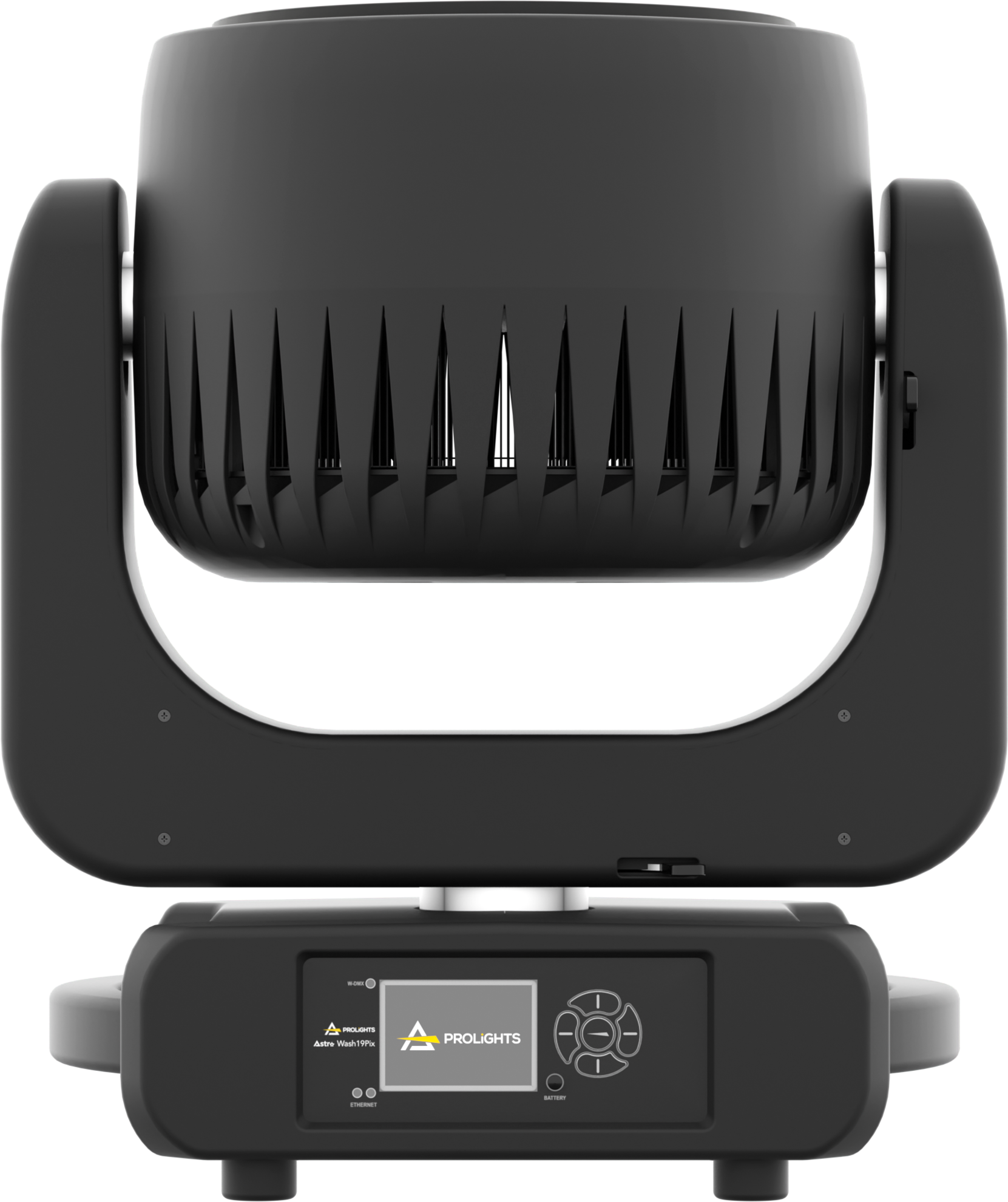

Display:LCD high resolution colour display with autoflip
Firmware upgrade:yes, via USB - DMX interface (UPBOX2) not included

ELECTRONICS

Dimmer:linear 0 ~ 100% electronic dimmer
Dimmer curves:4selectable dimming modes available
Strobe / shutter:1 - 30Hz, electronic
Display battery:self-charging battery backup
Operating temperature:-10° ~ +45°
LED Control:flicker free operation
Selectable PWM:600 ~ 50.000 Hz

ELECTRICAL

Mains power supply:100-240V - 50/60Hz
Max power consumption:620W
Output (at 230V):4units on a single power line
Power factor:> 0,95
PHYSICAL
IP rating:20

Cooling:forced air with fan
Suspension and fixing:any position with quick-lock omega brackets
Pan / tilt lock:for transportation and maintenance

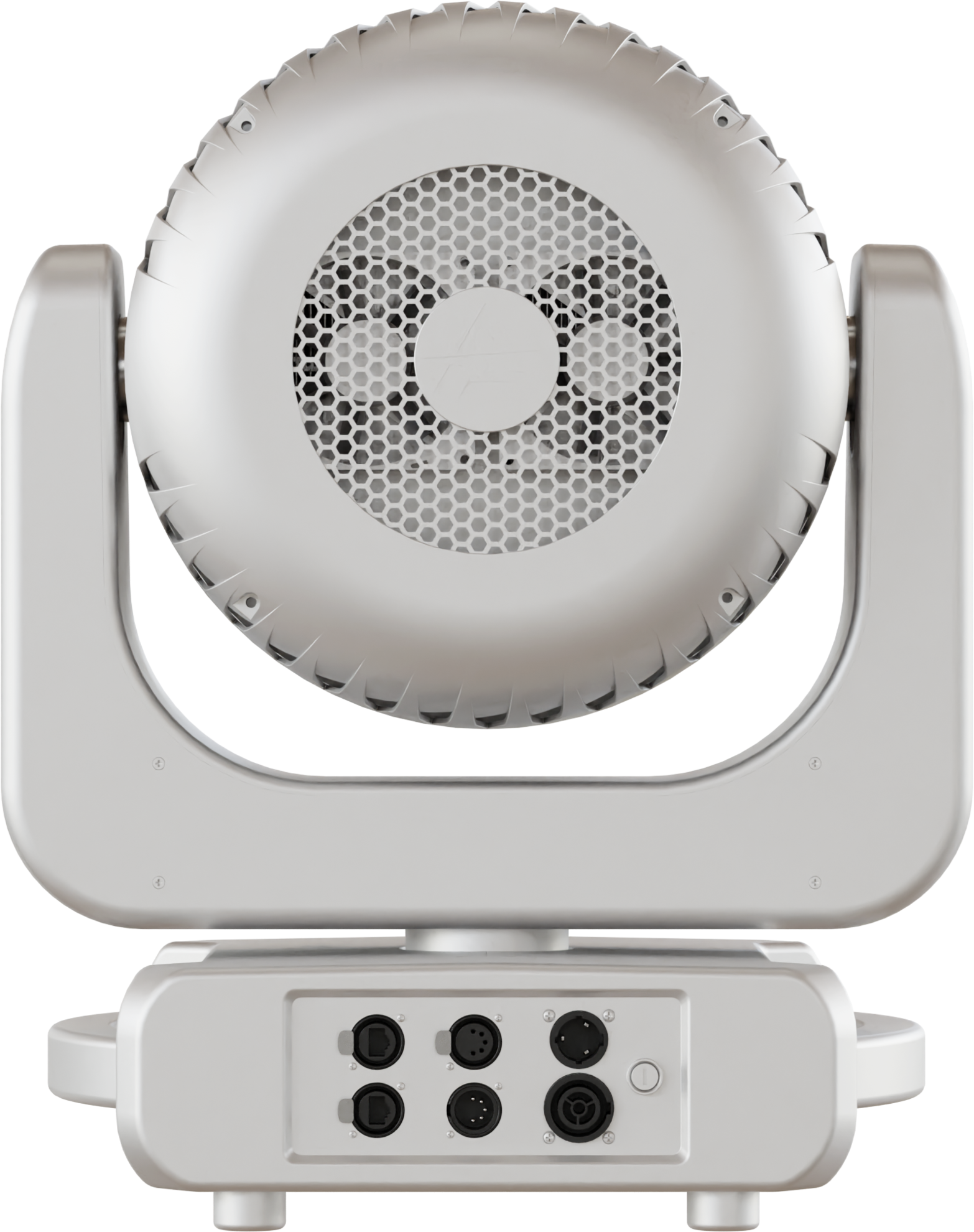

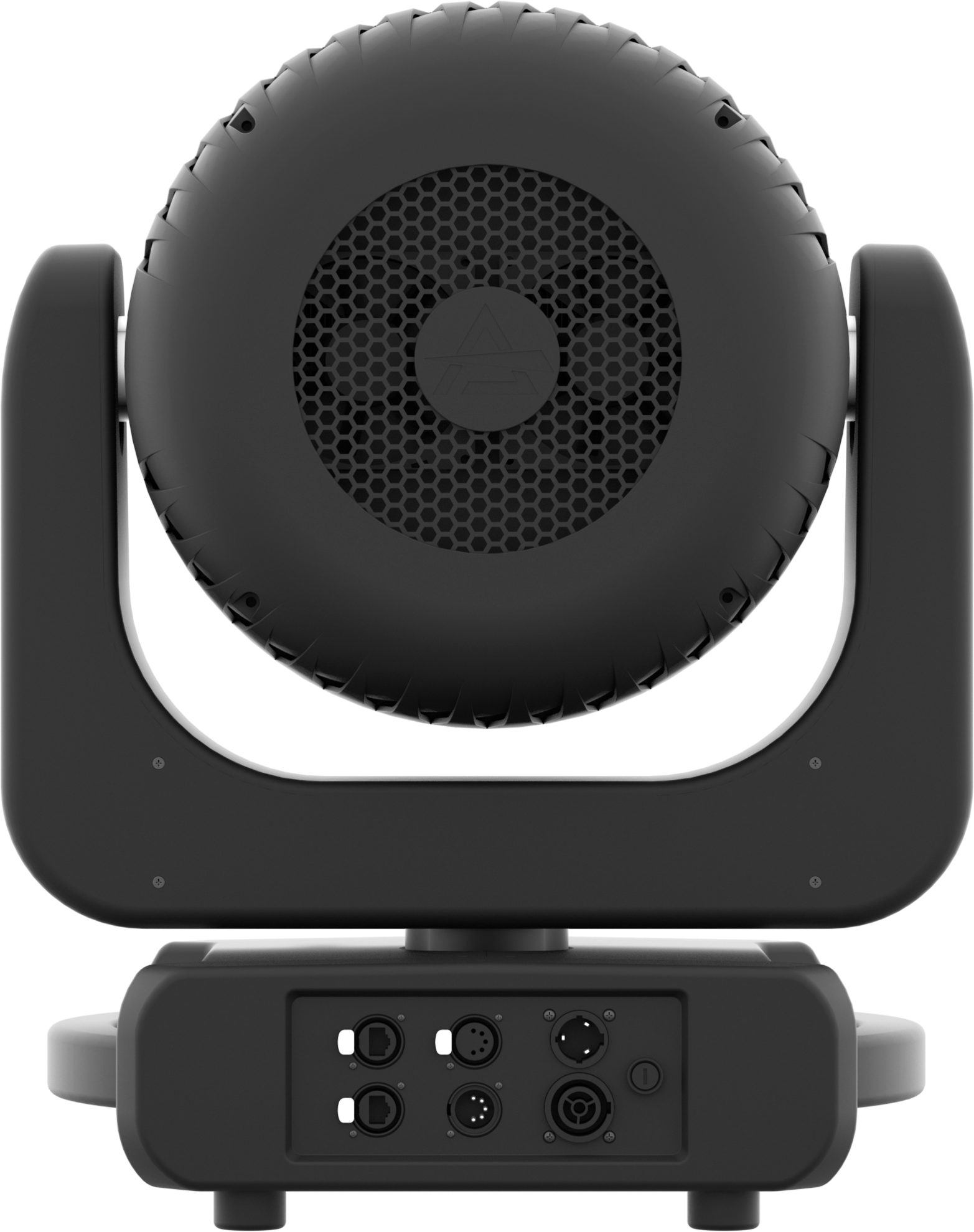

Signal connection:Amphenol XLR 5p IN/OUT connectors
Data connection:Neutrik Art-Net RJ45 IN/OUT
Power connection:Neutrik powerCON TRUE1 IN/OUT connectors

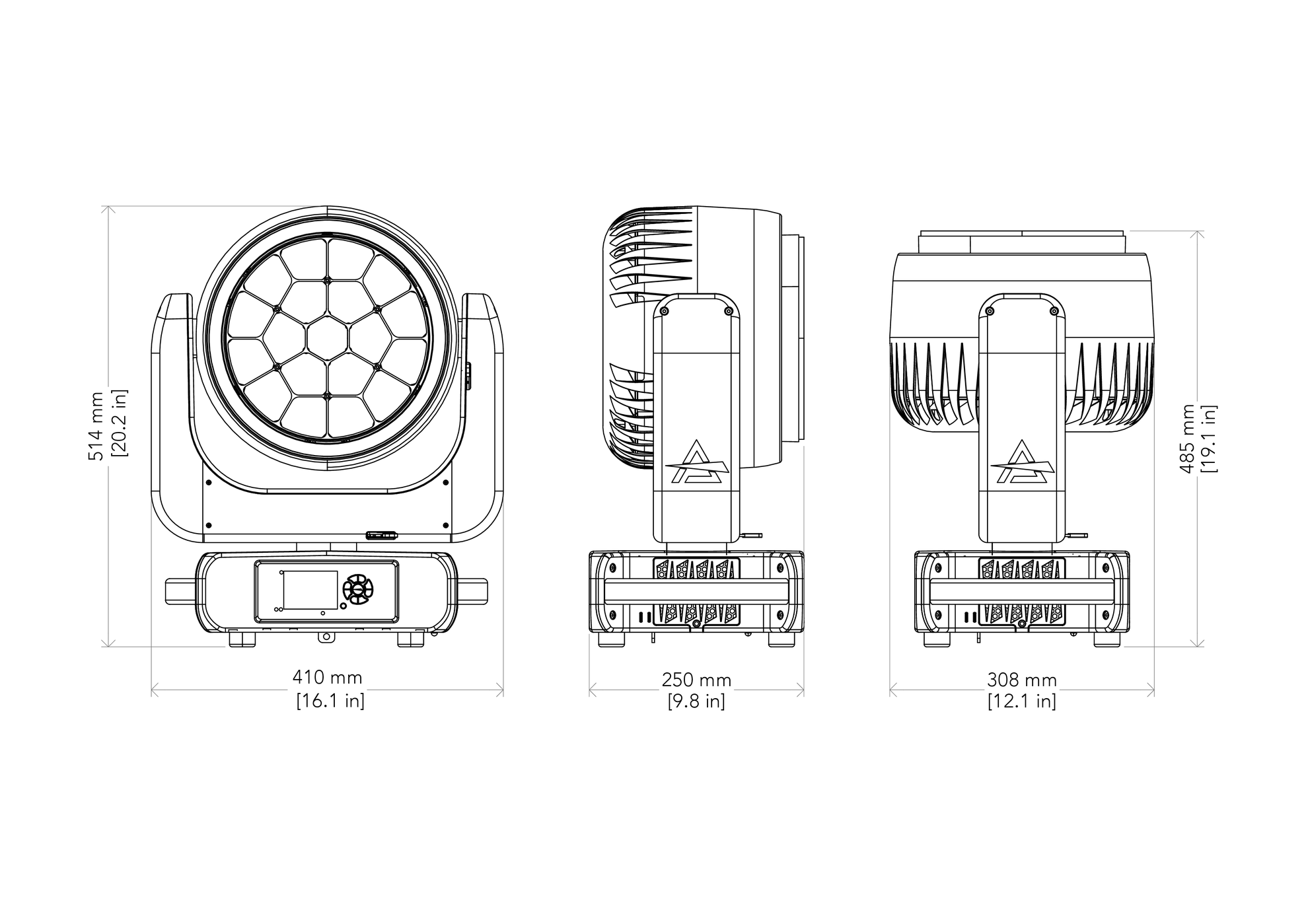

Dimensions (WxHxD): 410x514x250mm
Weight: 17,4kg

CERTIFICATIONS / APPROVALS

Certifications / Approvals:CE, UKCA, RCM, cTUVus, FCC

Supplier SKU

ASTRAWASH19PIXWH
