Optional CRMX

JET PROFILE300LT

Name: JET PROFILE300LT
Brand: Prolights

530005620

300W LT Profile Moving head, with 4° - 44° zoom and CMY

Beskrivelse Specification Brand information Downloads

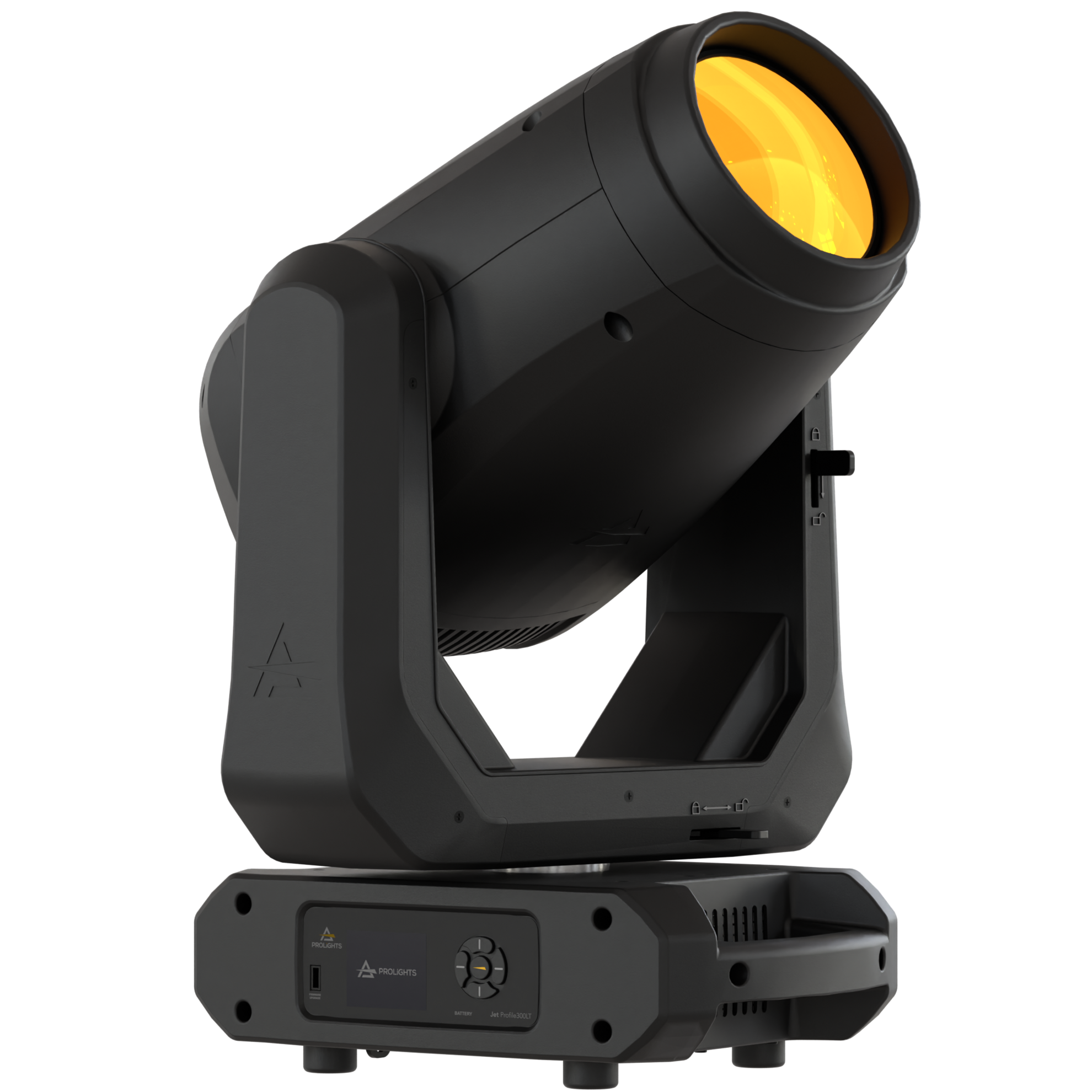

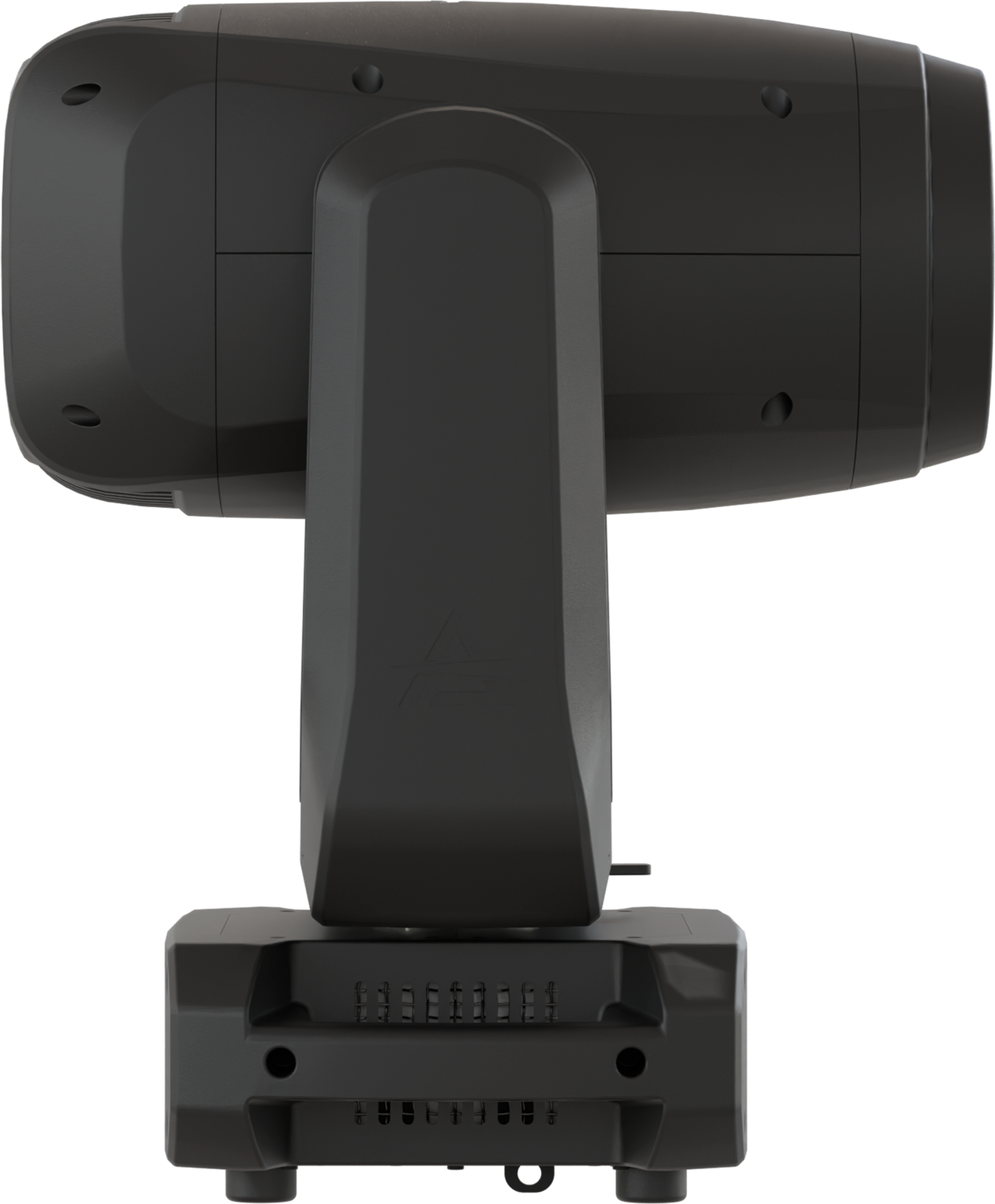

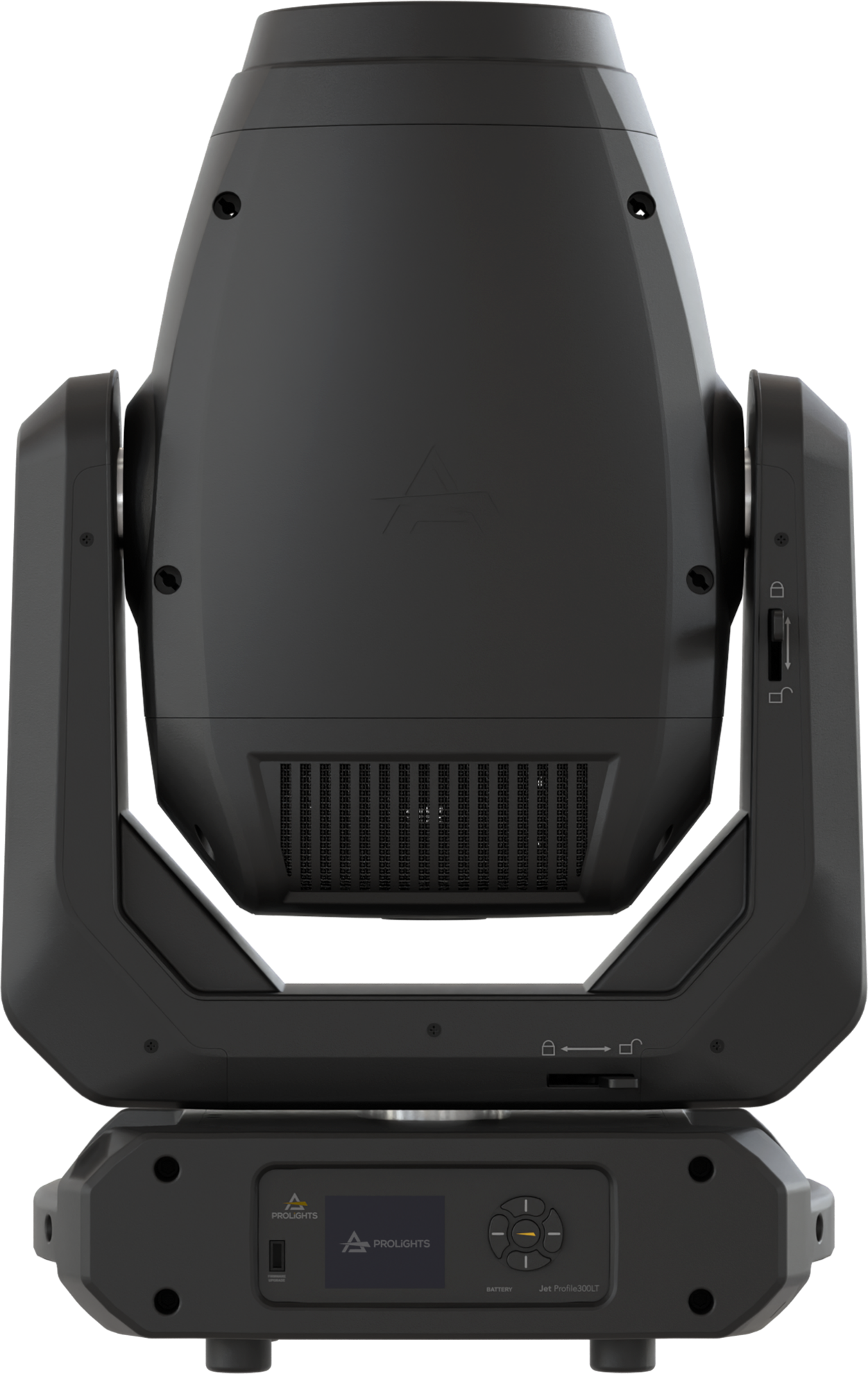

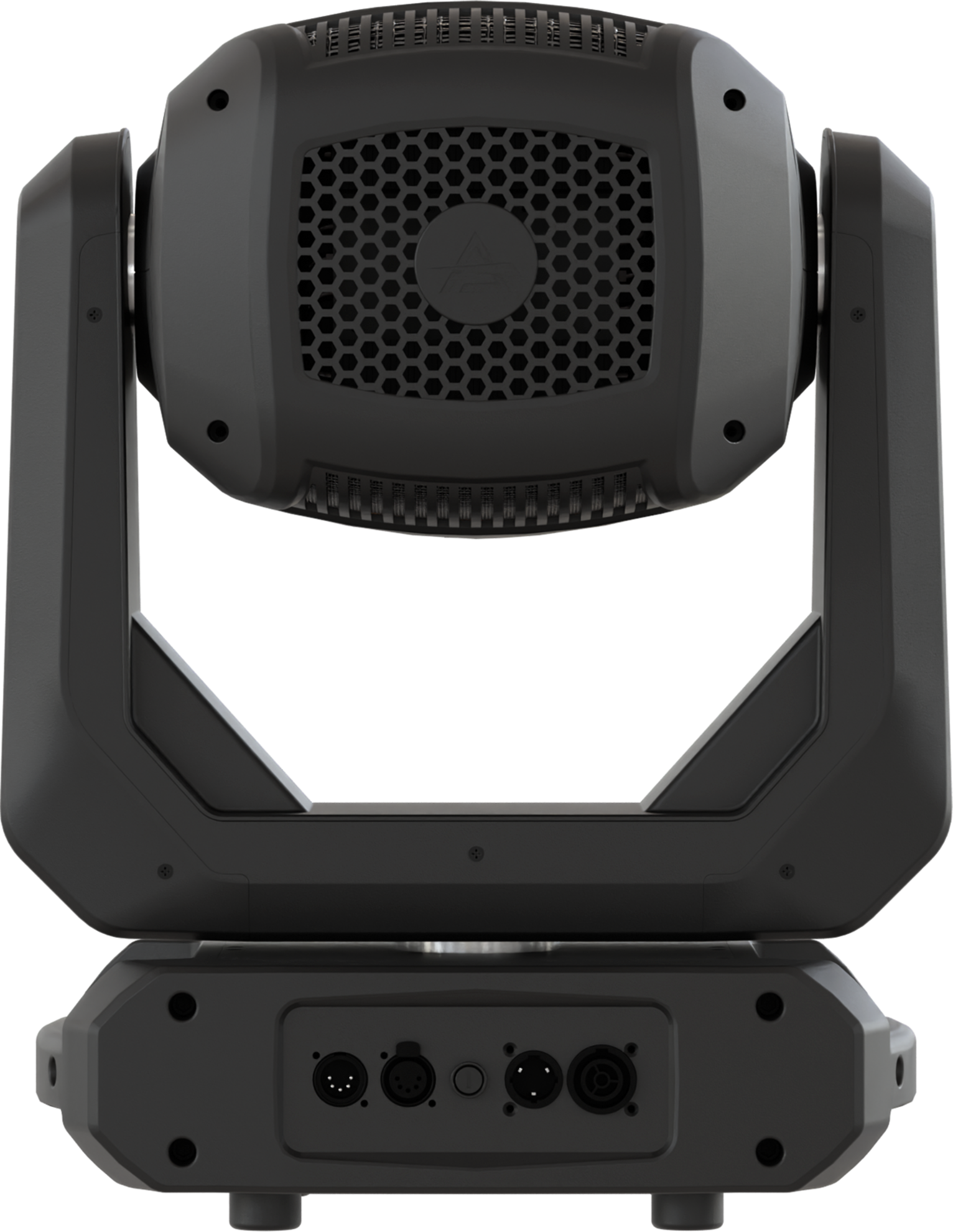

The Jet Profile300LT

is a compact, quiet, and versatile moving LED profile designed for small to medium stages in theater, television, and live

performances. Featuring a 300W white LED source and a long-throw optical system with a large 140mm front lens, it delivers a robust 12.000 lumen output.

Despite its super-compact design, it maintains high performance. The motorized zoom offers a range of 4°-44°, making it suitable for aerial effects and long distance throws key light.

The Jet Profile300LT offers precise beam control with four framing shutters, each with individual plane rotation and full curtain effect capability. Additional features include a linear CMY system, three half-color wheels, a rotating gobo

wheel with seven images, animation wheels, soft frost, and a circular prism.

Technical Specifications

LIGHT SOURCE

Source: 300W high-power white LED
CCT: 6.500K Luminous flux: (3,9°) 8'313 lm - (44,1°) 12'065 lm
Lux: (3,9°) 88'597 lx (44,1°) 1'333lx @5 m
CRI: > 70 (85 with 6000K High CRI filter on color wheel)
Source life expectancy: > 30.000 h

OPTICS

Zoom range: 3,9° - 44,1° motorised linear zoom
Lens diameter: 140mm
Lens type: HD anti-reflection lenses with achromatic coating
Focus: motorised

COLOUR SYSTEM

Colour mixing: CMY colour system on 3 gradually fading colour wheels
CT: linear CTO correction 2.800 K ~ 6.500 K
Colour wheel: 6 dichroic filters on 2 independent colour wheels

DYNAMIC EFFECTS

Control Resolution: 16-bit dimmer
Shutter system: 4 shutter blades with position and ±30° angle adjustment, ±45° rotation of the complete framing system
Animation wheel: animation wheel with CW and CCW rotation
Rotating gobos: 7 rotating gobos + open, interchangeable, indexing
Gobo size: outer diameter: 20 mm; image diameter: 16 mm; thick: up to 3 mm
FX generator: prisms overlap for spectacular aerial effects
Circular prism: 4f with bi-directional rotation, indexing, interchangeable
Linear prism: 4f with bi-directional rotation, indexing, interchangeable
Frost: linear 0 - 100% light frost filter, interchangeable

BODY

Hardware on-board: sockets for quick-Lock Omega bracket (clamp not included)
Pan range: 540°
Tilt range: 265°
Pan/Tilt resolution: bit 16-bitFeedback: automatic repositioning after accidental movement
Body: aluminium structure with high-resistance polycarbonate coverBody
colour: black

CONTROL

Protocols: DMX512, RDM, CRMX
DMX channels: (STD) 37 / (EXT) 42 channel
Wireless Control: optional, LumenRadio Timo Fx DMX/RDM compatible with both CRMX (Lumen Radio) and W-DMX (Wireless DMX)
RDM: RDM for remote monitoring and settings
Display: Graphic User InterfaceFirmware upgrade: via DMX with UPBOXPRO/UPBOX2 (USB-DMX
interface not included) or via USB pen drive

ELECTRONICS

Dimmer: linear 0 ~ 100% electronic dimmer
Dimmer curves: 4 selectable dimming modes available
Strobe / shutter: 1 - 30 Hz, electronic
Display battery: self-charging battery backup
Operating temperature: -10° ~ +45° Ta
LED Control: flicker free frequency with adjustable PWMSelectable PWM: 600 ~ 50.000 Hz

ELECTRICAL

Mains power supply: 100-240V - 50/60Hz
Max power consumption: 491W
Standby power: 85 W
Output (at 230V): 7 units on a single power line
Power factor: > 0,96

PHYSICAL

IP rating: 20
Cooling: combination of heat pipe cooling system and low noise fan
Suspension and fixing: any position with quick-lock omega brackets
Pan / tilt lock: for transportation and maintenance
Signal connection: Neutrik XLR 5p IN/OUT connectors
Power connection: Seetronic powerCON TRUE IP65 IN/OUT
Dimensions (WxHxD): 403x630x250mm
Weight: 21,4kg

CERTIFICATIONS / APPROVALS

Certifications / Approvals: CE, RCM

Supplier SKU

JETPROFILE300LT

Custom sticker

Optional CRMX

IP Rating

IP20

Prolights

PROLIGHTS is the professional lighting division of Music & Lights S.r.l., an Italian company specialized in the manufacture of technologies for the show industry.

The PROLIGHTS brand was established in 2001 with a focus on the design and manufacture of professional lighting & video products for the entertainment, event, broadcast and installation markets.

PROLIGHTS is headquartered in Minturno, Italy, where the companies commerical, operational and R&D centres are all located.

PROLIGHTS continues to experience a sustained growth across all sectors, with its products found on stages and in studios all over the world. Founder Franco Sorabella, and his son Fabio, are both actively involved in the day-to-day running of the business and in the development of the product range.

http://www.prolights.it
