JET WASH 19

19x20W RGBW moving wash light with 4°- 52° zoom
Colors
Vælg venligst en variant!

The Jet Wash19 is a compact and fast LED moving wash light with motorized zoom control.

The 20W Osram RGBW LED source provides plenty of output and combined with a highly efficient optical system capable of zooming from 4° to 52°, this unit can easily work as beam or wash light.

The Jet Wash19's colour mixing system features precise and advanced control with superior white and saturated tones, and a clean and intuitive user interface similar to the other series.

Technical Specifications
LIGHT SOURCE
  • Source:19x20W RGBW Osram Ostar LEDs
  • Luminous flux: (4°) 3'019 lm - (52°) 5'337lm  @full
  • Lux: (4°) 23'781 lx - (52°) 682lx @5 m full
  • Source life expectancy:> 50.000 h
OPTICS
  • Zoom:4° - 52 motorised linear zoom
  • Lens type:honeycomb gapless plano-convex optics
COLOUR SYSTEM
  • Colour mixing: RGBW / FC
  • CCT: CCT control, + / - green correction, tungsten emulation
  • White presets: 2.800 K ~ 10.000K

  • Colour wheel:virtual colour wheel with macros
DYNAMIC EFFECTS
  • Control Resolution: 16-bit dimmer
  • Special features: linear crossfade channel from any white to any colour; virtual CTO on colours
BODY
  • Hardware on-board : sockets for quick-Lock Omega bracket (clamp not included)
  • Pan angle: 540 °

  • Tilt angle:233 °

  • Pan/Tilt resolution: 8-bit , 16-bit
  • Feedback: automatic repositioning after accidental movement
  • Body: aluminium structure with high-resistance polycarbonate cover
  • Body colour: RAL 9004
CONTROL
  • Protocols: DMX512, RDM
  • DMX channels: 23channel
  • RDM:  RDM for remote monitoring and settings
  • Display LCD high resolution colour display with autoflip
  • Firmware upgrade: yes, via USB - DMX interface (UPBOX2) not included
ELECTRONICS
  • Dimmer: linear 0 ~ 100% electronic dimmer
  • Dimmer curves: 4 selectable dimming modes available
  • Strobe / shutter: 1 - 30 Hz, electronic
  • Operating temperature: -10° ~ +45°
  • LED Control: flicker free operation
  • Selectable PWM: 600 ~ 25.000 Hz
ELECTRICAL
  • Mains power supply: 100-240V - 50/60Hz
  • Max power consumption: 350W

  • Output (at 230V): 7 units on a single power line
  • Power factor: > 0,96


PHYSICAL
  • IP rating: 20

  • Cooling: forced air with fan
  • Suspension and fixing: any position with quick-lock omega brackets
  • Pan / tilt lock: for transportation and maintenance
  • Signal connection: Amphenol XLR 5p IN/OUT connectors
  • Data connection: Neutrik Art-Net RJ45 IN/OUT
  • Power connection:Neutrik powerCON TRUE1 IN/OUT connectors

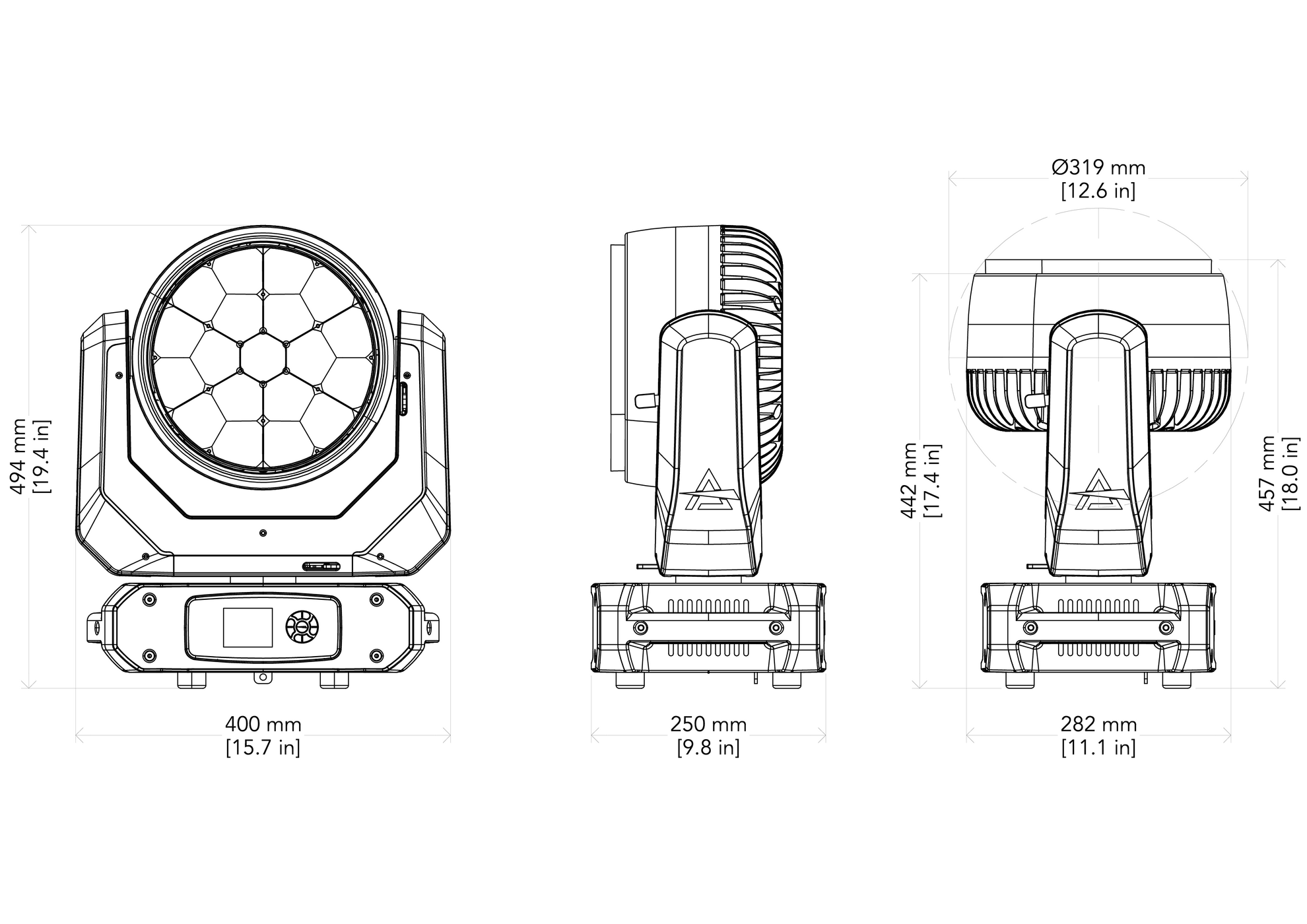

  • Dimensions (WxHxD): 396x487x250 mm

  • Weight: 14,7 kg

CERTIFICATIONS / APPROVALS
  • Certifications / Approvals: CE, UKCA, RCM
Supplier SKU
JETWASH19
