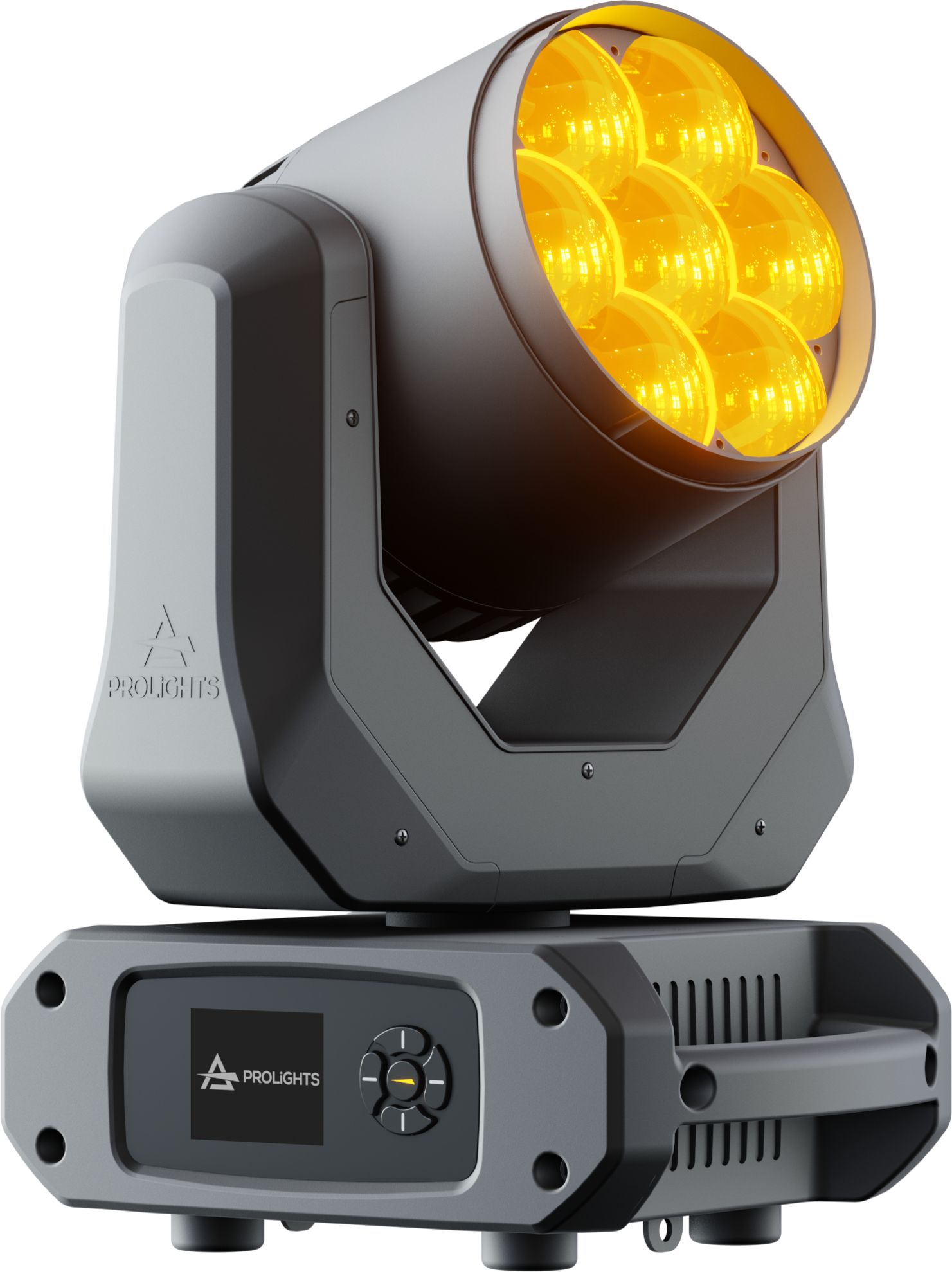

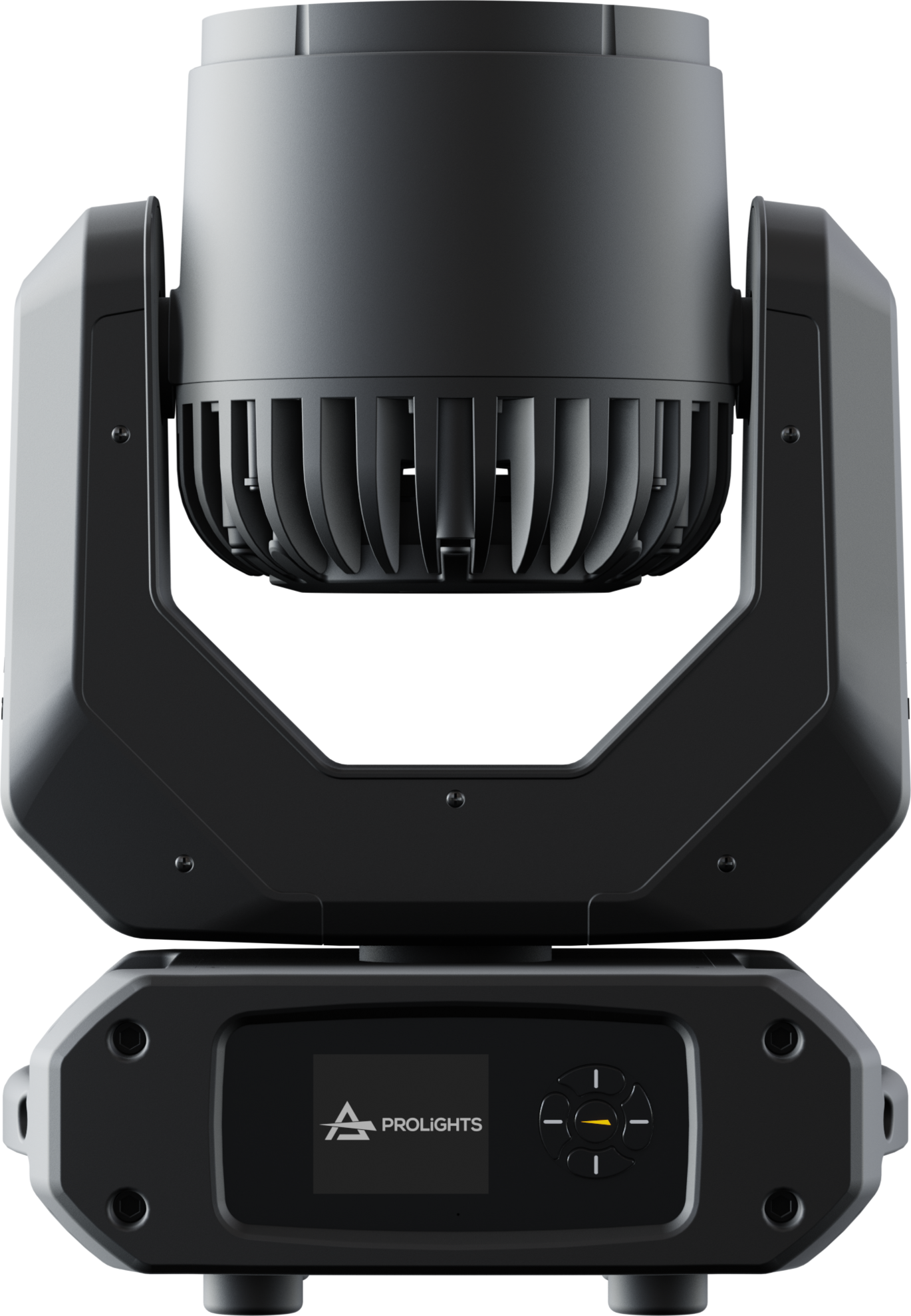

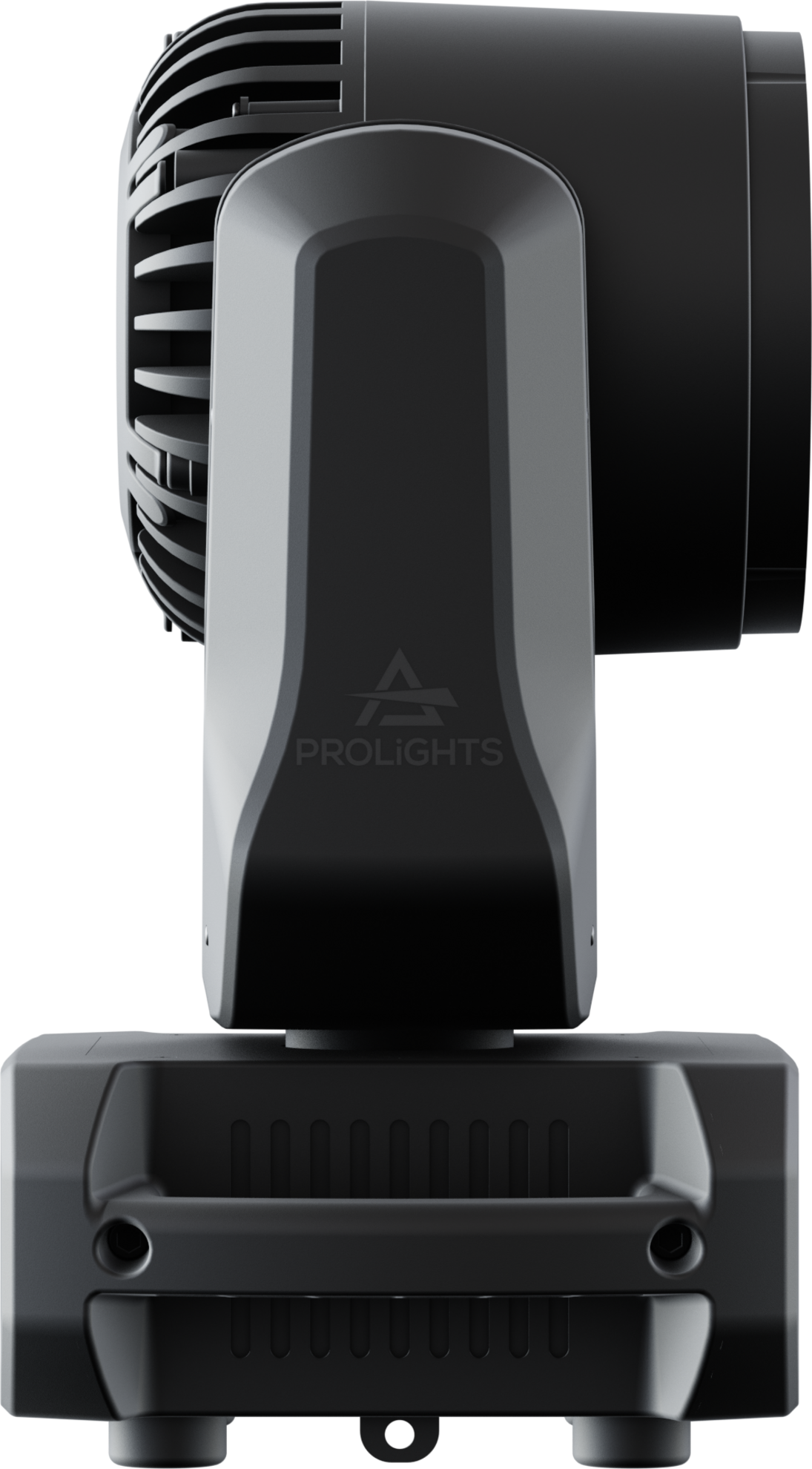

JET WASH7
7x20W RGBW moving wash light with a 4°- 55° zoom
The Jet Wash7 is a compact and fast LED moving wash light with motorized zoom control.
The 20W Osram RGBW LED source provides plenty of output and combined with a highly efficient optical system capable of zooming from 4° to 55°, this unit can easily work as beam or wash light.
The Jet Wash7's colour mixing system features precise and advanced control with superior white and saturated tones, and a clean and intuitive user interface similar to the other series.
LIGHT SOURCE
Source:7x20W RGBW Osram Ostar LEDs
Luminous flux: (4°) 1'232 lm - (55°) 1'993lm @full
Lux: (4°) 28'754 lx - (55°) 611 lx @3 m full
Source life expectancy:> 50.000 h
OPTICS
Zoom:4° - 55° motorised linear zoom
Lens type: honeycomb gapless plano-convex optics
COLOUR SYSTEM
Colour mixing: RGBW / FC CCT: CCT control, + / - green correction, tungsten emulation
White presets: 2.800 K ~ 10.000K
Colour wheel: virtual colour wheel with macros
DYNAMIC EFFECTS
Control Resolution: 16-bit dimmer
Special features: linear crossfade channel from any white to any colour; virtual CTO on colours
BODY
Hardware on-board: sockets for quick-Lock Omega bracket (clamp not included)
Pan angle: 540°
Tilt angle: 233°
Pan/Tilt resolution: 16-bit
Feedback: automatic repositioning after accidental movement
Body:aluminium structure with high-resistance polycarbonate cover
Body colour: Black or White
CONTROL
Protocols: DMX512, RDM
DMX channels: 23 channel
RDM: RDM for remote monitoring and settings
Display: LCD high resolution colour display with autoflip
Firmware upgrade: yes, via USB - DMX interface (UPBOX2) not included
ELECTRONICS
Dimmer: linear 0 ~ 100% electronic dimmer
Dimmer curves: 4 selectable dimming modes available
Strobe / shutter: 1 - 30 Hz, electronic
Operating temperature: -10° ~ +45°
LED Control: flicker free operation
Selectable PWM: 600 ~ 50.000 Hz
ELECTRICAL
Mains power supply: 100-240V - 50/60Hz
Max power consumption: 160W
Output (at 230V): up to 15 units on a single power line
Power factor: > 0,94
PHYSICAL
IP rating: 20
Cooling: forced air with fan
Suspension and fixing:any position with quick-lock omega brackets

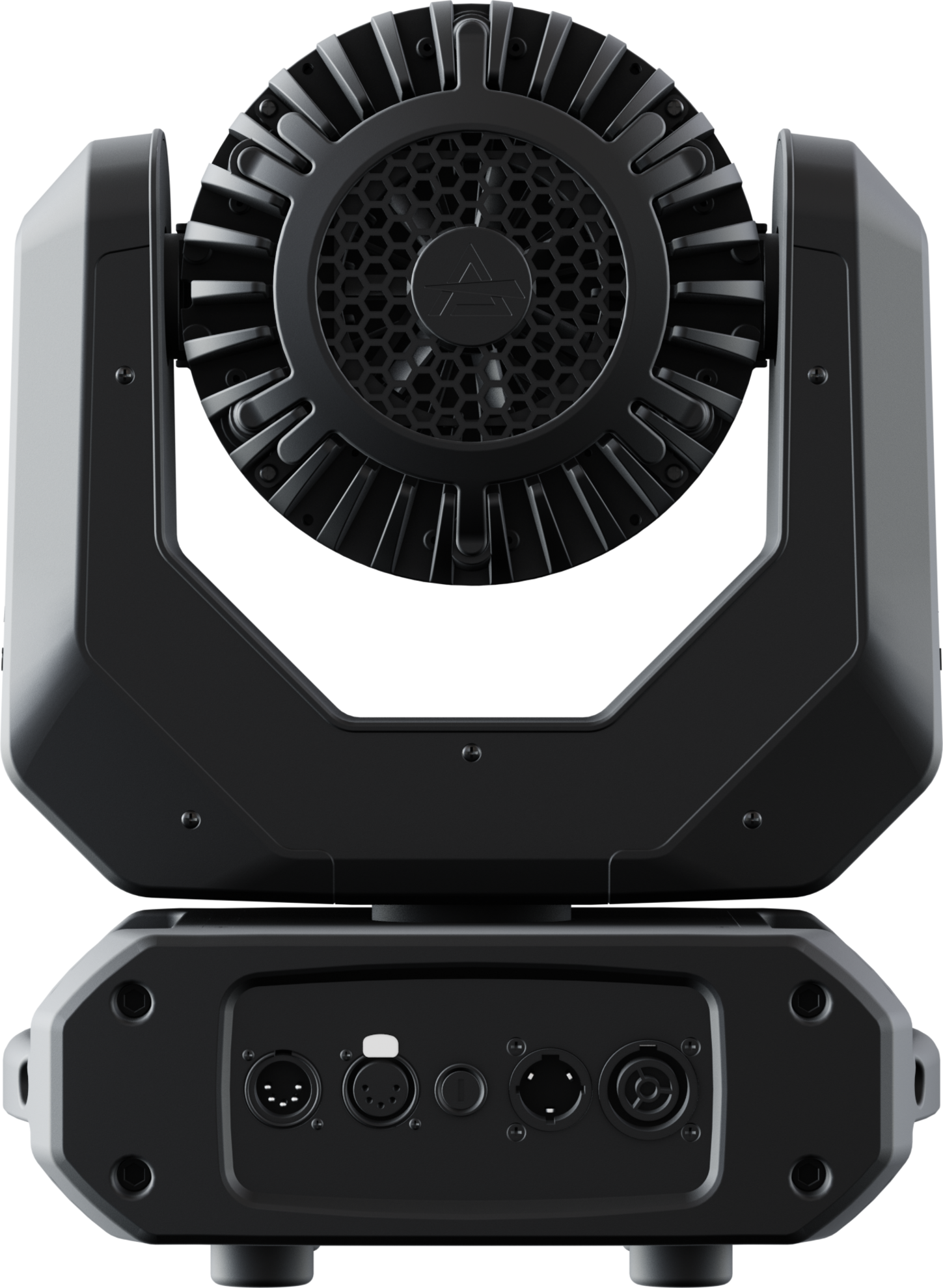

Signal connection: Amphenol XLR 5p IN/OUT connectors
Power connection: Neutrik powerCON TRUE1 IN/OUT connectors

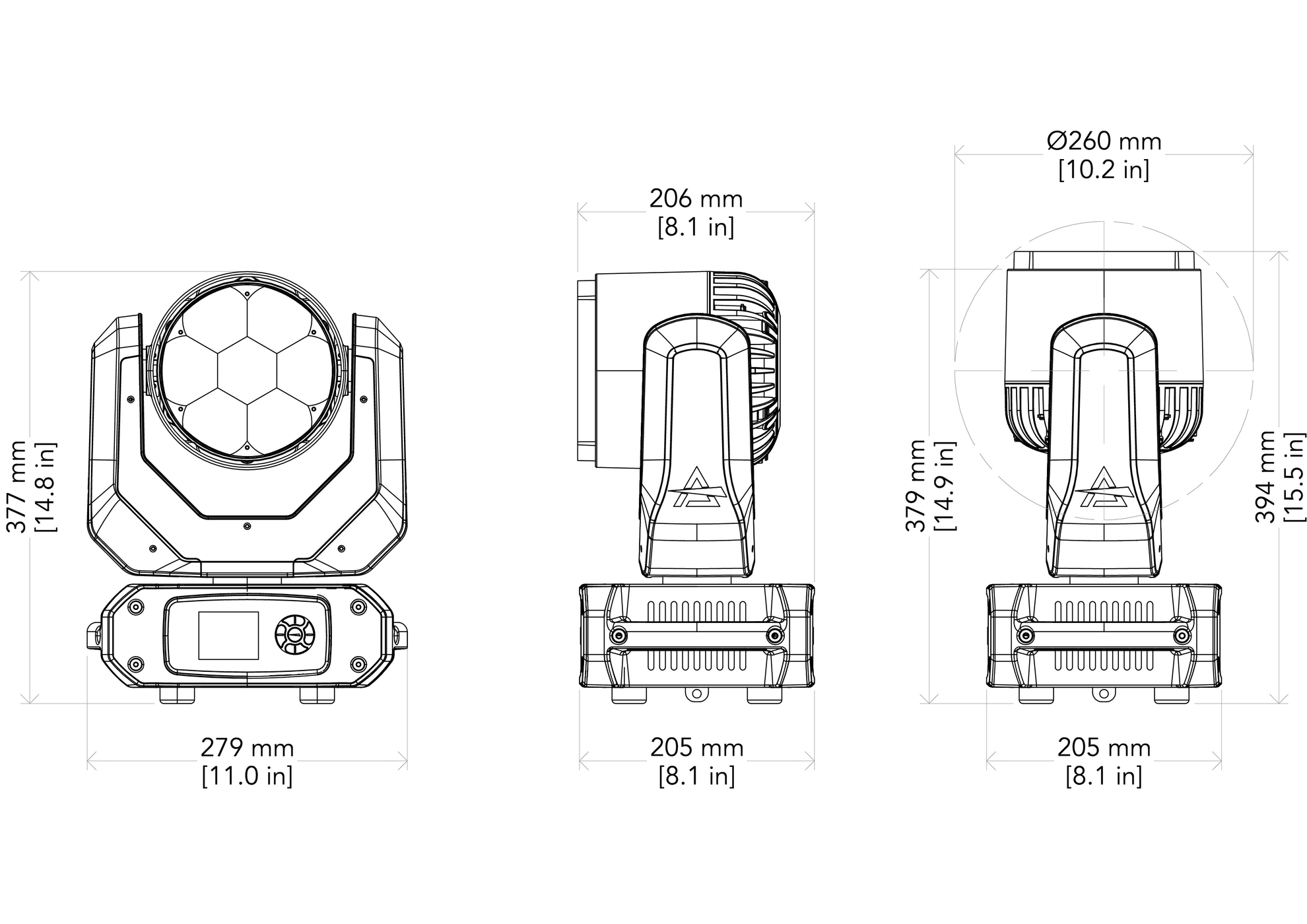

Dimensions (WxHxD):279x377x205mm
Weight: 8,3kg
CERTIFICATIONS / APPROVALS
Certifications / Approvals: CE, UKCA, RCM
