ECLPAR IP MVW black

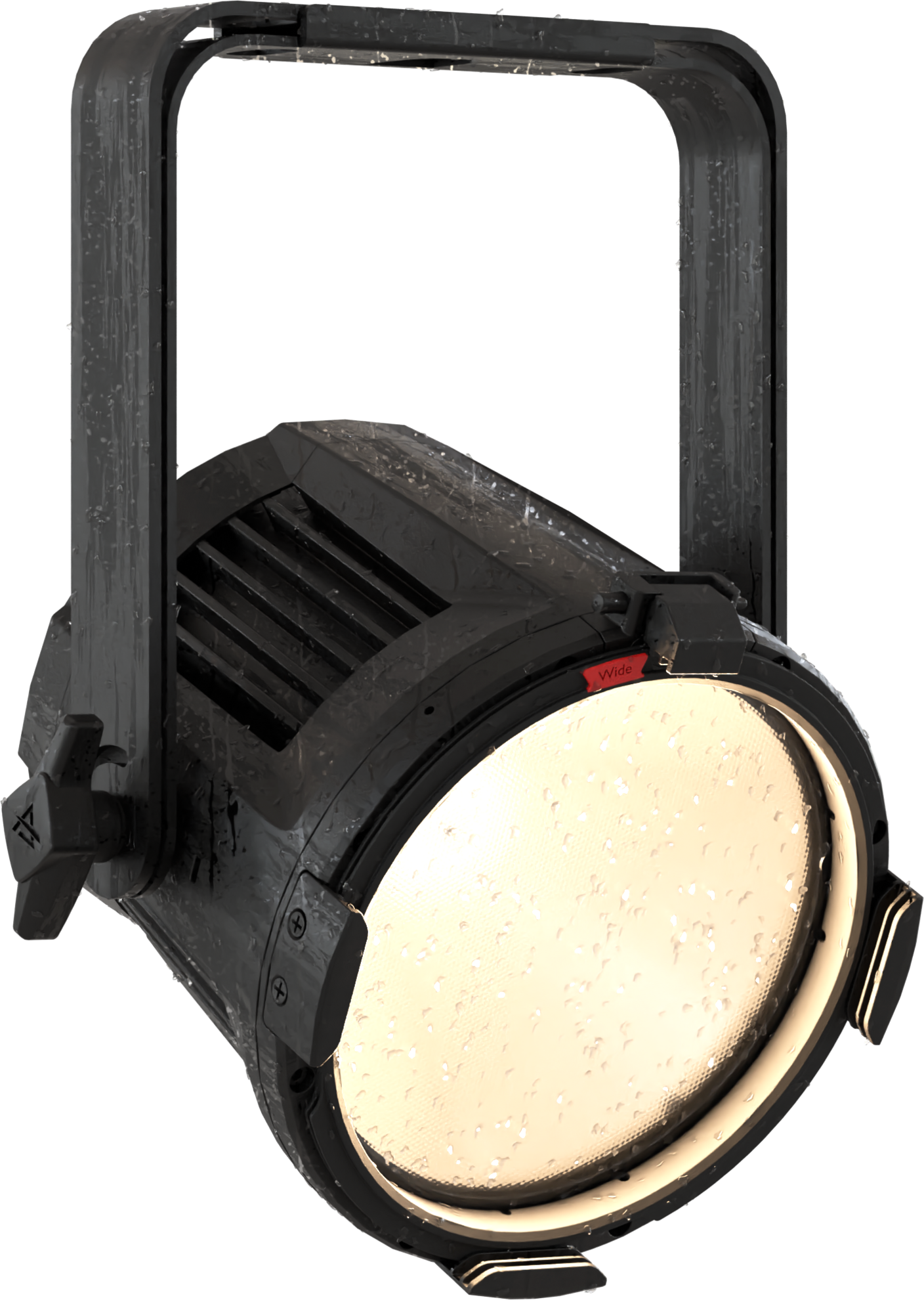

Name: ECLPAR IP MVW black
Brand: Prolights

530021495

100W IP65 Variable White single source LED PAR, 15°

Beskrivelse Specification Brand information Downloads

EclPar IPMVW is a flexible IP rated single source LED spotlight, featuring an 100W Variable White light source with high efficiency and advanced colour control.

Its Spektra calibrated LED source delivers a high-quality white reproduction with high CRI and TM30 with an advanced control over colours, ensuring consistency across fixtures.

The unit is compact and completely fan free, making the EclPar IPMVW a workhorse for any outdoor and dusty environment, but as well as for corporate and studio whereas silent operations are required.

The flexible optical system allow a wide selection of lenses from narrow 15° (on board), flood 30°, and ultra wide 60°, which can be quickly mounted in front of the luminaire or inside the front tempered glass for lasting exterior installation.

Technical Specifications

LIGHT SOURCE

Source:100W Variable White LED
Luminous flux: (15°) 4'571 lm; (30°) 4'329 lm; (60°) 4'414 lm @full
Lux: (15°) 3'072 lx; (30°) 451 lx; (60°) 163
lx @5 m full
CRI: 97,6 @full; 97,1 @2'700K; 96,4 @6'500K
R9: 95 @full; 83,7 @2'700K; 94,1 @6'500K
TLCI: 99 @full; 97 @2'700K; 98 @6'500K
TM30 Rf: 93,3 @full; 93,7 @2'700K; 91,5 @6'500K
TM30 Rg: 100,5 @full; 97,1 @2'700K; 98,1 @6'500K
Source life expectancy:> 50.000 h

OPTICS

Beam angle: (on-board) 15° - (opt) 30°, 60°
Field angle: (on-board) 24°
Lens diameter:172mm
Lens type:parabolic reflector in combination with HD fresnel lens
Additional optics: (opt) 30°, 60°
Other: possible to mount lens both on the internal side and on the external side

COLOUR SYSTEM

Colour mixing: tunable white
CCT: CCT control through dedicated DMX channel
White presets: 2.700 K ~ 6.500K
Macros: built-in white presets

DYNAMIC EFFECTS

Static mode: selection of static dimmer and color temperature
Manual mode: manual adjustment of colour
Auto mode: built-in programs with execution speed adjustment

BODY

Body: sturdy die-cast aluminium body
Body colour:black
Other: Front mount holder for accessories as barn door, filter frame

CONTROL

Protocols: DMX512, RDM, CRMX
DMX channels: 1 / 2 / 4 / 5 / 9 / 11 channel
Wireless Control: optional, LumenRadio Timo Fx DMX/RDM compatible with both CRMX (Lumen Radio) and W-DMX (Wireless DMX)
RDM: RDM for remote monitoring and settings
Display: Graphic User Interface
Firmware upgrade: yes, via USB - DMX interface (UPBOXPRO/UPBOX1) not included
Master/Slave: for synchronised operation of more units linked in a chain

ELECTRONICS

Dimmer: linear 0 ~ 100% electronic dimmer
Dimmer curves: 4 selectable dimming modes available
Strobe / shutter: 1 - 30Hz, electronic
Operating temperature: -20° C / +45° C (-4° F / +113° F)
LED Control: flicker free operation
Selectable PWM: 600 ~ 40.000 Hz

ELECTRICAL

Mains power supply: 100-240V - 50/60Hz
Max power consumption: 117W
Output (at 230V): 24 units on a single power line
Power factor: > 0,93

PHYSICAL

IP rating: 65 for temporary outdoor application, not for fixed installations

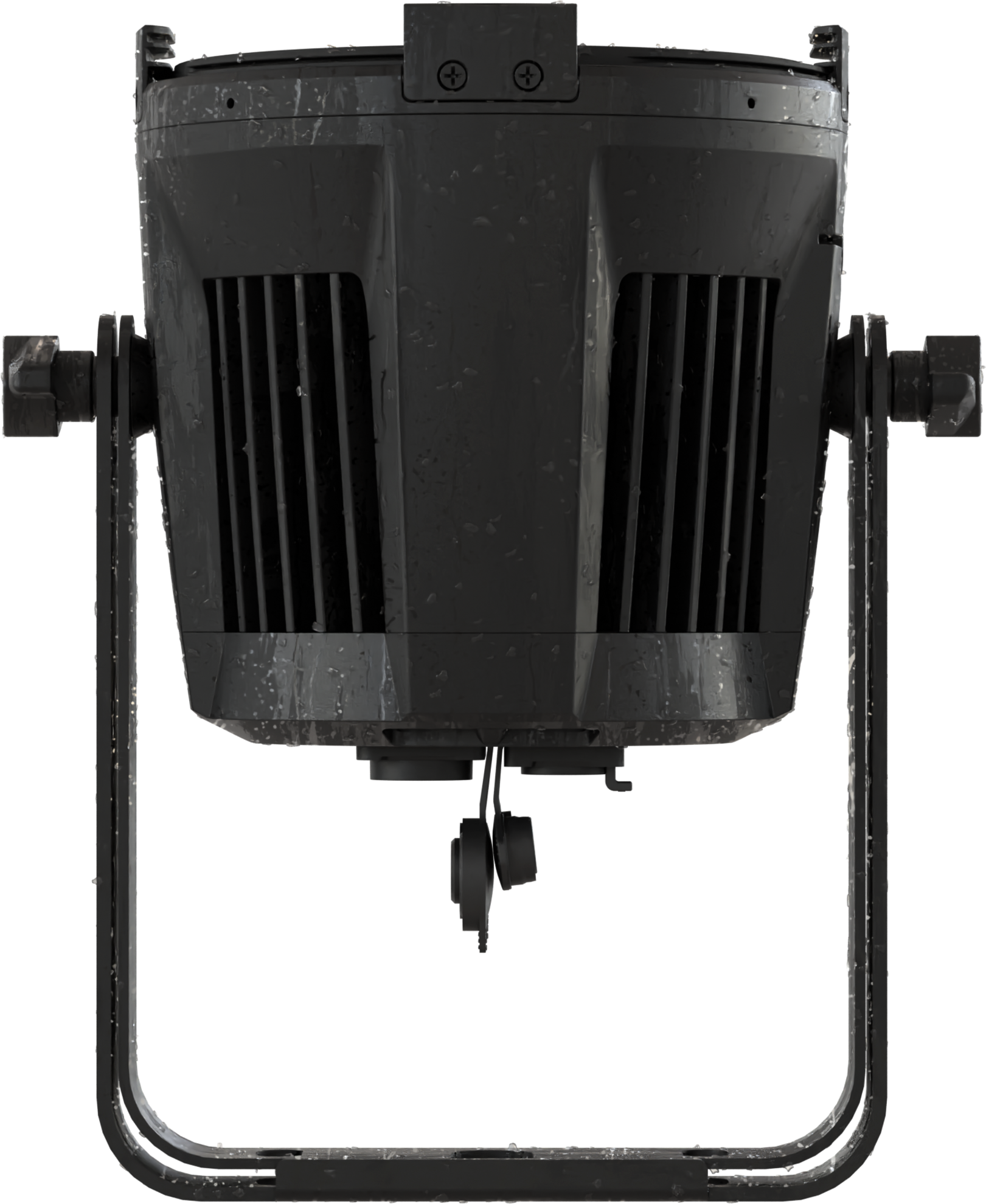

Cooling: passive cooling and fan-free
Suspension and fixing: double hanging bracket suitable for safe hanging and for floor positioning

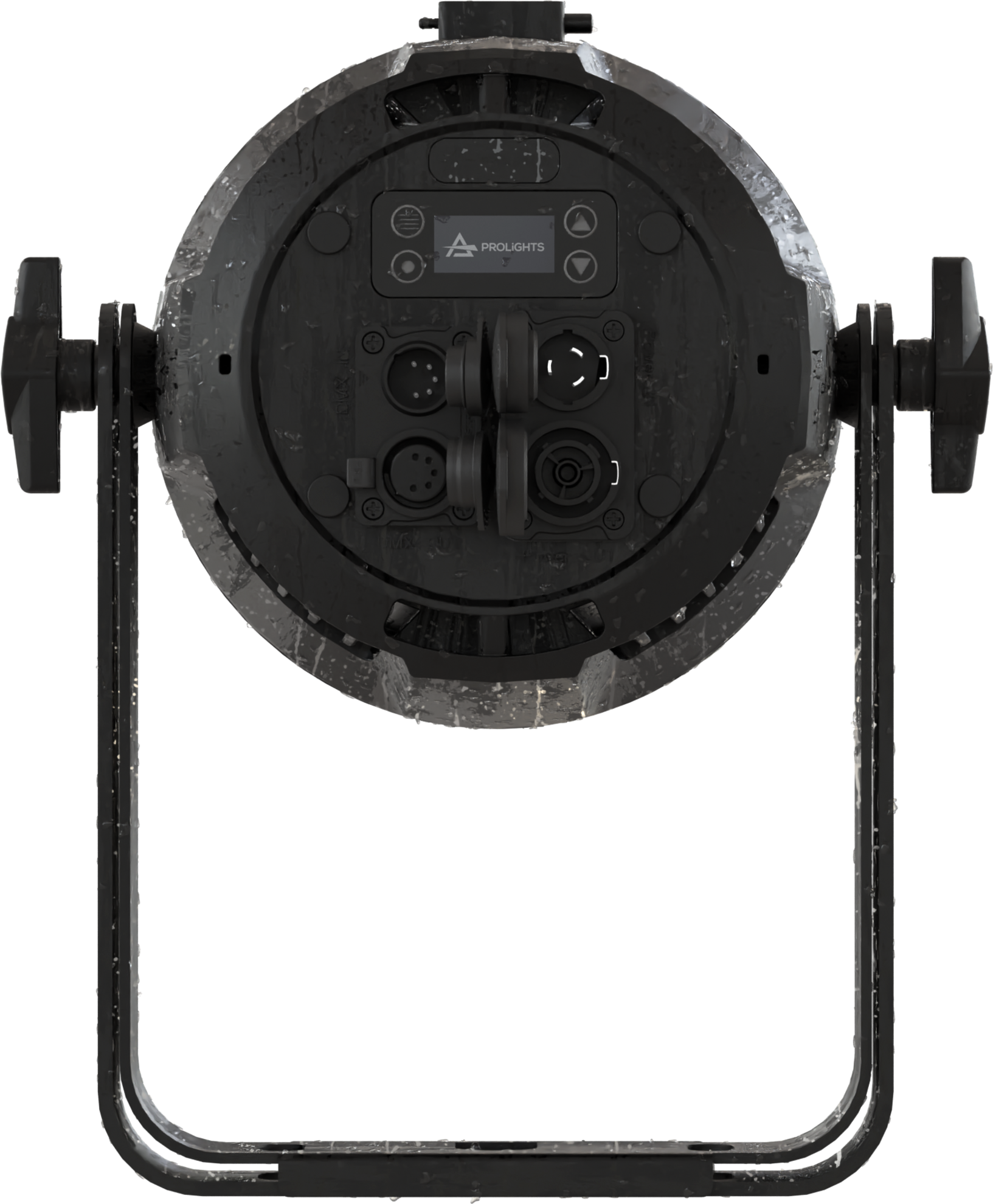

Signal connection: Seetronic XLR 5p IN/OUT connectors
Power connection: Seetronic powerCON TRUE IP65 IN/OUT

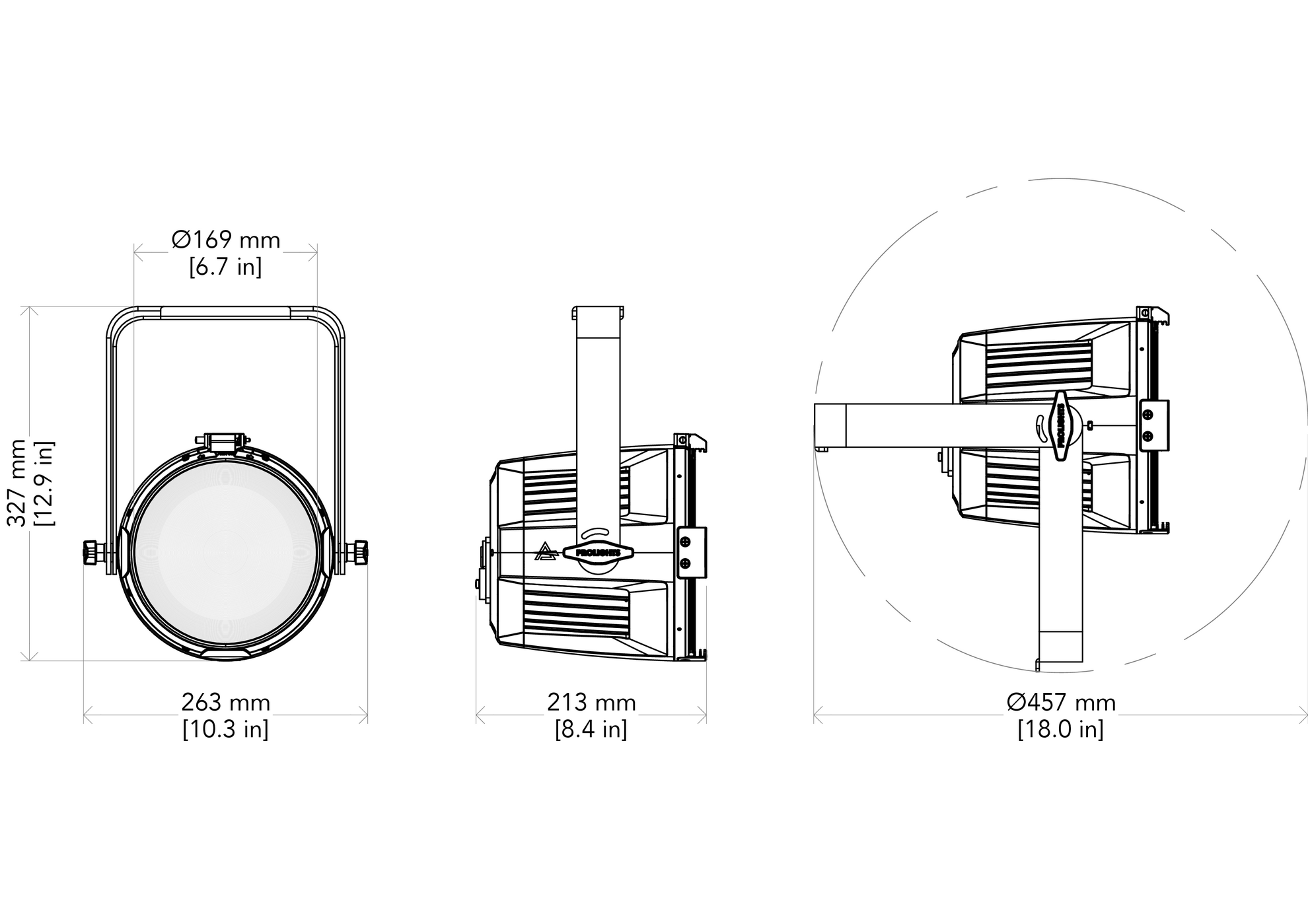

Dimensions (WxHxD): 262x327x213 mm
Weight:4,1kg

(*)

NOTE: Suitable for permanent outdoor use, provided installation and maintenance cycles by qualified technicians are carried.

CERTIFICATIONS / APPROVALS

Certifications / Approvals: CE, UKCA, RCM, cTUVus, FCC
