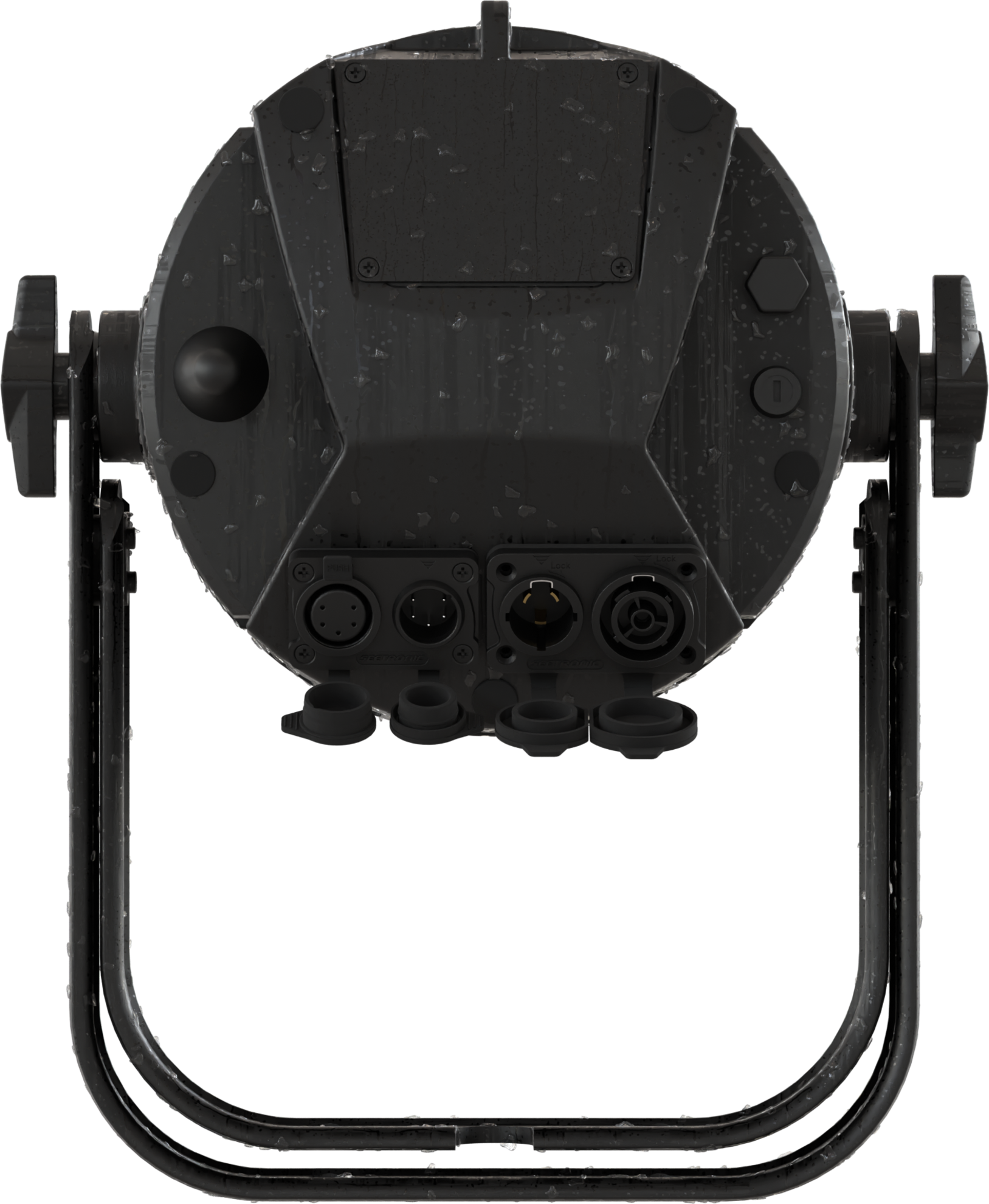

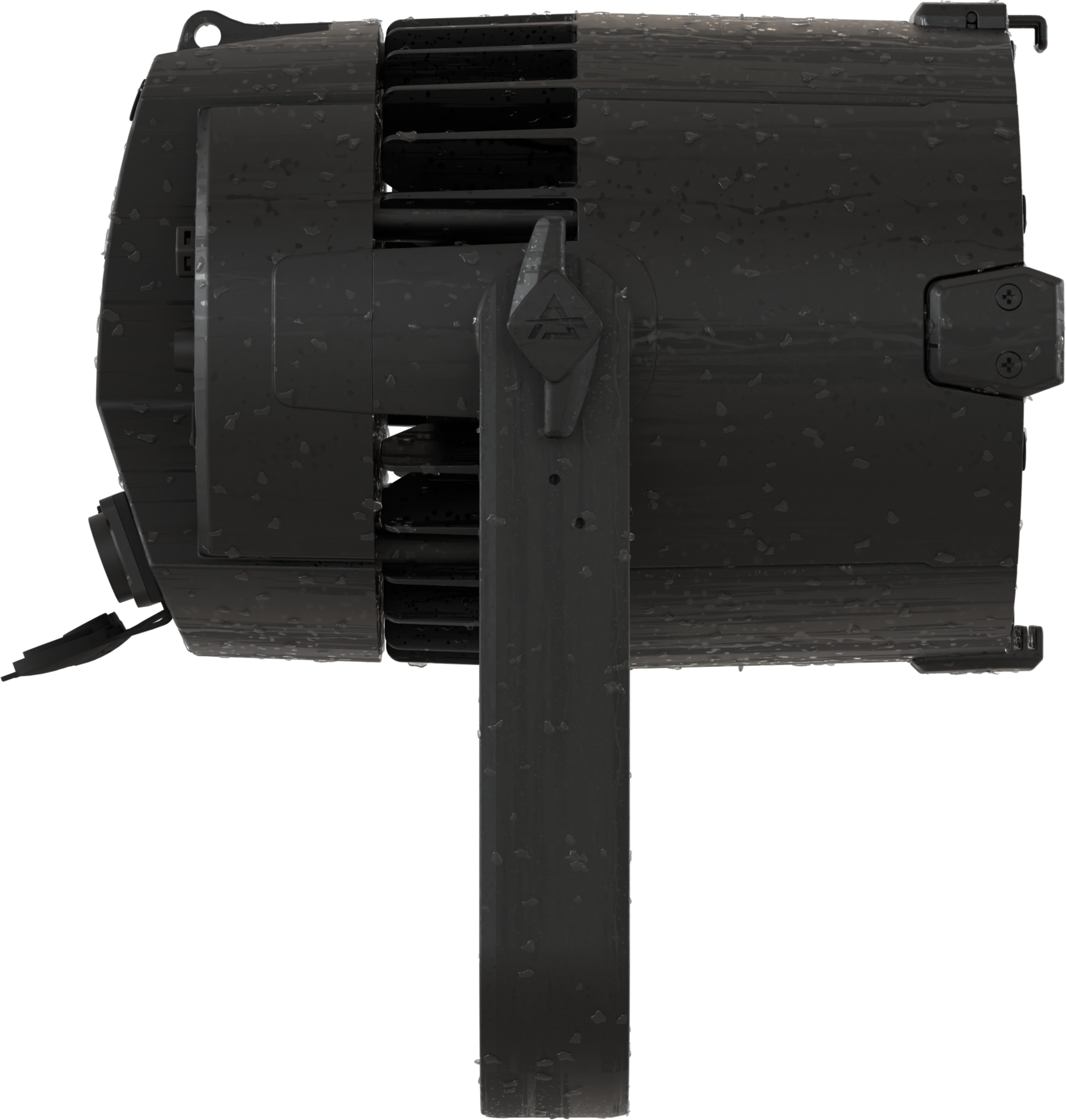

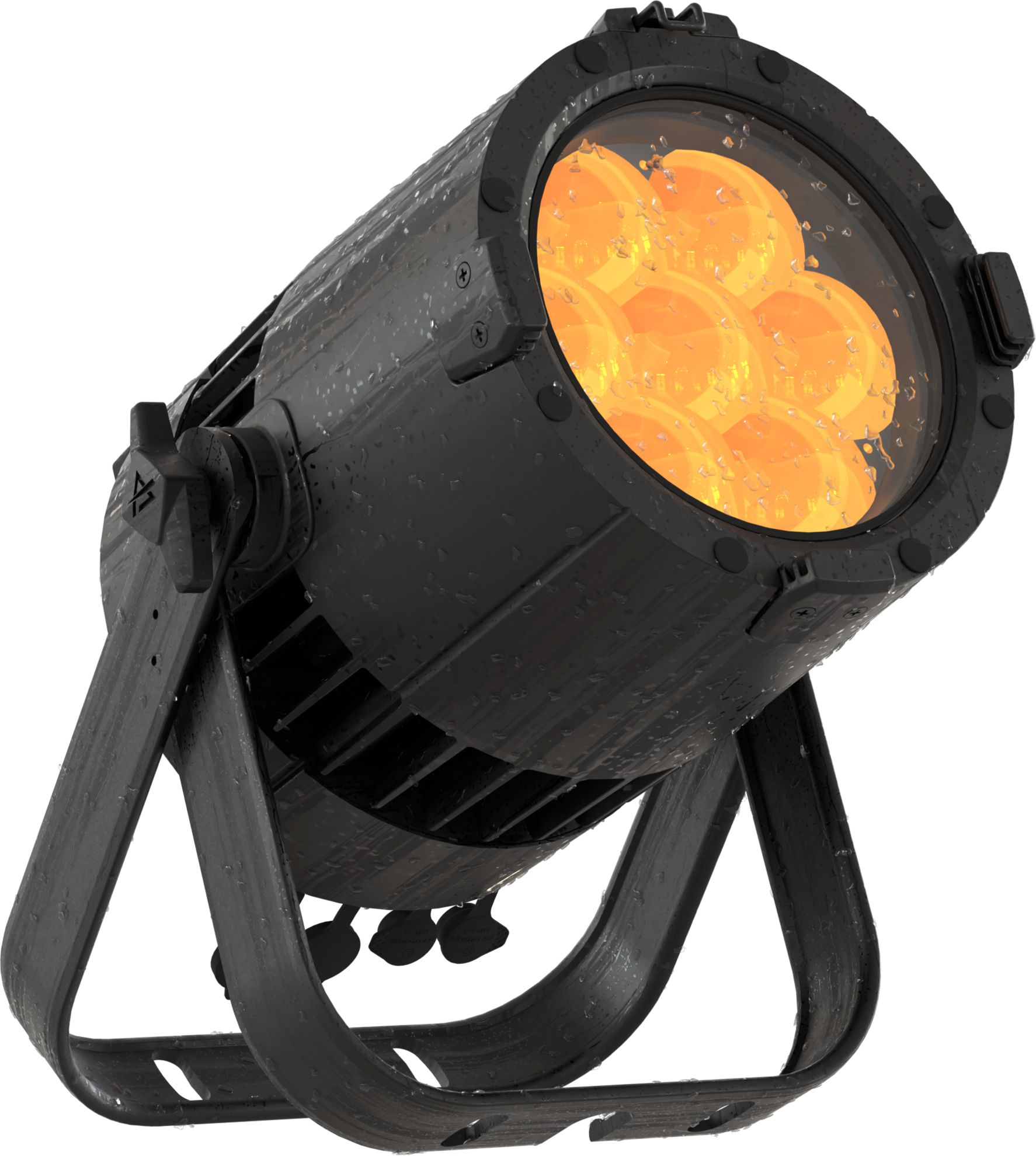

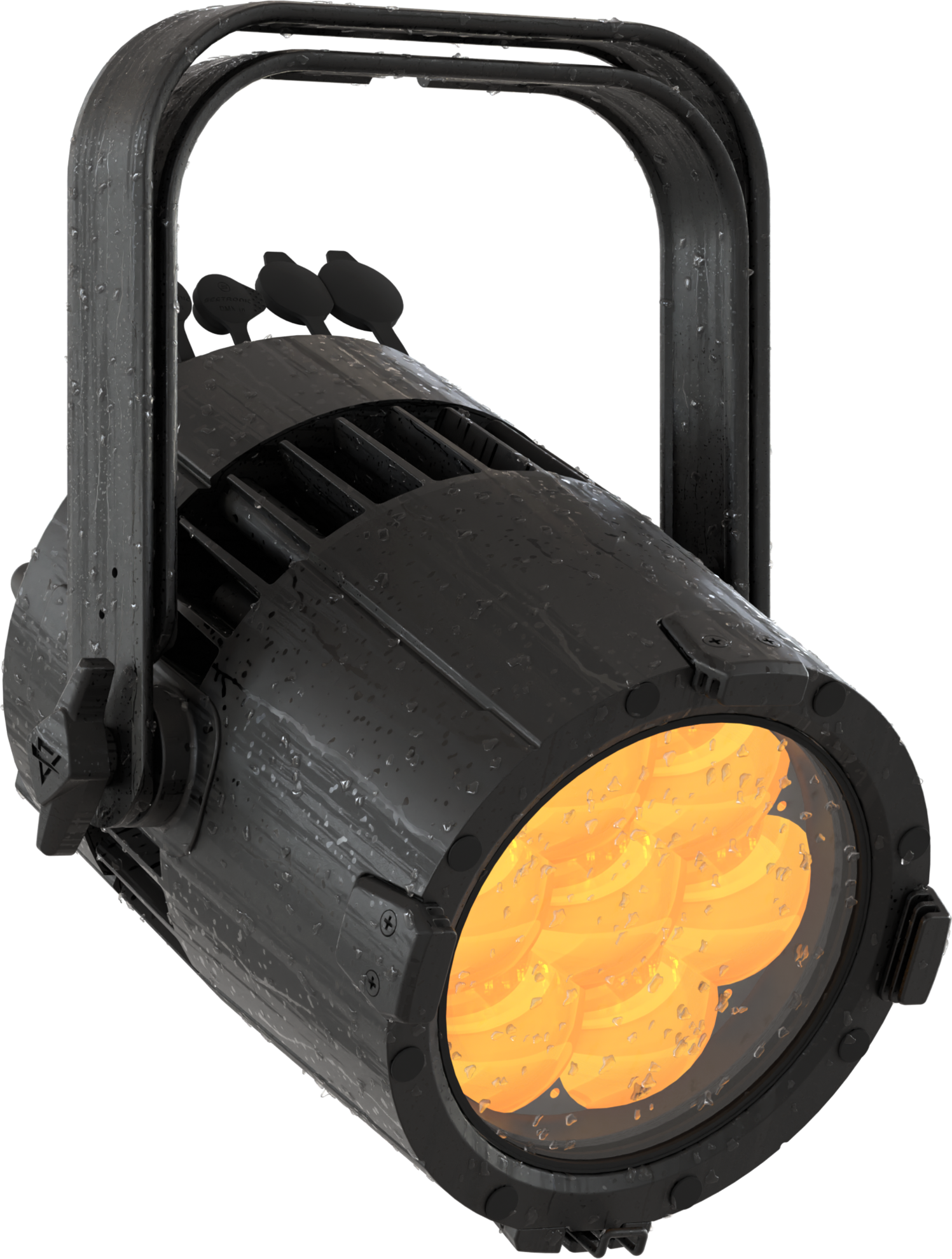

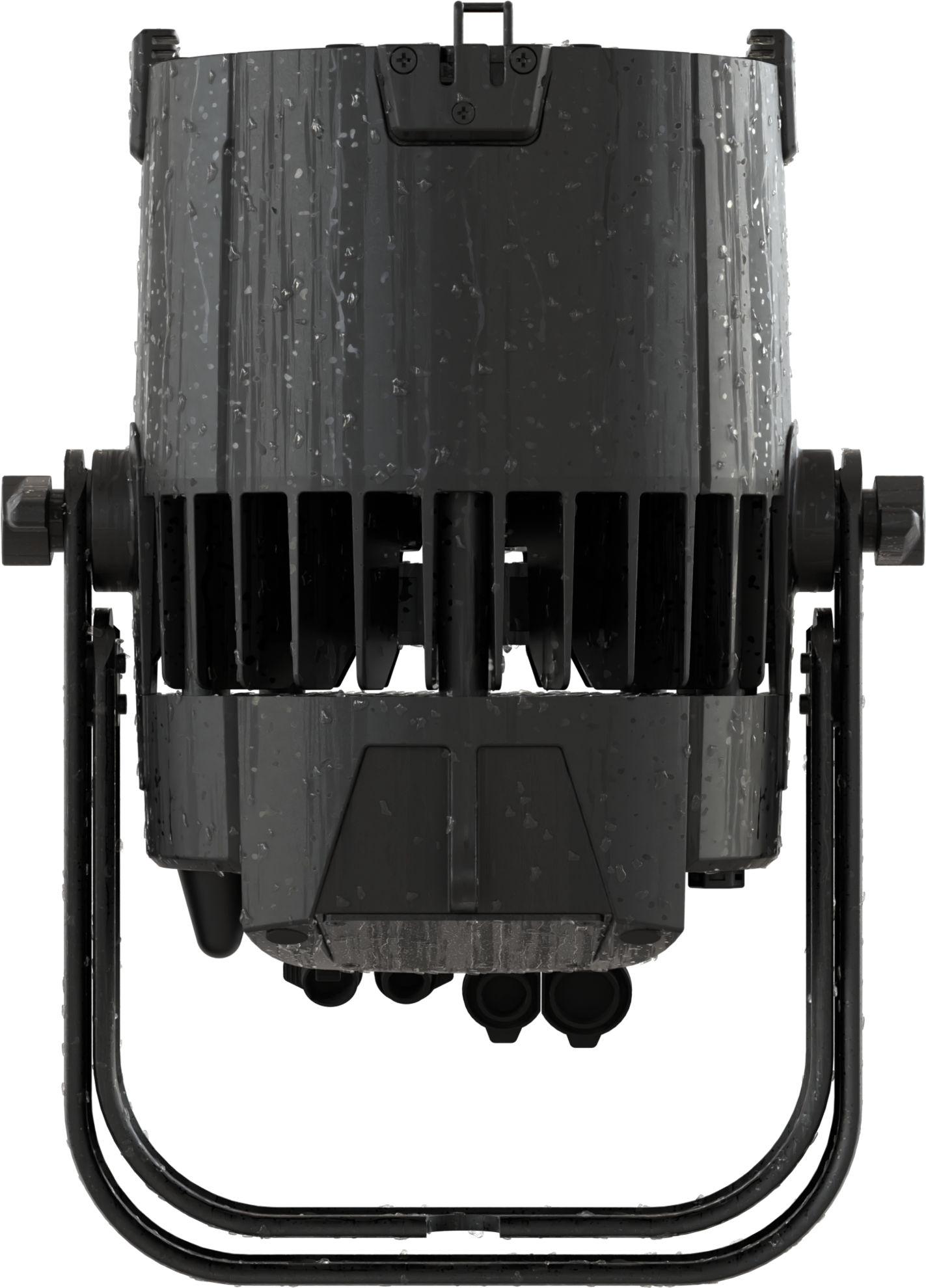

Jet PAR7ZIP zoom LED PAR, 4,5°- 53°
7x20W IP65 RGB+WW zoom LED PAR
Jet Par7ZIP is a flexible IP65 rated LED zoom PAR featuring a 7x20W RGB + WarmWhite LED source delivering phenomenal output and great flexibility for both indoor and outdoor application.
Its Spektra calibrated LED source delivers a high-quality white reproduction with high CRI and TLCI scores as well an extremely precise colour tuning.
Jet Par7ZIP is truly focusable through the motorized zoom system ranging from 4.5° to 53°, being a truly versatile workhorse for any application requiring an advanced control of the light and weatherproof.
Main features:
7x20W Spektra calibrated RGB + Warm White LED delivering high CRI, TLCI, TM30 values
4.5° to 53° motorized linear zoom
IP65 for exterior applications
LIGHT SOURCE
Source: 7x20W RGB + Warm White LED
Luminous flux: preliminary data: (4,5°) 1'229 lm - (53°) 2'108lm @full
Lux: preliminary data: (4,5°) 27'888 lx - (53°) 720lx @3 m full
CRI: preliminary data: 93,8 @ 3'200K; 92,5 @ 5'600K
R9: preliminary data: 93,4 @ 3'200K; 79 @ 5'600K
Source life expectancy: > 50.000 h
OPTICS
Zoom: 4,5° - 53° motorised linear zoom
Lens type: honeycomb gapless plano-convex optics
COLOUR SYSTEM
Colour mixing: RGBW / FC
CCT: CCT control, + / - green correction, tungsten emulation
White presets: 2.800 K ~ 10.000K
Colour wheel: gel filters included
DYNAMIC EFFECTS
Control Resolution: 16-bit dimmer
Special features: linear crossfade channel from any white to any colour; virtual CTO on colours
BODY
Body: weatherproof IP65 construction
Body colour: black
Other: Front mount holder for accessories as Barndoor, filterframe
CONTROL
Protocols: DMX512, RDM, CRMX + WDMX, 3 push encoder
DMX channels: 1 / 2 / 6 / 12 / 14 / 20channel
Wireless Control: optional, LumenRadio Timo Fx DMX/RDM compatible with both CRMX (Lumen Radio) and W-DMX (Wireless DMX)
RDM: RDM for remote monitoring and settings
Display: LCD high resolution colour display
Firmware upgrade: yes, via USB - DMX interface (UPBOXPRO/UPBOX2) not included
ELECTRONICS
Dimmer: linear 0 ~ 100% electronic dimmer
Dimmer curves: 4 selectable dimming modes available
Strobe / shutter: 1 - 30 Hz, electronic
Operating temperature: -20° C / +45° C (-4° F / +113° F)
LED Control: flicker free operation
Selectable PWM: 600 ~ 50.000 Hz
ELECTRICAL
Mains power supply: 100-240V - 50/60Hz
Max power consumption: 127W
Output (at 230V): 16 units on a single power line
Power factor: > 0,95
PHYSICAL
IP rating: 65 for outdoor installations
Cooling: active, silent operation
Suspension and fixing: double hanging bracket suitable for safe hanging and for floor positioning
Signal connection: Seetronic XLR 5p IN/OUT connectors
Power connection: Seetronic powerCON TRUE IP65 IN/OUT

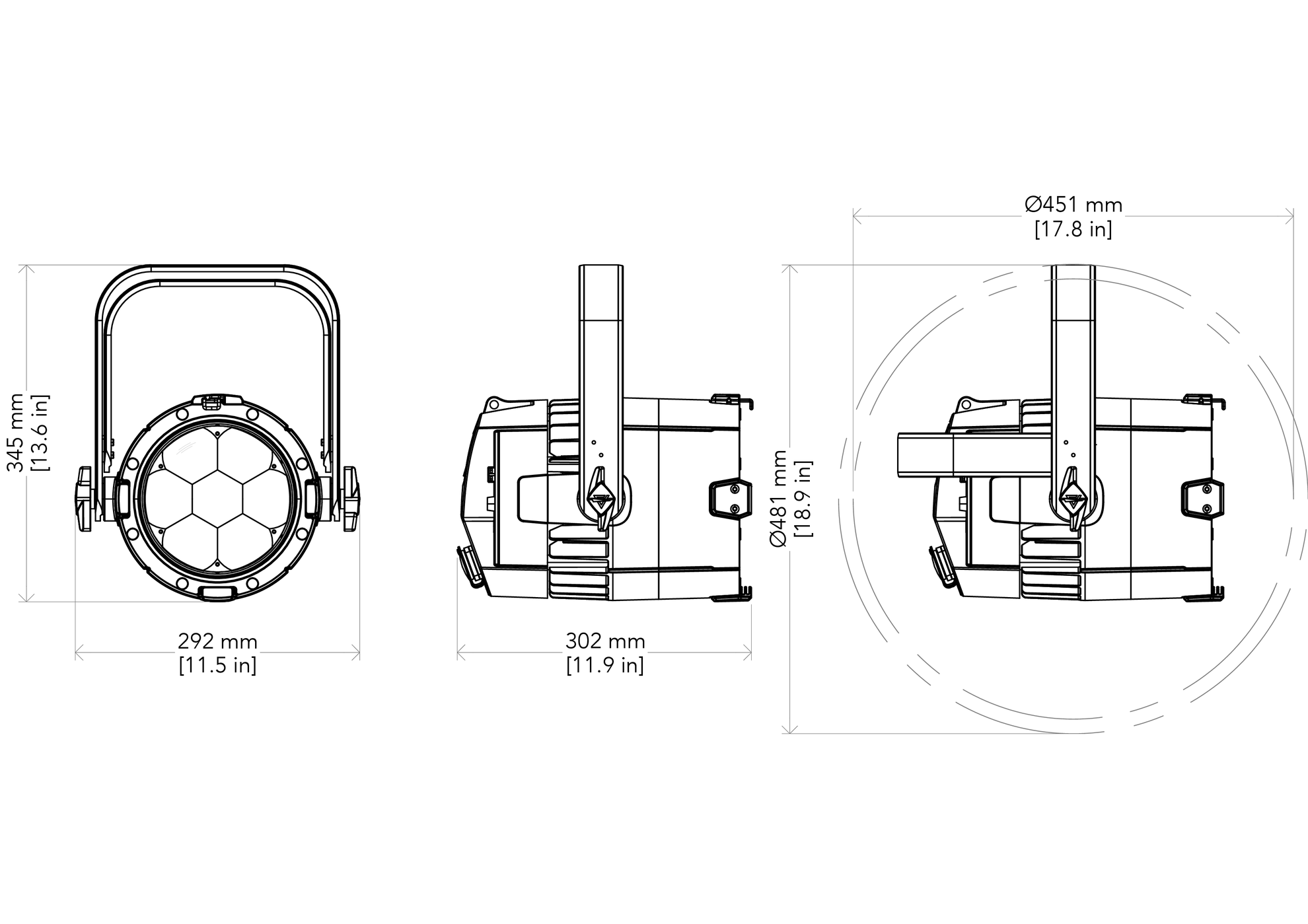

Dimensions (WxHxD): 291x347x300mm / 11.46''x13.66''x11.81''
Weight: 9,3kg / 20.5lbs
(*)
NOTE: Suitable for permanent outdoor use, provided installation and maintenance cycles by qualified technicians are carried.
CERTIFICATIONS / APPROVALS
Certifications / Approvals: CE, UKCA, RCM
BOX CONTENT
1 x JETPAR7ZIP
1 x 1,5 meters power cable (BARE END - SEETRONIC POWERCON TRUE1 IP65)
