DIGI DRIVER IP - Master driver for IP DIGI series

DIGI DRIVER IP - Master driver for IP DIGI series

Name: DIGI DRIVER IP - Master driver for IP DIGI series
Brand: Prolights

530201400

Master driver for Digi IP series, Art-Net, Kling-Net, IP65, 550W,

Beskrivelse Specification Brand information Downloads

DigiDriver IP is a driver which provides power and processing to the DigiStrip IP. It has 2 outputs and can control up to 20 DigiStrip IP100 and 40 DigiStrip IP50 - each offering the control of up to 3.600 pixels in a one rack unit, offering 20 DMX universes and 550 W of power in and out. DigiDriver IP cannot control DigiStrip, DigiTube and DigiTile. DigiDriver IP is compatible with Art-Net, Kling-Net and sACN protocols and runs signal and power over a 4 pole XLR cable that allow wiring of units in a chain. The user interface consists of a black OLED display for settings, protocol selection, network address and test patterns. IP 65 rating allows for the usage at outdoor events so humidity and rain are no longer a worry

Technical Specifications

BODY

Hardware on-board: Included rack-mount hardware
Body: sturdy die-cast aluminium body
Body colour: black
Other: 2U rack

CONTROL

Control units: 20 x DIGISTRIPIP100 or 40 x DIGISTRIPIP50
Art-Net channels: 20x512ch
Protocols: Art-Net, Kling-Net, sACN
Pixel control: pixel2pixel control

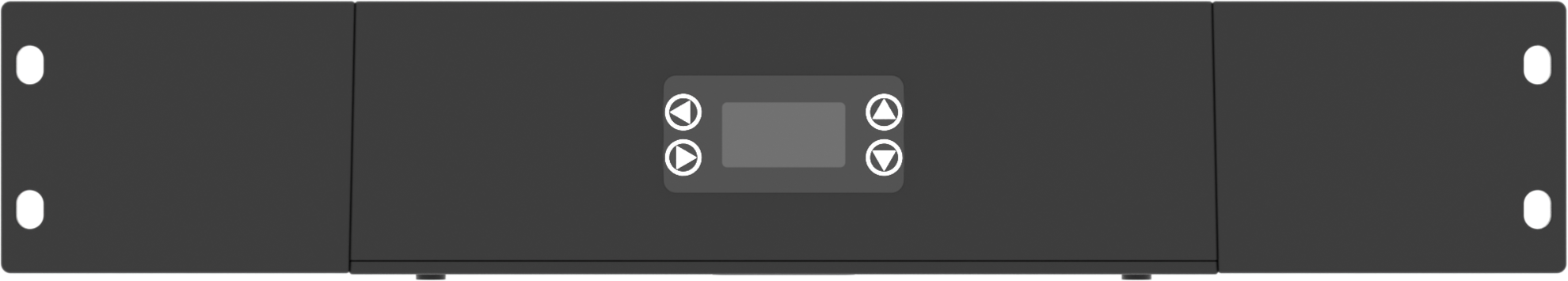

Display: Graphic User Interface

ELECTRONICS

Operating temperature: -20° ~ +45°

ELECTRICAL

Mains power supply: 100-240V - 50/60Hz
Max power consumption: 550W
Output (at 230V): 5 units on a single power line

PHYSICAL

IP rating: 65 for temporary outdoor application, not for fixed installation

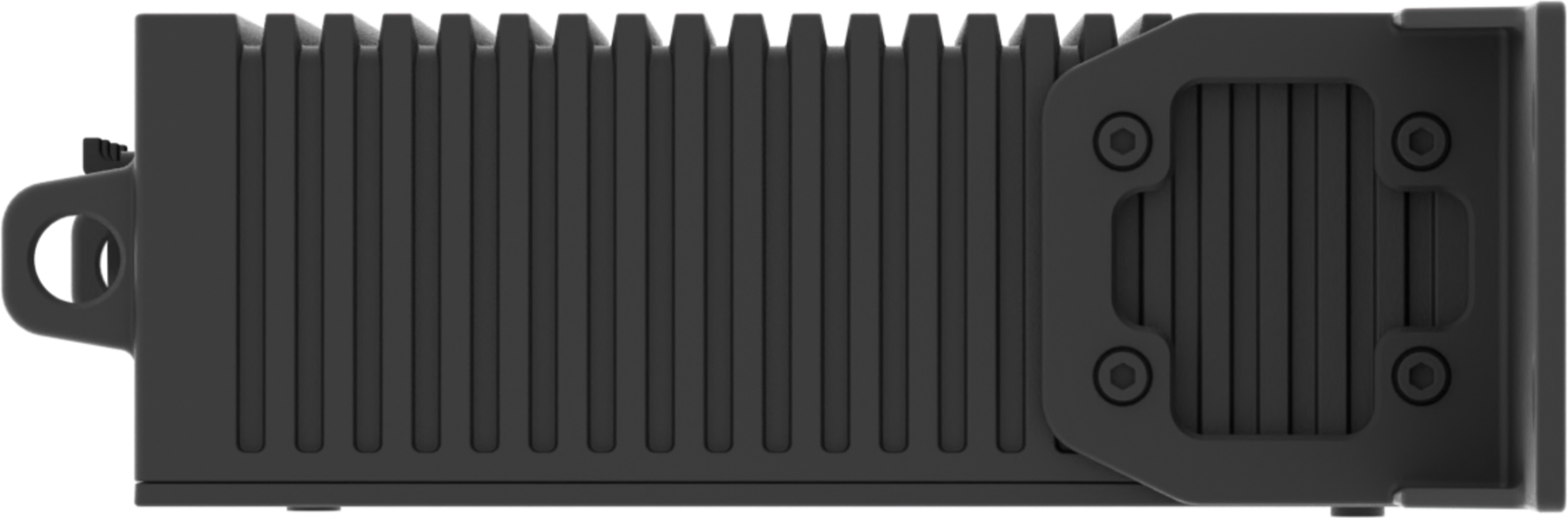

Cooling: passive cooling and fan-free
Suspension and fixing: any position with quick-lock omega brackets
Signal connection: 2xRJ45 and 4p out
Power connection: Seetronic powerCON waterproof IN/OUT connectors
Dimensions (WxHxD): 483x84x250mm
Weight: 4.5kg

Supplier SKU

DIGIDRIVERIP
