Luminode 12 RJ45
LumiNode 12 RJ45 is specifically designed with a metal, robust half 19″ enclosure for single or dual rack mounting, making it an ideal solution for theatre- and studio installs. Achieving up to 24 outputs in a 1U rack space. The RJ45 DMX connectivity makes it possible to integrate with common and cost effective infrastructure with Cat5e (or higher) cabling.
Equipped with 2x 1Gb Ethercon ports and 12x RJ45 DMX ports LumiNode 12 RJ45 offers a high DMX port count in only a half unit rack space.
Each DMX port is fully optically and galvanically isolated and can be configured as an in- or output. All relevant industry standard protocols such as Art-Net, sACN, KiNET, RTTRpl (Blacktrax) are supported and can be processed and converted in 16 onboard process engines supporting HTP, LTP, Crossfade, Backup, Switch and Custom merging modes with soft patch functionality.
- DMX/RDM connectivity: 12x RJ45-DMX (ANSI E1.11 – 2008 (R2018))
- Ethernet connectivity:

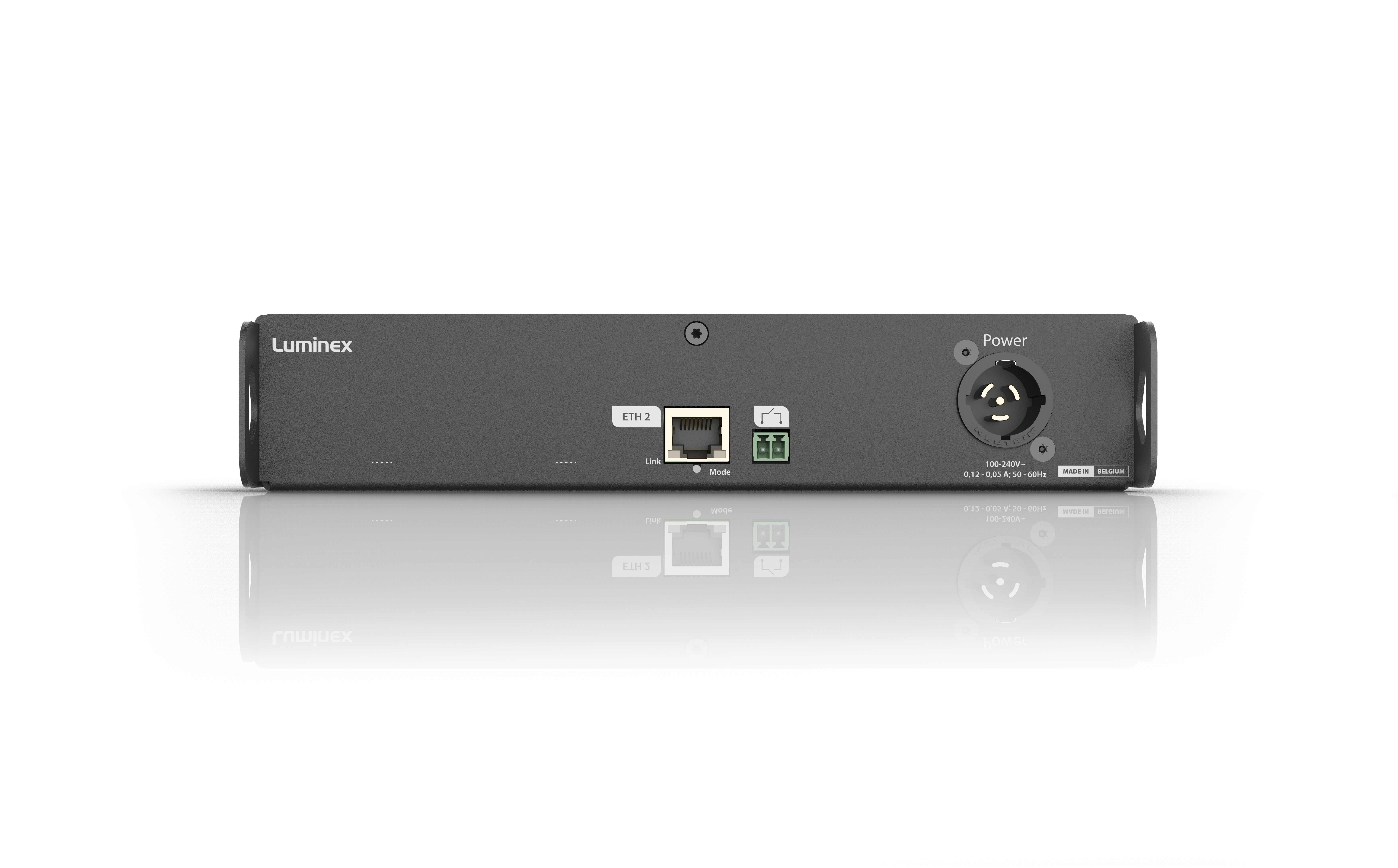

- 1x gigaBit RJ45 PoE-802.3af rear
- 1x gigabit RJ45 front
- Contact closure: Yes
- Power connectivity:
- 1x Neutrik powerCON TRUE1 In/Out
- Ethernet (PoE 802.3af class 0)
- DMX protocols:
- DMX512 (1986 & 1990)
- DMX512-A ANSI E1.11
- RDM ANSI E1.20-2010
- DMX port direction: Input or output (configurable)
- DMX port isolation: Optical and galvanic isolation per port
- DMX timing:
- Framerate: 10-40fps
- Break: 176-352µs
- Ethernet protocols:
- Art-Net™ (1-4)
- sACN ANSI E1.31
- RTTrPL (BlackTraX)
- KiNET v1, v2
- Ethernet port speed: 10/100/1000Mbps
- Port sensing:
- Auto-negociation
- MDI / MDIX
- Split management interface: Yes
- Groups (VLAN) support: Yes
- Process engines: 16
- Merging engine:
- HTP
- LTP
- Backup
- Switch
- X-Fade
- Custom
- Softpatch: Yes
- Master/Limit:
- Proportional
- Limit
- Trigger system: Yes
- ReRoute: Yes
- Profile manager: Yes
- Snapshot: Yes
- DMX Redundancy: Yes
- Monitoring software: LumiNet Monitor
- Configuration:
- Built in Web server
- Documented Web API
- Front end display menu
- Display and jog: Yes
- Status LEDs:
- Ethernet Port: link/activity LED and Group RGB LED
- DMX Port: DMX/RDM LED
- Power input:
- 100-240VAC (50-60Hz)
- PoE IEEE 802.3af (Class 0)
- Power consumption: Maximum 13W
- Power redundancy: Yes
- Operating temperature: 0 tot +50°C
- Storage temperature: -10 tot +70°C
- Humidity (non condensing): 5 to 95% RH
- Enclosure: Robust metal housing 1/2 19 inch
- Mounting: Rack
- Dimensions (W x D x H): 220 x 175,3 x 44 mm
- Weight: 1,42 kg
- Packaging: 420 x 272 x 80 mm
- Electromagnetic emissions and immunity:
- EN55032 class A
- EN55035
- EN61000-3-2
- EN61000-3-3
- EN61000-4-2
- EN61000-4-4
- EN61000-4-5
- EN61000-4-6
- EN61000-4-8
- EN61000-4-11
- FCC Part 15 CFR 47 class A
- ICES-003 Issue 6
- Safety:
- IEC 62368-1
- EN 62368-1
- UL 62368-1
- CAN/CSA-C22.2 No. 62368-1
- CE
- Certificates:
- cSGSus Mark
- CE
- UKCA
- CB certificate
- Green:
- RoHS
- REACH
