LumiNode 4 Din

LumiNode 4 DIN is specifically designed for fixed installations to fit on a standard DIN rail. For full flexibility the unit comes either with DMX/RDM RJ45 connectors or Terminal Blocks

Beskrivelse Specification Brand information Downloads

DIN rail mountable for fixed install

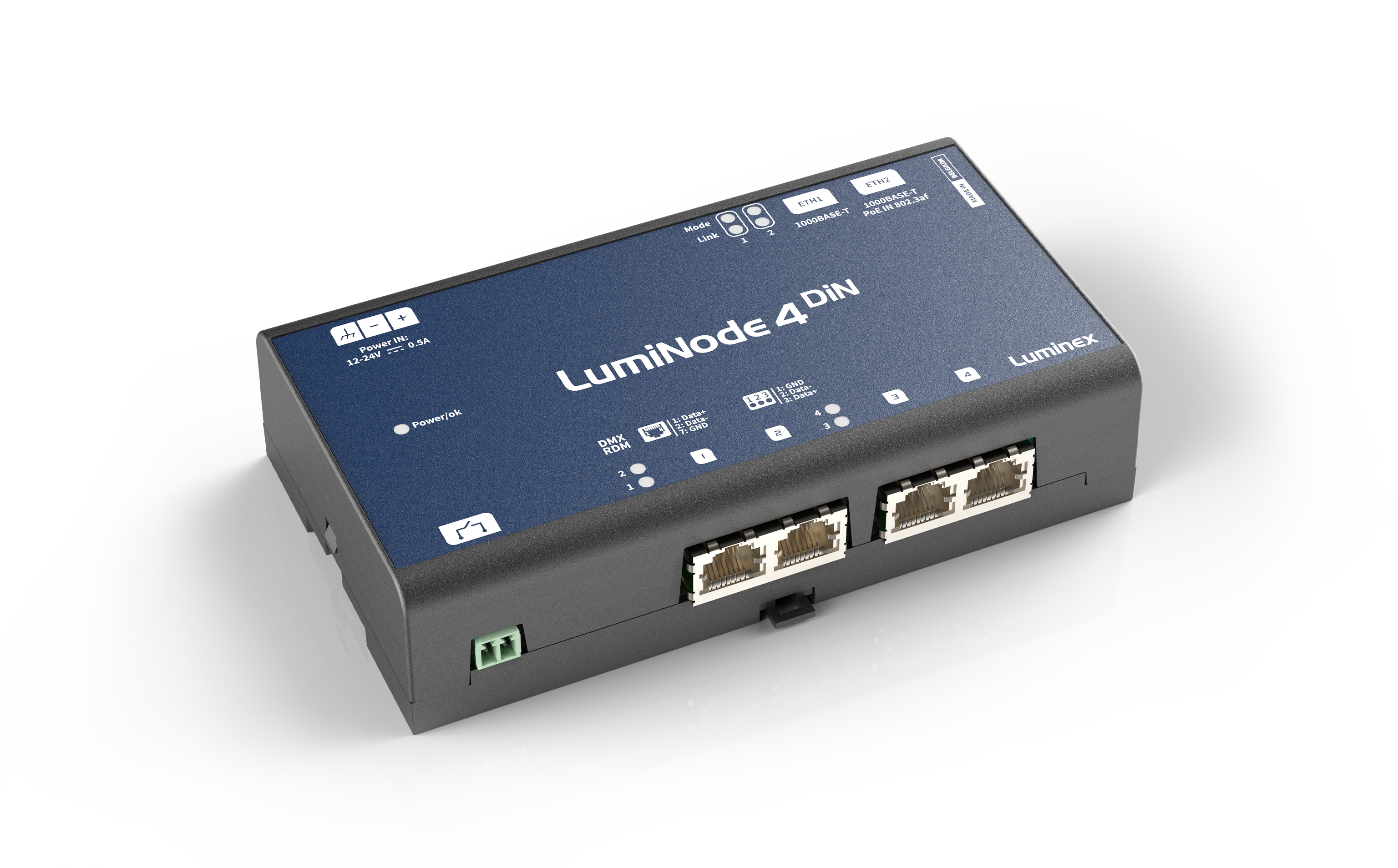

LumiNode 4 DIN is specifically designed for fixed installations to fit on a standard DIN rail. The compact design and standardised mounting bracket is ideal for Architainment applications and install projects. For full flexibility the unit comes either with DMX/RDM RJ45 connectors or Terminal Blocks.

The unit can be powered over PoE or DC voltage. The second 1Gb RJ45 Ethernet port can be used to connect any other application or the next LumiNode 4 DIN (DC powered).
Each DMX/RDM port is fully optically and galvanically isolated and can be configured as an in- or output. All relevant industry standard protocols such as Art-Net, sACN, KiNET, RTTRpl (Blacktrax) are supported and can be processed and converted by the 6 onboard process engines supporting HTP, LTP, Crossfade, Backup, Switch and Custom merging modes with soft patch functionality.

Technical Specifications

DMX/RDM connectivity:
- 4 x RJ45-DMX (ANSI E1.11 – 2008 (R2018))
- 4x 3-pin pluggable terminal block
Ethernet connectivity: 2 x gigabit RJ45
Contact closure: Yes
Power connectivity:
- 1x 3-pin pluggable terminal block
- Ethernet (PoE 802.3af class 0)
DMX protocols:
- DMX512 (1986 & 1990)
- DMX512-A ANSI E1.11
- RDM ANSI E1.20-2010
DMX port direction: Input or output (configurable)
DMX port isolation: Optical and galvanic isolation per port
DMX timing:
- Framerate: 10-40fps
- Break: 176-352µs
Ethernet protocols:
- Art-Net™ (1-4)
- sACN ANSI E1.31
- RTTrPL (BlackTraX)
- KiNET v1, v2
Ethernet port speed: 10/100/1000Mbps
Port sensing:
- Auto-negociation
- MDI / MDIX
Split management interface: Yes
Groups (VLAN) support: Yes

Process engines: 6
Merging engine:
- HTP
- LTP
- Backup
- Switch
- X-Fade
- Custom
Softpatch: Yes
Master/Limit:
- Proportional
- Limit
Trigger system: Yes
ReRoute: Yes
Profile manager: Yes
Snapshot: Yes
DMX Redundancy: Yes
Monitoring software: LumiNet Monitor, Araneo
Configuration:
- Built in Web server
- Documented Web API
Display and jog: No
Status LEDs:
- Ethernet Port: link/activity LED and Group RGB LED
- DMX Port: DMX/RDM LED
- Power ok
Power input:
- 12-24 VDC
- PoE IEEE 802.3af (Class 0)
Power consumption: Maximum 10W
Power redundancy: Yes

Operating temperature: -10 to +60°C
Storage temperature: -10 tot +70°C
Humidity (non condensing): 5 to 95% RH

Enclosure: Robust plastic housing
Mounting: Din Rail IEC/EN 60715 mount
Dimensions (W x D x H): 156,30 x 86 x 35,8 mm
Weight: 0.,27 kg
Packaging: 305 x 215 x 110 mm

Electromagnetic emissions and immunity:
- EN55032 class A
- EN55035
- EN61000-3-2
- EN61000-3-3
- EN61000-4-2
- EN61000-4-4
- EN61000-4-5
- EN61000-4-6
- EN61000-4-8
- EN61000-4-11
- FCC Part 15 CFR 47 class A
- ICES-003 Issue 6
Safety:
- IEC 62368-1
- EN 62368-1
- UL 62368-1
- CAN/CSA-C22.2 No. 62368-1
- CE
Certificates:
- cSGSus Mark
- CE
- UKCA
- CB certificate
Green:
- RoHS
- REACH
Product codes:
- LU 01 00082-RJ45
- LU 01 00082-TB

Supplier SKU

LU 01 00082-RJ45
