GigaCore 10t-IP (1G and 10G models)
weatherProof Ethernet switch for professional touring applications in lighting, audio and video. IP65 Network switch for converged AV networks

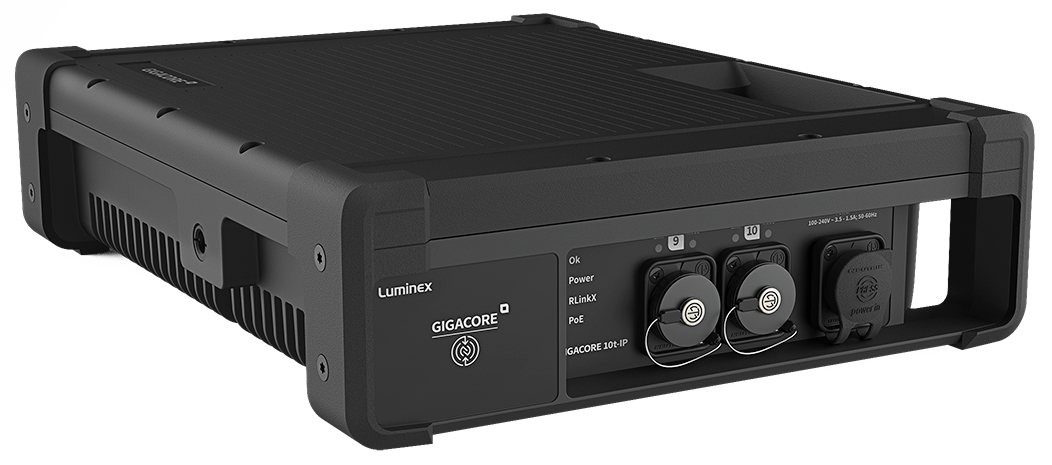

The GigaCore 10t-IP is an up to 10 Gigabit Ethernet switch for professional touring applications in lighting, audio and video with a weather proof, IP65 rated enclosure and connectors, ideal for all outdoor applications in extreme temperatures.
It is designed to support the most advanced AV protocols out of the box and is the backbone for a converged network, allowing multiple applications to co-exist on the same network.
Gigacore 10t IP comes in several configurations - if you so not find the connectors you wish - give us a call.
Key features:
Most suitable applications: Touring applications, Live events, Outdoor applications, Theme parks
PoE: PoE++ (up to 210W)
RLinkX (Link redundancy): Yes
Groups (VLAN segmentation): Yes
MultiLinkX (Link aggregation): Yes
Profile manager: Yes
Memory: Flash 1Gb RAM – 8Mb NOR flash 4Gb EMMC storage
MAC address table: 16384 entries
Address learning / Aging: Self learning, Auto aging
Switching throughput 64 Byte:
1G Models: 14,88Mpps
10G Models: 41,67Mpps
Switching capacity:
1G Models: 20Gbps
10G Models: 56Gbps
Jumbo frames: MTU up to 12000
IGMP support: Yes (V1/V2/V3)
IGMP snooping: Yes, enabled by default
Port sensing: Auto negotiation (Copper ports)
Auto crossover: MDI / MDIX
Auto sensing: Full or Half Duplex (Gigabit is Full Duplex)
Connectivity:

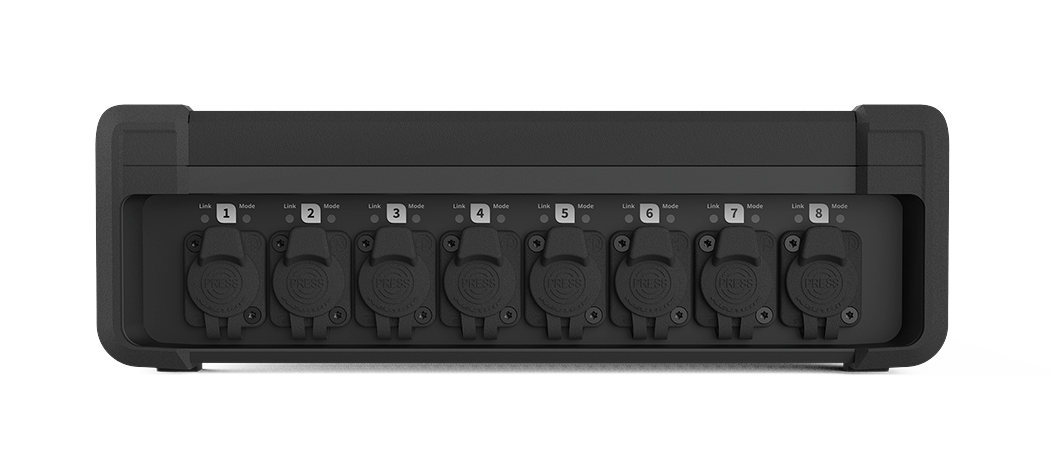

Ethernet connectivity: 8 x Gigabit (10/100/1000 BASE-T) IP65 ethercon

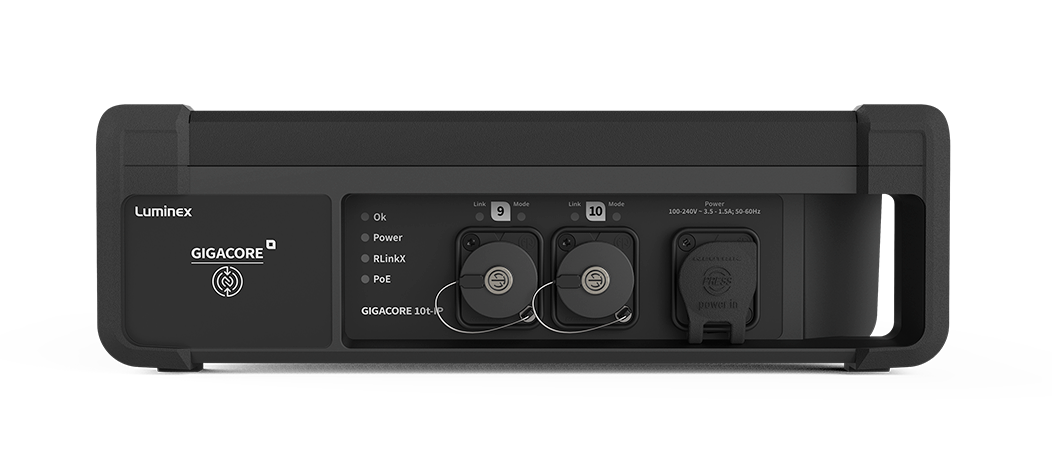

Fiber connectivity: 2 x rugged fiber connectors (optional) (10Gbps/1Gbps) (independent from other ports)
Ethernet port speed: 1Gbps
Serial: No
Power:
Power connectivity: 1 x IP65 powercon
Power input: 100-240VAC, 50-60Hz
Power consumption: Maximum 18W - Maximum 250W (Depending on configuration)
Fuse: NA
Backup power input: No
Backup PoE power input: No
PoE: PoE++ (up to 210W)
Protocols:
Supported protocols: Dante©, RAVENNA/AES67©, Ethersound©, Q-SYS/Q-LAN, sACN, ArtNet, MANet2, HogNet, RTTrPL (BlackTraX), IEEE 802.1p CoS (Class of Service), DiffServ (DSCP), PoE (802.3af) (optional), PoE+ (optional), PoE++ (802.3bt) (optional), IEEE 1588 PTP V2, AVB/MILAN, IEEE 802.1as (gPTP) and more...
Sound protocol compliance: Yes (low jitter)
Ethernet compliance: IEEE 802.2, IEEE 802.3, IEEE 802.3u, IEEE 802.3x Flow Control, IEEE 802.3ab Gigabit Ethernet, IEEE 802.3af PoE(optional), IEEE 802.3at PoE+(optional), IEEE 802.3bt PoE++ 90W(optional), IEEE 802.1p CoS, IEEE 802.1d Spanning Tree, IEEE 802.1w Rapid Spanning Tree, EEE 802.1s Multiple Spanning Tree, IEEE 802.1Q VLAN, IEEE 802.1ab LLDP, IEEE 1588-2008 PtPv2, IEEE 802.1 BA-2011 AVB, IETF RFC2710, IETF RFC3810
Configuration:
Display and jog: No
NFC: Yes: Configuration and Status report via NFC compatible smart device and Araneo App
Configuration: Through the built-in web server, Network wide configuration through Araneo software, Through NFC and NFC compatible smart device - also when powered off
Status LEDs:
Global status LEDs: Device, power, PoE power and mode
Port status LEDs: PoE, groups, link/activity and port speed
Dark mode available
Colored RGB LEDs: Yes
Physical:
Mounting: Truss mount M10 inserts (3x), 10x10 VESA mount inserts, Multiple devices stackable.
Enclosure: Robust Aluminium alloy housing IP65 Rated
Dimensions (W x D x H): 281 x 358 x 90 mm (11,06" x 14,09" x 3,54")
Weight: 7,8kg
Packaging: TBC
Environment:
Operating temperature: -20°C to +60 °C
Storage temperature: -40°C to +70 °C
Humidity (non condensing): 5 to 95% RH
Ingress Protection: IP65
Noise level @1m: TBC
BTU: TBD
Certificates/Approvals: Pending: cSGSus Mark (UL), CE Mark, UKCA Mark, CB certificate, RoHS, IP65, AVB/MILAN
Standards: IEC 62368-1, UL 62368-1, CAN/CSA C22.2 No. 62368-1, EN 62368-1, FCC Part 15 CFR 47, CAN/ICES-003, EN 55032, EN 55024
Luminex
Luminex Luminex Network Intelligence is a Belgian-based manufacturer of data distribution equipment for professional lighting, audio and video applications, mainly for the entertainment industry. We offer a complete range of network switches, converters/nodes and DMX splitters, providing AV designers and technicians with cutting edge technology to build a complete data distribution system for big events or large venues. Our commitment is to make it as easy as possible to deploy a professional AV network, even without the need of any IT knowledge, and our plug-and-play GigaCore switches do exactly that. They are completely pre-configured to transport all common-used lighting and audio protocols, such as Art-Net, MANet, Dante™, RAVENNA/AES67, PTP V2 and many more. |
