GigaCore 16i-12x1G-4x10G(SFP+)
12 x RJ45 connectors (1Gbps)
Fiber connectivity: 4 x SFP+ cages (10Gbps/1Gbps)
GigaCore 16i is a 10 Gigabit Ethernet switch in a ½ 19” package, dedicated to AV integration and installations where there are specific requirements to available space and mounting.
It is designed to support the most advanced AV protocols out of the box and is the backbone for a converged network, allowing multiple applications to co-exist on the same network.
Most suitable applications: Installations
PoE: PoE ++ Optional (up to 450W)
RLinkX (Link redundancy): Yes
Groups (VLAN segmentation): Yes
MultiLinkX (Link aggregation): Yes (With future FW upgrade)
Profile manager: Yes
Memory: Flash 1Gb RAM – 8Mb NOR flash 4Gb EMMC storage
MAC address table: 16384 entries
Address learning / Aging: Self learning, Auto aging
Switching throughput: 104Gbps
Jumbo frames: MTU up to 12000
IGMP support: Yes (V1/V2/V3)
IGMP snooping: Yes, enabled by default
Port sensing: Auto negotiation
Auto crossover: MDI / MDIX
Auto sensing: Full or Half Duplex (Gigabit is Full Duplex)

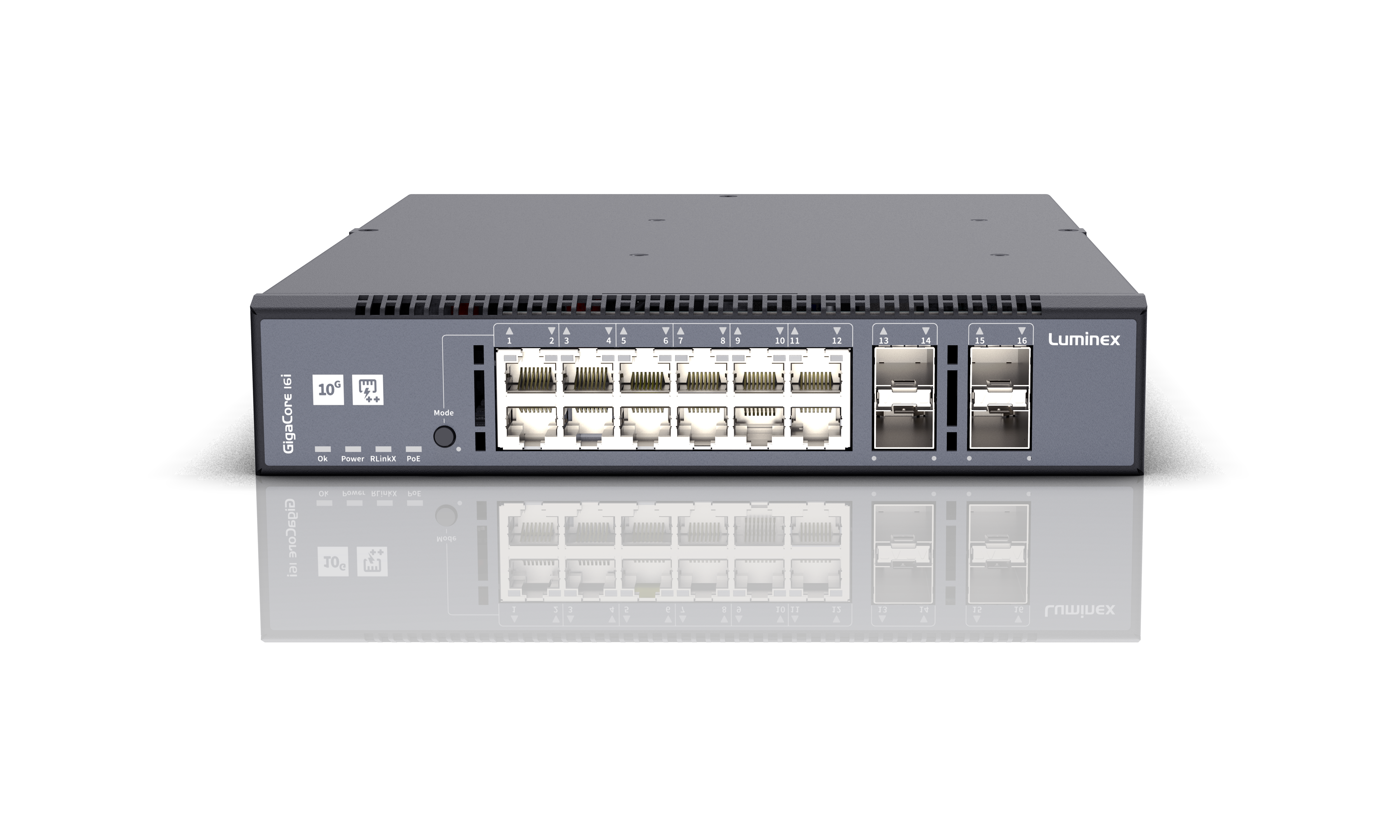

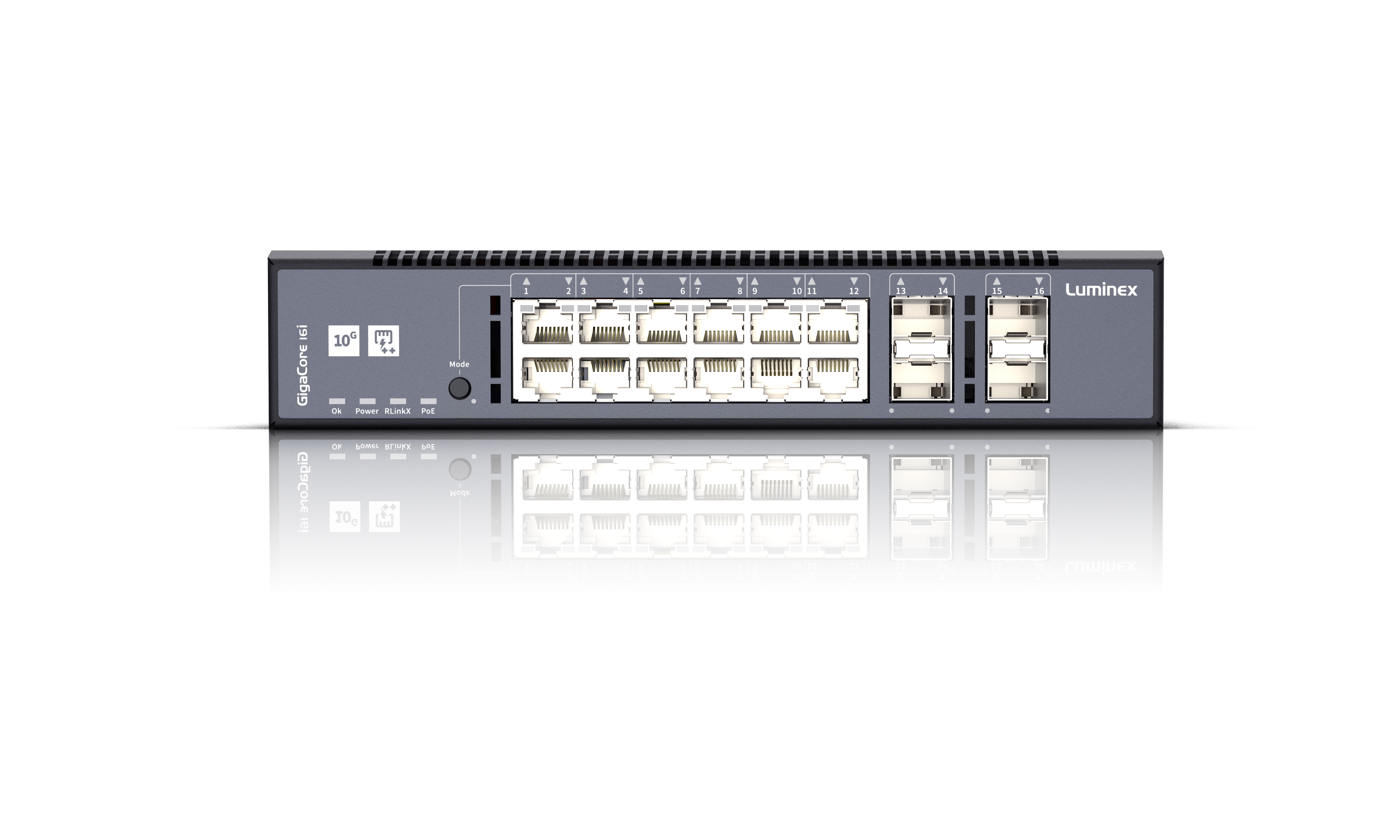

Ethernet connectivity: 12 x RJ45 connectors (1Gbps))
Fiber connectivity: 4 x SFP+ cages (10Gbps/1Gbps) (independent from other ports)
Ethernet port speed: 1Gbps

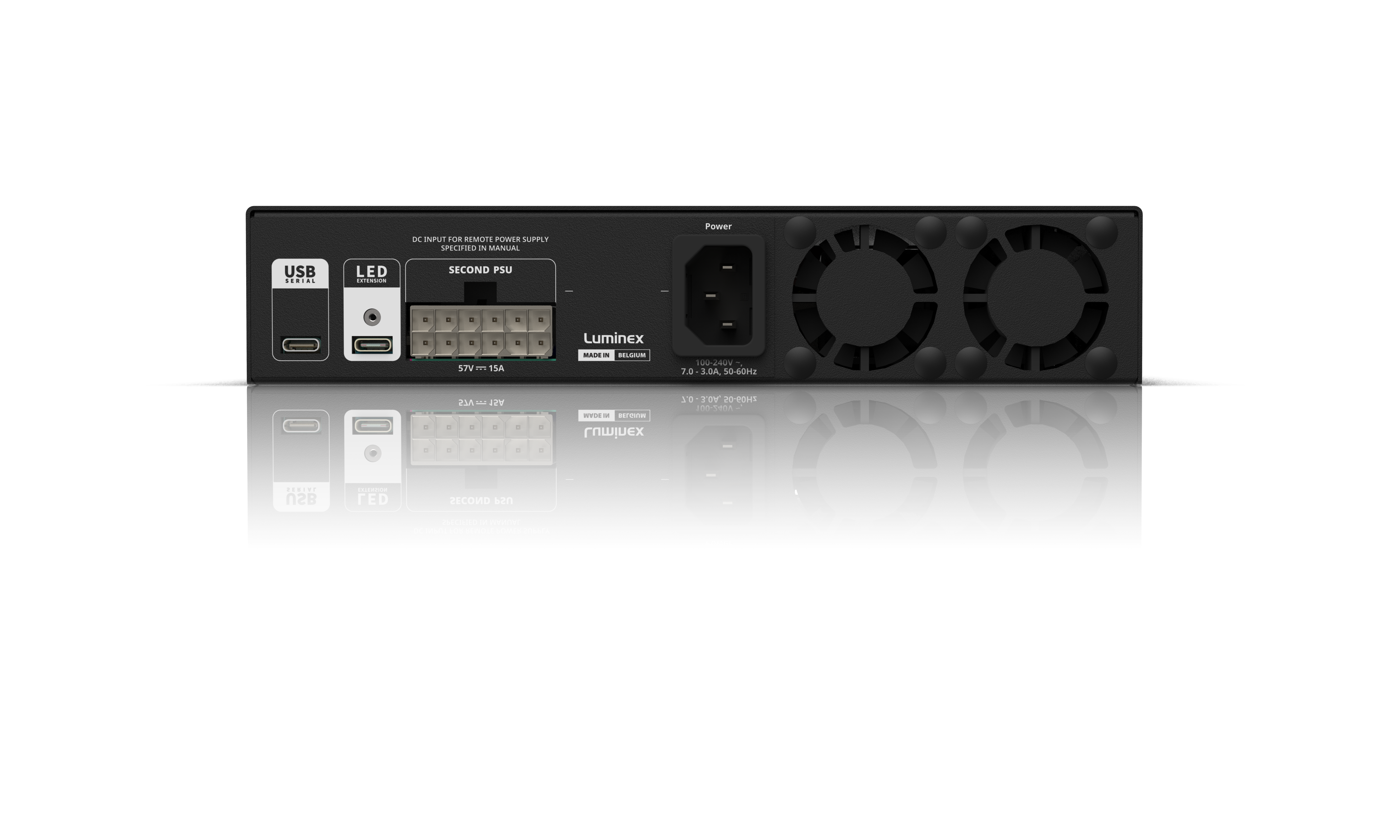

Serial: 1 x USB C

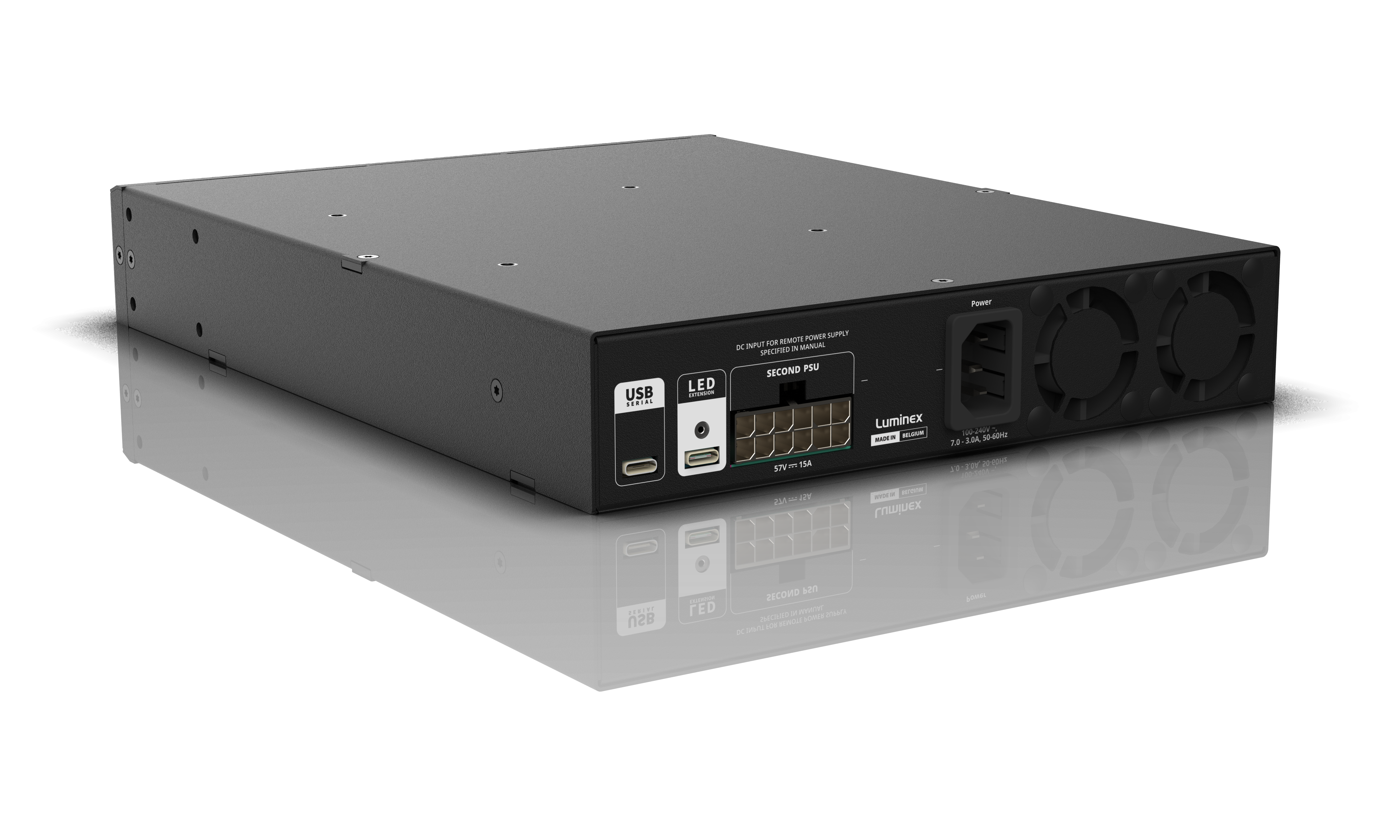

Power connectivity: 1 x IEC (C14)
Power input: 100-240VAC, 50-60Hz
Power consumption: Maximum 60W - Maximum 700W (Depending on configuration)
Fuse: NA
Backup power input: Through optional second power supply unit
Backup PoE power input: Through optional second power supply unit
PoE: PoE ++ Optional (up to 450W)
Supported protocols: Dante©, RAVENNA/AES67©, Ethersound©, Q-SYS/Q-LAN, sACN, ArtNet, MANet2, HogNet, RTTrPL (BlackTraX), IEEE 802.1p CoS (Class of Service), DiffServ (DSCP), PoE (802.3af) (optional), PoE+ (optional), PoE++ (802.3bt) (optional), IEEE 1588 PTP V2, AVB/MILAN, IEEE 802.1as (gPTP)
Sound protocol compliance: Yes (low jitter)
Ethernet compliance: IEEE 802.2, IEEE 802.3, IEEE 802.3u, IEEE 802.3x Flow Control, IEEE 802.3ab Gigabit Ethernet, IEEE 802.3af PoE(optional), IEEE 802.3at PoE+(optional), IEEE 802.3bt PoE++ 90W(optional), IEEE 802.1p CoS, IEEE 802.1d Spanning Tree, IEEE 802.1w Rapid Spanning Tree, EEE 802.1s Multiple Spanning Tree, IEEE 802.1Q VLAN, IEEE 802.1ab LLDP, IEEE 1588-2008 PtPv2,IEEE 802.1 BA-2011 AVB, IEEE 802.1as (gPTP)
Display and jog: NA
Configuration: Network wide configuration through Araneo software, through the built-in web server,
Status LEDs:
Global status LEDs: Device, power, PoE power and mode
Port status LEDs: PoE, groups, link/activity and port speed
Dark mode available
Colored RGB LEDs: Yes
Mounting: Rack, 100mm x 100mm Vesa spaced mount
Enclosure: Robust metal housing
Dimensions (W x D x H): 220x296,4x43,2 mm
Weight: TBD
Packaging: tbd
Environment
- Operating temperature: 0 to +50 °C
- Storage temperature: -10 to +70 °C
- Humidity (non condensing): 5 to 95% RH
- Noise level @1m: TBD
- BTU:
Certificates/Approvals: cSGSus Mark (UL), CE Mark, UKCA Mark, CB certificate, RoHS
Standards: IEC 62368-1, UL 62368-1, CAN/CSA C22.2 No. 62368-1, EN 62368-1, FCC Part 15 CFR 47, CAN/ICES-003, EN 55032, EN 55024
Luminex
Luminex Network Intelligence is a Belgian-based manufacturer of data distribution equipment for professional lighting, audio and video applications, mainly for the entertainment industry. We offer a complete range of network switches, converters/nodes and DMX splitters, providing AV designers and technicians with cutting edge technology to build a complete data distribution system for big events or large venues. Our commitment is to make it as easy as possible to deploy a professional AV network, even without the need of any IT knowledge, and our plug-and-play GigaCore switches do exactly that. They are completely pre-configured to transport all common-used lighting and audio protocols, such as Art-Net, MANet, Dante™, RAVENNA/AES67, PTP V2 and many more. |
