theFAN, DMX / RDM, 10 - 250 VAC, 50/60 Hz

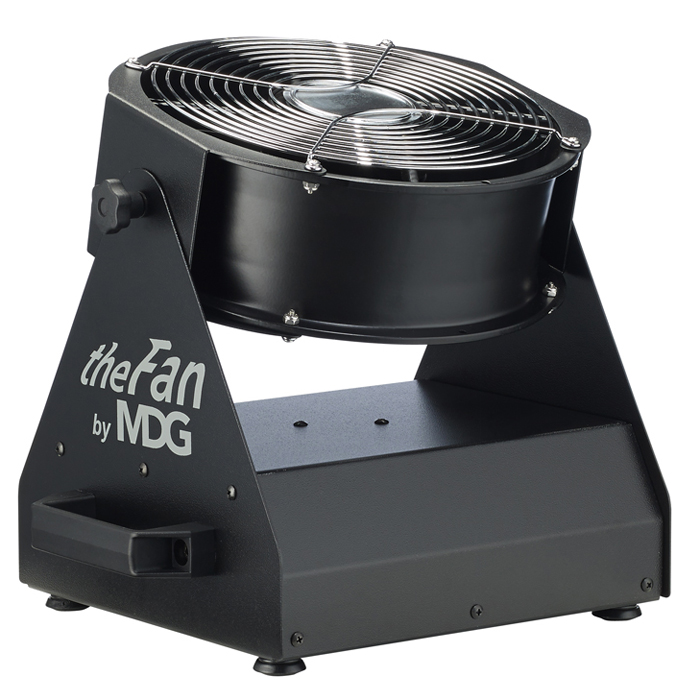

theFAN™ THE BEST COMPLEMENT TO ANY ATMOSPHERIC EFFECT
Designed to work in tandem with our professional generators or as a stand alone unit, theFAN™ is a versatile, 100W, ultra-compact, variable speed, digital fan.
FEATURES
- FREE STANDING OR VARIABLE MOUNTING OPTIONS
- UNIVERSAL SWITCHING POWER SUPPLY 100-250 VAC, 50/60 HZ, SINGLE PHASE
- NOISE LEVEL AT 1 M (3.3 FT): 64DB AT MAXIMUM SPEED
- 4-BUTTON LCD USER INTERFACE, USITT DMX512, XLR-5 CONNECTORS, RDM COMPLIANT
- ONE-CHANNEL STANDARD MODE OR TWO-CHANNEL QUIET MODE
- VARIABLE SPEED AND AIR FLOW UP TO 24 M3 (850 FT3) PER MINUTE
Electrical
100 - 250 VAC, 50/60 Hz, single phase
100 W
Data
1 standard USITT DMX512 channel
2 XLR-5 connectors: 1 input, 1 output
Controllable through DMX + RDM
Digital Functions
Stand alone set speed
DMX Value
Accessory
Flight Case
Approval
Certified to CSA and UL standards, CE approved and RoHS compliant
Mechanical
3-bladed fan
270º tilt
Variable speed
M12 metric bolt hole
1/2” imperial bolt hole
Noise Level: 64db at full speed
2 handles

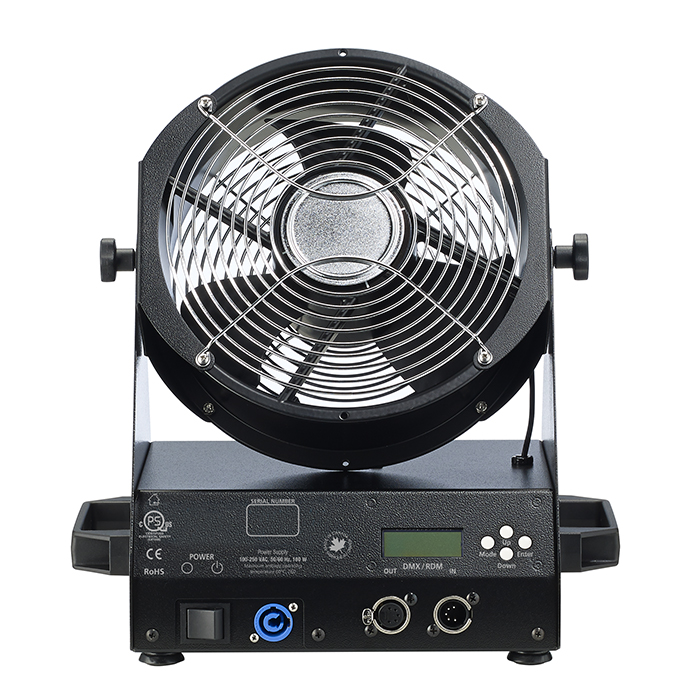

4-button controller with LCD panel
Airflow: up to 24 m3 (850 ft3) per minute
Omega clamp socket
Fan diameter: 26.4 cm (10.4”)
Total net weight: 6.8kg (15 lb)
Total net size: 38 cm (15”) H x 34.5 cm (13.58”) W x 25.4 cm (10”) D
MDG
Proudly creating the best atmospheric effects since 1980. The year 2020 marks MDG's 40th anniversary, and we are proud to remain the leading brand of atmospheric effects worldwide. Our fog, haze and low fog generators are known for their quality, reliability, durability and quietness. We have come a long way together since the first MAX3000 in 1980, and have continued to improve our products as new technology develops, spear-heading the design and manufacture of atmospheric effects generators across four decades. Our passion has gained us several product awards, beginning with the ATMOSPHERE haze generator which received TCI Best Lighting Product Award in 1997, and remains the unsurpassed industry standard for over 20 years, through to the LDI Best Debuting Product Award in 2010 for the atmospheric generator, theONE™. MDG has also been recognised for its business excellence with numerous Awards from the Chambers of Commerce of Montreal-East and Montreal-North. Over the years we have seen MDG generators used in all areas of the entertainment industry from Broadway to the West End, from Hollywood to Bollywood. Our heavy-duty, reliable generators are the choice for theatre and opera, film and television studios, concert and touring venues, leading amusement parks and large-scale events. We offer a wide range of products to fit all your applications, from a discreet mist to an overwhelming fog, indoors or outdoors. From the largest to the smallest, we cover them all: lighting looks better through MDG atmospheric effects. Our customers have relied on MDG expertise for advice and solutions regarding their projects for 40 years, and we are proud to offer a bespoke service to customise or create new products to suit individual requirements. MDG generators are also used in military personnel and firefighter training, and for specialised testing in aerodynamic, ventilation and other industrial fields. Based in Montreal, Quebec, we are a proud Canadian manufacturer which is represented on every continent through our worldwide network of partners, the MDG Family. |
