ATMe (Single High Output)

570001700
The finest haze on the market... Just better.

The ATMe single high output haze generator is the evolution of the world-famous ATMOSPHEREAPS, the industry's standard for more than two decades.

FEATURES


LONGEST HANGING TIME
Our MDG Neutral fluid is specially created for the longest hanging time.

VARIABLE HAZE OUTPUT
0-100% haze output control from your DMX / RDM device. 100% duty cycle.

APS™ (AUTOMATIC PURGING SYSTEM)
This system purges the heating module after the first heating cycle and after every emission of haze preventing residual build up and clogging.

NUMEROUS CONTROL OPTIONS
4-button LCD user interface, 3 standard USITT DMX512 channels, XLR-5 connectors, RDM compliant.

EXTREMELY QUIET OPERATION
Noise emission (at 1m/3.3ft): 45.4 dB in standard mode. The theater mode reduces the fan speed depending on haze output level.

LOWEST FLUID CONSUMPTION ON THE MARKET
At 1.38 bar (20 psi) ATMe uses only 55 ml (1.86 oz) of fluid per hour to give a total running time of 46 hours from its 2.5 L (0.66 US gallon) reservoir.


Technical Specifications
Fluid consumption
55 ml (1.86 oz) per hour at 1.38 bar (20 psi)
110 ml (3.72 oz) per hour at 2.76 bar (40 psi)

CO2 consumption
0.18 kg (0.4 lb) per hour at 1.38 bar (20 psi)
0.36 kg (0.8 lb) per hour at 2.76 bar (40 psi)

Reservoir capacity
2.5 L (0.66 US gallon)

APS™ (Automatic Purging System)
Standard

Haze colour
Pure white

Particle size
0.5 - 0.7 micron

Total running time
46 hours at 1.38 bar (20 psi) with a full tank
23 hours at 2.76 bar (40 psi) with a full tank

Warm-up time
8 minutes (maximum)

Fluid type
MDG Neutral

Operating voltage
100 - 250 VAC, 50/60 Hz single phase

Power consumption
715 W

Noise emission
45.4 dB (A) at 1 m (3.3 ft)

DIMENSIONS
Length
68.5 cm (27”)

Width
18 cm (7”)

Height
30 cm (12”)

Weight
16.8 kg (37 lb)

Shipping weight
30.5 kg (67 lb) with flight case

Approval
CE certified, CSA and UL approved
Supplier SKU
ATMe
Custom sticker
Fast lavpris
/Files/Images/brand-logos/MDG_logo.png
MDG

Proudly creating the best atmospheric effects since 1980.

The year 2020 marks MDG's 40th anniversary, and we are proud to remain the leading brand of atmospheric effects worldwide. Our fog, haze and low fog generators are known for their quality, reliability, durability and quietness.

We have come a long way together since the first MAX3000 in 1980, and have continued to improve our products as new technology develops, spear-heading the design and manufacture of atmospheric effects generators across four decades.

Our passion has gained us several product awards, beginning with the ATMOSPHERE haze generator which received TCI Best Lighting Product Award in 1997, and remains the unsurpassed industry standard for over 20 years, through to the LDI Best Debuting Product Award in 2010 for the atmospheric generator, theONE™. MDG has also been recognised for its business excellence with numerous Awards from the Chambers of Commerce of Montreal-East and Montreal-North.

Over the years we have seen MDG generators used in all areas of the entertainment industry from Broadway to the West End, from Hollywood to Bollywood. Our heavy-duty, reliable generators are the choice for theatre and opera, film and television studios, concert and touring venues, leading amusement parks and large-scale events.  We offer a wide range of products to fit all your applications, from a discreet mist to an overwhelming fog, indoors or outdoors.  From the largest to the smallest, we cover them all: lighting looks better through MDG atmospheric effects.

Our customers have relied on MDG expertise for advice and solutions regarding their projects for 40 years, and we are proud to offer a bespoke service to customise or create new products to suit individual requirements. MDG generators are also used in military personnel and firefighter training, and for specialised testing in aerodynamic, ventilation and other industrial fields.

Based in Montreal, Quebec, we are a proud Canadian manufacturer which is represented on every continent through our worldwide network of partners, the MDG Family.

Tech Docs

Images

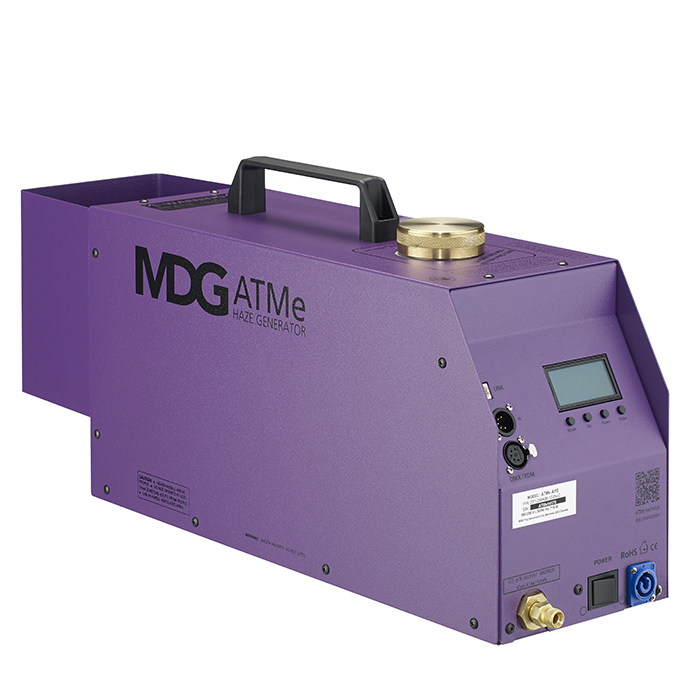

/Files/Images/Ecom/ATMe_ATMe Single High Output/images/ATMe-B.jpg
ATMe-B.jpg 221 KB

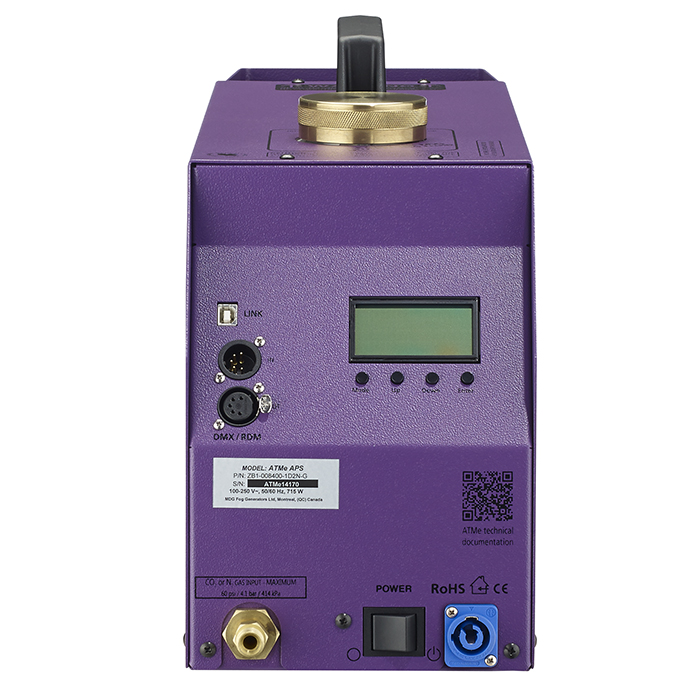

/Files/Images/Ecom/ATMe_ATMe Single High Output/images/ATMe-C.jpg
ATMe-C.jpg 253 KB

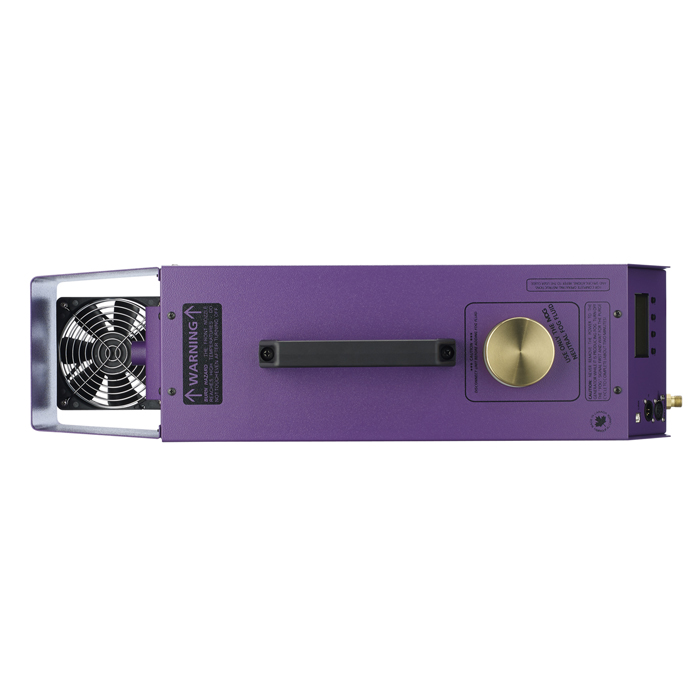

/Files/Images/Ecom/ATMe_ATMe Single High Output/images/ATMe-D.jpg
