Me2 (Dual High Output)

570002260
MEET Me2, THE POWERFULL TWIN
Me2 is the more powerful twin of the Me1, housed in the same size chassis but with twice the power (and two nozzles!)


VARIABLE FOG OUTPUT
0-100% fog output control from your DMX/RDM device, or direct local control.

FLUID CONSUMPTION
At maximum output (2.76 bar / 40 psi) Me2 uses only 2 L (0.53 US gallon) of fluid per hour.

100% DUTY CYCLE
At all output levels Me2 produces a high-quality, consistent fog as long as there is fluid and gas.

NUMEROUS CONTROL OPTIONS
4-button LCD user interface, 3 standard USITT DMX512 channels, XLR-5 connectors, RDM compliant.

APS™ (AUTOMATIC PURGING SYSTEM)
This system purges the heating module after the first heating cycle and after every emission of fog preventing residual build up and clogging.

DUAL FOG OUTPUT
With its two nozzles, the maximum fog output is 200 m3 (7,063 ft3) per minute.


Technical Specifications
Maximum fog output
200 m3 (7,063 ft3) per minute

Fluid consumption
2 L (0.53 US gallon) per hour at 2.76 bar/40 psi

Gas type
CO2 or N2

Gas consumption
2.68 kg (5.90 lb) per hour at 2.76 bar / 40 psi

Control
4-button LCD user interface, 3 standard DMX512 channels, XLR-5 connectors, RDM compliant.

Reservoir capacity
2.5 L (0.66 US gallon)

APS™ (Automatic Purging System)
Standard feature

Fog colour
Pure white

Particle size
0.5 - 0.7 micron

Warm-up time
8 minutes (maximum)

Fluid type
MDG Neutral

Voltage
100 - 250 VAC, 50/60 Hz single phase

Power consumption
1,415 W

DIMENSIONS
Length
61 cm (24”)

Width
18 cm (7”)

Height
30 cm (12”)

Weight
16.62 kg (35 lb)

Shipping weight
30.12 kg (64 lb) with flight case

Approval
CE certified, CSA and UL approved
Supplier SKU
Me2
/Files/Images/brand-logos/MDG_logo.png
MDG

Proudly creating the best atmospheric effects since 1980.

The year 2020 marks MDG's 40th anniversary, and we are proud to remain the leading brand of atmospheric effects worldwide. Our fog, haze and low fog generators are known for their quality, reliability, durability and quietness.

We have come a long way together since the first MAX3000 in 1980, and have continued to improve our products as new technology develops, spear-heading the design and manufacture of atmospheric effects generators across four decades.

Our passion has gained us several product awards, beginning with the ATMOSPHERE haze generator which received TCI Best Lighting Product Award in 1997, and remains the unsurpassed industry standard for over 20 years, through to the LDI Best Debuting Product Award in 2010 for the atmospheric generator, theONE™. MDG has also been recognised for its business excellence with numerous Awards from the Chambers of Commerce of Montreal-East and Montreal-North.

Over the years we have seen MDG generators used in all areas of the entertainment industry from Broadway to the West End, from Hollywood to Bollywood. Our heavy-duty, reliable generators are the choice for theatre and opera, film and television studios, concert and touring venues, leading amusement parks and large-scale events.  We offer a wide range of products to fit all your applications, from a discreet mist to an overwhelming fog, indoors or outdoors.  From the largest to the smallest, we cover them all: lighting looks better through MDG atmospheric effects.

Our customers have relied on MDG expertise for advice and solutions regarding their projects for 40 years, and we are proud to offer a bespoke service to customise or create new products to suit individual requirements. MDG generators are also used in military personnel and firefighter training, and for specialised testing in aerodynamic, ventilation and other industrial fields.

Based in Montreal, Quebec, we are a proud Canadian manufacturer which is represented on every continent through our worldwide network of partners, the MDG Family.

Tech Docs

Images

/Files/Images/Ecom/Me2_Me2 Dual High Output/images/Me2-B.jpg

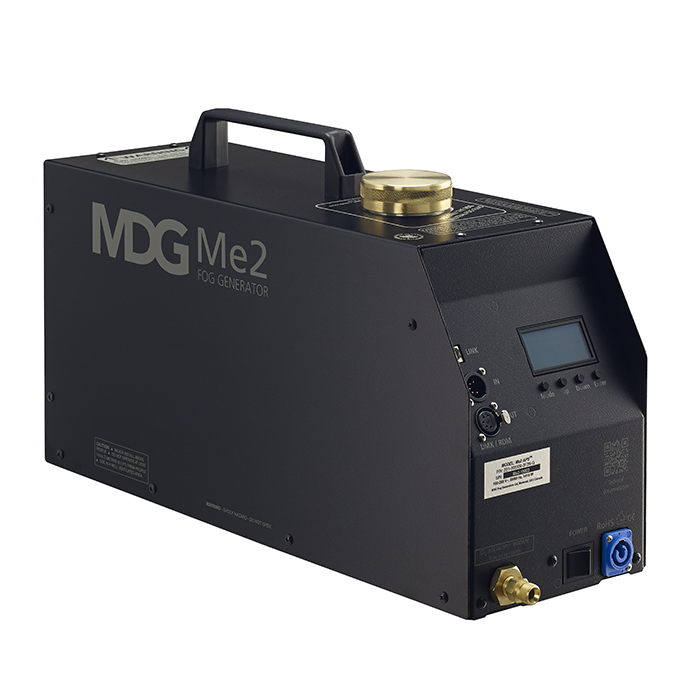

Me2-B.jpg 187 KB
/Files/Images/Ecom/Me2_Me2 Dual High Output/images/Me2-C.jpg

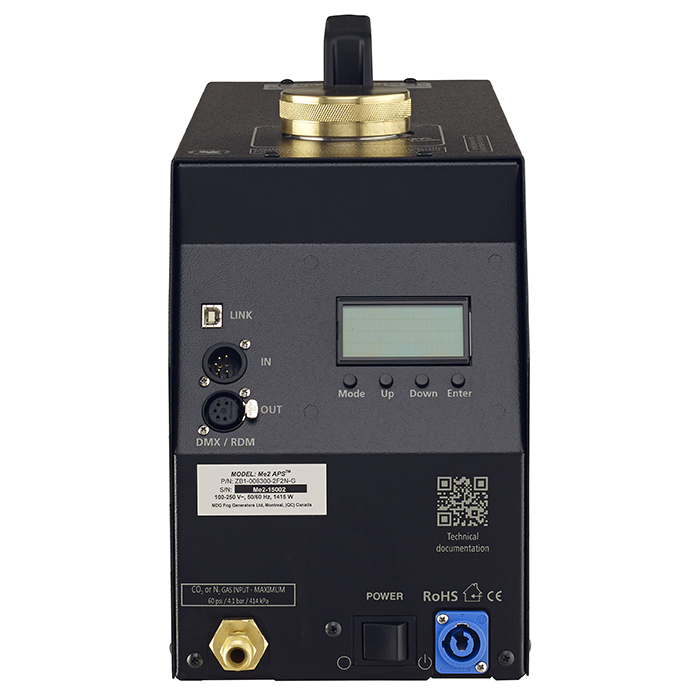

Me2-C.jpg 207 KB
