LUMIPIX 15IP

Name: LUMIPIX 15IP
Brand: Prolights

532030200

15 x 10W RGBW Leds. pixel control 16° beam

Beskrivelse Specification Brand information Downloads

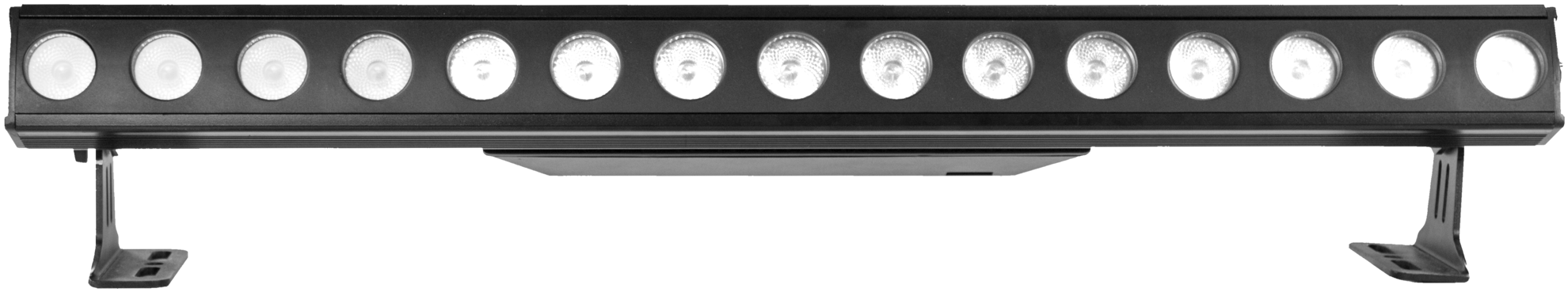

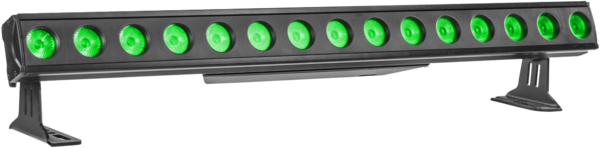

Lumipix 15IP is a tour-ready LED pixel batten conceived to be fully versatile and perform outdoor, delivering advanced brightness and colour mixing by offering individual pixel control of each cell. The robust die-cast aluminium structure with omega quick lock socket on the bracket and the waterproof power and signal connector make Lumipix 15IP suitable for the most demanding environments.

Main features:

LED batten with 15 individually controllable RGBW LED
Waterproof housing and connections for outdoor usage
Extensive colour palette with precise mixing and powerful output

Technical Specifications

TECHNICAL SPECIFICATIONS

LIGHT SOURCE
Source: 15x10W RGBW LEDs
Luminous flux: (16° + diffused) 4'983 lm - (16°) 5'394lm @full
Lux: (16° + diffused) 1'886 lm - (16°) 2'454lx @5 m full
Source life expectancy: > 30.000 h

OPTICS
Beam angle: 16°
Field angle: 31°
Additional optics: magnetic frost holder on board

COLOUR SYSTEM
Colour mixing: RGBW / FC
CCT: CCT control through dedicated DMX channel
White presets: 2.800 K - 10.000K
Colour wheel: virtual colour wheel with macros
Macros: several pre-built pixel macros with adjustable speed

DYNAMIC EFFECTS
Pixel patterns: pre-programmed dynamic and static patterns
Static mode: selection of static colour
Manual mode: manual adjustment of colour

BODY
Hardware on-board: sockets for quick-Lock Omega bracket (clamp included)
Body: sturdy die-cast aluminium body
Body colour: black

CONTROL
Protocols: DMX512
DMX channels: 4 / 6 / 10 / 60 / 65channel
Pixel control: pixel2pixel control
Wireless Control: included, wireless solution receiver
Display: Graphic User Interface
Firmware upgrade: yes, via USB - DMX interface (UPBOX1) not included
Master/Slave: for synchronised operation of more units linked in a chain

ELECTRONICS
Dimmer: linear 0 ~ 100% electronic dimmer
Dimmer curves: 4 selectable dimming modes available
Strobe / shutter: 0 ~ 30 Hz, electronic
Display battery: self-charging battery backup
Operating temperature: -10° ~ +45°
LED Control: flicker free frequency with adjustable PWM

ELECTRICAL
Mains power supply: 100-240V - 50/60Hz
Max power consumption: 161W
Max power consumption (at 120V): 162W
Output (at 230V): 23 units on a single power line
Output (at 120V): 12 units on a single power line

PHYSICAL
IP rating: 65 for temporary outdoor application, not for fixed installations
Cooling: passive cooling and fan-free
Suspension and fixing: double hanging bracket suitable for safe hanging and for floor positioning
Signal connection: Seetronic XLR 5p IN/OUT connectors
Data connection: W-DMX receiver
Power connection: Seetronic powerCON waterproof IN/OUT connectors

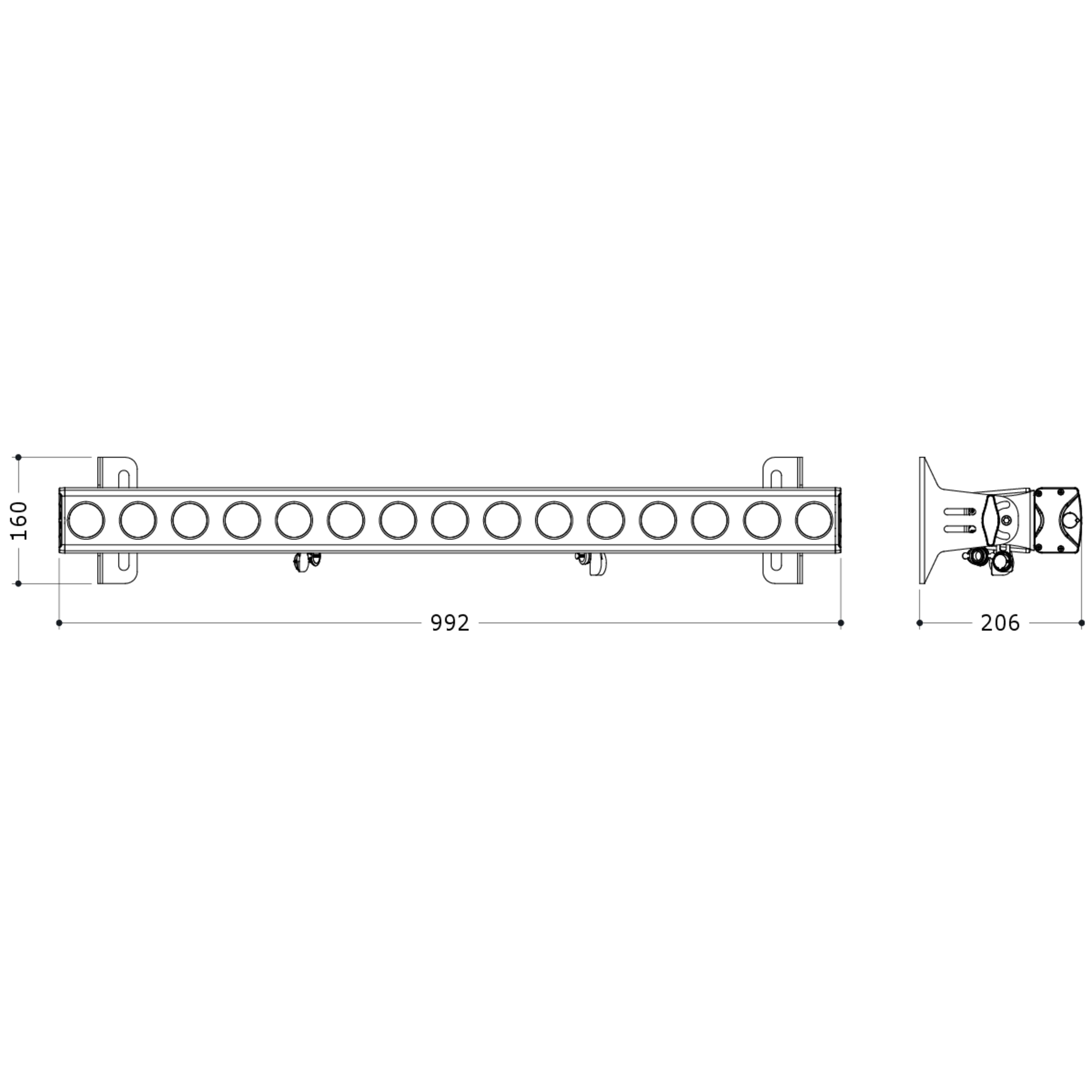

Dimensions (WxHxD): 992x206x160mm / 39.06''x8.11''x6.3''
Weight: 8,6kg / 18.96lbs

CERTIFICATIONS / APPROVALS
Certifications / Approvals: CE, UKCA, RCM

BOX CONTENT
1 x LUMIPIX15IP
1 x 1,5 meters power cable (BARE END - SEETRONIC IP65 power connector)
2 x side floor brackets
1 x OS25
User Manual
