SMARTBATPLUS - IP Battery LED Projector , Chrome

SMARTBATPLUS - IP Battery LED Projector , Chrome

Name: SMARTBATPLUS - IP Battery LED Projector , Chrome
Brand: Prolights

530240900

Battery LED projector, 4x12W RGBW/FC, 11°, 12h, IP65 (front), 3.6 kg, WDMX

Beskrivelse Specification Brand information Downloads

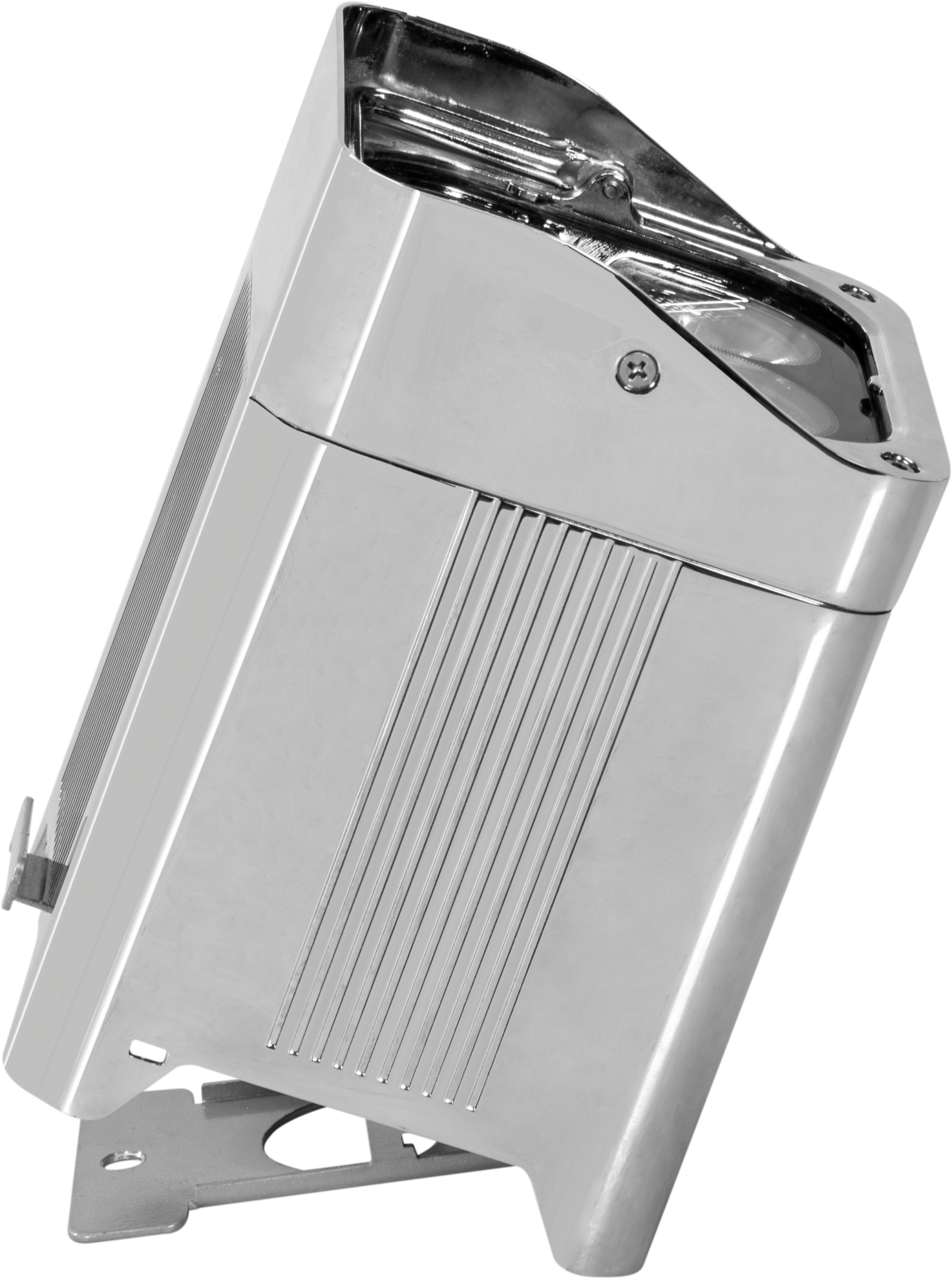

Smart BatPlus is the more advanced member of the successful Smart Bat range offering more advanced features such as W-DMX wireless card, waterproof housing, increased brightness, high-definition optics and fast-charge magnetic connector. It's packed in a super-slim compact housing with a mirror finish, useful when hiding the fixture from view.

Technical Specifications

LIGHT SOURCE

Source: 4x12W RGBW LEDs
Luminous flux: 905lm
Lux: 759lx @5 m full
Source life expectancy: > 50.000 h

OPTICS

Beam angle: 11°
Field angle: 19°

COLOUR SYSTEM

Colour mixing: RGBW / FC
White presets: 3.200 K -9.000K
Colour wheel: virtual colour wheel with macros
Macros: built-in white presets

DYNAMIC EFFECTS

Static mode: selection of static colour
Manual mode: manual adjustment of colour
Auto mode: built-in programs with execution speed adjustment

BODY

Tilt angle: 20° adjustable foot support for tilt regulation (up to 20°)
Body: sturdy die-cast aluminium body
Body colour: mirror finishing

CONTROL

Protocols: W-DMX
DMX channels: 4 / 6 / 10channel
W-DMX: included, wireless solution receiver
Display: black OLED touch display
Firmware upgrade: yes, via USB - DMX interface (UPBOX1) not included
IR: infrared sensor controlled by remote

ELECTRONICS

Dimmer: linear 0 ~ 100% electronic dimmer
Dimmer curves: 4 selectable dimming modes available
Strobe / shutter: 1 - 25 Hz, electronic
Operating temperature: 0° ~ +35°
LED Control: flicker free operation

ELECTRICAL

Mains power supply: 100-240V - 50/60Hz (SBPLUSPOWER charger not included)

BATTERY

Battery: 16,8V lithium
Estimated battery life in colour change mode up to: 12h
Estimated battery life in full-mode up to: 8h
Re-charge connection: magnetic fast-charge in case
Re-charge time: 4h/max
Battery status: shown on display

PHYSICAL

IP rating: for temporary outdoor use - IP65 (front) - IP54 (bottom)
Cooling: passive cooling and fan-free
Suspension and fixing: M12 threaded insert for easy clamp installation
Data connection: W-DMX receiver
Dimensions (WxHxD): 138x202x145mm
Weight: 3,6kg
