ASTRA PROFILE 900

530005420

900W high output Profile Moving head, with 185mm optics and 5° - 52° zoom

Beskrivelse Specification Brand information Downloads

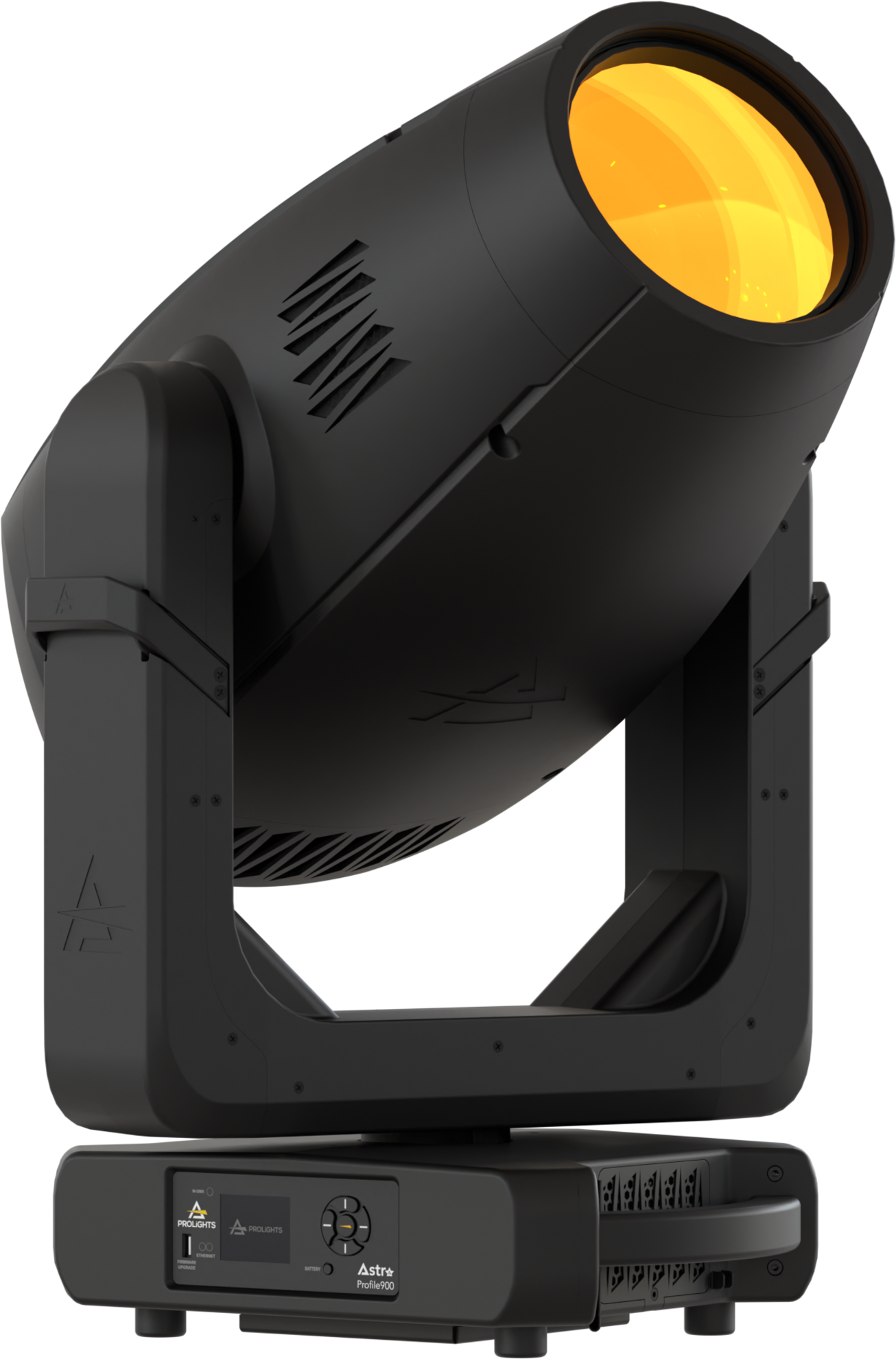

Astra Profile900

is a flagship, high-power profile moving head designed for large-scale live productions, studios, and theaters. Powered by a 900W LED source, it delivers an impressive 43,000-lumen output (as measured by photogoniometer), making it an exceptional key light for any major production.

Its large 185mm front lens and versatile 5°-52° zoom range ensure outstanding performance at virtually any distance. The new MotiOs motion ecosystem enhances speed, precision, and responsiveness across pan, tilt, internal wheels, and framing modules, setting a new standard in motion control.

For precise color control, the Astra Profile900 features linear CMY+CTO mixing and a color wheel with a high-CRI filter, delivering vibrant tones and balanced whites. Additional highlights include dual rotating gobo wheels, an animation wheel, a four-layer framing system, dual prisms, dual frost filters, and iris making it adaptable to a wide variety of production needs.

Technical Specifications

LIGHT SOURCE

Source: 1000W White LED (driven @900W)
CCT: 7.000K
Luminous flux: (5,5°) 23'816 lm - (52°) 42'919 lm
Lux: (5,5°) 126'304 lx - (52°) 3'060lx @5 m
CRI: > 70 (CCT 6.000K and CRI > 90 with filter on color wheel)
Source life expectancy: > 20.000 h

OPTICS

Zoom range: 5,4° - 52° motorised linear zoom
Lens diameter: 185mm Lens type: HD anti-reflection lenses with achromatic coating
Focus: motorised 16-bit control with focus tracking

COLOUR SYSTEM

Colour mixing: linear CMY
CCT: linear CTO correction 2.700 K ~ 7.000 K
Colour wheel: open + high CRI filter + 5 colour filters

DYNAMIC EFFECTS

Control Resolution: 16-bit dimmer
Shutter system: 4 shutter blades with position and ±30° angle adjustment, ±45° rotation of the complete framing system
Animation wheel: animation wheel with CW and CCW rotation
Rotating gobos: 7 rotating gobos + open, interchangeable, indexing
Gobo size: outer: 30 mm - image: 25 mm - thickness: up to 3 mm Rotating gobos: 7 rotating gobos + open, interchangeable, indexing
Gobo size: outer: 30 mm - image: 25 mm - thickness: up to 3 mm
FX generator: 2 prisms overlap for spectacular aerial effects
Circular prism: 4f with bi-directional rotation, indexing
Linear prism: 6f with bi-directional rotation, indexing
Frost: dual frost filter, soft-edge and heavy (one interchangeable)
Iris: 5 - 100% motorised iris

BODY

Hardware on-board: sockets for quick-Lock Omega bracket (clamp not included)
Pan range: 540°
Tilt range: 270°
Pan/Tilt resolution: bit 16-bitFeedback: automatic repositioning after accidental movement
Body: aluminium structure with high-resistance polycarbonate cover
Body colour: black

CONTROL

Protocols: DMX512, RDM, ArtNet, sACN, CRMX
DMX channels: 46channel
Wireless Control: included, LumenRadio Timo Fx DMX/RDM compatible with both CRMX (Lumen Radio) and W-DMX (Wireless DMX
RDM: RDM for remote monitoring and settings
Display: Graphic User Interface
Firmware upgrade: via DMX with UPBOXPRO/UPBOX2 (USB-DMX interface
not included) or via USB pen drive
EtherFlow: Ethernet pass-through switch that preserves network connectivity even when the fixture is unpowered.

ELECTRONICS

Dimmer: linear 0 ~ 100% electronic dimmer
Dimmer curves: 4 selectable dimming modes available
Strobe / shutter: 1 - 30 Hz, electronic
Display battery: self-charging battery backup
Operating temperature: -10° ~ +45° Ta
LED Control: flicker free frequency with adjustable PWM
Selectable PWM: 600 ~ 50.000 Hz
ELECTRICALMains power supply: 100-240V - 50/60Hz
Max power consumption: 1310W Standby power: 150 W
Output (at 230V): 2 units on a single power linePower factor: > 0,97

PHYSICAL

IP rating: 20
Cooling: combination of heat pipe cooling system and low noise fan
Suspension and fixing: any position with quick-lock omega brackets
Pan / tilt lock: for transportation and maintenance
Signal connection: Neutrik XLR 5p IN/OUT connectors
Data connection: Neutrik Art-Net RJ45 IN/OUT
Power connection: Neutrik powerCON TRUE1 IN/OUT connectors

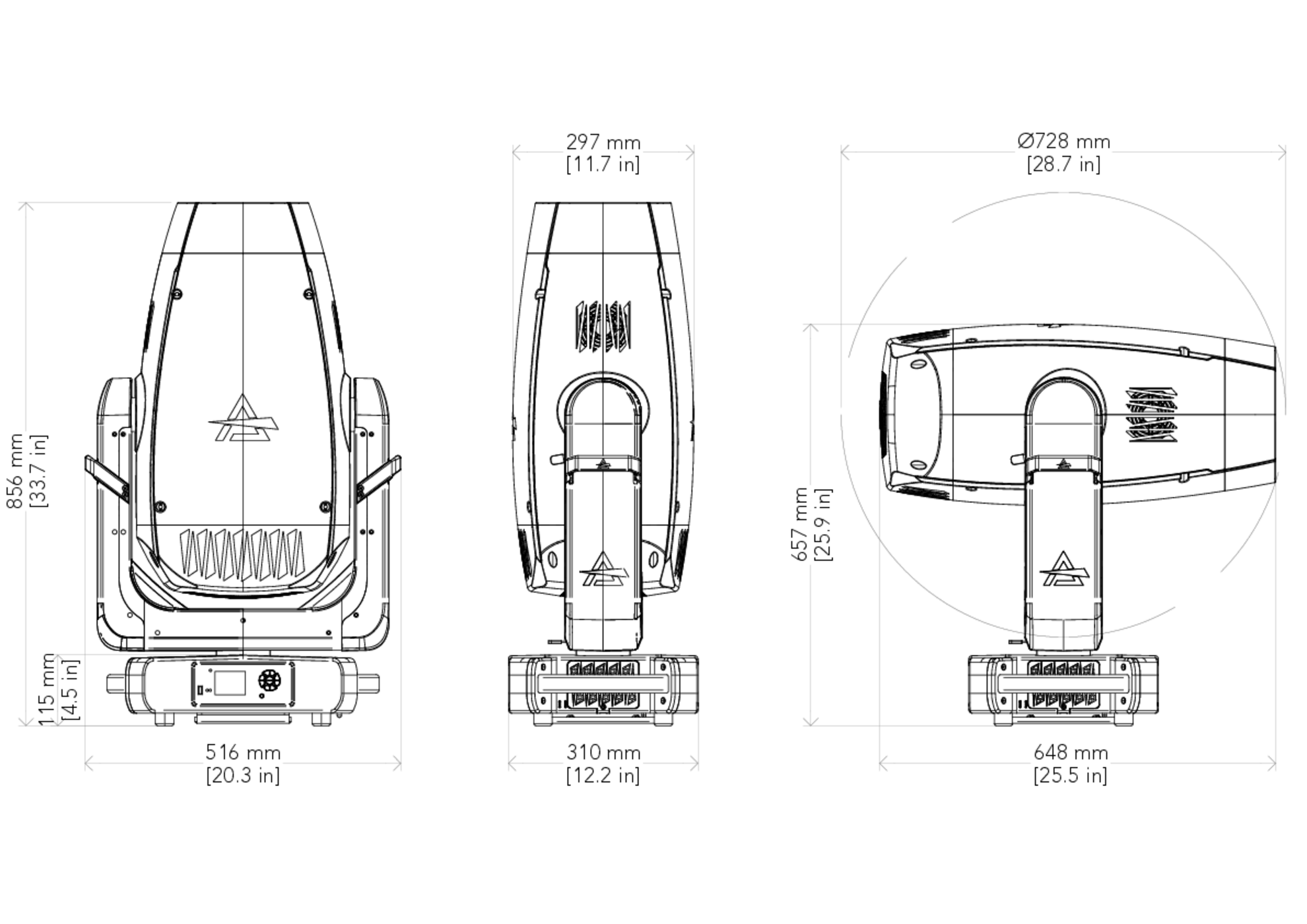

Dimensions (WxHxD): 516x856x310mm
Weight: 45,2kg

CERTIFICATIONS / APPROVALS

Certifications / Approvals: CE, RCM

Supplier SKU

ASTRAPROFILE900

IP Rating

IP20
