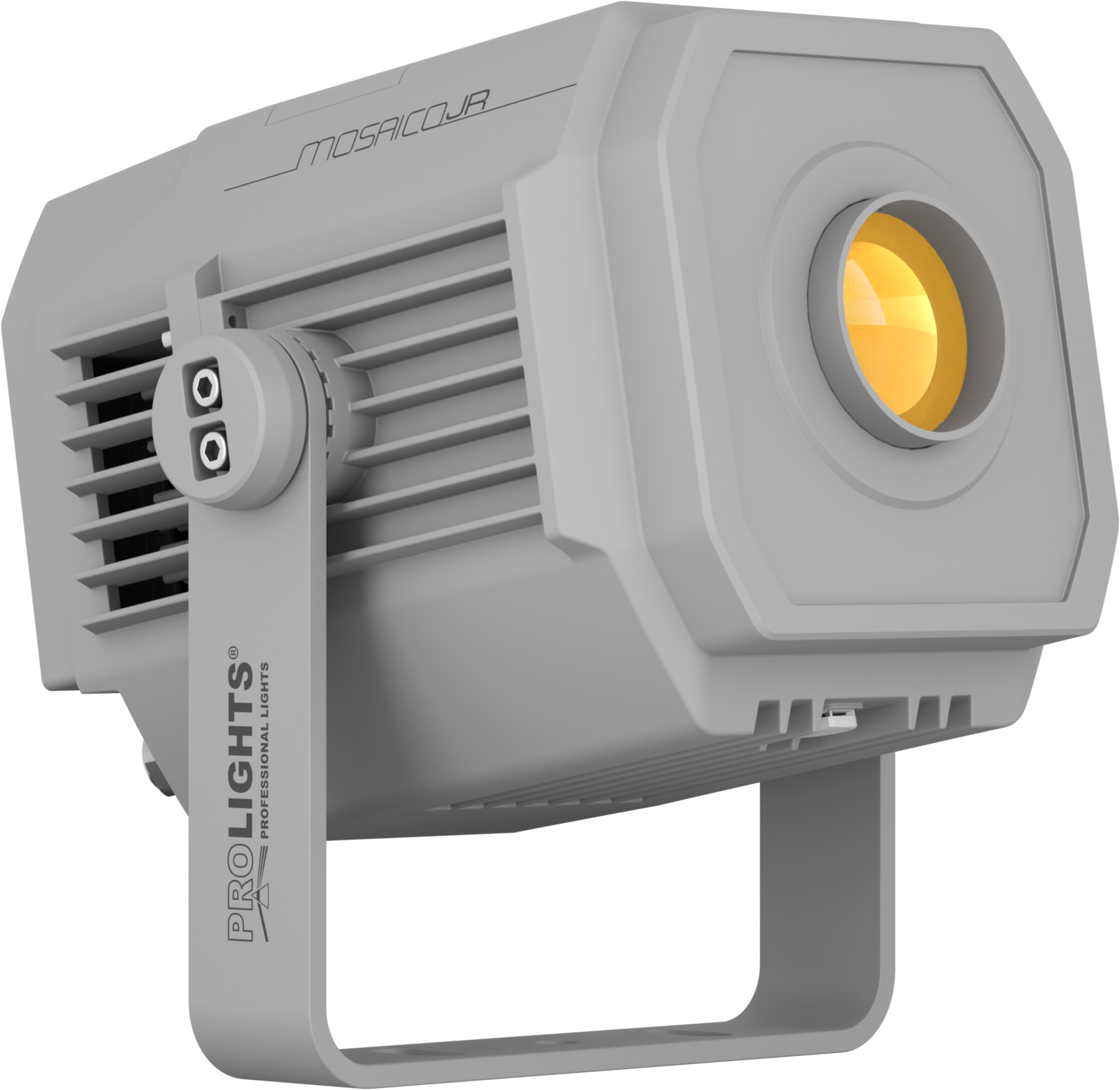

MOSAICOJR - IP66 LED image projector

Name: MOSAICOJR - IP66 LED image projector
Brand: Prolights
Price: 11.977,50 DKK
Availability: InStock

530020220

IP66 projector, 70W wh LED, 14.7-45°, 7 colours wheel, 7 rotating gobos, 92W

Beskrivelse Specification Brand information Downloads

Mosaico Jr is a compact exterior LED image projector designed for projection of logos, images and textures onto commercial buildings, hotels and city facades. The small size allows for mounting anywhere without any impact on the surrounding environment or architecture. The on board zoom ranges from 14,7° to 45° allowing for an extensive user-flexibility, from projecting crisp and accurate logos to textured projections.

Technical Specifications

LIGHT SOURCE

Source: 70W White LED
CCT: 7.000K
Luminous flux: (14.7°) 2'595 lm - (45°) 2'628lm
Lux: (14.7°) 1'927 lx - (45°) 294lx @5 m full
Source life expectancy: > 30.000 hrs (L70B10 @Ta 25° C / 77° F)

OPTICS

Zoom: 14,7° - 45° motorised linear zoom
Lens diameter: 63mm
Lens type: high-quality glass lens optics
Focus: motorised

COLOUR SYSTEM

Colour wheel: 7 colour filters

DYNAMIC EFFECTS

Rotating gobos: 7 rotating gobos + open, indexing
Gobo size (BW): gobo Ø 15,8 mm - img Ø 12,5 mm
Gobo size (Color): gobo Ø 15,8 mm - img Ø 9 mm
Auto mode: built-in programs with execution speed adjustment

BODY

Body: aluminium die-casting
Body colour: RAL 9006
Other: inspectable cover window for image replacement and maintenance and record scenes and create chases and shows throughout these scenes

CONTROL

Protocols: DMX512, RDM, W-DMX, Stand Alone programmer and playback
DMX channels: 8 / 14channel
W-DMX: included, wireless solution receiver
RDM: RDM for remote monitoring and settings
Display: Graphic User Interface
Firmware upgrade: yes, via USB - DMX interface (UPBOX1) not included
Master/Slave: for synchronised operation of more units linked in a chain

ELECTRONICS

Dimmer: linear 0 ~ 100% electronic dimmer
Dimmer curves: 4 selectable dimming modes available
Strobe / shutter: 1 ~ 21 Hz, electronic
Display battery: self-charging battery backup
Operating temperature: -20° C / +45° C (-4° F / +113° F)
LED Control: flicker free frequency with adjustable PWM

ELECTRICAL

Mains power supply: 100-240V - 50/60Hz
Max power consumption: 80W
Power factor: >0,92

PHYSICAL

IP rating: 66 for outdoor installations
Cooling: active, with IP low noise fan
Suspension and fixing: bracket for hanging and positioning
Adaptors: XLR and Schuko 16A adaptors included
Signal connection: moulded IP signal IN/OUT connectors
Power connection: moulded IP power IN/OUT connectors
Dimensions (WxHxD): 247x258x244mm
Weight: 10kg
