STUDIOCOB PLUSFC - IP65 FC Led PAR

Name: STUDIOCOB PLUSFC - IP65 FC Led PAR
Brand: Prolights

40x3,7W RGBW/FC LED projector, 38°, HD-dimming, IP65, 135W, 4,95 kg,

Housing Colors

Vælg venligst en variant!

Beskrivelse Specification Brand information Downloads

StudioCob PlusFC is a powerful, incredibly versatile and IP65 rated LED PAR. Fusing the old and the new, it pairs a COB LED source with a traditional parabolic reflector to deliver a proper PAR replacement with a homogenised output, single shadow and flexible lens options.

Technical Specifications

LIGHT SOURCE

Source: 150W COB RGBW / FC LED
Luminous flux: (18°) 3'530 lm - (38°) 3'172lm
Lux: (18°) 2'558lx @3 m full
Lux: (38°) 645lx
Source life expectancy: > 50.000 h

OPTICS

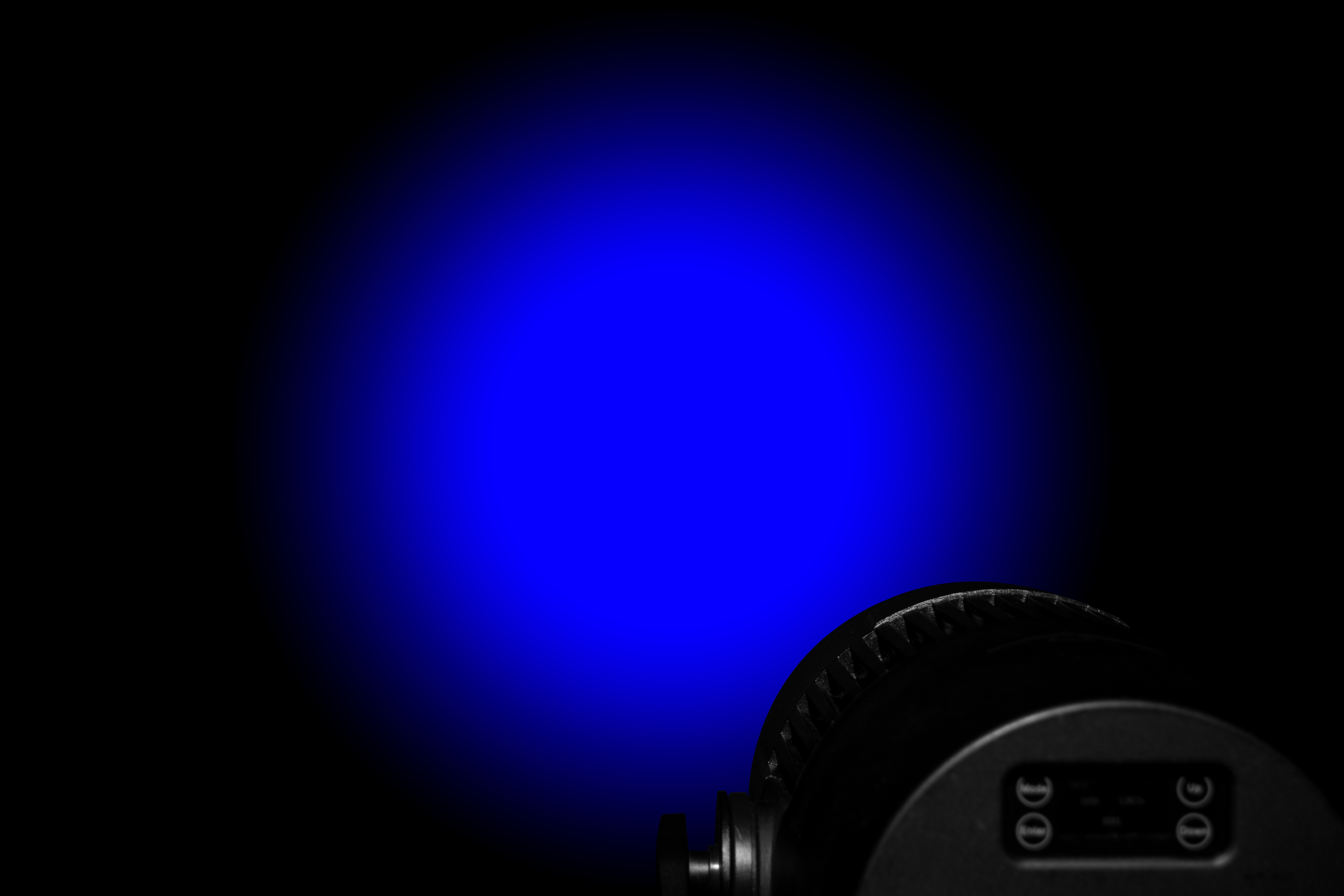

Beam angle: (on-board) 18° - (inc) 38° - (opt) 60°
Field angle: (on-board) 36° - (inc) 63°
Lens type: parabolic reflector in combination with HD fresnel lens
Additional optics: 38° (inc)

COLOUR SYSTEM

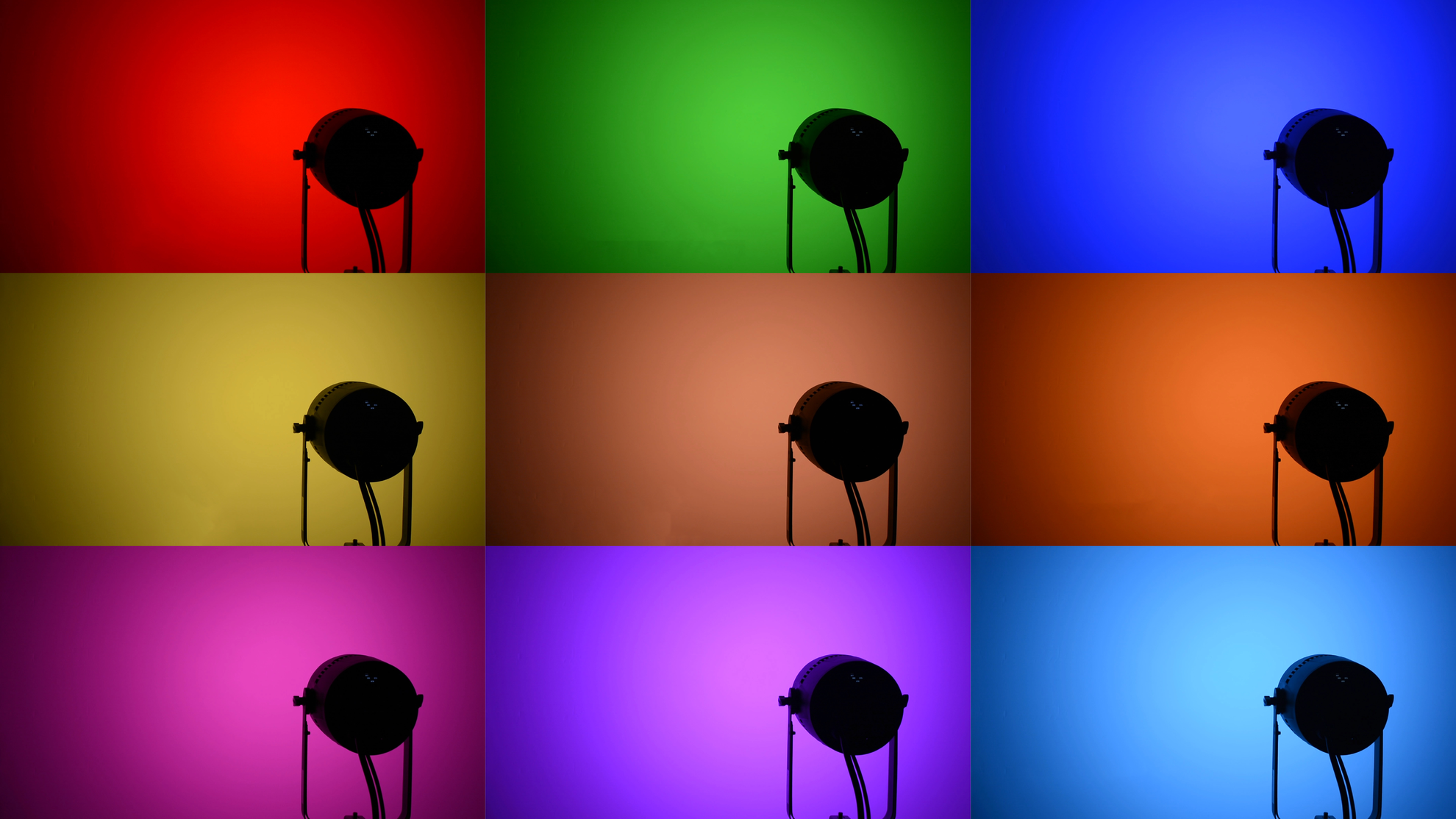

Colour mixing: RGBW / FC
CCT: CCT control through dedicated DMX channel

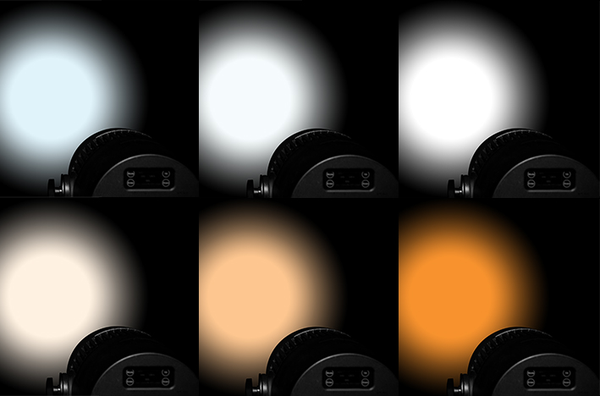

White presets: 2.000 K ~ 10.000K
Colour wheel: virtual colour wheel with macros

DYNAMIC EFFECTS

Static mode: selection of static colour
Manual mode: manual adjustment of colour
Auto mode: built-in programs with execution speed adjustment

BODY

Body: sturdy die-cast aluminium body

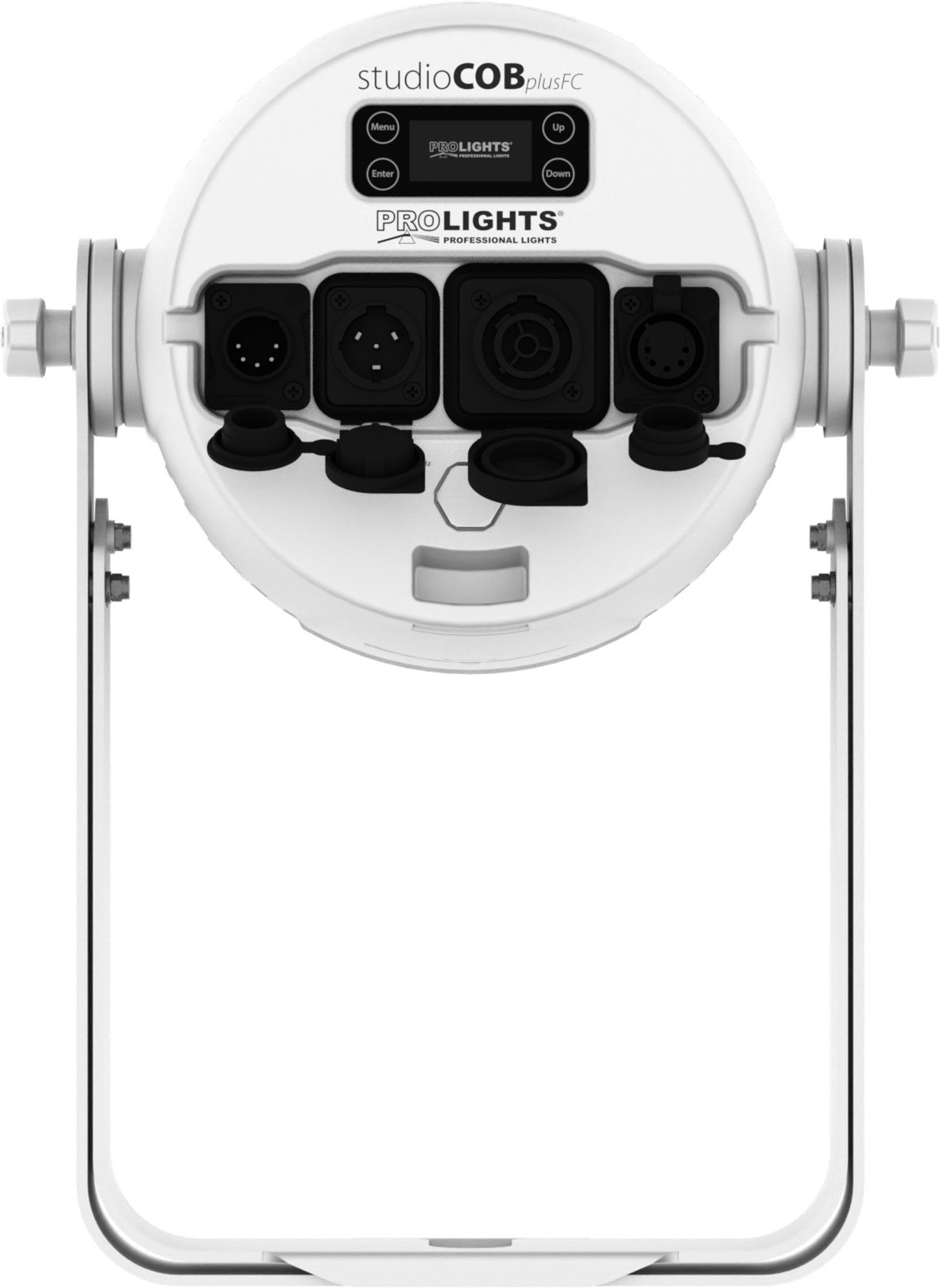

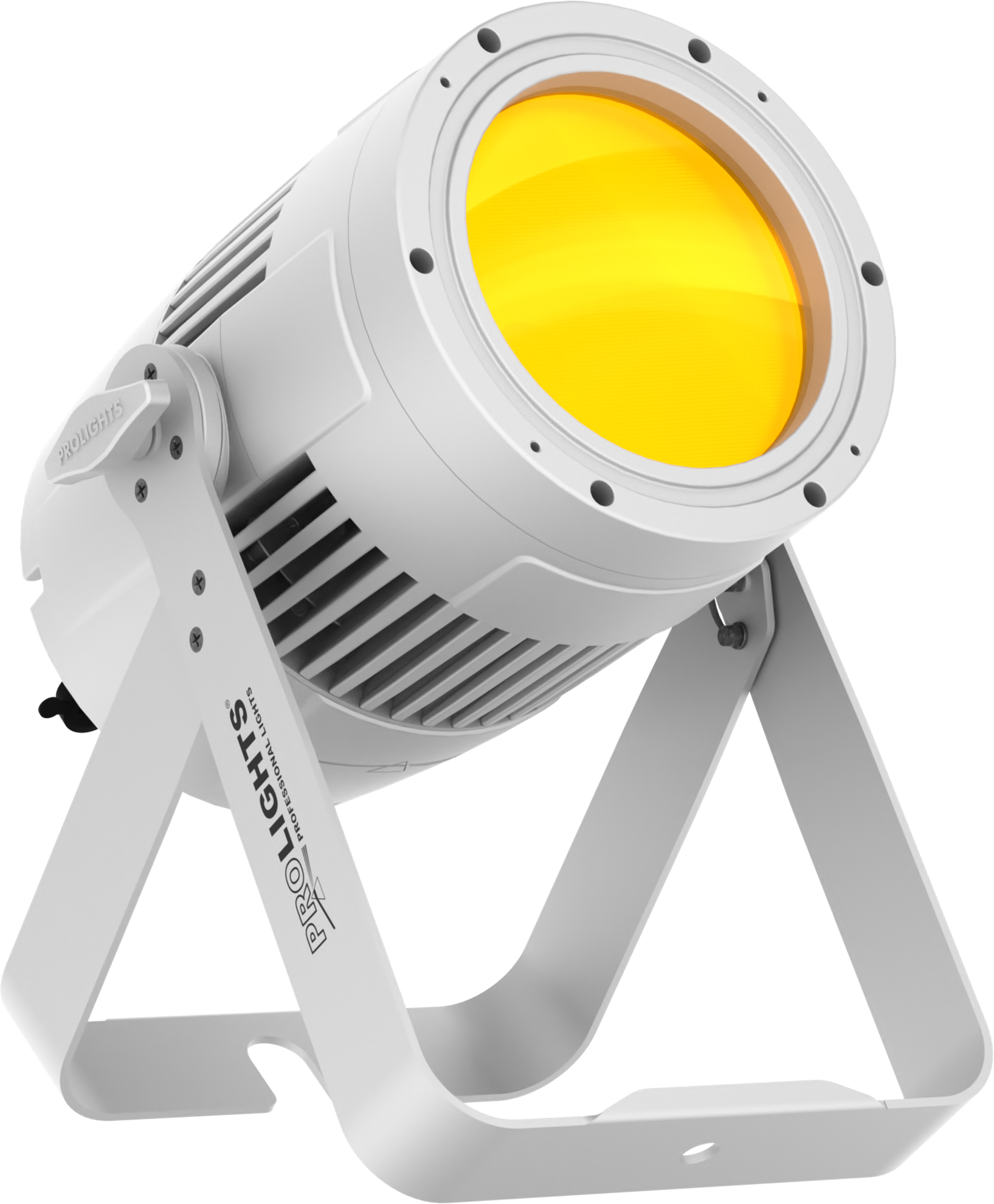

Body colour: black, white finishing available

CONTROL

Protocols: DMX512, RDM
DMX channels: 4 / 6 / 10channel
RDM: RDM for remote monitoring and settings
Display: black OLED touch display
Firmware upgrade: yes, via USB - DMX interface (UPBOX1) not included
Master/Slave: for synchronised operation of more units linked in a chain

ELECTRONICS

Dimmer: linear 0 ~ 100% electronic dimmer
Dimmer curves: 4 selectable dimming modes available
Strobe / shutter: 1 - 28 Hz, electronic
Display battery: self-charging battery backup
Operating temperature: -20° ~ +45°
LED Control: flicker free operation
Selectable PWM: 600 ~ 25.000 Hz

ELECTRICAL

Mains power supply: 100-240V - 50/60Hz
Max power consumption: 140W
Max power consumption (at 120V): 145W
Output (at 230V): 12 units on a single power line
Power factor: 0,96

PHYSICAL

IP rating: 65 for temporary outdoor application, not for fixed installation
Cooling: active, silent operation

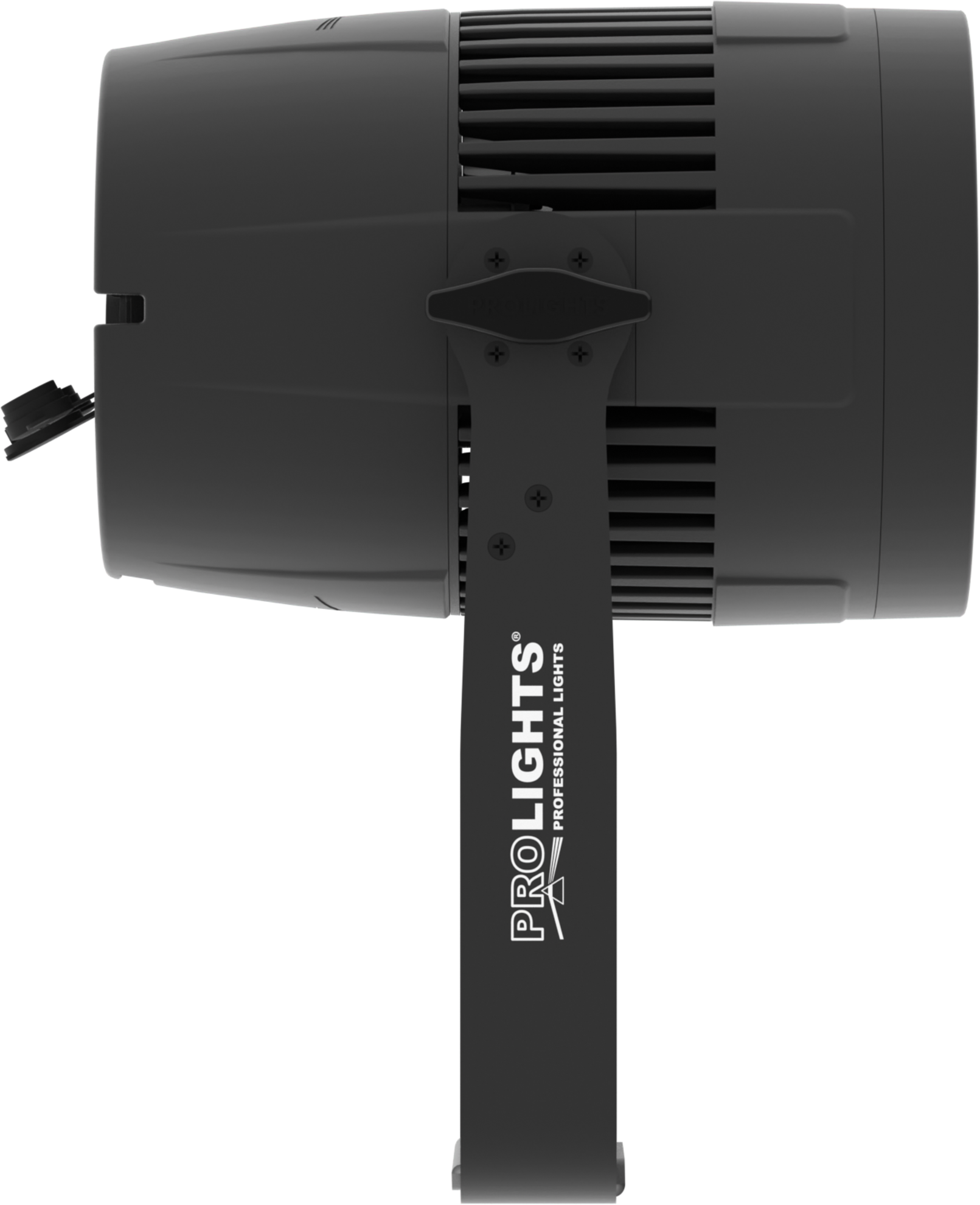

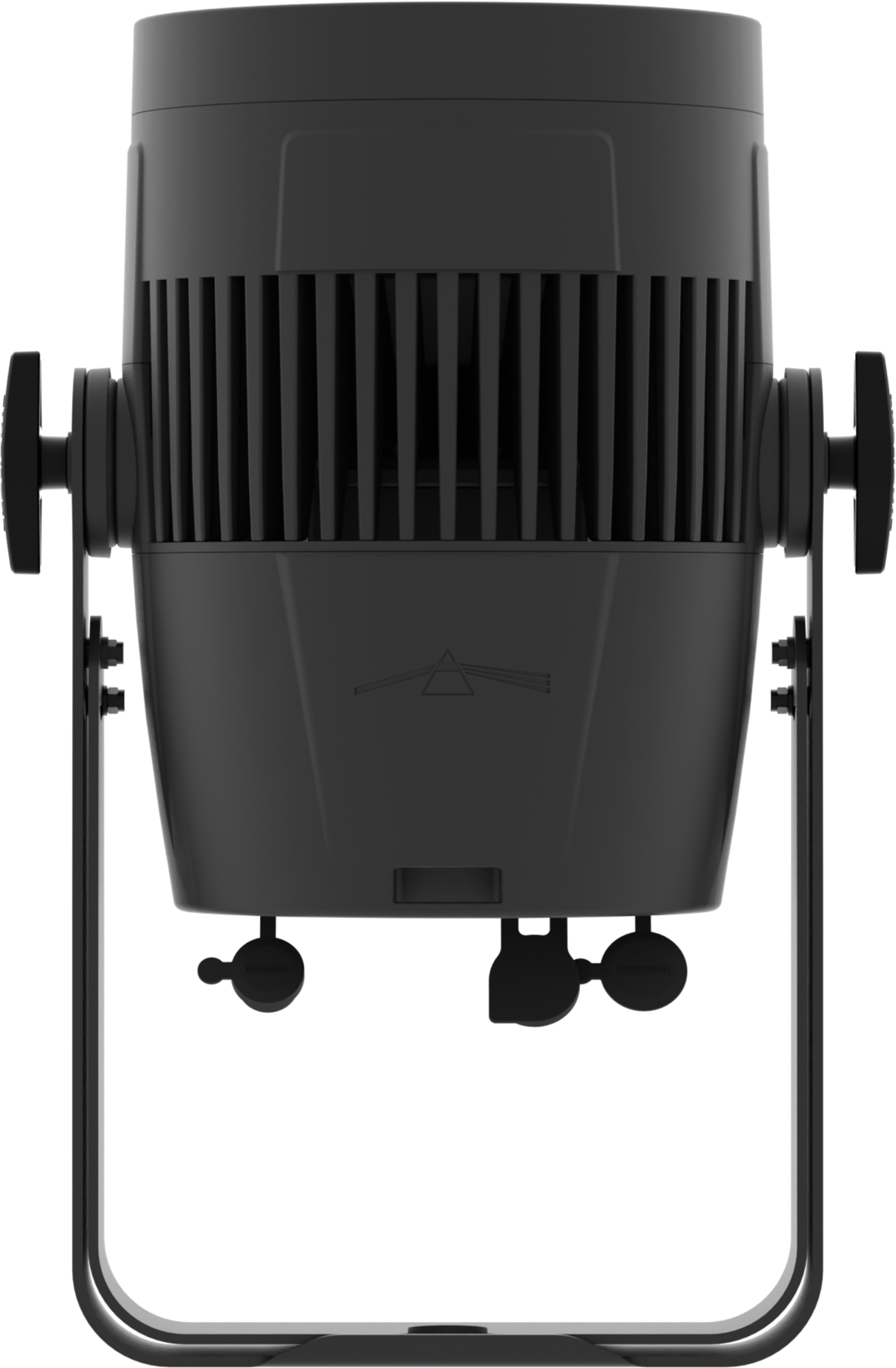

Suspension and fixing: double hanging bracket suitable for safe hanging and for floor positioning

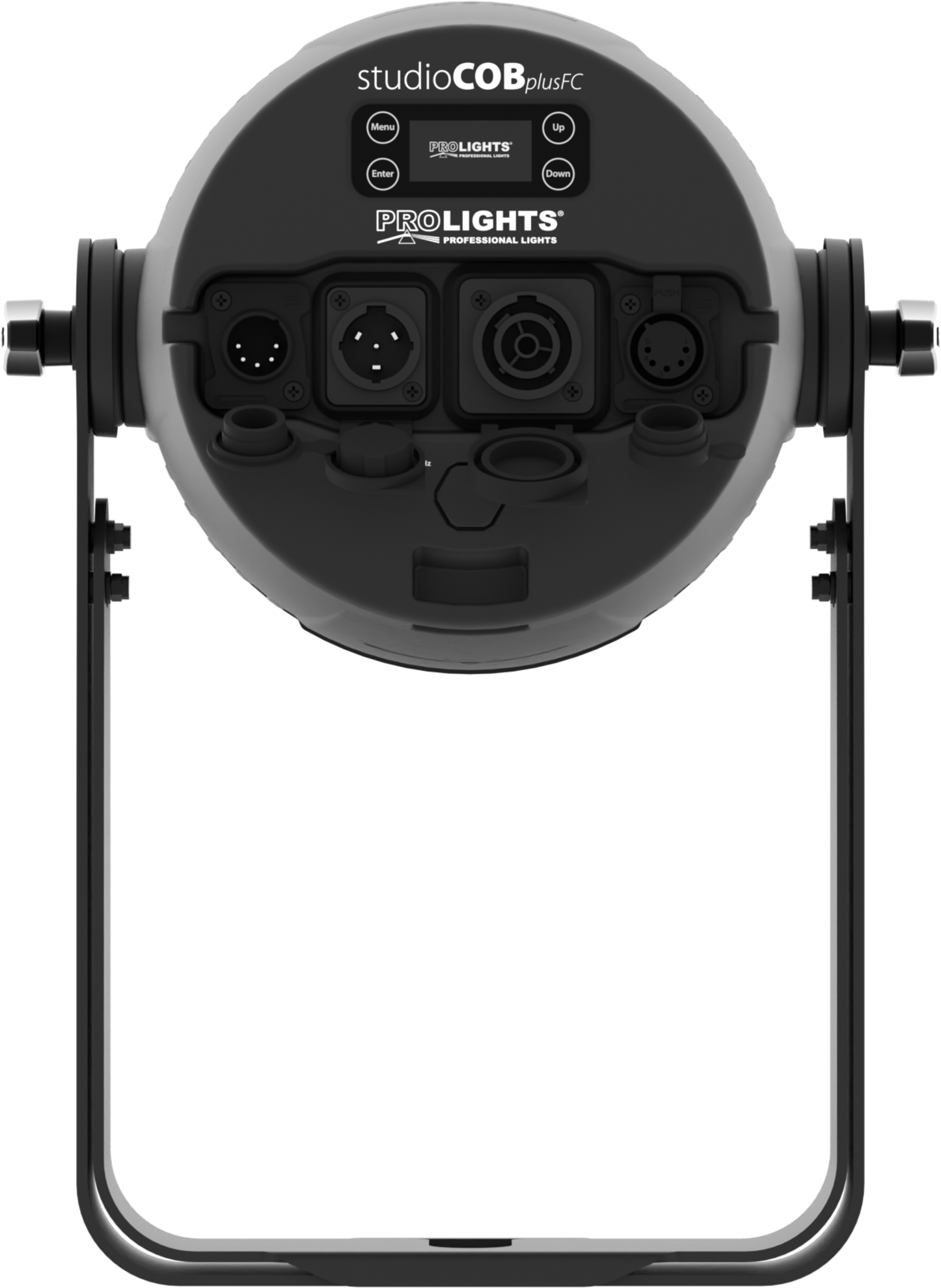

Signal connection: Seetronic XLR 5p IN/OUT connectors
Power connection: Seetronic powerCON waterproof IN/OUT connectors
Dimensions (WxHxD): 259x187x370mm
Weight: 5,6kg
