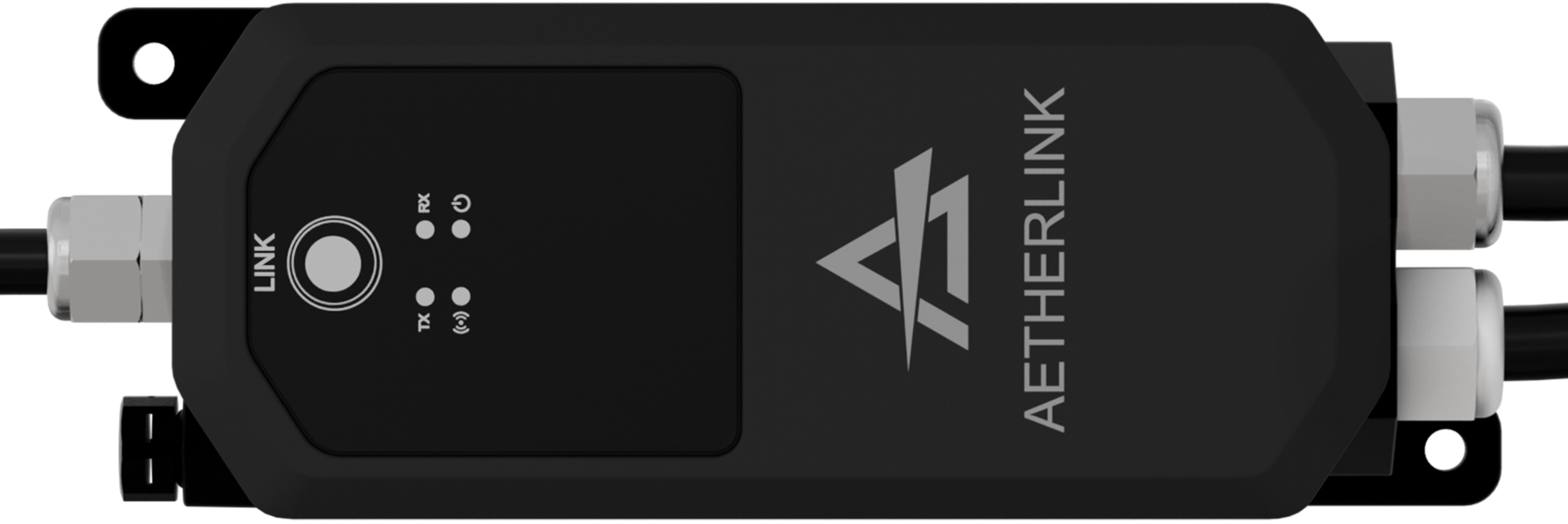

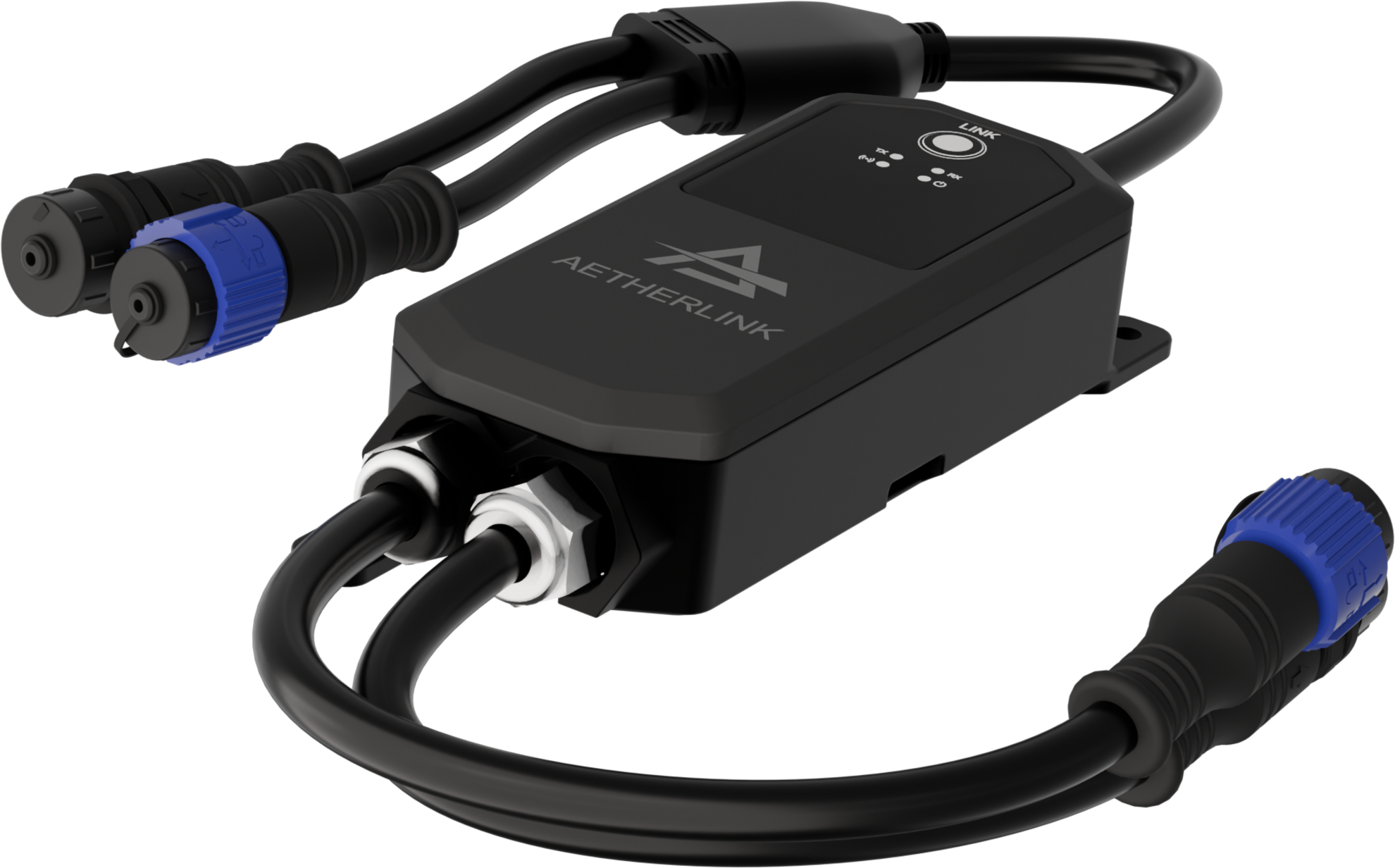

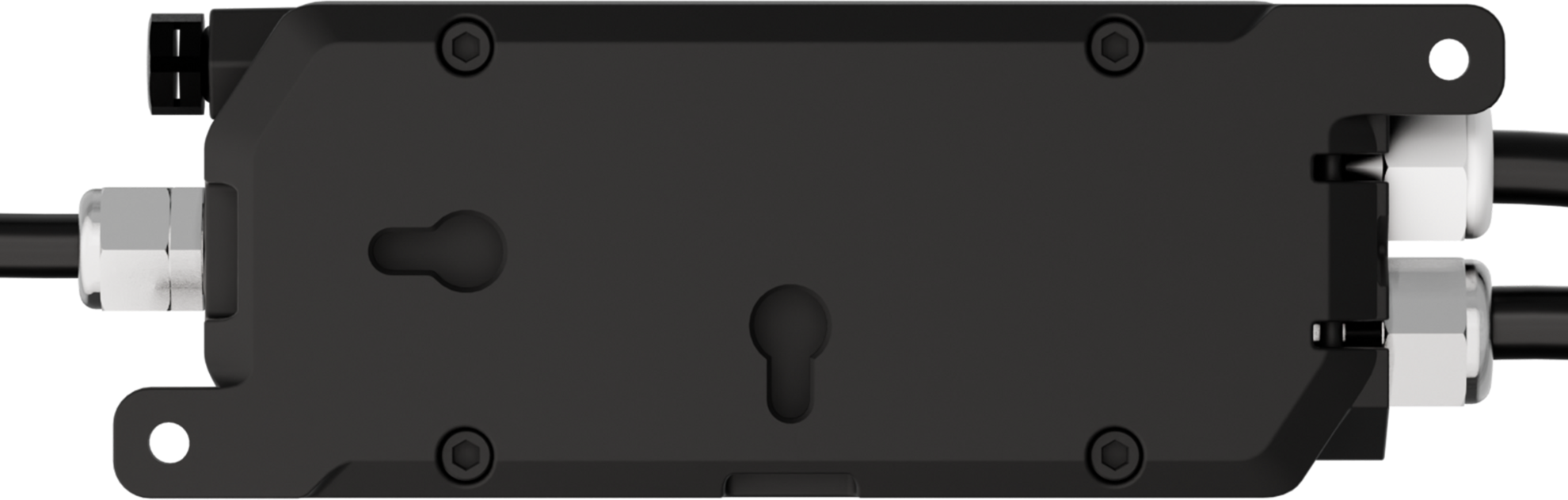

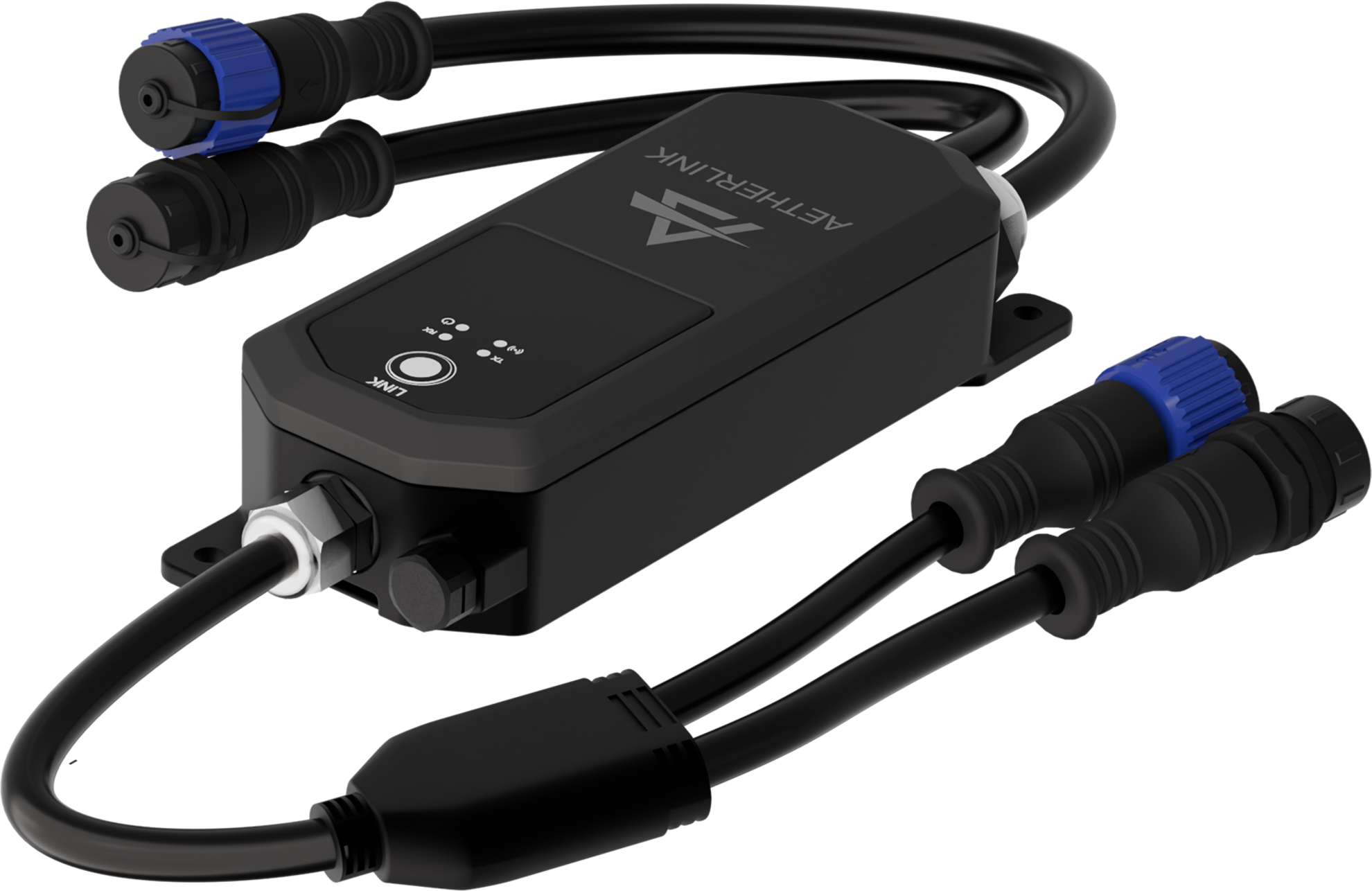

AETHERLINK, IP66, 1 Universe CRMX transceiver
IP66 rated 1 Universe CRMX wireless transceiver for permanent outdoor installation
The Aether Link is a versatile, IP66 rated single universe wireless CRMX transceiver, fully compatible with Lumen Radio CRMX as well as Wireless DMX G3 and G4S protocols.
Designed in a compact form factor, it features moulded IP67 cables that provide flexible power and signal management, making it ideal for permanent architectural and outdoor installations.
The Aether Link also offers a simple, intuitive user interface with status LEDs and a push button, allowing quick and easy configuration of wireless settings.
Main features:
Single universe wireless CRMX transceiver unit
Easy setup via one-button interface
IP66 rated for exterior installation
Power IN/Out and DMX In/Out through moulded IP67 cables
BODY
Body: weatherproof IP66 construction with die-cast aluminium alloy, scratch resistant paint C5M (as standard)
Body colour: black
CONTROL
Protocols: DMX512, RDM, CRMX
DMX channels: 512channel
Wireless Control: Included LumenRadio Timo Fx DMX/RDM receiver compatible with CRMX (Lumen Radio) and W-DMX (Wireless DMX)
RDM: RDM for remote monitoring and settings
Firmware upgrade: via DMX with UPBOXPRO (USB-DMX interface not included)
Other: Transmission range up to 80 meters in open field
ELECTRONICS
Operating temperature: -20° C / +45° C (-4° F / +113° F) Ta
ELECTRICAL
Mains power supply: 100-240V - 50/60Hz
Max power consumption: 2W
Standby power: 0,7 W
PHYSICAL
IP rating: IP66 for outdoor installations
Suspension and fixing: holes for fixing to surfaces
Signal connection: 20 cm, IP67 moulded IP signal IN/OUT connectors
Power connection: 15 cm, IP67 moulded IP power IN/OUT connectors
Dimensions (WxHxD): 154x33x54mm / 6.06''x1.3''x2.13''
Weight: 0,4kg / 0.88lbs
CERTIFICATIONS / APPROVALS
Certifications / Approvals: CE, RCM
BOX CONTENT
1 x AETHERLINK
1 x 0,3 meters 3G1mmq power cable (BARE END - IP connection adapter)
1 x 5p XLR - IP connection female adapter
1 x 5p XLR - IP connection male adapter
User Manual
