SMARTBAT IP - Battery LED projector ,Black

SMARTBAT IP - Battery LED projector ,Black

Name: SMARTBAT IP - Battery LED projector ,Black
Brand: Prolights
Price: 2.767,50 DKK
Availability: InStock

532070400

Battery LED projector, 4x8 W RGBW / FC, 15°, 12h, WiFi, IP54

Beskrivelse Specification Brand information Downloads

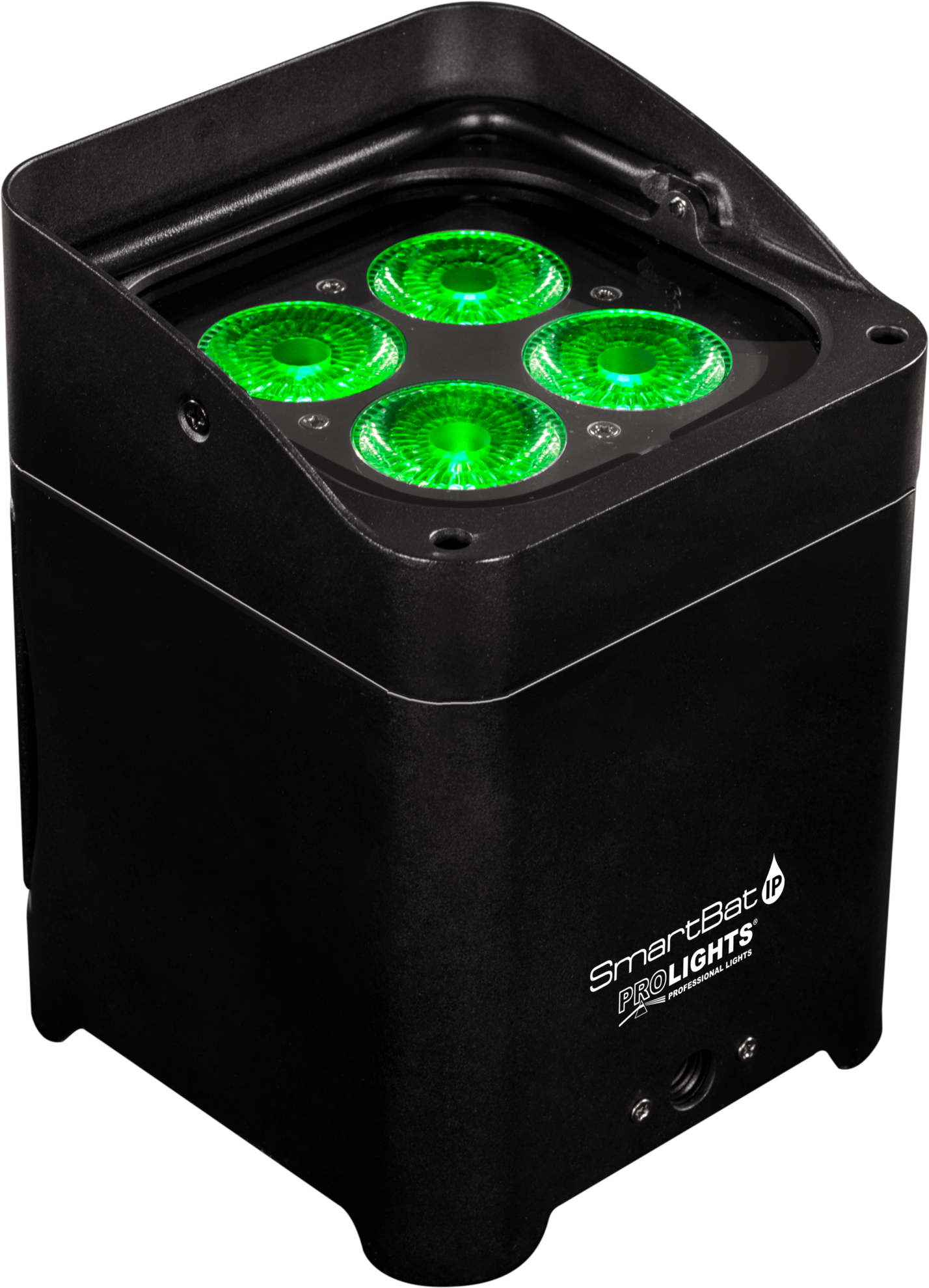

Smart BatIP is the new waterproof version of the highly popular Smart Bat, expanding the possible application of this versatile luminaire to outdoor venues or for architectural applications. Smart BatIP is equipped with a lithium battery pack and a built-in Wi-Fi module for cable-free operation.

The transmission of the DMX signal is through Wi-Fi, the transmission unit WIFIBOX is compatible with any DMX controller or through the mobile app SmartColors available for any Android or IOS device.

Technical Specifications

LIGHT SOURCE

Source: 4x8W RGBW LEDs
Lux: 980lx @3 m full
Source life expectancy: > 50.000 h

OPTICS

Beam angle: 15°
Field angle: 30°
Lens diameter: 42mm
Additional optics: 25° and 45° optional

COLOUR SYSTEM

Colour mixing: RGBW / FC
White presets: 3200 K ~ 10.000K
Colour wheel: virtual colour wheel with macros

DYNAMIC EFFECTS

Static mode: selection of static colour
Manual mode: manual adjustment of colour
Auto mode: built-in programs with execution speed adjustment

BODY

Tilt angle: ° adjustable foot support for tilt regulation (up to 20°)
Body: sturdy die-cast aluminium body
Body colour: black

CONTROL

Protocols: DMX512
DMX channels: 4 / 6 / 10channel
W-DMX: integrated, proprietary protocol compatible with WIFIBOX, WDBOX
Display: LED display user interface
Firmware upgrade: yes, via USB - DMX interface (UPBOX1) not included
IR: infrared sensor controlled by remote
Master/Slave: for synchronised operation of more units linked in a chain

ELECTRONICS

Dimmer: linear 0 ~ 100% electronic dimmer
Dimmer curves: 4 selectable dimming modes available
Strobe / shutter: 1 - 25 Hz, electronic
Operating temperature: 0° ~ +35°
LED Control: flicker free operation

ELECTRICAL

Mains power supply: 100-240V - 50/60Hz

BATTERY

Battery: 11,1V lithium
Estimated battery life in colour change mode up to: 12h
Estimated battery life in full-mode up to: 6h
Re-charge connection: power cable
Re-charge time: 5h/max
Battery status: shown on display

PHYSICAL

IP rating: 54
Cooling: passive cooling and fan-free
Suspension and fixing: M12 threaded insert for easy clamp installation
Power connection: IEC 10 A IN
Dimensions (WxHxD): 138x191x145mm
Weight: 3,6kg
